HL720 Vertical Measuring Inflatable Automatic Packaging Machine For Granular materials 5-30bags/min

HL720 Vertical Automatic Packaging MachineApplicationSuitable for measuring and packaging irregular block and granular materials, such as candy, puffed food, biscuits, roasted nuts, sugar, frozen food, milk powder, milk tea, starch, seasoning, etc.ModelHL720Bag SizeL 100-450mm W 150-350mmExternal di......

Send Inquiry

Product Description

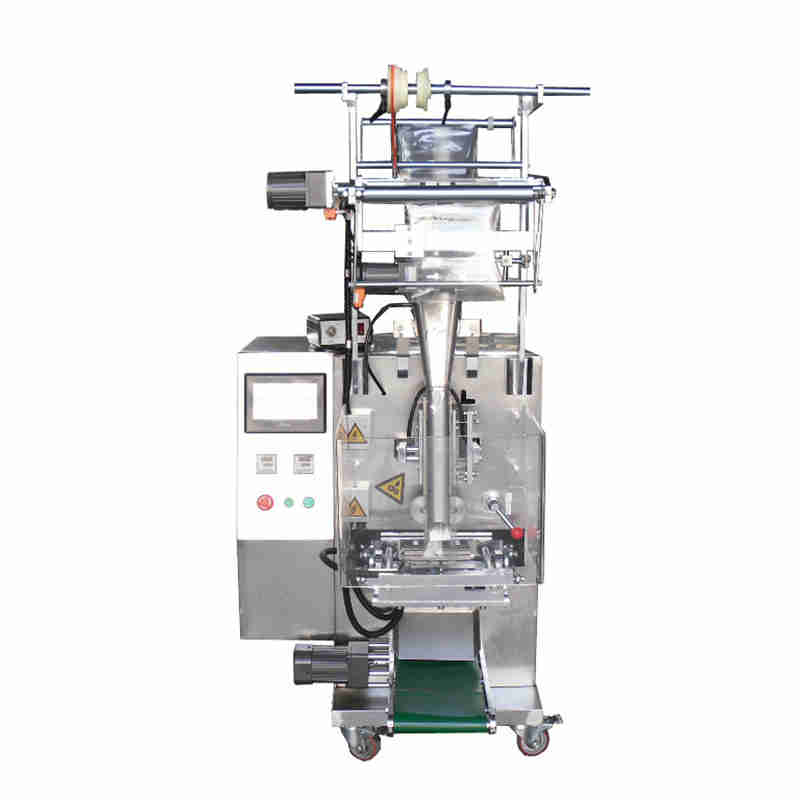

HL720 Vertical Automatic Packaging Machine

Application Suitable for measuring and packaging irregular block and granular materials, such as candy, puffed food, biscuits, roasted nuts, sugar, frozen food, milk powder, milk tea, starch, seasoning, etc.

Model	HL720
Bag Size	L 100-450mm W 150-350mm
External dimensions	L 1820 W 1400 H 2080mm
Packaging speed	5-30bags/min
Total power	AC220V, 50-60Hz, 4.75KW
Compressed air consumption	6-8kg/m2, 0.3m3/min
Whole machine weight	800Kg

optional devices

1.Continuous or multiple packages with short package cutting function

2. Hook hole function (can be used to drill round holes and various irregular holes)

3. Supporting discharge conveyor

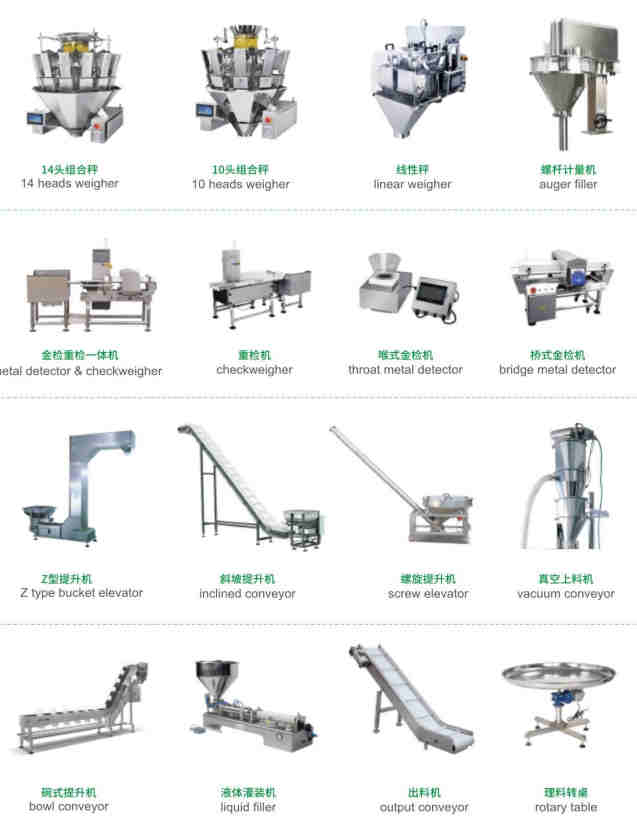

4. Various automatic or semi-automatic measuring and conveying mechanisms

5. Inflation or exhaust function

6. Compressed air system and nitrogen generator

Functional Features

1. Equipped with safety protection that meets the requirements of enterprise safety management 2. Adopting intelligent temperature controller for accurate temperature control; The packaging seal is aesthetically pleasing and smooth 3. Adopting PLC servo system, pneumatic control system, and ultra large display touch screen to form the driving control core; Maximized the control accuracy, reliability, and intelligence of the entire machine 4. This machine and measuring configuration can automatically complete the entire packaging process of measuring, feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, and automatically complete counting 5. The touch screen can store various packaging process parameters for different products, and can be used at any time without resetting when changing products 6. Equipped with a fault display system to assist in troubleshooting in a timely manner 7. Pillow shaped bags and hanging hole bags can be made according to customer needs 8. Single belt film transportation, fast and stable, with low friction and minimal loss 9. There are options for both full stainless steel models and carbon steel spray coating models 10. Some parts use imported engineering plastic bearings, which do not require refueling and reduce material pollution

A professional manufacturer that designs, manufactures, and sells vertical packaging machines and related supporting systems, gathering a group of professionals who have been engaged in automated packaging systems for more than 10 years. With a persistent pursuit of the packaging machine industry, we design and manufacture automated packaging systems with superior performance. The company is particularly focused on the research and manufacturing of vertical automatic measuring packaging machines and related conveying systems. With years of accumulated research and development strength and rich practical experience, we have launched the most excellent performance products in China, bringing customers higher efficiency, better stability, and more functions. Coupled with reasonable prices and more professional and comprehensive pre-sales and after-sales services, in a short period of time, our
enterprise and products have been recognized and chosen by many well-known enterprises in various industries.

The company's current main products Vertical automatic packaging machine, box packing and sealing machine, conveying machinery, related functional non-standard machinery, agency of domestic and foreign brand measuring equipment, post packaging and sorting equipment, various online detection equipment, etc. The company's products are mainly positioned for excellent customers at home and abroad, with a special focus on industries such as puffing, potato chips, jelly, biscuits, candies, dried fruits, candied fruits, stir fried goods, frozen foods, laundry detergent, sugar, seasonings, agricultural and sideline products, chemical products, etc. We have always won the trust of domestic and foreign customers with excellent quality and thoughtful service. Sharing and winning with you is the persistent pursuit of all colleagues at Dongguan Hezhen Packaging Machinery Co., Ltd.
