High Speed CNC Lathe 3 Axis VMC850P Machine Tool Vertical Machining Center

VMC850P High Rigidity Good Accuracy Vertical Machining CenterThe VMC850P vertical machining center is a CNC machining machine tool with three coordinate linkage and superior cost-effectiveness. It is mainly equipped with various CNC systems from FANUC, KND, and GSK. It can achieve machining such as ......

Send Inquiry

Product Description

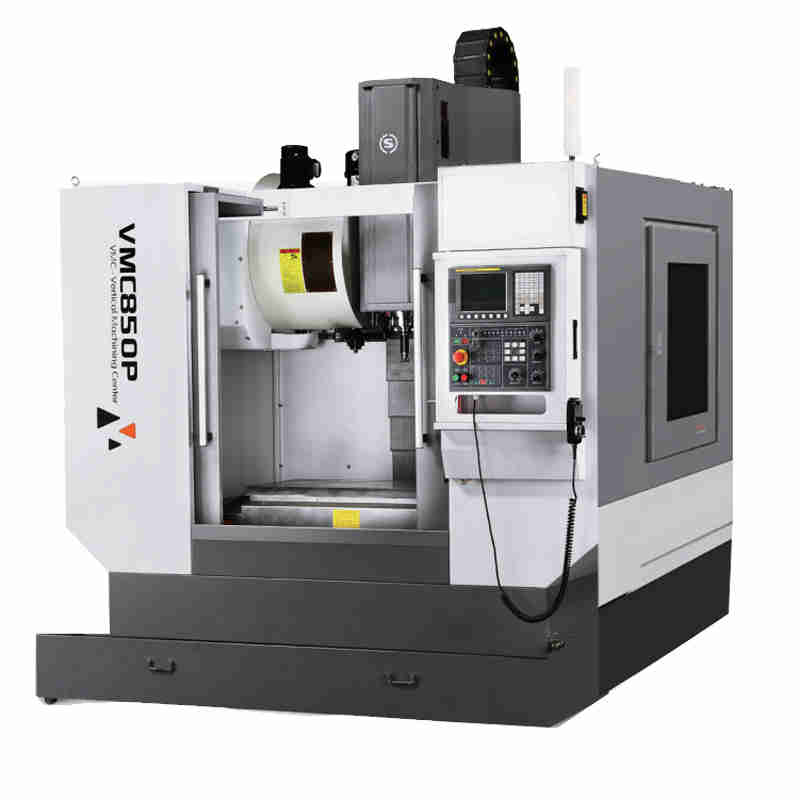

VMC850P High Rigidity Good Accuracy Vertical Machining Center

The VMC850P vertical machining center is a CNC machining machine tool with three coordinate linkage and superior cost-effectiveness. It is mainly equipped with various CNC systems from FANUC, KND, and GSK. It can achieve machining such as drilling, expanding, reaming, spot facing, tapping, milling, boring, etc., suitable for parts with high precision and productivity requirements. It can completely eliminate certain special fixtures and marking processes, greatly reducing the labor intensity of workers. This machine tool is suitable for drilling, milling, boring, tapping and other processing of small and medium-sized discs, plates, shells, valve bodies, cams and other parts with high hole spacing accuracy in industries such as automobiles, motorcycles, aerospace, , instruments, instruments, electronics, molds, etc. The processing is programmed and the production cycle is shortened.

Item	Unit	VMC850P	VMC1000P	VMC1060B	VMC1160B
Worktable
Worktable size	mm	500x1000	520x1200	610×1200	610×1300
T-slot (N×W×D)	mm	5x18x100	5x18x100	5x18x100	5x18x100
Travel
Axis travel (X/Y/Z)	mm	850/500/550	1000/520/535	1000/620/630	1100/610/630
Machining range
Distance from spindle center to column front	mm	582	582	667	667
Distance from spindle end to work table	mm	100~650	80~615	110~740	110~740
Machine dimension
L×W×H	mm	2460x2355x2860	2600x2355x2860	2850x2500x2820	3000x2500x2750
Machine weight
Max. load bearing of worktable	kg	500	500	800	1000
Machine weight	kg	5500	5800	6800	7000
Spindle
Spindle hole taper		BT40	BT40	BT40	BT40
Spindle power	Kw	11/15	11/15	11/15	11/15
Max. spindle speed	rpm	8000/10000	8000/10000	8000	8000
Feed
Max. feed speed	mm/min	10000	10000	10000	10000
Rapid feed speed (X/Y/Z)	m/min	48/48/32	48/48/32	36/36/30	36/36/30
Tool Magazine
Tool magazine capacity	T	24	24	24	24
Maximum allowable length of cutter	mm	300	300	300	300
Tool change time(T-T)	s	2.5	2.5	2.5	2.5
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.008	0.008	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.005	0.005	0.005	0.005

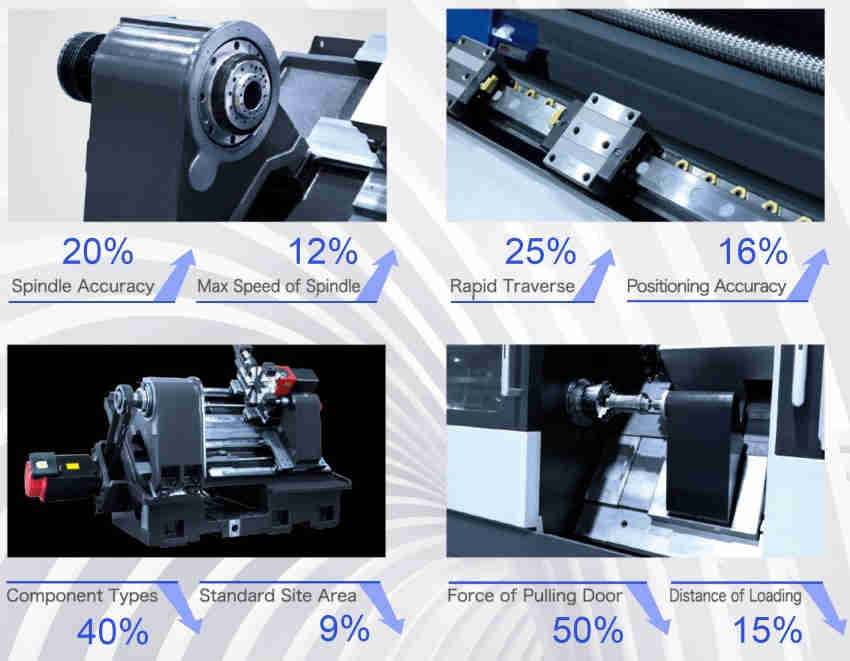

Machine structure :

---The contact ratio between spindle case and column increased to ensure spindle rigidity.
---1100mm wide machine body span and optimum supporting design can meet with fast feed of X and Y axis.
---Big size of "pyramid" column and with closed inner cavity to ensure low center but high rigidity support of Z axis.

Preloaded and double anchored ball screw :

---Servo motor directly coupled ball screw.
---All the ball screws, linear guideway, bearings are well lubricated in time and ration.
---Y/Z axis adopt 45mm linear guideway while X axis adopts 35mm which make the rapid feed speed reach 48/48/32m/min.
---In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews. Also 5 rank high precision angular contacted bearing installed aside the ball screw and make pre-tension.

Shoulder carrying tool magazine :

Shoulder carrying tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum deformation when column loaded with tool magazine weight.

Large flow coolant fluid :

---Labyrinth style cover design to protect machine from scraps and cutting fluid.
----Standard equipped with inner side flushing system to remove scraps efficiently.

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments*Production equipment*Gear hob*Insert gear hob*Gear hob*Worm gear hob*Involute spline hob*Triangular spline hob rectangular spline hob*Sprocket roller cutter*Circular arc gear hob*Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

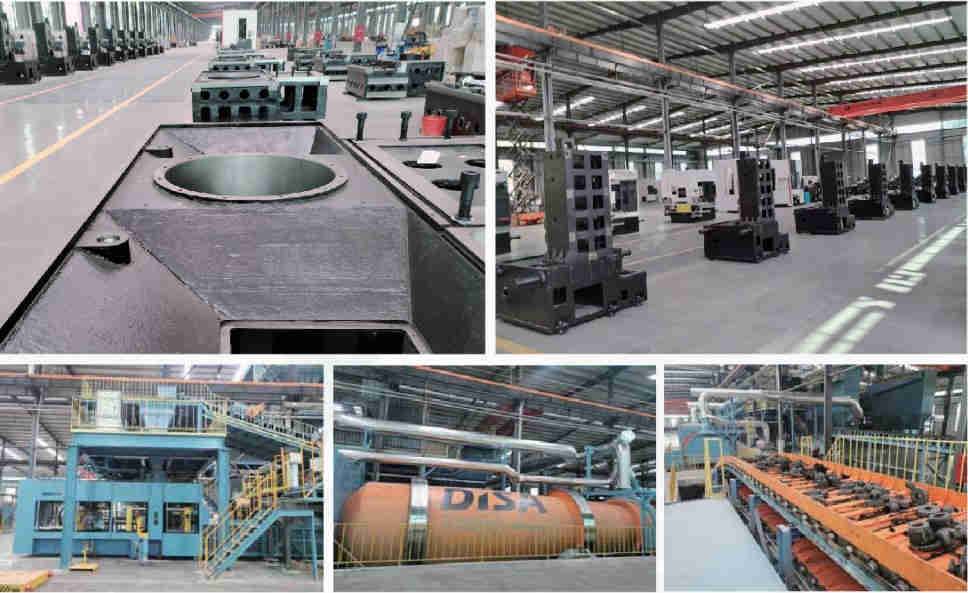

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

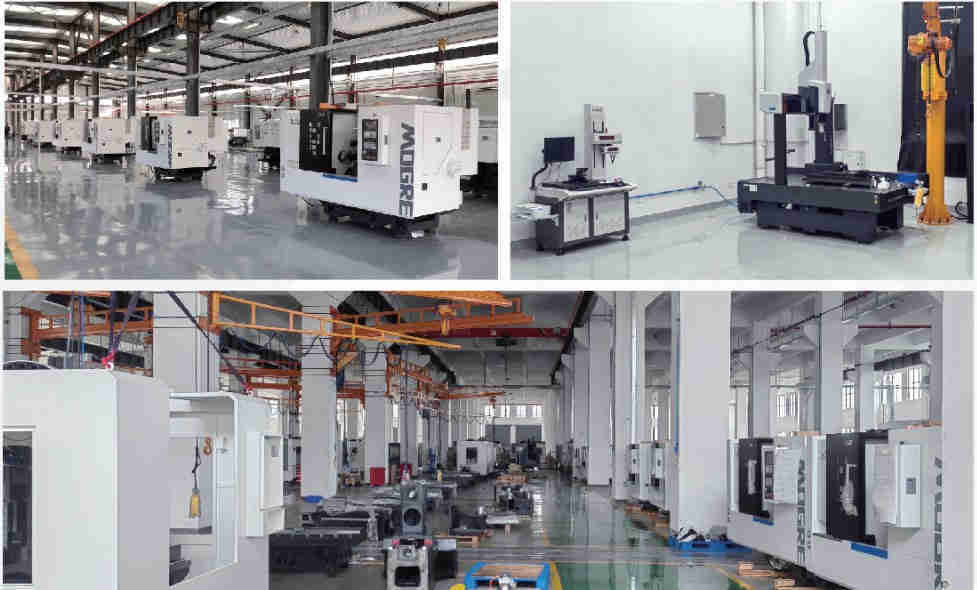

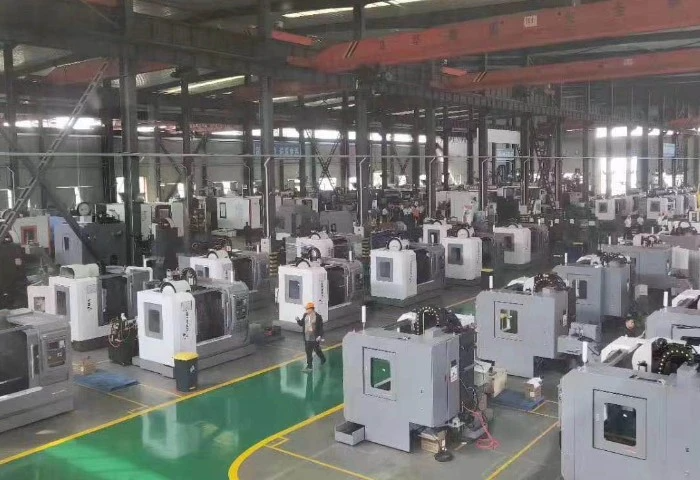

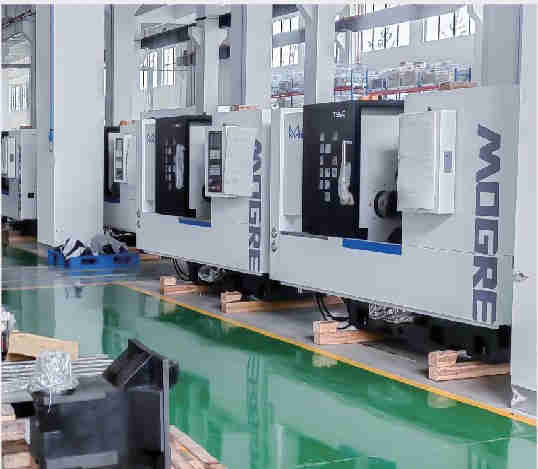

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
