High Quality 3500lbs Idler Trailer Axle Shaft Spring Axles With 5 Stud Hub Drum

Product FeaturesThis trailer axle can be used for freight trailers, Lowboy trailers, multi-purpose trailers, ship trailers, barbecue pit trailers, horse trailers, cow trailers, dump trailers, car trailers, customized trailers, etc.Hub Face89"Spring center74"Capacity Per Axle (LBS)3500lbsHu......

Send Inquiry

Product Description

Product Features

This trailer axle can be used for freight trailers, Lowboy trailers, multi-purpose trailers, ship trailers, barbecue pit trailers, horse trailers, cow trailers, dump trailers, car trailers, customized trailers, etc.

Hub Face	89"
Spring center	74"
Capacity Per Axle (LBS)	3500lbs
Hubs/drums	5 Stud Hub Drum
PCD	114.3mm
Size	1/2" UNF
Tube	2-3/8" hollow tube,10inch electric brake and drum

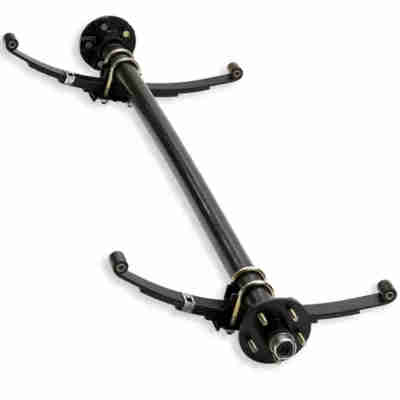

Characteristics of Trailer Spring Axles The axle beam is used as part of the trailer suspension to tow loads. Perfect for replacing old or bent axles on trailers Made of high-strength steel Suspension axle design: The spring pad is welded to the lower side of the axle and used for installing plate springs. The spring pad is pre welded to the trailer axle for your convenience. 5 lug wheel hub drums, 10 "x 2" electric brakes, bearings, and seals are assembled on the axle, pre lubricated, fully assembled, and easy to install on the trailer. Limited 2-year warranty Hub surface: It refers to the length of the axle measured from the base of one wheel stud to the base of the other wheel stud on the other side of the axle (When the hub is installed on the crossbeam). Spring center: It is the approximate width of the trailer. It is a measurement from the center of the spring seat on one side of the axle to the center of the spring seat on the other side. This axle beam is welded with a spring seat.

How to maintain trailer axles for optimal performance Regularly inspect the axles It is important to regularly inspect the axles of a car. This will help ensure that they are in good condition and able to support the weight of the trailer appropriately. The axle is responsible for carrying the weight of the trailer and transmitting power to the wheels. If their condition is not good, it may lead to handling and braking problems.

Keep the area around the axle clean and free of debris

If you want to extend the service life of the trailer axle, it is important to keep the area around the axle clean and free of debris. This will help prevent corrosion and other damage that may occur when dust accumulates on the axle. To clean the area around the trailer axle, simply use a hose to remove any accumulated dirt. You can also use pressure washers to remove any stubborn buildup

Lubricate the hub bearings as needed If you have a trailer with axles, it is important to maintain bearing lubrication. This will help extend the service life of the bearings and maintain smooth operation of the trailer axles. Regularly inspect suspension components for wear By regularly inspecting the suspension components of the trailer axle, you can determine its wear condition before it becomes a serious problem. When checking the suspension components of a trailer, the following points need to be noted. Firstly, check the spring for any signs of wear or corrosion. Then, ensure that all bolts and nuts are tightened and in good condition. Replace worn parts immediately. The following are some signs indicating that it is time to replace the trailer axle: 1. Your trailer is starting to sag in the middle. This is a sign of wear on the axle bearings. When you pull the trailer, you begin to feel more vibration. This may be a sign of damage or wear to the axle bearings or wheel hub components. 3. You noticed uneven wear on your tires. This may be caused by positioning issues, which can usually be resolved by replacing the axle assembly.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
