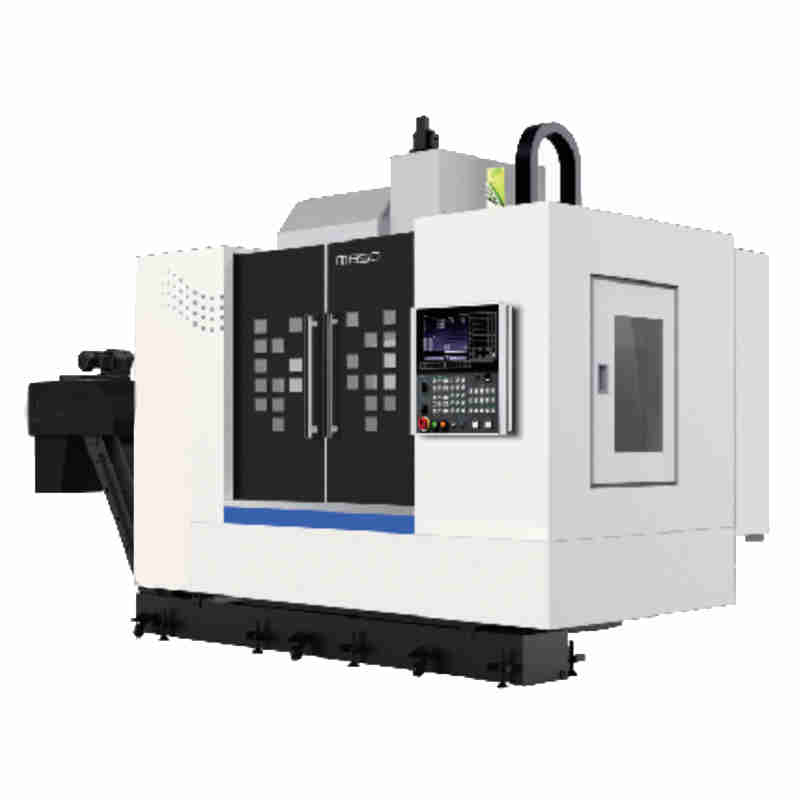

High Precision CNC Lathe Milling Machine Horizontal Machining Center Metal Processing Milling CNC Lathe Horizontal Center

Raydafon Group's High Precision CNC Lathe Milling Machine Horizontal Machining Center excels in metal processing with unmatched accuracy, ideal for manufacturers seeking efficiency and reliability, delivering superior performance and lasting value.

Send Inquiry

Product Description

TABLE	Worktable size	mm	800*800
		Workpiece size range	mm	φ1110*1220
		Max load of worktable	kg	1300
		X/Y/Z axis travel	mm	1050/900/900
SPINDLE	Spindle speed	r/min	8000(6000/12000 Optional)
		Spindle taper		NO.50(7:24)
		Spindle drive mode		Motorized spindle
		Spindle power	kw	18.5
		Spindle maximum torque	nm	24
MOVEMENT	X/Y/Z cutting speed	m/min	20
MOVEMENT	MOVEMENT	X/Y/Z feeding speed	m/min	54
ATC SYSTEM	Tool magazine capacity		40(60/80/120 Optional)
		Tool shank type		BT50-45°
		Max. tool weight	kg	25
		Max. tool diameter (w/o adjacent tools)	mm	φ115
		Max.tool length	mm	500
		Time of tool change (T-T)	s	2
ACCURACY	X/Y/Z axis positioning accuracy	mm	0.01
ACCURACY		X/Y/Z axis repeatability accuracy	mm	0.006
CONTROL SYSTEM	Controller		GSK/SIEMENS/FANUC
