High Efficiency Liquid Packing Machine Plastic Film Wrapping Beef Tomato Sauce Gluing Filling Functions Food Packaging

Big Volume Bag Liquid Packing MachineThis machine is suitable for automatic packacing of various.iauids.pastes in food.hemical.daly chemica.oharmaceutical and other industries, such as: tomato sauce.beef sauce.hot pot ingredients.sesame sauce.noodle sauce.jam.butter.cooking oil.Waterproof paint liqu......

Send Inquiry

Product Description

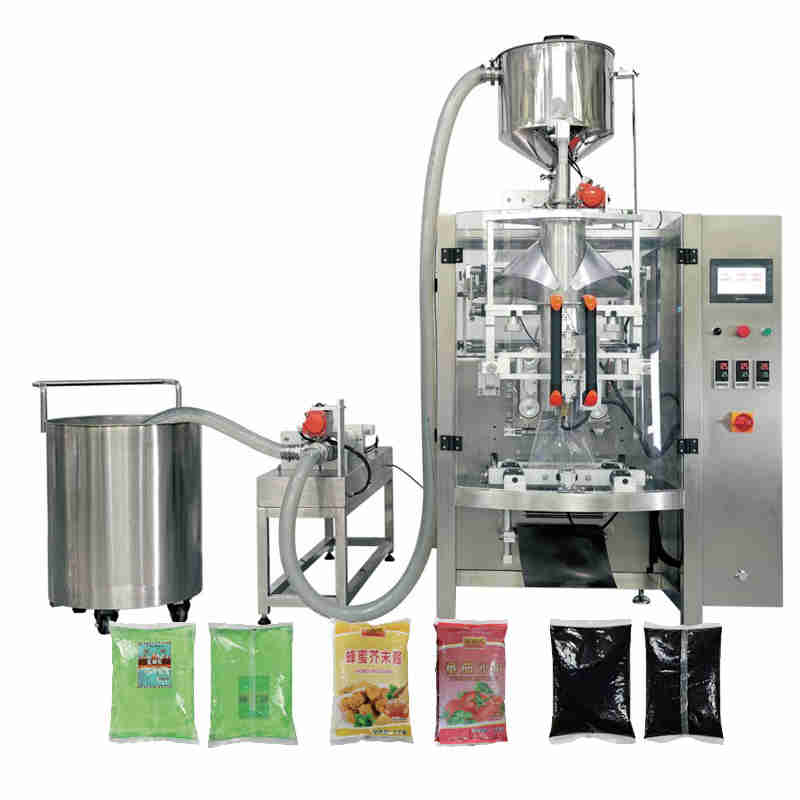

Big Volume Bag Liquid Packing Machine

This machine is suitable for automatic packacing of various.iauids.pastes in food.hemical.daly chemica.oharmaceutical and other industries, such as: tomato sauce.beef sauce.hot pot ingredients.sesame sauce.noodle sauce.jam.butter.cooking oil.Waterproof paint liquid.etc.

Equipment performance

1.Chinese and English touch screen display, intuitive and simple operation

2.Plc computer control system, the operation is more stable, and any parameter can be adjusted without stopping the machine

3.Ten groups of parameters can be stored, and the replacement of varieties is more accurate

4.The servo motor is used to pull and touch, and the positioning is more accurate
5.Independent temperature control system, the accuracy can reach ±1°C

6.The temperature of horizontal and vertical sealing can be controlled independently, which can be welapplied to various packaging materials such as composite film and aluminum film.

7.The packaging styles are diversified, such as back sealing,gusseting,connected bag,punching,etc.

8.The production of bag making,sealing,packaging and date printing is completed at one time.

9.The working environment is clean and the noise is low .

Model	420YB	520YB	620YB
Dose range	Piston pump,Rotor pump,Liquid pump			screw feeder	pump/rotor pump/piston pump
Measuring range	200-2000ml	200-3000ml	500-5000ml
Bag size	W90-200mm L80-300mm	W120-250mm L50-350mm	W130-300mm L50-400mm
Speed	20-30bag/min	15-30bag/min	10-20bag/min
Bag type	Back seal /Side Seal
Control system	PLC+Touch Screen
Weight	900kg	1000kg	1520kg
Voltage	380V 50Hz 3.5kw	380V 50Hz 4.0kw	380V 50Hz 4.5kw
Dimension	L2600mW1700mH2000m	L2750mW1800mH2100m	L2900mW1950mH2300m
Requirements	PE laminated film, such as PET/AL/PEPET/PENYlon/PEect Thickness:0.08~0.12mm(3 or 4 lavers): inner core diameter: 75mm Quter roll diameter: 350mm

Production Line	Multi-Lanes Granule Paking Machine	Small Packing Series	High Speed Powder Parking Machine
			Multi-Lanes Powder Paking Machine		High Speed Liquid Packing Machine
			Multi-Lanes Liquid Paking Machine		High Speed Granule Packing Machine
			Full Automatic Inner and Outer Bag Production Line		Granule/Powder/Liquid Packing Machine
			Full Automatic Multi-row Bagging Carton Parking And Carton Wrapping Film Machine		Full Auto Ulitrasonic Sealing&Packing Machine
		Full Automatic Granule/Powder/Liquid Two-In-One Cartoning Production Line	Give The Bag Series	8 Station Vacuum Premade Bags Weighing And Packing Machine
		Full Automatic Multi Column Bag Parking Orderly Soring,Boxing And Carton Parking Production Line	Give The Bag Series		Horizontal Premade Bag Powder Packing Machine
Shaped Series	lrregular Sachet Back Seal Packing Machine	Pillow Series	Horizontal Packing Machine(Upper/Down Film)
		lrregular Sachet Back-Side Sealing Machine	Tea Bag Serise	Filter Paper Tea Bag Packing Machine
		Full Punch Irregular Bag Granule/Powder /Liquid Seal Packing Machine			Triangular Mag With Inner And Outer Bag PackingMachine
Big Pillow Packing Series	Vacuum Bag Liquid Packing Machine			Drip Coffee Packing Machine
		Vacuum Bag Granule Packing Machine	Point Series	Point Packing Machine
		Big Model Powder Packing Machine	Canned Labeling Series	Automatic Cups Filling Sealing Machine
		Big Volume Bag Liquid Packing Machine	Give The Bag Series	8 Heads Filler Servo Control Filling Machine
		Combination weigher packing machine			Round Bottle Labeling Machine
Coupling Bag Series	Double Lane(Side by Side)Of Granule/Liquid Packing Machine			Multi-Head Following Capping Machine Vibrating Disc Capping Machine
Coupling Bag Series		Three Line bags Of Liquid Machines

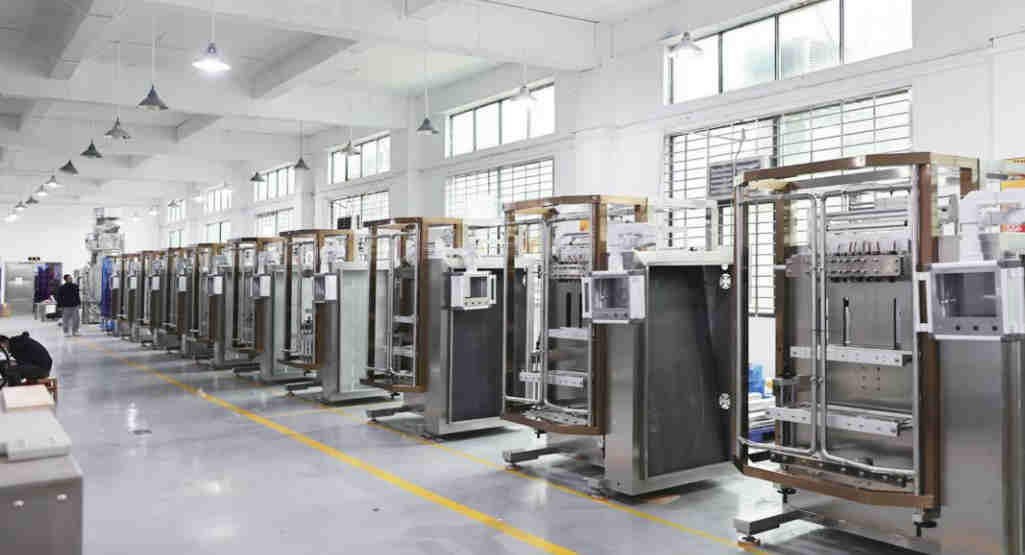

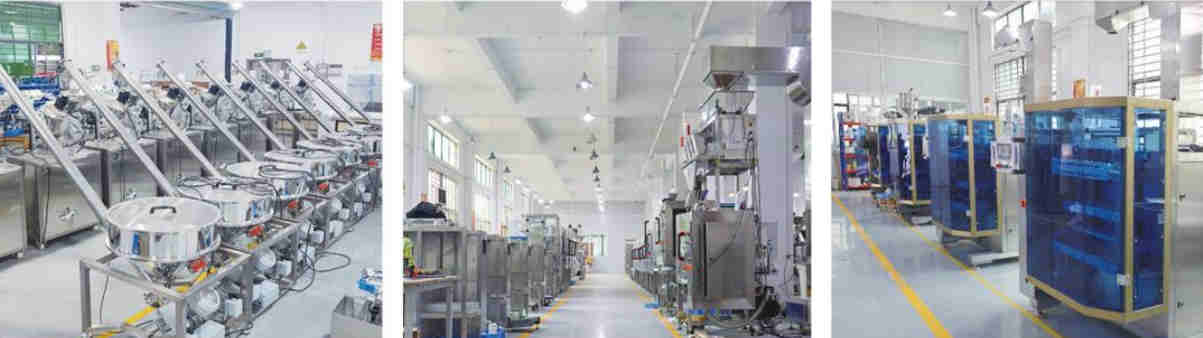

Ever power Packaging Equipment Co., Ltd. is a company that integrates research and development An enterprise that integrates manufacturing and sales. The company is located in Panyu, Guangzhou Building B35, Huachuang Industrial Park, Shiji Town, District. Covering an area of approximately 6000 square meters, deep With over 20 years of experience in the packaging equipment industry, we can directly design according to customer needs a modern enterprise specializing in the design and manufacturing of professional packaging equipment.

The company's independently developed multi column liquid, particle, and powder packaging machine. liquid Body and particle vacuum packaging machine, ultra high speed packaging machine, ultrasonic non-woven Packaging equipment such as cloth packaging machines are in a leading position.

Our company's packaging equipment is widely used in chemical, daily chemical, food, and medical industries Industries such as pharmaceuticals and health products. Currently, CE certification and TUV certification have been obtained SGS certification and over 20 national patents.

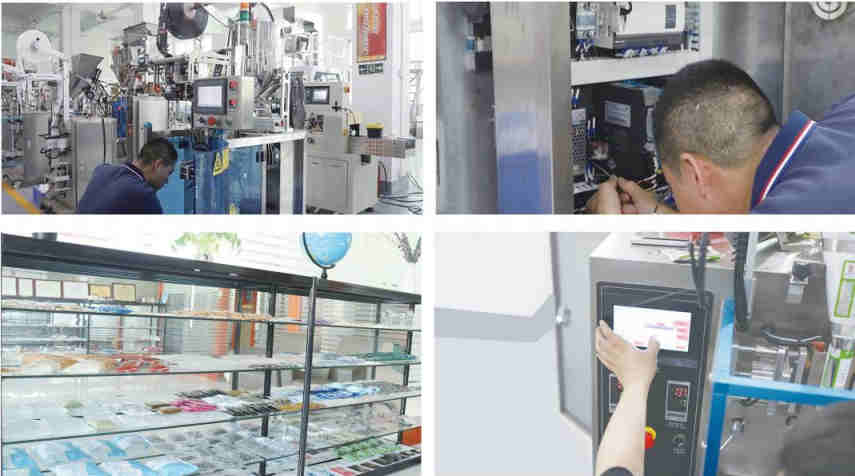

The company has multiple high-end CNC machines, which are regularly organized based on structural principles and equipment Training on planning schemes, market feedback, etc., to enhance the comprehensive skills of production technicians Strength enables each technician to accurately familiarize themselves with the machining process of each component The requirement for processing quality has led all employees to respect production and quality Respect the good situation of the product and comprehensively improve the comprehensive efficiency of production.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
