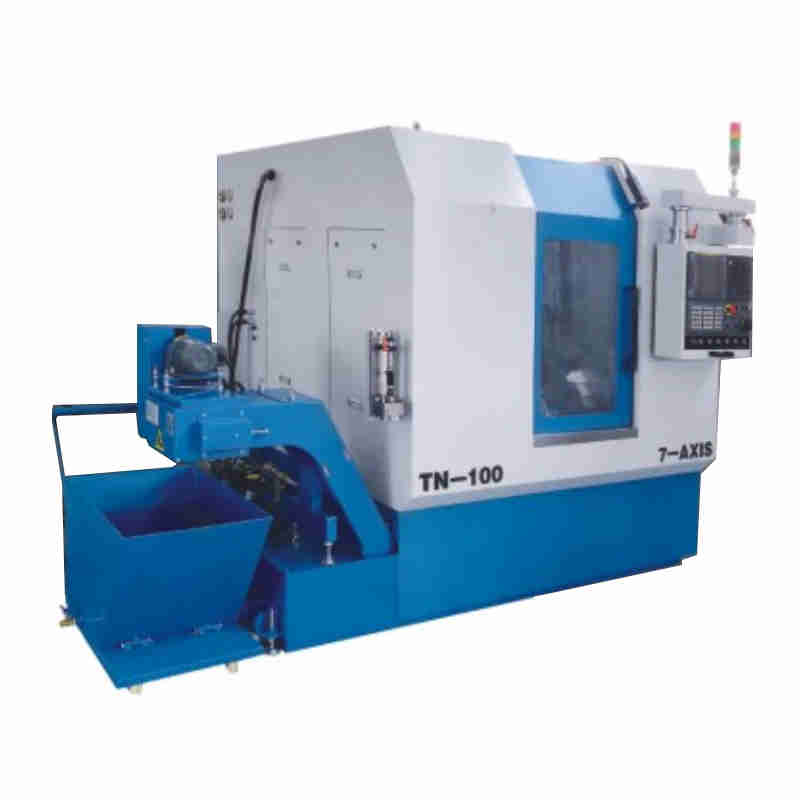

Guaranteed Quality TN-100 30 KVA CNC High Speed Hobbing Machine With FANUC Oi-MF Plus System

A CNC high-speed hobbing machine is a type of machine tool used for the production of gears through the process of hobbing.Hobbing is a gear cutting process that involves using a specialized cutting tool called a hob to generate the gear teeth.Applicable scopeCNC high-speed hobbing machines, in gene......

Send Inquiry

Product Description

A CNC high-speed hobbing machine is a type of machine tool used for the production of gears through the process of hobbing.
Hobbing is a gear cutting process that involves using a specialized cutting tool called a hob to generate the gear teeth.
Applicable scope CNC high-speed hobbing machines, in general, find application in various industries that require the production of gears.

Workpiece	TN-100			TN-150
Max. workpiece (OD.x Mod.)	Φ100mm xM3		Φ150mm xM4
Max.helix angel	+65°1-90°		±45°
Table diameter	Φ90mm		Φ150mm
Hob
Taper of spindle nose	BT#30		BT#40
Max.Hob Size (OD.X L)	Φ65mm x 100mm“1		Φ120mm x200mm
Max. hob shift travel	100mm		180mm
Motion parameters
Hob spindle ( B axis)	4000rpm/6000rpm*2	S1=22Nm S3-54Nm	2500rpm	S1=115Nm S3=143Nm
Table rotation ( C axis )	1000rpm/2000rpm*3	Direct drive 60Nm	600rpm	Direct drive 600Nm
Radial Feed ( Xaxis )	Max.6500mm/min	80mm (15-95mm)	Max.12000mm/min	180mm(15-195mm)
Tangential Feed ( Y axis )	Max.3000mm/min	100mm (50-150mm)	Max.4000mm/min	180mm(0-180mm)
Axial Feed(Zaxis)	Max.10000mm/min	300(80-380mm)	Max.12000mm/min	235mm(1650-400mm)
Helix angel ( A axis ]	Max.720deg/min	+65°1-90	Max.720deg/min	±45°
Hyd. tailstock ( U axis)	Max.10000mm/min	250(130-380)	Max.6000mm/min	250(130-380)
Machine specifications
Main Power	30KVA		30KVA
Control system	FANUC Oi-MF PIus		FANUC Oi-MF PIus
(L x W x H) Floor space	3970x2760x2380mm (including peripheral layout)		3600x 3200 x2480mm (including peripheral layout)
Weight ( Approx.)	5.0ton		8.0ton

*1. The outer diameter of the milling cutter can reach up to 100mm *2. 6000rpm is an optional version *3. 4000rpm is an optional version

CNC machines

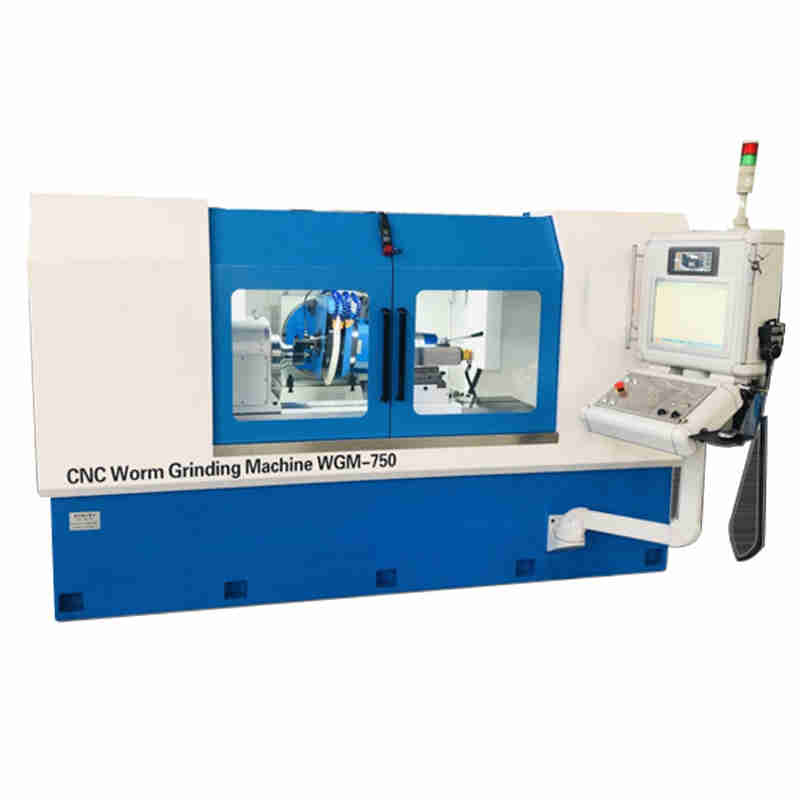

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.

For more models or customization, please click here!
