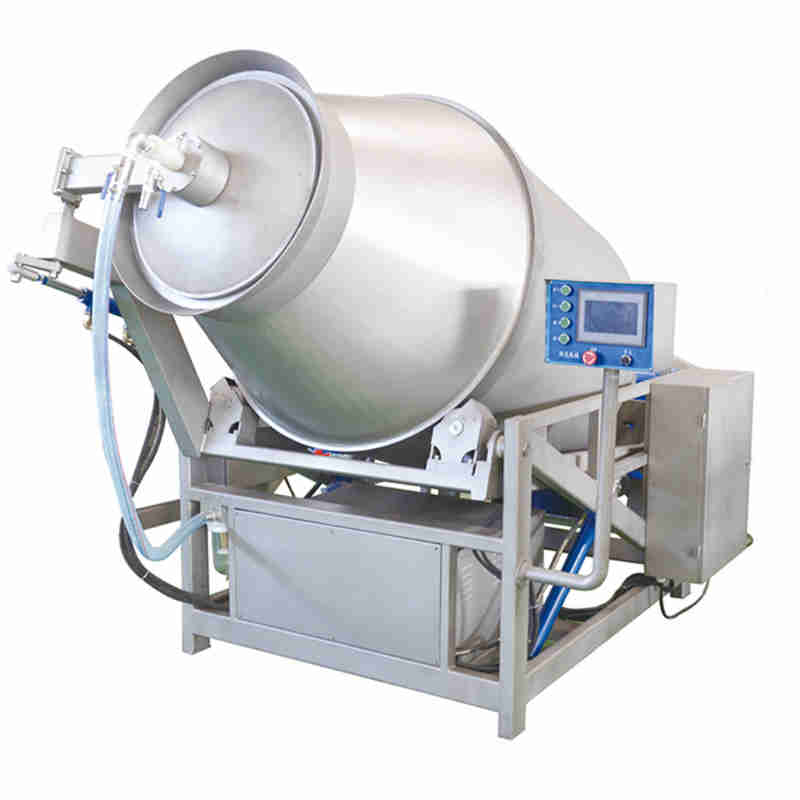

GR Series Vacuum Tumbler Series for Stir Marinate

Title goes here.The blades are uniquely designed, with forward rotation, rolling, beating and reverse rotation for massage. Vacuum suction,reverse discharge, and breathing rolling make the raw materials alternately in vacuum and normal pressure during rolling, whichcan effectively shorten the rollin......

Send Inquiry

Product Description

Title goes here.

The blades are uniquely designed, with forward rotation, rolling, beating and reverse rotation for massage.

Vacuum suction,
reverse discharge, and breathing rolling make the raw materials alternately in vacuum and normal pressure during rolling, which
can effectively shorten the rolling time

The large-diameter powder filling port can easily add related auxiliary materials and
other additives.

The computer-controlled rolling machine can control forward, reverse, intermittent, inflation, speed, vacuum, and
normal pressure according to customer needs and can be freely combined; 100 process formulas can be stored.

Product description

The vacuum rolling machine uses the principle of physical impact to make the meat flip up and down in the drum under the vacuum state, collide with each other, beat, and achieve massage and pickling effects. The vacuum rolling machine can make the meat absorb the pickle evenly, improve the binding force of the meat and the elasticity of the product; improve the taste and cross-sectional effect of the product; enhance water retention, increase the yield rate; and improve the internal structure of the product. In addition to the characteristics of the vacuum rolling machine, the new generation of fully automatic vacuum rolling machine also has the functions of computer control and frequency conversion technology. The update adds a remote control operating system, which makes the machine safer, more convenient, more energy-saving and efficient. The whole machine is made of stainless steel, with a compact structure. Both ends of the drum adopt a spinning cap structure, which maximizes the beating space in the drum, making the rolling product effect uniform, low noise, reliable performance, easy operation, and more efficient.

T	Dimension(mm)	Volume	Production capacity(kg)	Motor Power	Vacuum Pump Power	Revolving speed(rpm)	Weight
GR20	675x470x580	20	10	10	0.12	6/12	30
GR50	1300x860x940	50	50	20	0.55			200
GR100	1370x860x940	100	100	20-50					220
GR200	1300x915x1265	200	200	50-100					285
GR500	1580x1115x1530	500	500	200-300	1.1			300
GR1000	2190x1300x1720	1000	1000	400-600					730
GR1600	2160x1480x1811	1600	1600	800-1000			1.		1242
GR1700	3000x1630x2300	1700	1700	800-1000	3			1300
GR2500	2695x1745x2130	2500	2500	1200-1400	4			1598
GR3500	2750x1945x2300	3500	3500	1600-1800	4				1794

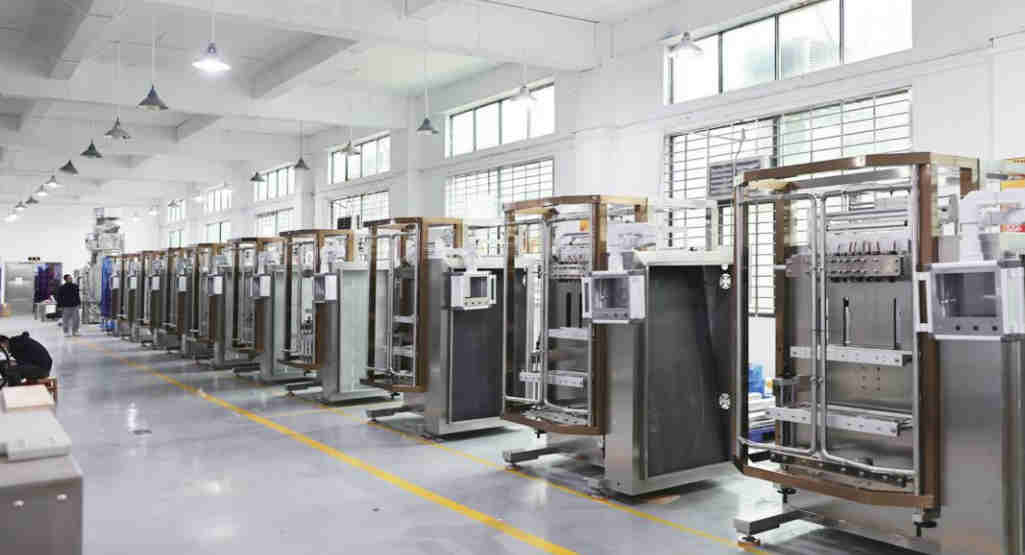

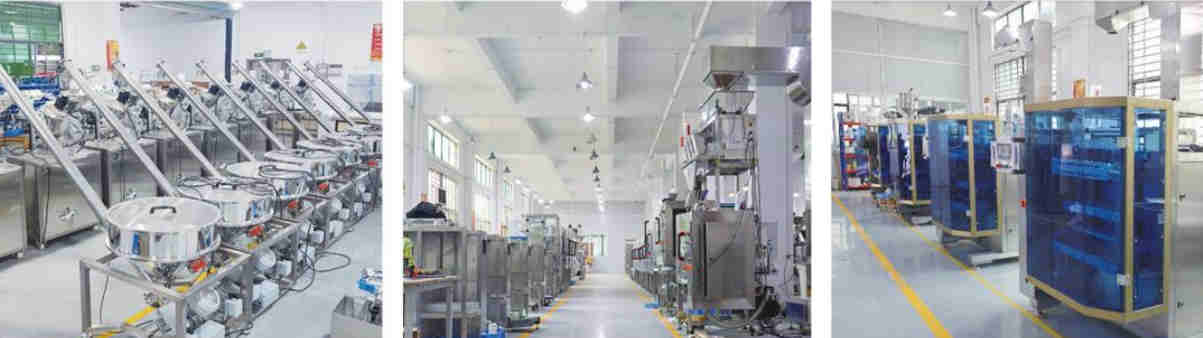

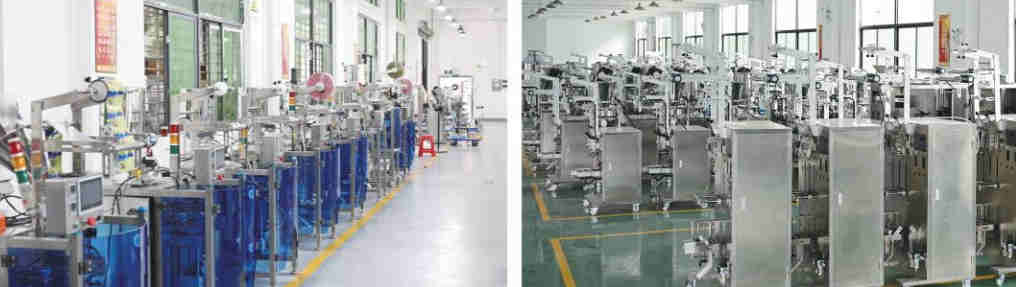

The company has excellent basic processing equipment and has multiple CNC machining centers. In combination with market needs, it continuously develops and manufactures high-end equipment. Its main products include vacuum quantitative filling machines, electric aluminum wire punching machines, electric punching machines, high-speed knotting and hanging sausage machines, automatic wire tying machines, frozen meat cutting machines, frozen meat grinders, brine injection machines, high-speed variable frequency chopping and mixing machines, vacuum tumbling machines, vacuum mixers, fully automatic smoking furnaces and other series of varieties. The company always pays attention to international advanced process technology. Electrical appliances, bearings, vacuum pumps and other components are imported products, and all core components are made by machining centers. After careful research and development and design by the team, it has reached international standards.
