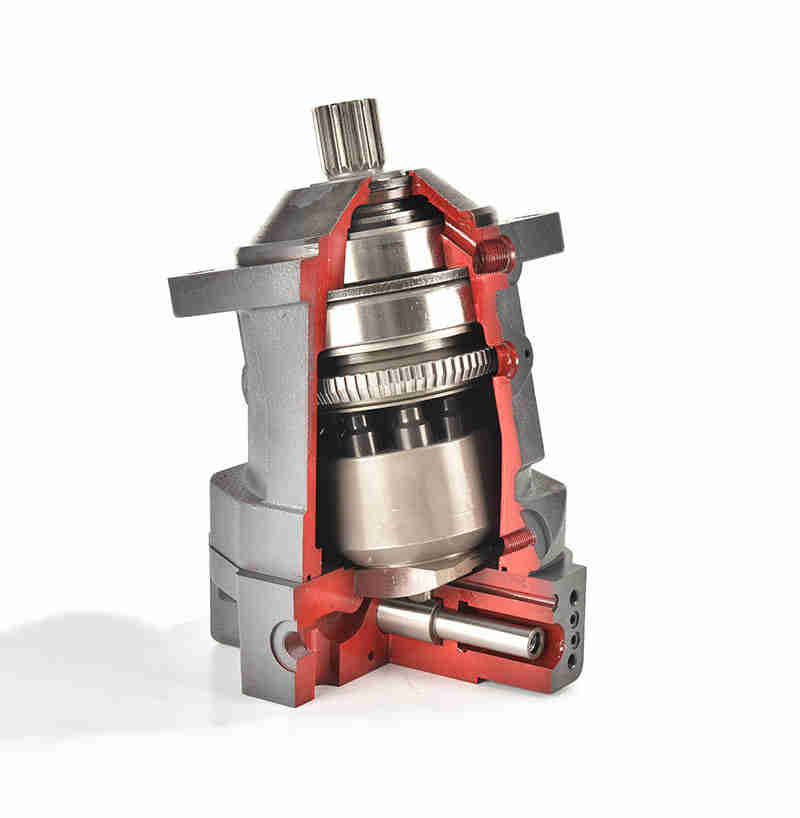

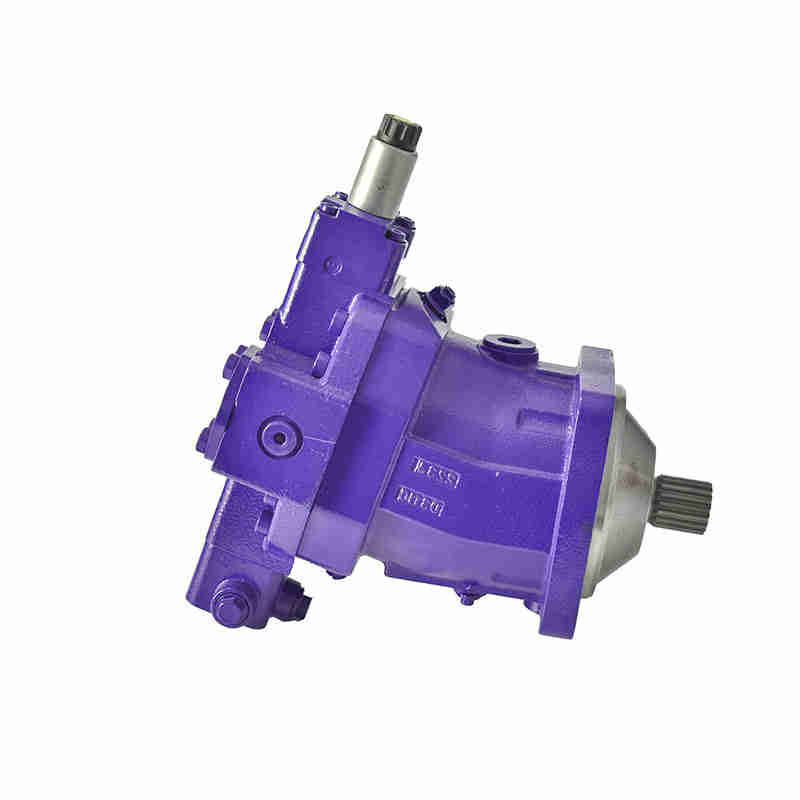

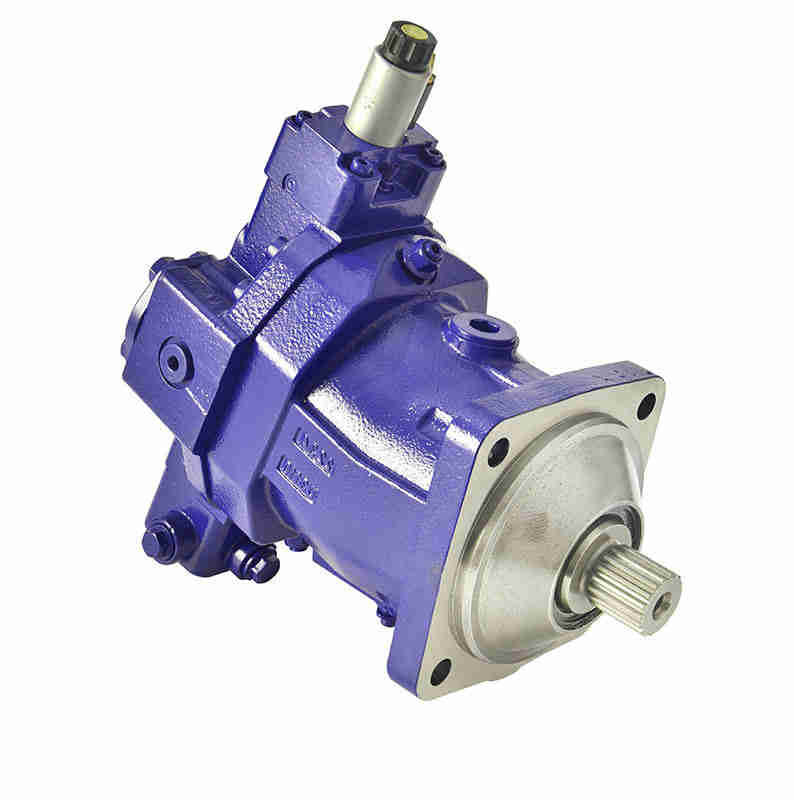

G6VM Series Inclined Axis Axial Piston Variable Displacement Motor Hydraulic Motor for Walking Machinery and Industrial Field

Key Features: Through a wide adjustment range, the variable motor can meet the requirements of high speed and high torque, and is suitable for open or closed hydraulic transmission circuits;The displacement can be infinitely adjusted;Multiple control devices;The bearing system has a compact structur......

Send Inquiry

Product Description

Key Features:

Through a wide adjustment range, the variable motor can meet the requirements of high speed and high torque, and is suitable for open or closed hydraulic transmission circuits; The displacement can be infinitely adjusted; Multiple control devices; The bearing system has a compact structure, is sturdy and durable, and has a long service life; High power density, large range of inclined axis swing;

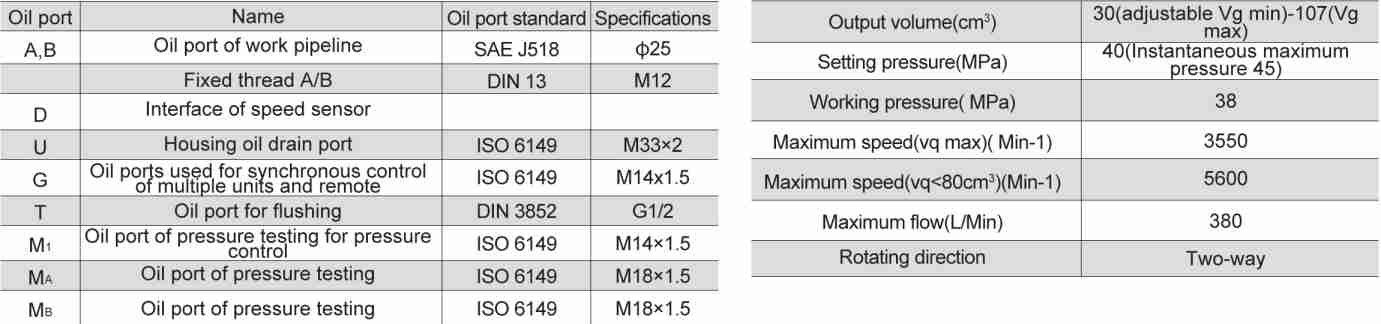

Model	A6VM107EP1/63w-VAB017-P-K
Displacement	107mL/r
Set minimum displacement	30ml/r (adjustable)
Direction of rotation	Bidirectional
Speed	Rated speed: 3550rpm Maximum speed: 5600rpm
System allowable pressure	Rated pressure: 400 bar Maximum pressure: 450 bar
Shell pressure	Rated: 3 bar Peak: 5 bar

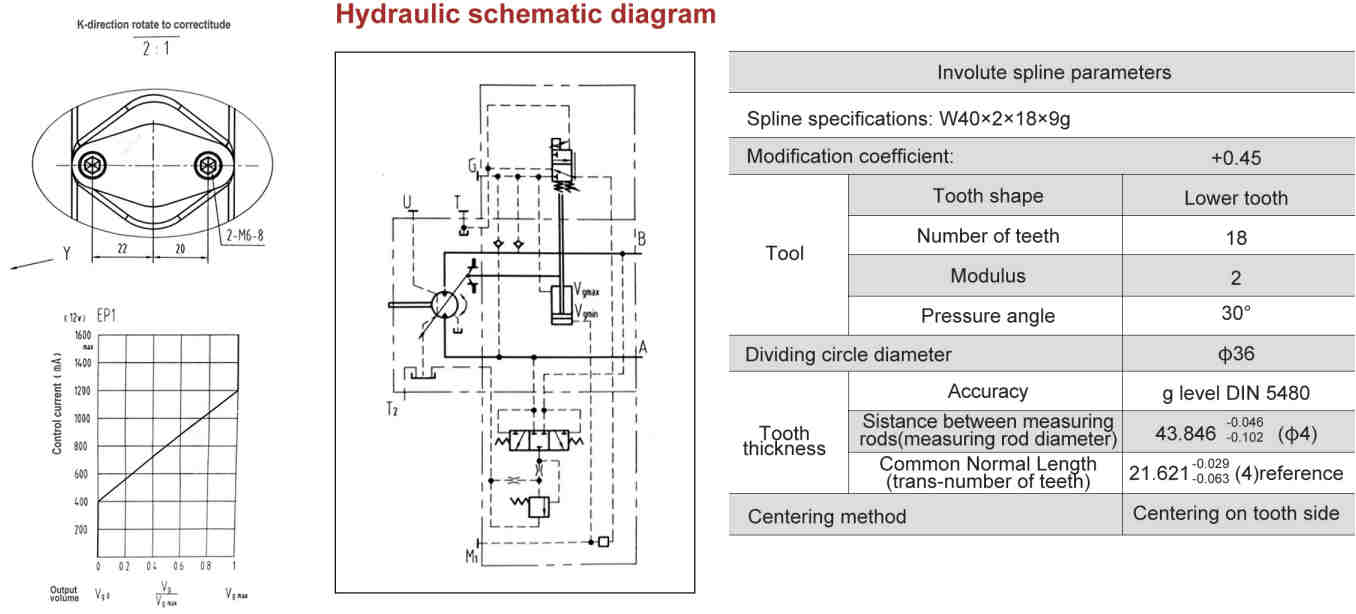

Control method	Electric proportional displacement control, 12V; DEUTSCH DT04-2P-EP04, 2 needles

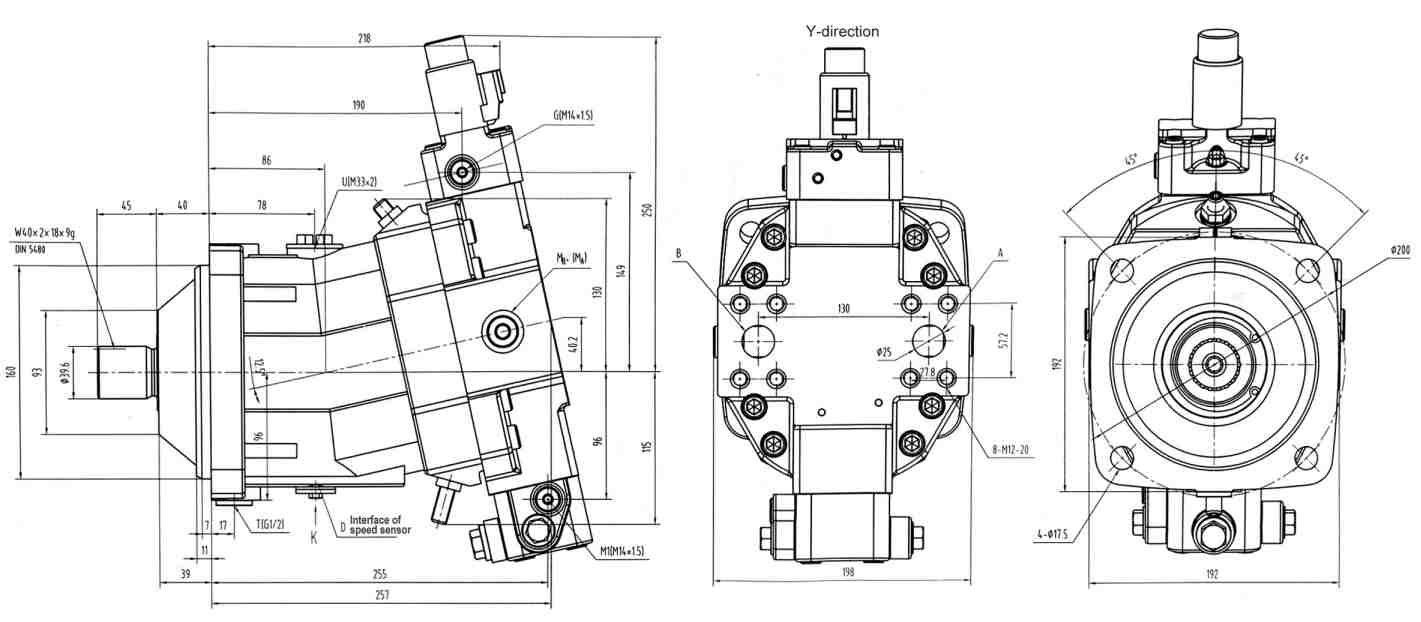

Mounting flange	SAEB flange, stopper: 159.96-160mm, Installation hole 4-17.5, installation hole indexing circle 200mm
Output shaft	W40 × 2 × 18 × 9g DIN5480, with speed magnetic ring
Main oil port	DN25; M12×1.75; 20. SAE J5181, ports A and B are located behind the rear
Shell oil drain port	M33×2
System pressure gauge port	M18×1.5
Synchronous control oil port	M14 × 1.5
Rinse oil port	G1/2
Rinse flow rate	10L/min

Before the motor starts running, please ensure that the motor housing is filled with hydraulic oil; When transporting hydraulic motors, do not apply strong impact to the output shaft of the motor; To ensure the reliability of motor function, hydraulic oil must have a cleanliness level of at least 20/18/15 according to ISO 4406. At very high hydraulic oil temperatures (90 ° C to a maximum of 115 ° C), the cleaning level should be at least 19/17/14 according to ISO4406 requirements Assembly product testing program: 1) Sealing test: After sealing, conduct an air tightness test, and the test time should exceed 3 minutes at 0.4 Mpa atmospheric pressure. 2) When in use, the coaxiality between the spindle and the coupling sleeve should not exceed Φ 0.1

Applications:

Mobile Equipment:
Construction Equipment: Excavators, bulldozers, loaders, graders, cranes – powering tracks, wheels, booms, and attachments.
Agricultural Machinery: Tractors, harvesters, sprayers, planters – driving wheels, implements, and auxiliary functions.
Material Handling: Forklifts, telehandlers, conveyors – for propulsion, lifting, and moving materials.
Forestry Equipment: Skidders, feller bunchers, harvesters – powering wheels, cutting heads, and manipulating timber.
Mining Equipment: Drilling rigs, loaders, haul trucks – for heavy-duty operations in harsh environments.

Industrial Applications:
Manufacturing: Powering machine tools, conveyors, mixers, agitators, rolling mills, and indexing tables.
Automation: Driving robotic arms, manipulators, and automated assembly lines.
Marine: Steering systems, winches, propulsion drives on smaller vessels.
Energy: Driving pumps, compressors, and drilling equipment in oil and gas industries.
Food and Beverage: Powering processing equipment, mixers, and conveyors in hygienic environments.
Textile Industry: Driving various types of textile machinery.
Paper and Pulp: Powering rollers, drives, and processing equipment.

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

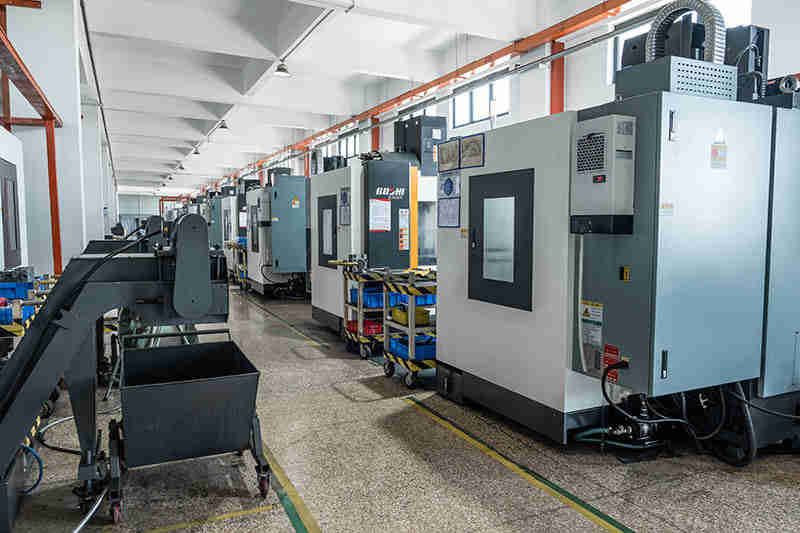

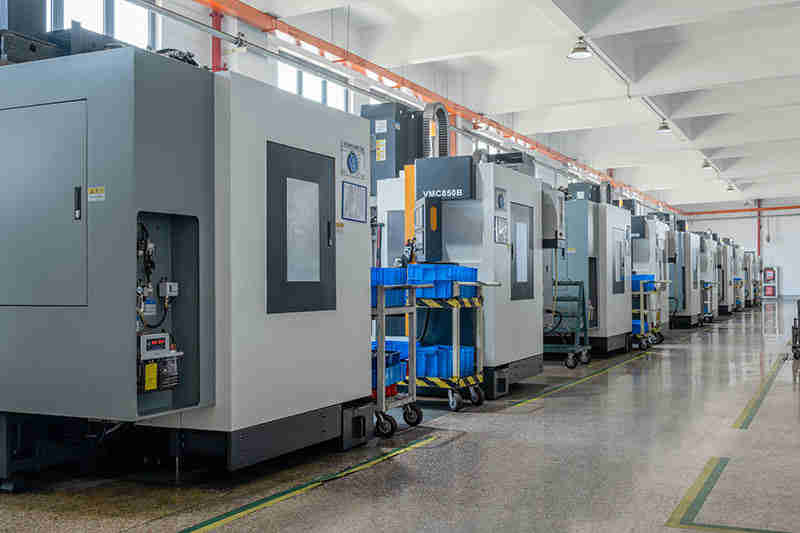

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
