G Series Vertical Bridge Type Gantry Machining Center CNC Lathe for Processing of Large Sized Parts.

G series Bridge Type Vertical Gantry Machining CenterThe maximum output torque of the product spindle can reach 1089NmThe maximum fast movement speed of the product can reach 20m/minThe product can be equipped with various manual or automatic accessory heads, and the travel range can be customized a......

Send Inquiry

Product Description

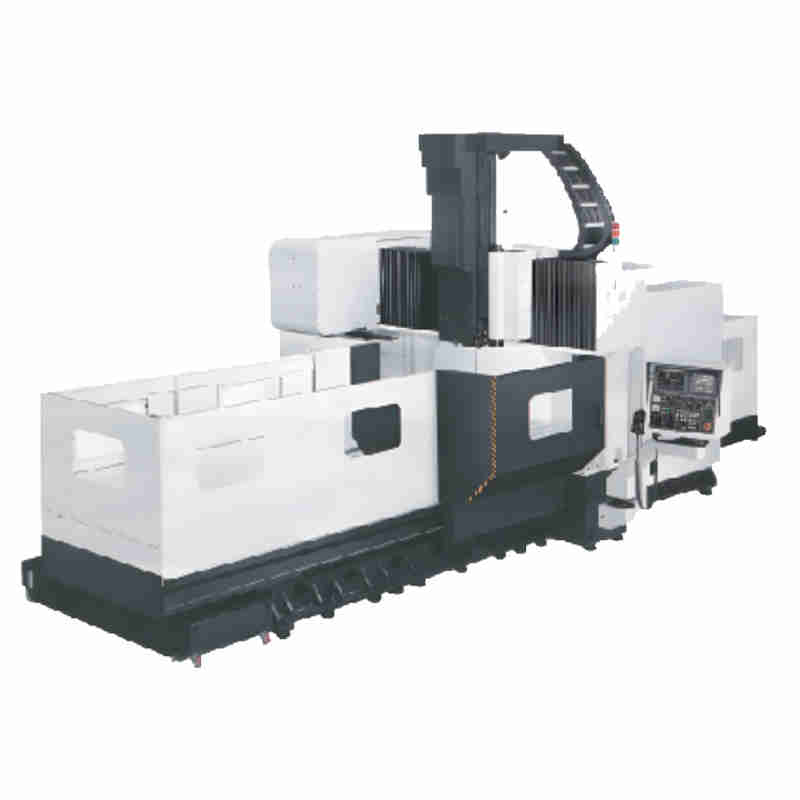

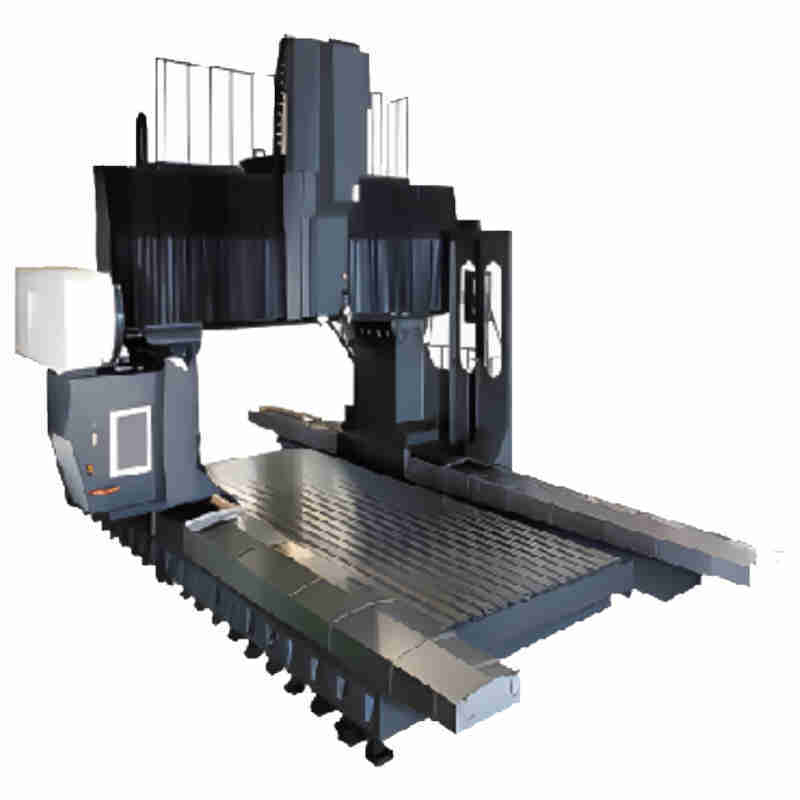

G series Bridge Type Vertical Gantry Machining Center

The maximum output torque of the product spindle can reach 1089Nm

The maximum fast movement speed of the product can reach 20m/min The product can be equipped with various manual or automatic accessory heads, and the travel range can be customized according to user needs;

The G series gantry machining center has the structural characteristics of high rigidity and wide processing range. It can be widely used in the processing of large and medium-sized parts in industries such as mold aviation, aerospace, rail transit, automotive, household appliances, medical, etc.

		G1060S	G1080S	G10140S	G2060S	G2080S	G20140S
Workbench size	mm	1000*6000	10000*8000	1000*14000	2000*6000	2000*8000	2000*14000
Width of Passing bridge	mm	1700	1700	1700	2700	2700	2700
Distance from spindle end face to workbench	mm	200-1200	200-1200	200-1200	200-1200	200-1200	200-1200
Stroke	mm	6000/1700/1000	8000/1700/1000	1400/1700/1000	6000/2700/1000	8000/2700/1000	14000/2700/1000
Fast movement speed	m/min	20/20/20	20/20/20	20/20/20	20/20/15	20/20/15	20/20/15
Main spindle specifications	°	BT50	BT50	BT50	BT50	BT50	BT50
Maximum spindle speed	rpm	10-6000	10-6000	10-6000	10-6000	10-6000	10-6000
Main motor power	kW	22/26	22/26	22/26	22/26	22/26	22/26
Spindle output torque	N.m	770/1089	770/1089	770/1089	770/1089	770-1089	770/1089

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

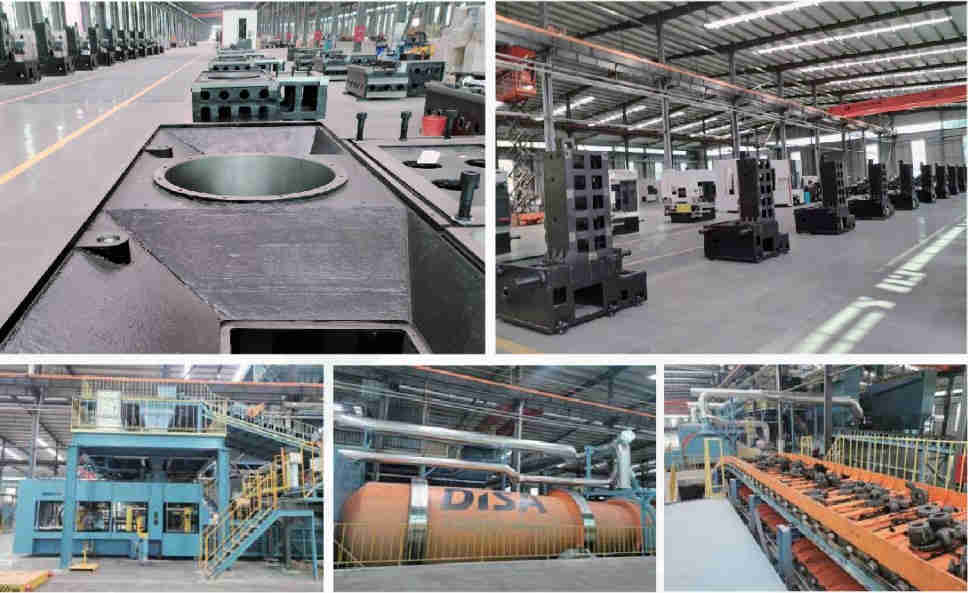

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

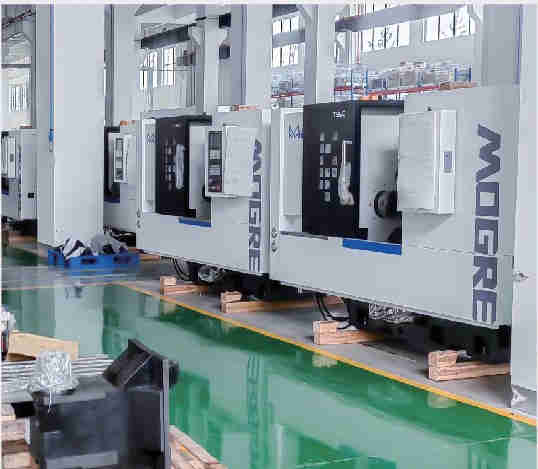

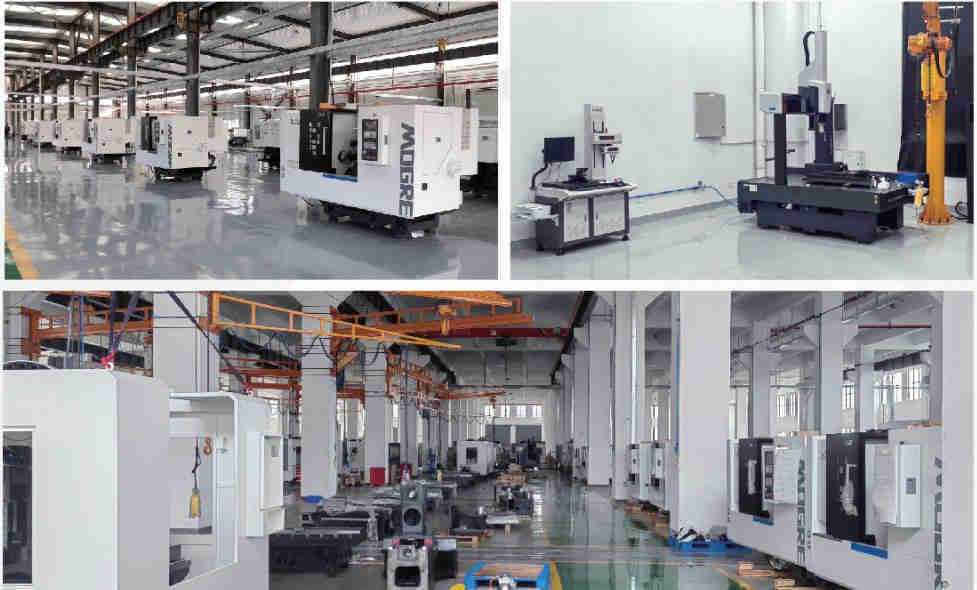

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
