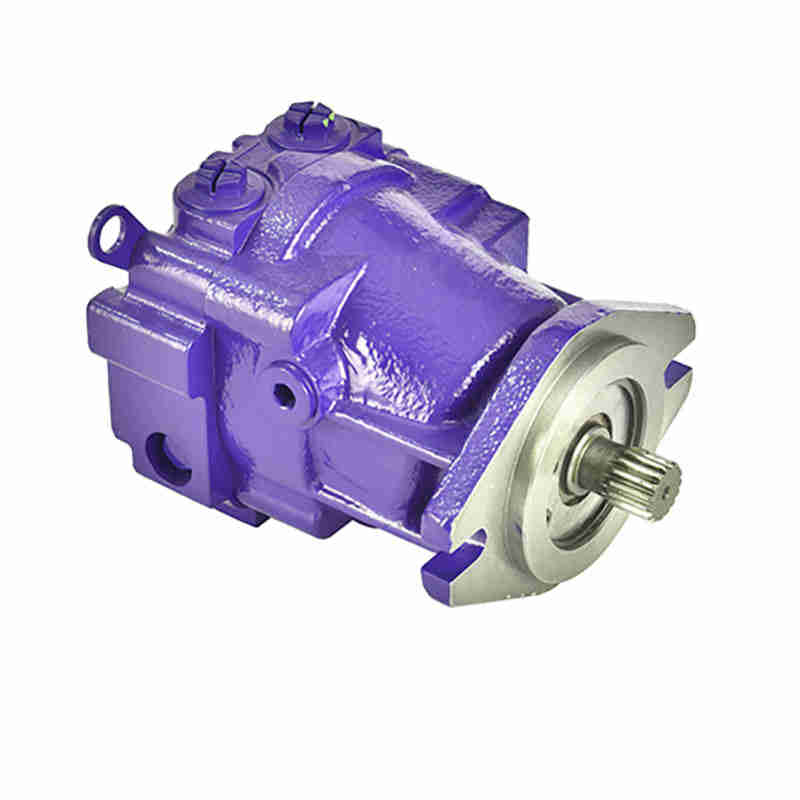

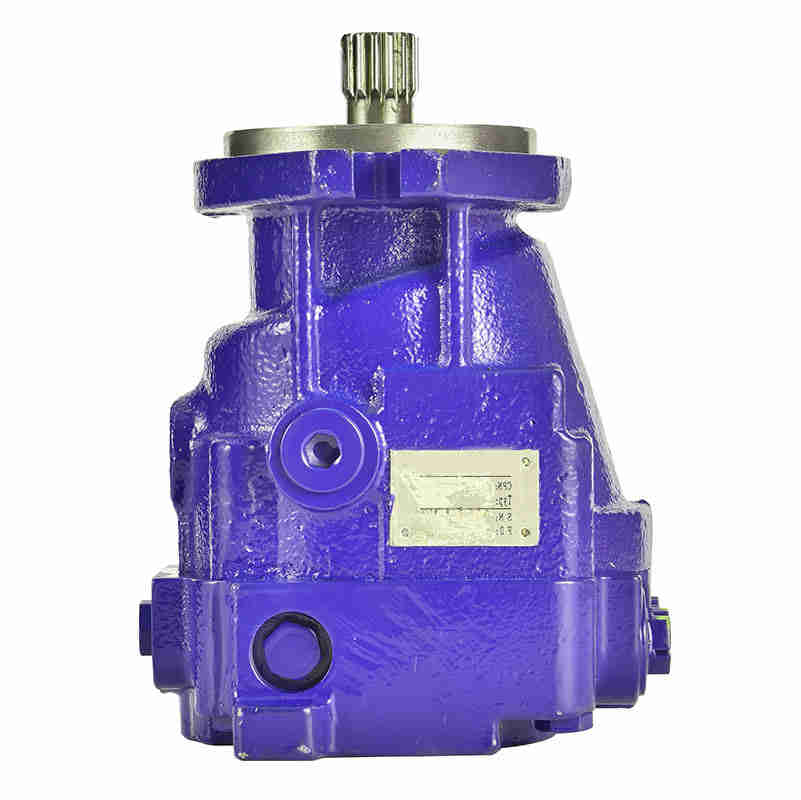

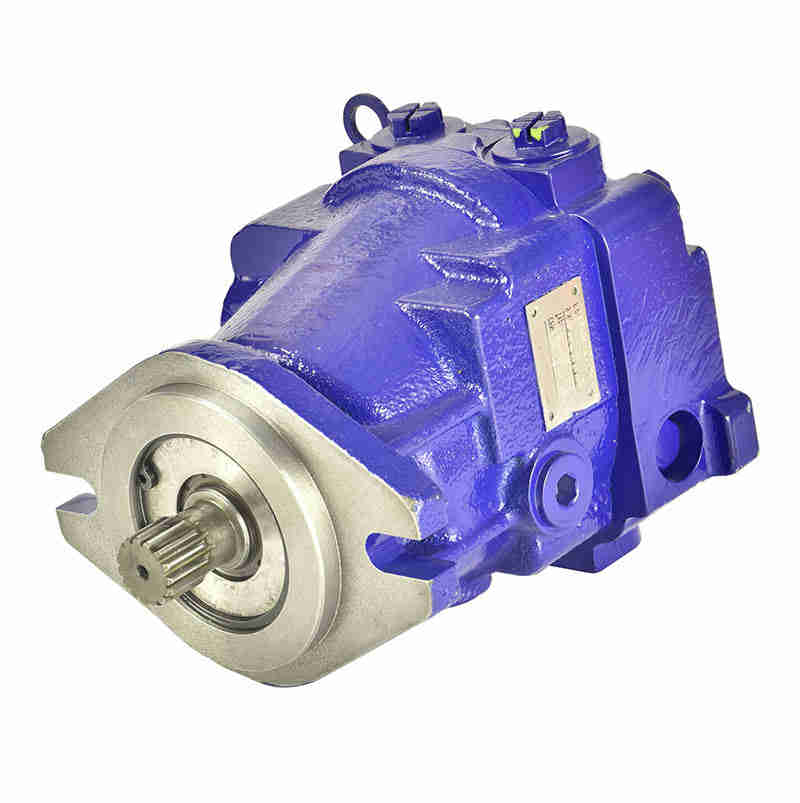

FM45 Series Agricultural Machinery Parts Constant Displacement Hydraulic Motor for Self-propelled Cotton Harvester and Baler

Key Features: The theoretical displacement per revolution remains unchanged;Low noise, high efficiency, small size, light weight, long life;Adaptable to a variety of hydraulic media, etc.;Bidirectional rotation direction, wide range of application;Technical requirement-During operation, to ensure th......

Send Inquiry

Product Description

Key Features:

The theoretical displacement per revolution remains unchanged; Low noise, high efficiency, small size, light weight, long life; Adaptable to a variety of hydraulic media, etc.; Bidirectional rotation direction, wide range of application;

Technical requirement -During operation, to ensure the reliability of the motor, the cleanliness of the hydraulic oil should be at least 22/18/13 of ISO 4406-1999 standard or higher than it; -Before starting the operation of the motor, please ensure that the motor housing is filled with hydraulic oil; -The pressure sum at ports A and B does not exceed 70MPa; -The pressure at the oil return port should not exceed 0.52MPa under normal working conditions.

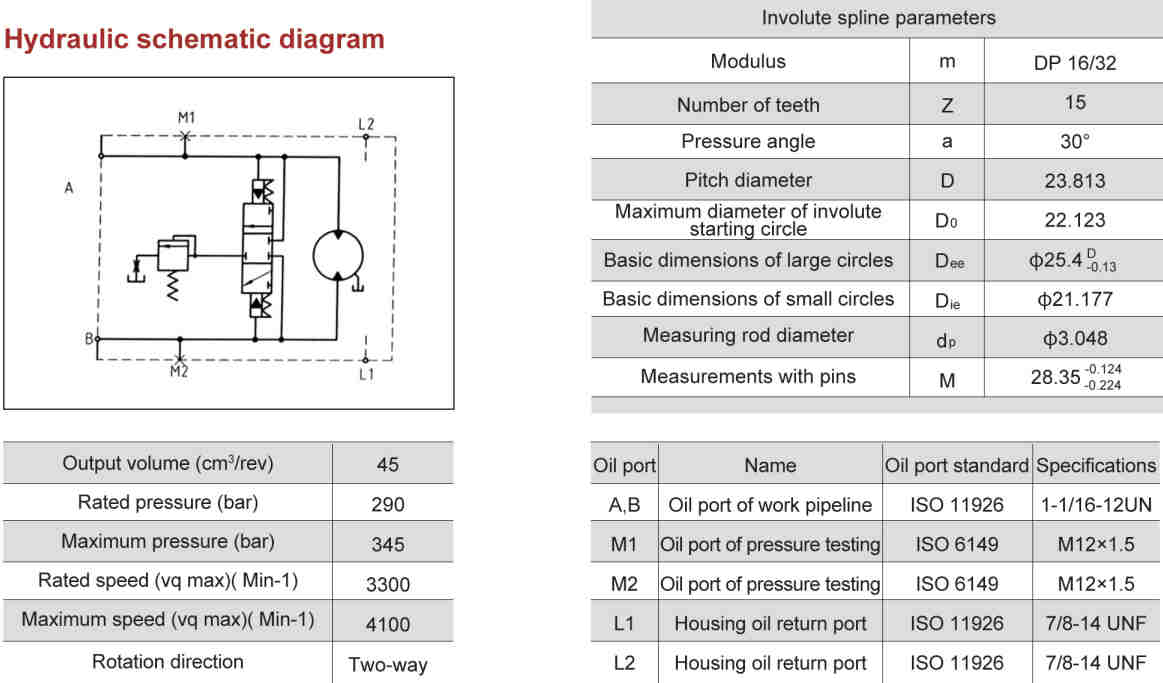

Model	FM45 fixed displacement motor
Displacement	45mL/r
Direction of rotation	Bidirectional
Speed	Rated speed: 3300rpm Maximum speed: 4100rpm
System allowable pressure	Rated pressure: 290 bar Maximum pressure: 345 bar
Shell pressure	Rated: 1.7 bar Peak: 5.2 bar

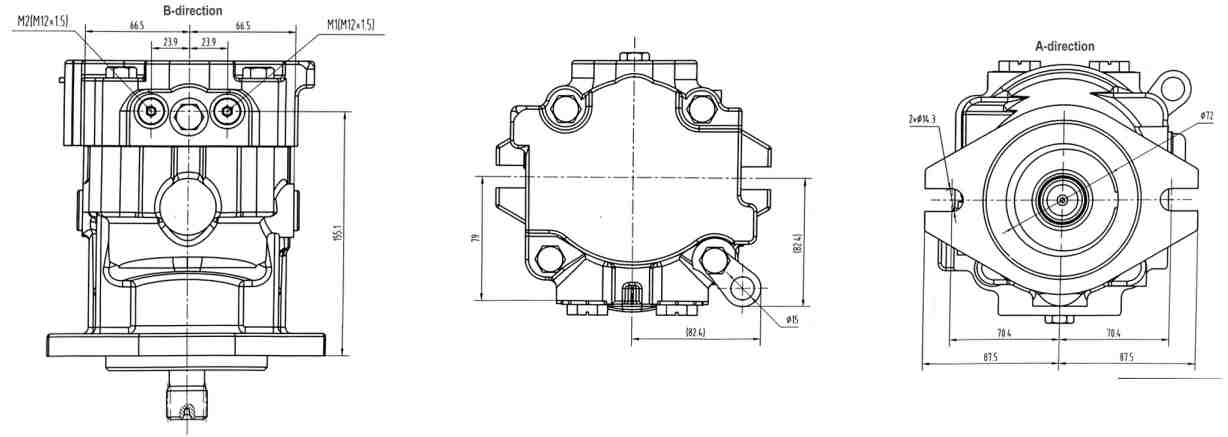

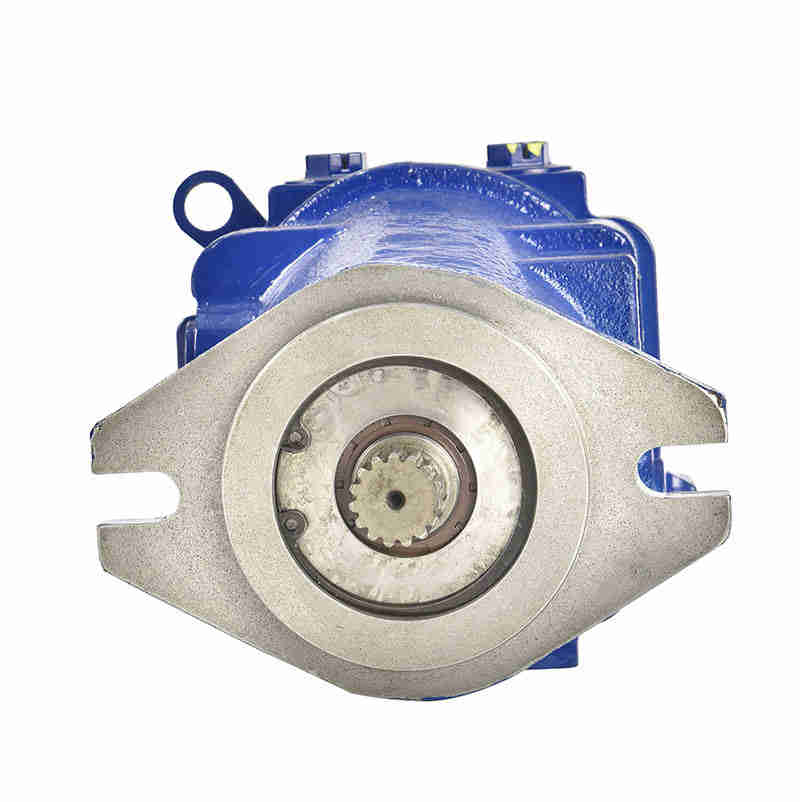

Mounting flange	SAEB flange, stopper: 101.54-101.6mm, two slots Mounting flange: slot diameter 14.3mm, spacing 140.8mm
Output shaft	SAE spline 15 teeth, 16/32 pitch

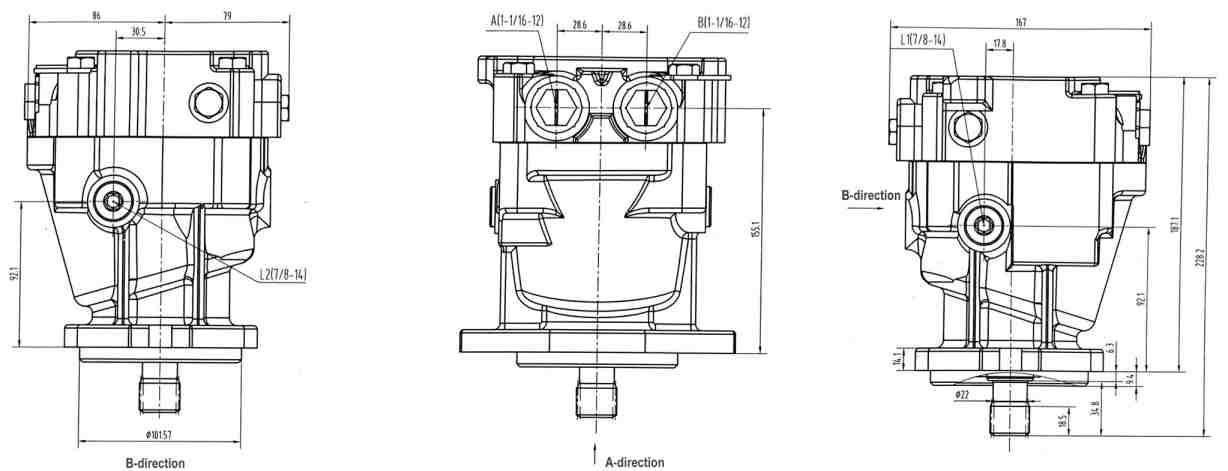

Main oil port	Radial same side oil port, 1-1/16-12UN-2B
Case oil return port	7/8-14UNF-2B
System pressure gauge port	M12×1.5
Flush valve	With flush valve, flushing damping hole 2×1.4

To ensure the reliability of the motor during operation, the cleanliness of the hydraulic oil should be at least 22/18/13 or higher according to ISO 4406-1999 standard; Before the motor starts running, please ensure that the motor housing is filled with hydraulic oil; The pressure at ports A and B should not exceed 70MPa; Under normal working conditions, the pressure at the return port should not exceed 0.52MPa.

Applications:

These motors are used in a wide range of applications, including:
Agricultural machinery

Construction equipment

Material handling equipment

Industrial machinery

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

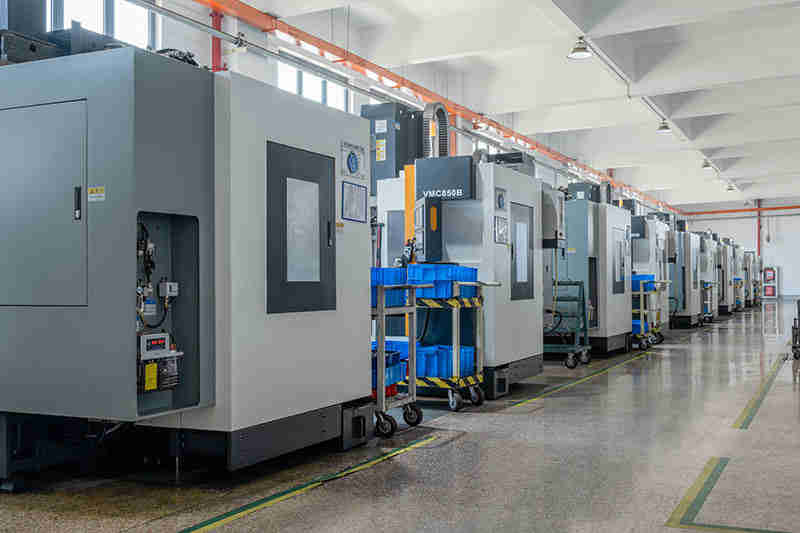

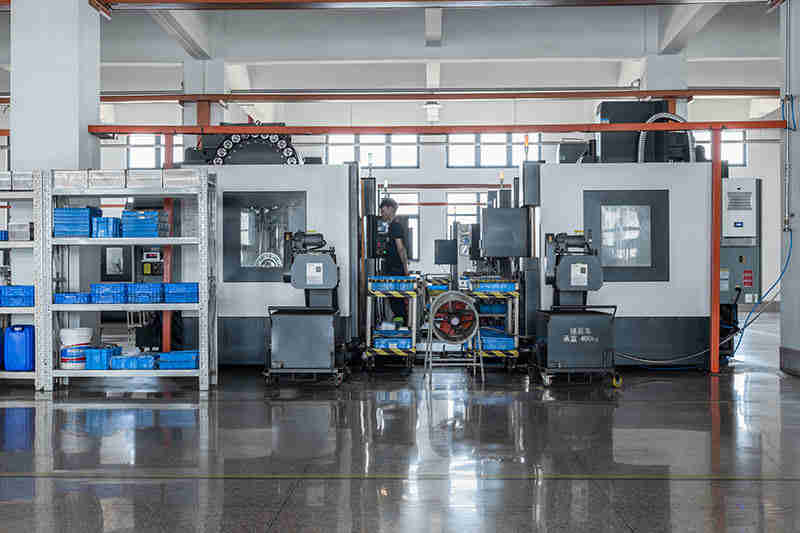

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
