EP Manufacturer 15-350mm Ss Pipe h Beam Laser Cutter zero Tailings Three-chuck Laser Pipe Cutting Machine

Product NameThree-chuck laser pipe cutting machineModelFLT-6035ETMaximum cut pipe lengthcutting length 0~6000mmCut pipe diameter15~350mm (circle of workpiece)Minimum tailings≥0mmX, Y axis positioning accuracy±0.05/1000mmX, Y axis repeat positioning accuracy±0.03/1000mmAcceleration0.8G m/s&......

Send Inquiry

Product Description

Product Name	Three-chuck laser pipe cutting machine
Model	FLT-6035ET
Maximum cut pipe length	cutting length 0~6000mm
Cut pipe diameter	15~350mm (circle of workpiece)
Minimum tailings	≥0mm
X, Y axis positioning accuracy	±0.05/1000mm
X, Y axis repeat positioning accuracy	±0.03/1000mm
Acceleration	0.8G m/s²
Maximum operating speed	60 m/min
Maximum weight for each tube	200Kg
Chuck rated speed	80rpm
Mainframe shape	about 13500mm×6500mm×2450mm
Laser power	3000w-6000w

Fully Enclosed Pneumatic Chuck

---Effectively prevent cutting dust pollution ---Full stroke design, high alignment accuracy ---Gear transmission, good rigidity, high transmission precision ---The front chuck and the middle chuck are installed face to face to help achieve zero tailing The four-jaw guide rail is driven by the guide rail mechanism, which makes the four-jaw straightness and stability higher, and truly achieves the effect of self-centering

Fully Automatic Loading System

Equipped with a fully automatic loading system to reduce dependence on labor and reduce the labor intensity of operators.

Follow-Up Front Splice

The Servo follow-up front receiving device can automatically screen material, divide material, and automatically flip, with high mechanization performance

Follow-on support device

It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.

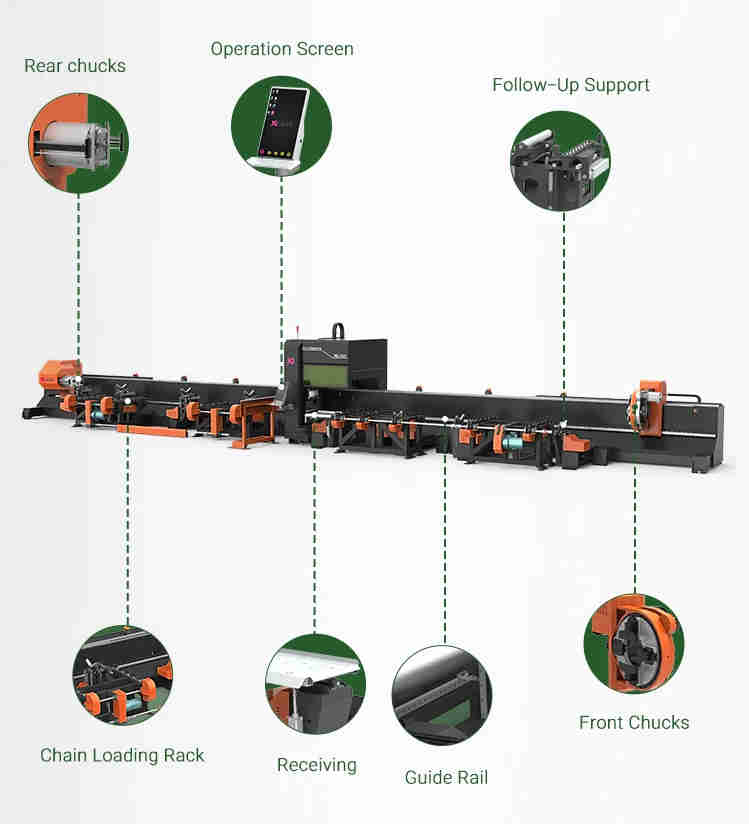

Three chucks clamping & zero tail materials

Three chucks clamping & zero tail materials Innovative three-chuck clamping technology, the chuck clamping force is adaptive to the pipe, realize accurately clamped; The casting integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning cutting;Following the chuck via the middle chuck's internal cutting operation, the three chucks work together.

CHOOSE YOUR LASERTUBE

Make Your Choice

Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.

Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
