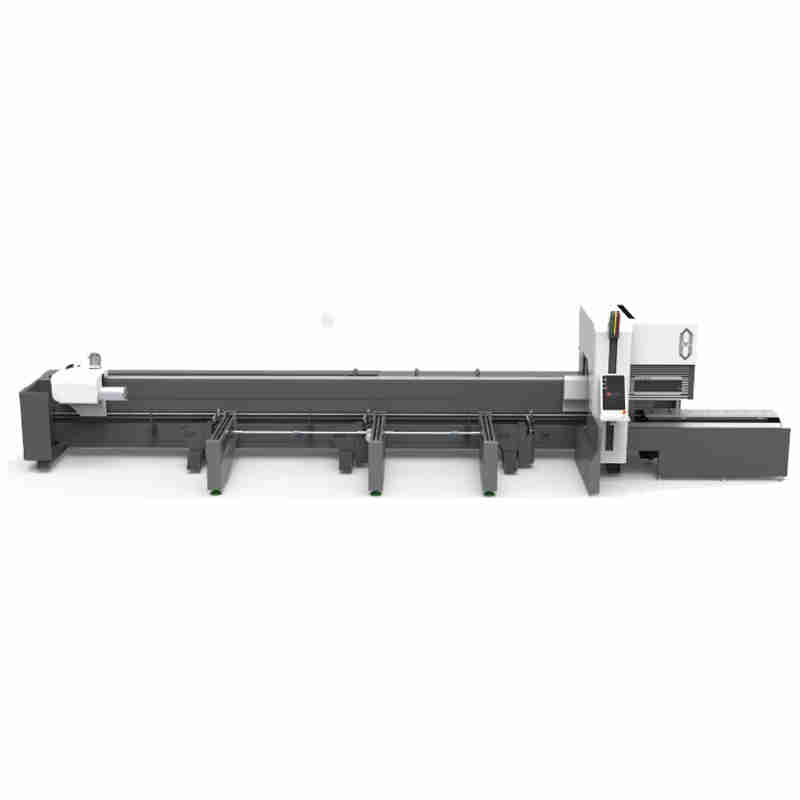

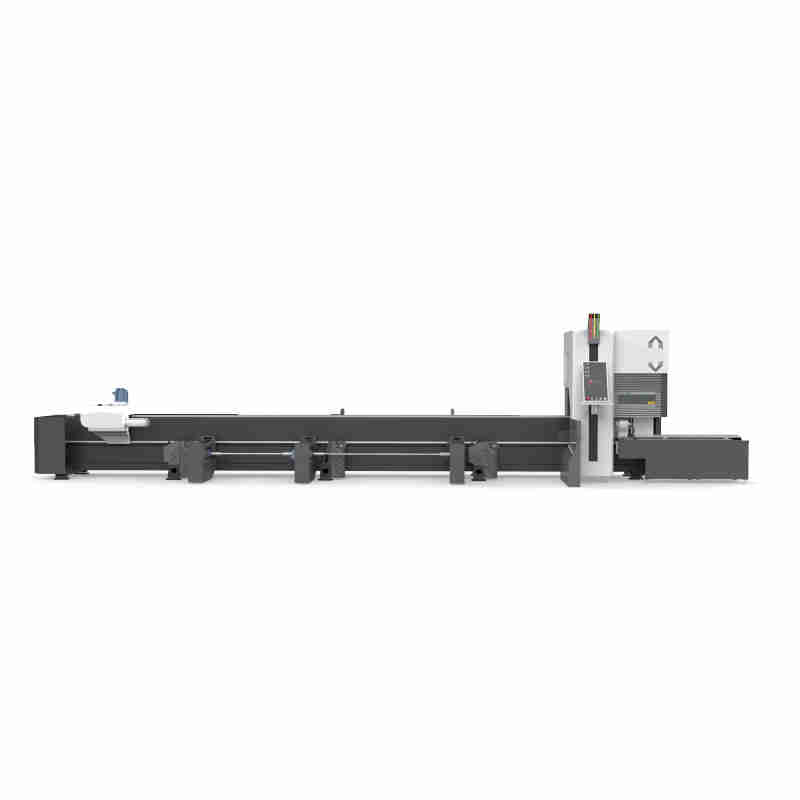

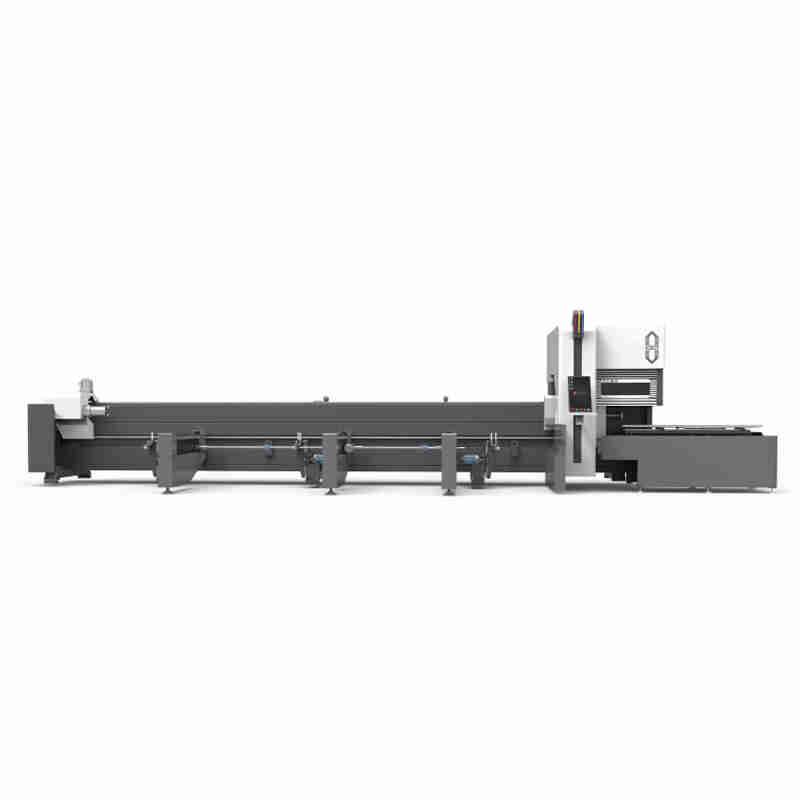

EP 8KW Laser Pipe Cutting Machines Three Chuck Big Diameter H Beam Carbon Steel Cnc Tube Laser Cut Machine

Round tube diameter range 15-350mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and s......

Send Inquiry

Product Description

Round tube diameter range 15-350mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and stable

Product Name	Automatic Feeding Three Chuck Laser Pipe Cutting Machine
Maximum Cut Pipe Length	Cutting Length From 7000 To 12000 mm
Cut Pipe Diameter	15~350mm (Circle Of Workpiece)
Pipe Thickness	Depends On The Power
Cutting Accuracy	±0.1mm
X, Y axis positioning accuracy	±0.05/1000mm
X, Y axis repeat positioning accuracy	±0.03/1000mm
Acceleration	0.8G m/s²
Maximum Operating Speed	60 m/min
Maximum Weight For Each Tube	500Kg
Chuck Rated Speed	60rpm
Mainframe Shape	About 22000×6000×2500mm
Laser power	8000W Or Customized As Required

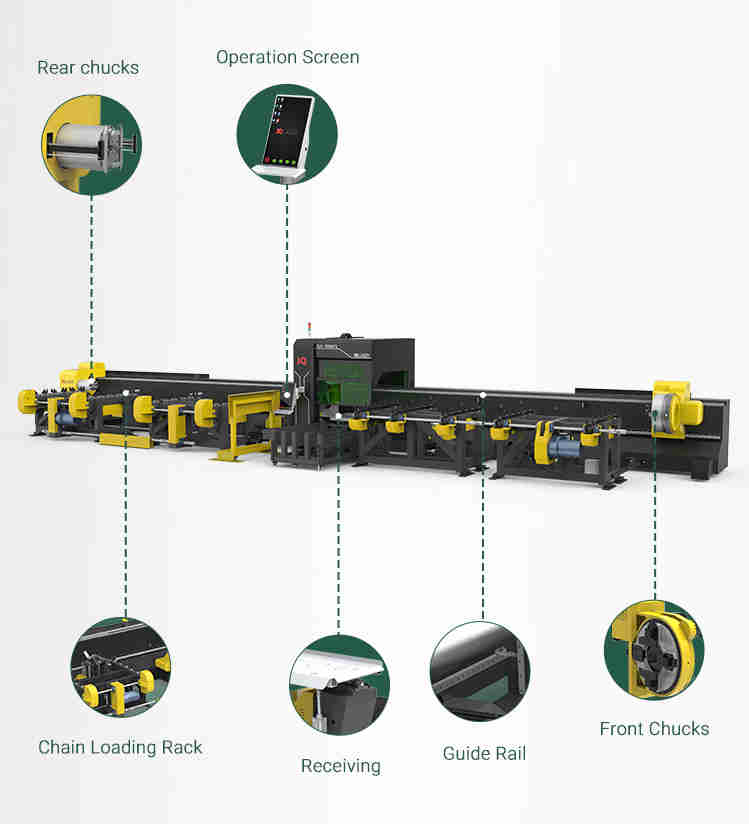

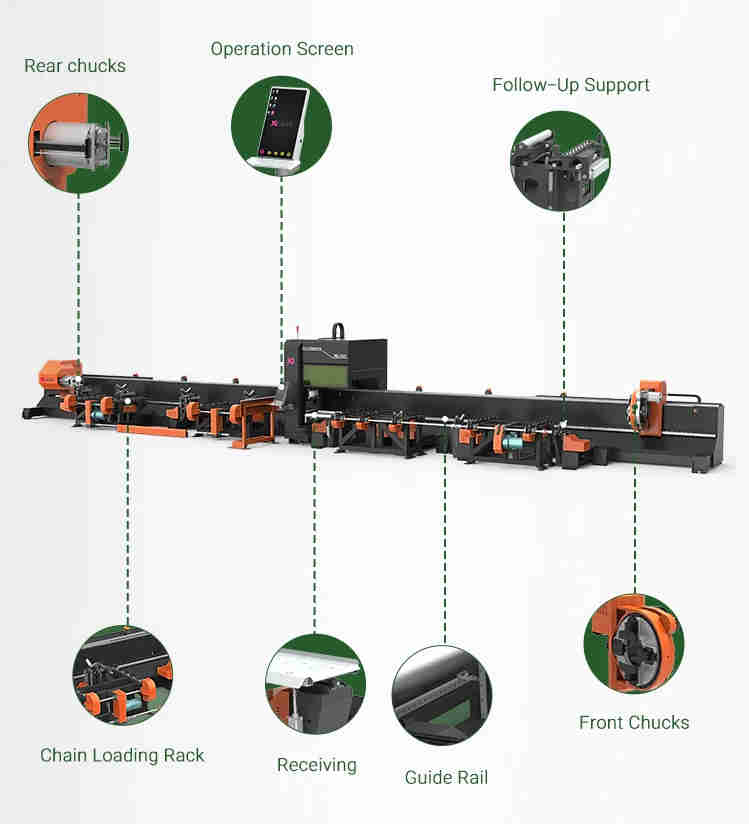

Three Chunks

Three chucks can be reversed for cutting, and are applied to a variety of clamping and cutting modes can be used to achieve zero-tail cutting of tubes, improve tube utilization, and save costs.

Intelligent CNC Chuck

It can realize automatic centering and precise clamping of the pipe, and the front and rear middle card design ensures that the pipe is clamped without deformation.

Customizable Chain Type Loading And Unloading Device

The chain type loading and unloading device can realize the handlingand lifting of the upper material of the pipe as well as the receiving ofthe lower material side and the transportation of the finished parts

The Servo Follow-up Support System

Can realize the horizontal transportation of pipes, ensure the smooth operation of the equipment and ensure the processing accuracy.

Bus control system

The rich process database is easy to operate and powerful, and can be deeply developed for different customer needs.

Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
