Customized Small Gear Motor Nmrv 063 Servo Motor and Gearbox for Elevator

NMRV NRV SERIES WORM GEAR SPEED REDUCER According to European standard of similar product,we adopt high-quality artificial oil,imported famous brand seal parts and manufacture technology to produce square multi-placed reductor. Feature beautiful appearance,easy installation,compact structure,low noi......

Send Inquiry

Product Description

NMRV NRV SERIES WORM GEAR SPEED REDUCER

According to European standard of similar product,we adopt high-quality artificial oil,imported famous brand seal parts and manufacture technology to produce square multi-placed reductor. Feature beautiful appearance,easy installation,compact structure,low noise and high efficiency.
NMRV worm gear reducer absorbs advanced technology at home and abroad. It has a novel and unique "square box" external structure. The box is beautiful in shape and is made of high quality aluminium alloy by die casting.

NMRV Model & Marker

NMRV-063-30-VS-F1(FA)-AS-80B5-0.75KW-B3
NMRV	Worm geared motor
NRV	Worm reduction unit
063	center dictance
30	Reduction ratio
VS	Double input shaft	F1(FA)	Output flange
AS	Single output shaft	AB	Double output shaft
PAM	Fitted for motor coupling	80B5	Motor mounting facility
0.75KW	Electric motor power	B3	Mounting position

NMRV NRV SERIES WORM GEAR SPEED REDUCER FEATURES:

● The weight of the NMRV reducer is relatively light. The shell is made of aluminium alloy. It has the advantages of light weight, superior strength, exquisite appearance, high heat dissipation performance, long service life, no noise and so on. It is easy to connect with the motor.

● NMRV reducer is a more practical transmission equipment, and in the appearance design and its integration are more in line with the needs of the public than other types of reducers.

●The application field and popularity of the RV reducer made of aluminium alloy are even better than other types of reducer. It is a kind of reducer with high practicability, and also a combination of advanced technology at home and abroad.

● NMRV reducer is very convenient to connect with ordinary motor, CVT, flange electromagnetic clutch brake unit, and does not need coupling. Suitable for all-round installation, and the output torque is relatively large, work fairly smoothly and so on.

PRECISION BEVEL GEAR

20CrMn Ti material - low carbon alloy steel

Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, carburizing layer uniform.

HIGH QUALITY SHELL MATERIAL

The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.

HIGH QUALITY OUTPUT SHAFT

New standard axle, multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of reducer

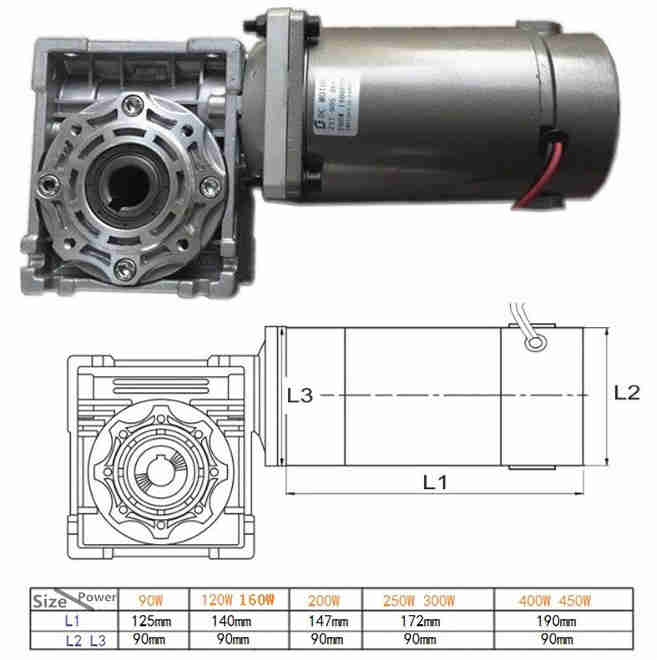

NMRV NRV SERIES WORM GEAR SPEED REDUCER MOUNTING DIMENSIONS

Single Step Worm Gear Reducer

Output Flange Mounting Dimensions

Torque Arm Dimensions

Output Torque	1.8-1760Nm
Application	Machinery Industry
Gear Material	ZQSn12-2 (BS-1400 GRADE-PB2)
Input Speed	900-2800RPM
Output Speed	10-250RPM
