Servo Motor Gear Reducers

Raydafon Group's Servo Motor Gear Reducers deliver unmatched precision and durability for robotics, automation, and industrial applications. Built with high-quality materials and advanced technology, they reduce backlash and enhance efficiency, ensuring smoother operations and longer lifespan. Perfect for engineers and manufacturers, they solve vibration and wear issues, offering reliability that outperforms competitors. Experience superior performance and trust in Raydafon's innovation.

Send Inquiry

Product Description

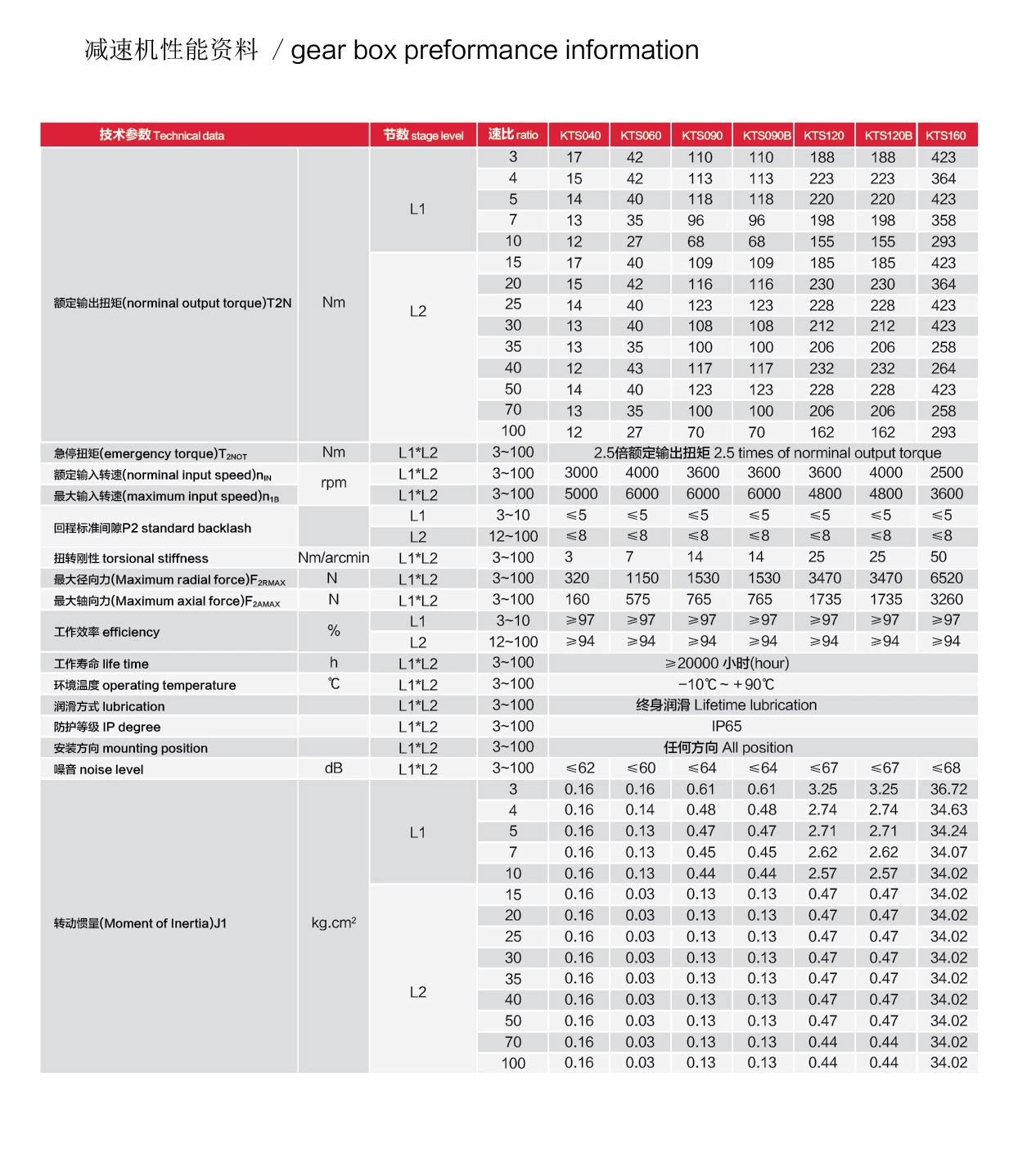

Application area CNC Machining, Medical Apparatus, Textile Machinery, Packaging equipment. Reducer technical parameters Model LRF90-50 Type Planetary Reducer Speed ratio 50:1 Input Bore Size 19mm Output Shaft Size 20mm Input Flange Model NEMA36 Stage 2 Max Output speed(rpm) 6000 Rated input speed (rpm) 3500 Arcmin £¼10

Full load efficiency(%) 94 Torque with no load (Nm) 0.4 Rated output Torque (Nm) 105 Max output Torque (Nm) 210 Maximum allowable radial force(N) 1300 Maximum allowable axible force(N) 1100 Noise(dB) ¡Ü58 Torsional rigidity 0.3 Protection IP65 Application Matched with Servo/Stepper Motor Country of Origin China(One year warranty) SUPPLY LRF60 speed ratio 3/4/5/7/10/ 16/20/25/28/35/40/50/80/100:1

Benefits

Enhanced dimensional compactness due to direct servomotor coupling

Widest range of possible servomotors coupling dimensions.

The correct technical solution thanks to a comprehensive range of sizes, gear stages, transmission ratios, designs and non-standard designs.
