Ac Servo Motor

The servo motor is a closed-loop servomechanism that uses position feedback in order to control its rotational speed and position. The control signal is the input, either analog or digital, which represents the final position command for the shaft.

Send Inquiry

Product Description

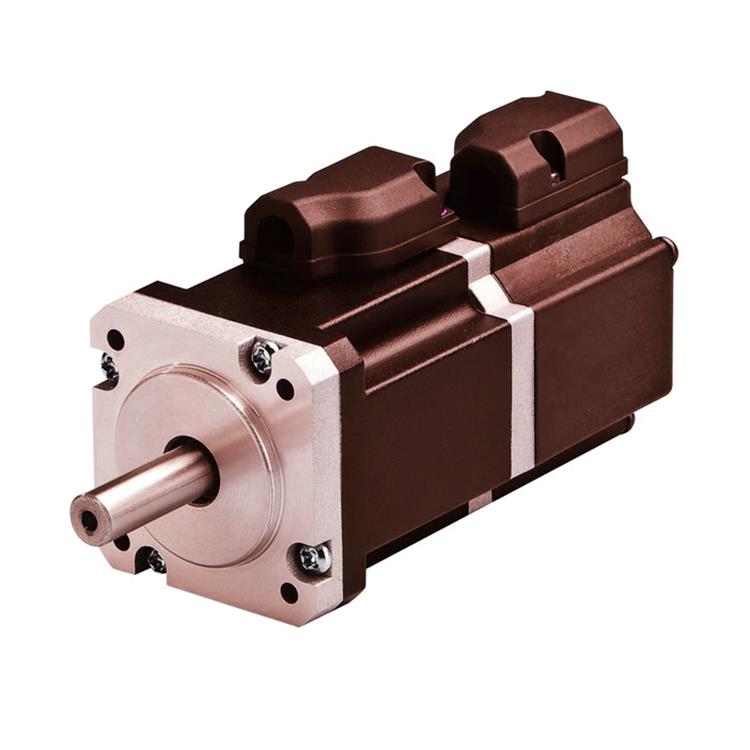

ac servo motor

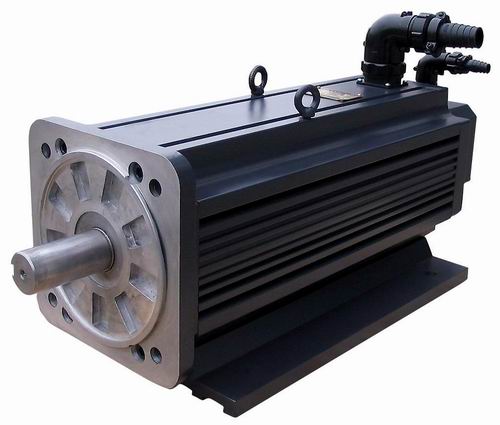

Ac Servo Motor

Servo motor works on the PWM ( Pulse Width Modulation ) principle, which means its angle of rotation is controlled by the duration of pulse applied to its control PIN. Basically servo motor is made up of DC motor which is controlled by a variable resistor (potentiometer) and some gears.

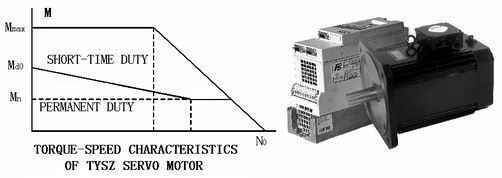

Ac Servo Motor

High precision in speed regulation and positioning

Fast dynamic response

Wider speed regulation range and strong overload Capacity

Good linearity and small fluctuation in torque

High magnet energy , small size, light-weight

Low energy loss and high efficiency

Low noise, less heating and long durability

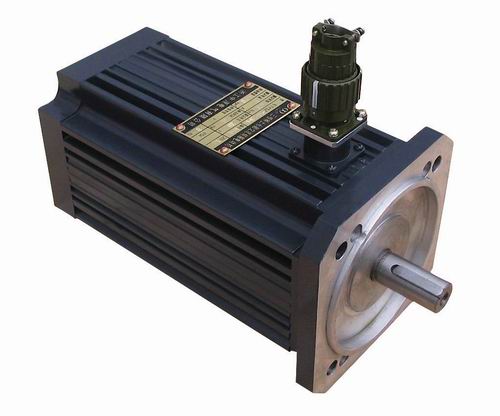

Ac Servo Motor

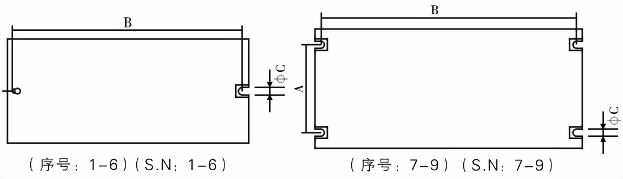

S.N.	VOLT. (V)	OUTPUT POWER (kW)	RATED CURR. (A)	INSTAN. MAX CURR. (A)	OUTLINE DIMENSION (mm)	SIZE A×B	Фc




1	380	0.75	2.6	4.7	90?20?60	-210	5
2	380	1.5	4.1	7.4	90?20?60	-210	5
3	380	4	9.5	17	90?50?81	-240	5
4	380	5.5	12	21.6	90?50?81	-240	5
5	380	7.5	16.5	29.7	130?90?08	-275	7
6	380	11	24	36	130?90?08	-275	7
7	380	18.5	42	63	170?40?55	150?30	7
8	380	22	50	75	297?40?55	250?30	7
9	380	37	75	112	340?20?55	300?95	10

Ac Servo Motor

B3 Flanges

Mounting base	Poles	Mounting Dimension										Overall dimension
Mounting base	Poles	A	A/2	B	C	D	E	F	G	H	K	AB	AC	HD	L
71	4、6	112	56	90	50	19	40	6	15.5	71	7	150	130?/FONT>139	176	310
80	4、6、8	125	62.5	100	56	24	50	8	20	80	10	165	148?/FONT>140	196	※395
112	4、6、8	190	95	140	89	38	80	10	33	112	12	230	187?87	300	460
132	4、6、8	216	108	178	108	42	110	12	37	132	12	270	224?/FONT>224	350	610
160	4、6、8	254	127	254	121	48	110	14	42.5	160	15	320	274?74	420	680
180	4、6、8	279	140	279	133	55	110	16	49	180	19	355	340?40	460	750
