Product Description

MDH80S MDH Series MDH80 MDH80A Horizontal Machining Center 800mm Worktable CNC Lathe Milling Machine Boring Cutting Metal Lathe Machine

2022

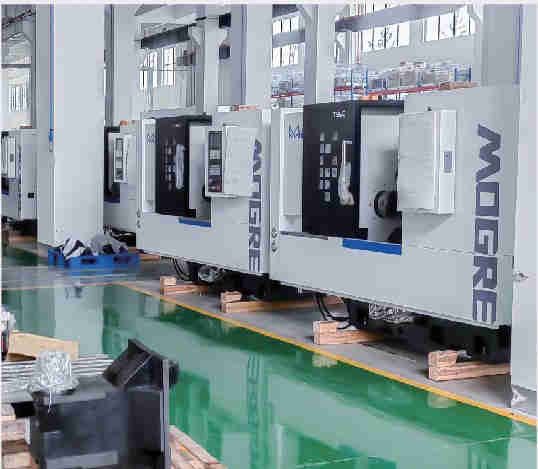

Exhibition site

TABLE	Worktable size	mm	800*800
		Workpiece size range	mm	φ1110*1220
		Max load of worktable	kg	1300
		X/Y/Z axis travel	mm	1050/900/800
SPINDLE	Spindle speed	r/min	8000(6000/12000 Optional)
		Spindle taper		NO.50(7:24)
		Spindle drive mode		Motorized spindle
		Spindle power	kw	18.5
		Spindle maximum torque	nm	24
MOVEMENT	X/Y/Z cutting speed	m/min	20
MOVEMENT	MOVEMENT	X/Y/Z feeding speed	m/min	54
ATC SYSTEM	Tool magazine capacity		40(60/80/120 Optional)
		Tool shank type		BT50-45°
		Max. tool weight	kg	25
		Max. tool diameter (w/o adjacent tools)	mm	φ115
		Max.tool length	mm	500
		Time of tool change (T-T)	s	2
ACCURACY	X/Y/Z axis positioning accuracy	mm	0.01
ACCURACY		X/Y/Z axis repeatability accuracy	mm	0.006
CONTROL SYSTEM	Controller		GSK/SIEMENS/FANUC

FAQ

1. Is your company a factory or trading company ?

We are factory .

2. What is your payment terms ?

If with stock ,100% payment in advance first,because the machine can ready to ship.

if without stock ,normal 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 3. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

4. What is the warranty period ? The machine is warranted for a period of 13 months after B/L date or 12 months from the date of ship arrival, whichever is earlier, against faulty workmanship and defective material. In this situation, parts will be supplied for free in replacement of defective parts against detailed inspection report after checkup and ratification.

5. Can you send the service engineer to our company ? When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.

Pre-sales Service Of MDH80S MDH Series MDH80 MDH80A Horizontal Machining Center 800mm Worktable CNC Lathe Milling Machine Boring Cutting Metal Lathe
Machine

1.Fastly and professional reply to you about your questions for our cnc lathe machine tool 2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines. 3.Detailed and clearly explain to you when you come to our factory for visiting before contract.

In-sales service for MDH80S MDH Series MDH80 MDH80A Horizontal Machining Center 800mm Worktable CNC Lathe Milling Machine Boring Cutting Metal Lathe
Machine

One-stop and customize service for you, different kinds of machine tool are available from us. 24 Hours online service, 7 Days one week support for you if any technical questions or problems about machine tool .

After sales service for MDH80S MDH Series MDH80 MDH80A Horizontal Machining Center 800mm Worktable CNC Lathe Milling Machine Boring Cutting Metal Lathe
Machine

1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2. Free accessories and free shipping during the warranty period
