China Professional 3V Series Cast Iron Ten-Groove American Standard Sheaves With Split Taper Bushings

3V Series Cast Iron Ten-Groove Sheaves with Split Taper Bushings3V series ten groove tapered bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 4.75 inches to 33.50 inches. Depending on the pulley size, they use Q2, R1 or S1 split taper bushings, which we......

Send Inquiry

Product Description

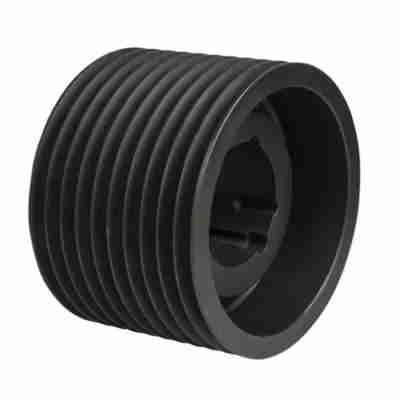

3V Series Cast Iron Ten-Groove Sheaves with Split Taper Bushings

3V series ten groove tapered bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. Their diameters range from 4.75 inches to 33.50 inches. Depending on the pulley size, they use Q2, R1 or S1 split taper bushings, which we also have in stock. Most of our ten groove 3V split taper pulleys are made of high strength grade 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

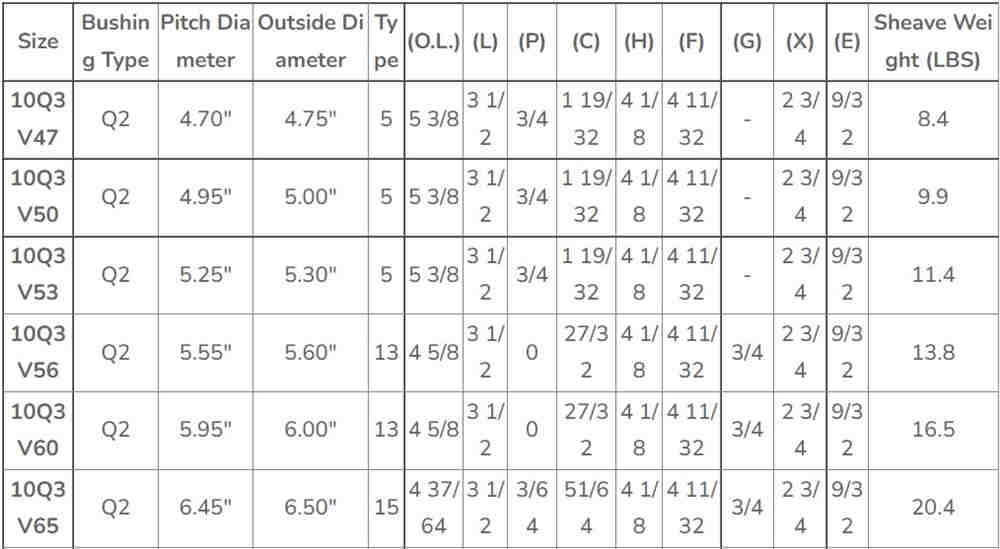

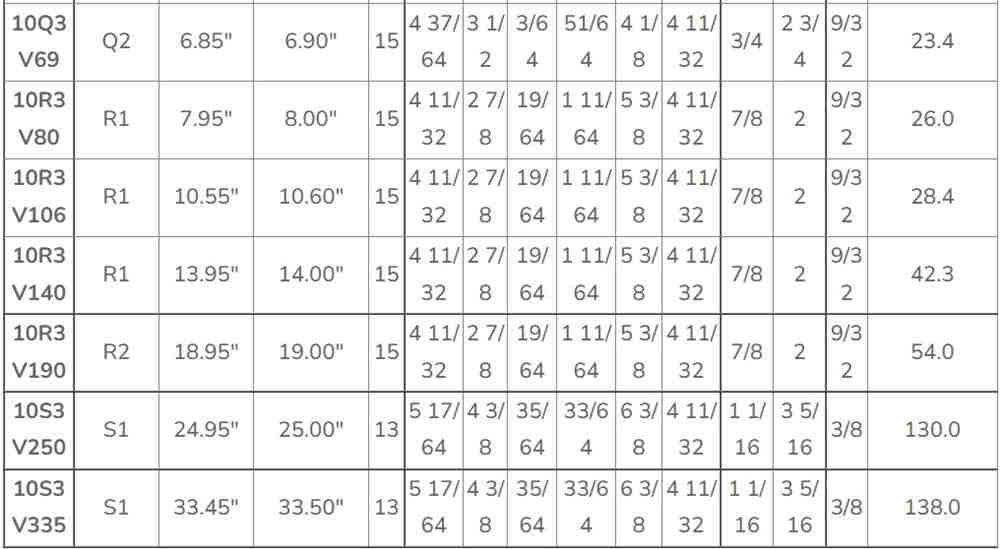

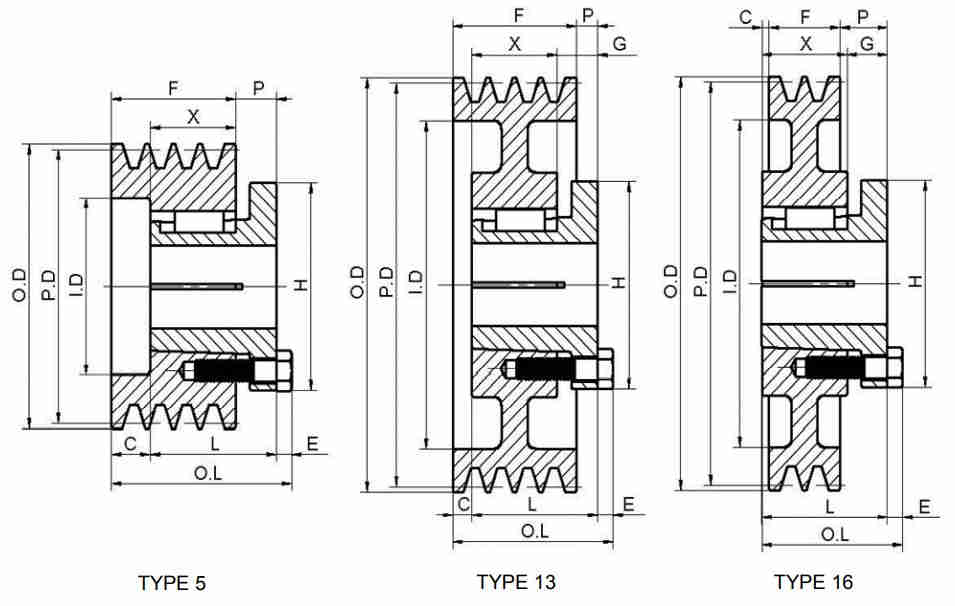

Ten-Groove 3V Split Taper Sheave Size Chart

For more details, please click here to contact us!

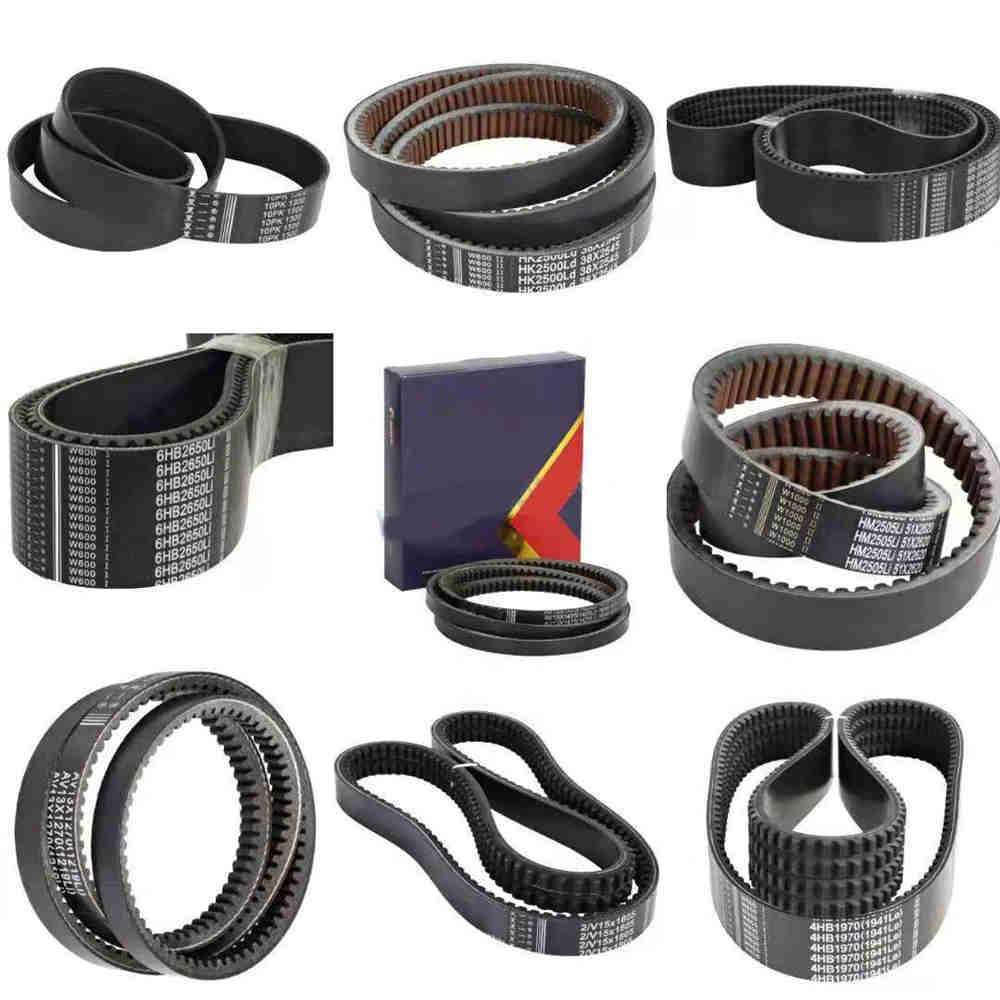

Relevant supporting 3V, 3VX series V-belts (1) 3V series V-belt The classic 3V series V-belt has a top width of 0.38 ", a thickness of 0.31" and an angle of 38 °, which also classifies it as a deep wedge V-belt. The 3V series belt is designed to be more compact and more powerful than the standard 40 ° angle v-belt. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 3V series v-belts we provide are manufactured according to ISO 9001 specifications and ARPM standards; They are oil and heat resistant and can be directly interchanged with other brands. The 3V conveyor belt is made of natural rubber compound and polyester rope, and is covered with a mixture of cotton and polyester, with high durability. The 3V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. We also stock a complete set of high-power v-belts and matching v-belt pulleys/pulleys.

(2) 3VX toothed V-belt The top width of the 3VX toothed v-belt is 0.38 "and the thickness is 0.31". Our grooved 3VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 3VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 3VX toothed v-belt or pulley, and we are happy to help you.

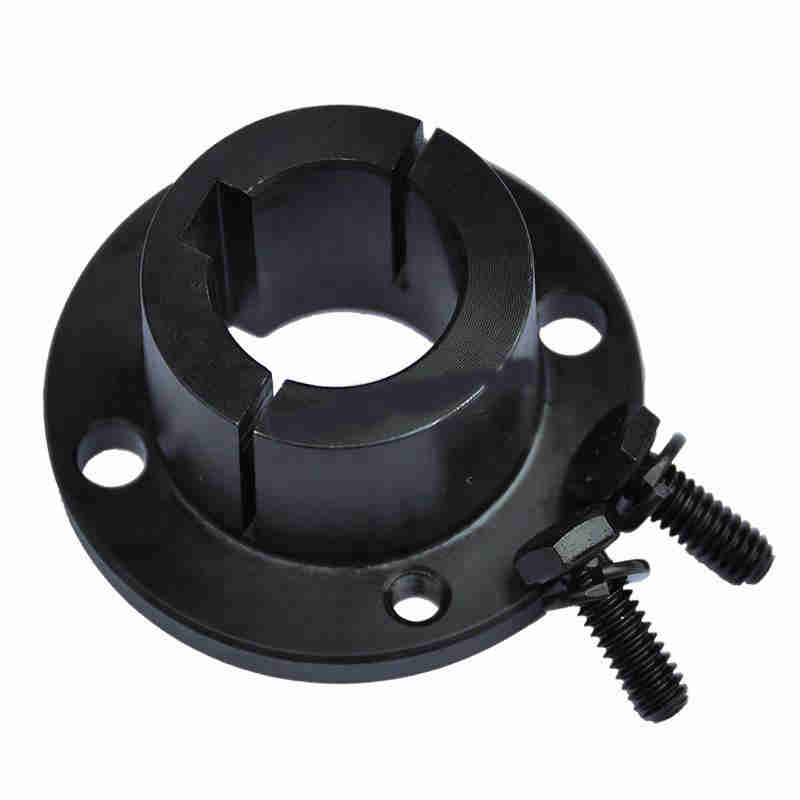

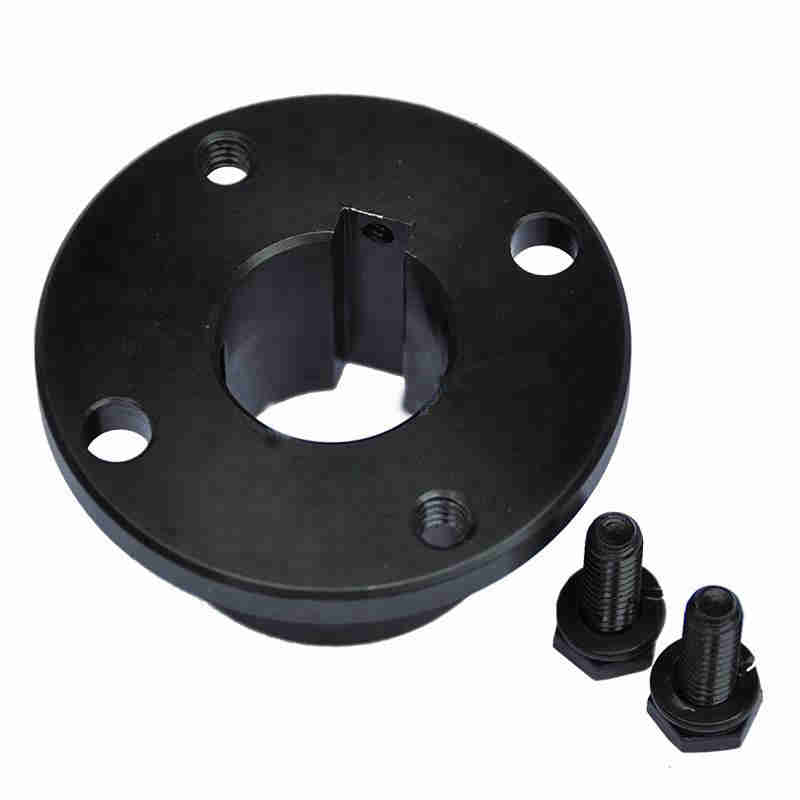

Related Split Taper Bushings Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. Our high-quality split taper bushing is made of high-quality steel or casting material and can be interchanged with any other brand. It is designed as a flange bushing with a tapered cylinder and a slit on each side. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters. For more information or to get a quote for our high-strength open taper bushing, please contact our customer support team and we will be happy to help you.

Advantages of pulley The advantages of pulley drive are: (1) Pulley drive can reduce load impact; (2) The belt pulley drives stably, with low noise and vibration; (3) The pulley transmission structure is simple and easy to adjust; (4) For the manufacturing and installation accuracy of the pulley, the pulley drive is not as strict as the meshing drive; (5) Pulley drive has overload protection function; (6) The adjustment range of the center distance between two shafts driven by pulley is large.

The disadvantages of belt drive are: (1) The pulley drive has elastic sliding and slipping, and the transmission efficiency is low, so the accurate transmission ratio cannot be maintained; (2) When the belt pulley transmission transmits the same circumferential force, its contour dimension and the pressure on the shaft are greater than those of the meshing transmission; (3) The pulley drive belt has a short life.

Application of Split Conical Pulley The application of pulley is generally used for long-distance power transmission, so it is widely used, such as the power output of small diesel engines such as tractors and automobiles. It is also suitable for mechanical transmission, such as machining equipment, textile machinery, lathes, forging presses, etc.

We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
