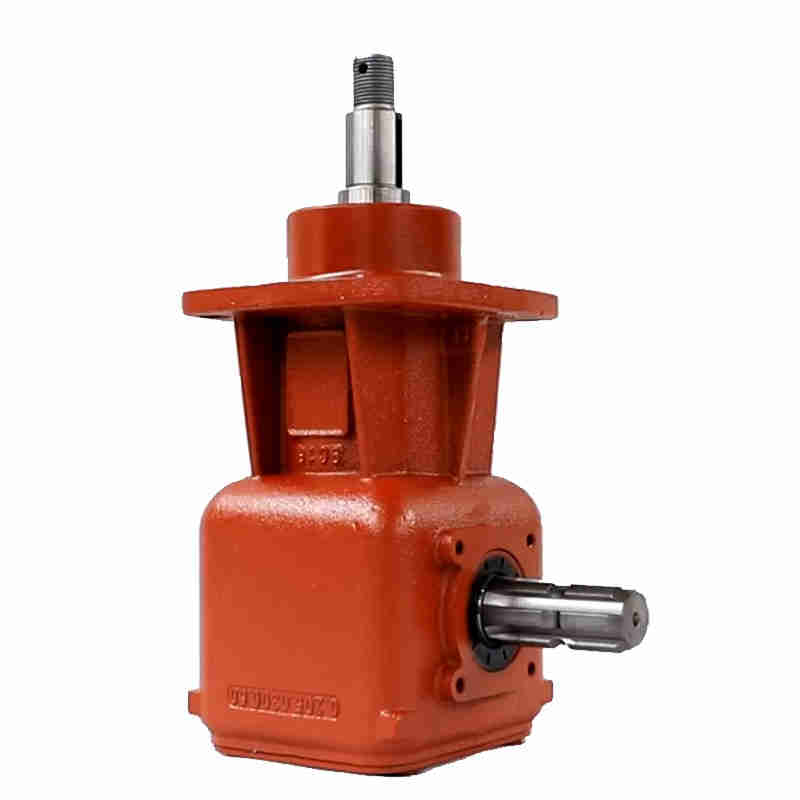

Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota

Gearbox modelEP-RC31EP-55EP-30-193EP-RC61More Types...Ratio 1:1.46 / 1: 1.69 / 1:1.92 / 1:2.31:1.61:1.931:1.46 / 1:1.93Teeth22/15 22/13 29/ 15 28/1215/2415/2919/13 27/14Module5.08 / 5.0 / 4.0 / 4.06.04.0 7.0 / 5.5Power (HP)30503060Rated input540rpm540rpmInput/Output description3/8 Z6 Optic axis Tape......

Send Inquiry

Product Description

Gearbox model	EP-RC31	EP-55	EP-30-193	EP-RC61	More Types...
Ratio	1:1.46 / 1: 1.69 / 1:1.92 / 1:2.3	1:1.6	1:1.93	1:1.46 / 1:1.93
Teeth	22/15 22/13 29/ 15 28/12	15/24	15/29	19/13 27/14
Module	5.08 / 5.0 / 4.0 / 4.0	6.0	4.0	7.0 / 5.5
Power (HP)	30	50	30	60
Rated input	540rpm			540rpm

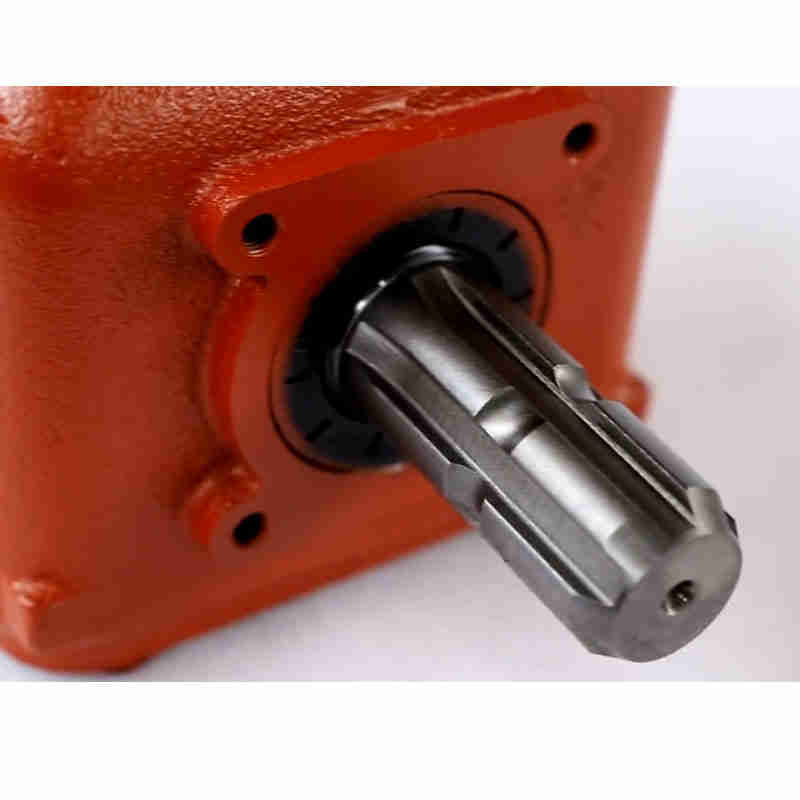

Input/Output description	3/8 Z6 Optic axis Taper Spline	1 3/8 Z6 Cone base aequliate spline shaft	1 3/8 Z6 φ31.75 optic axis	1 3/8 Z6 Taper Spline
Weight (N.W)	21.5KG	28.7kg	24.5kg	6.5KG
Application	Power Dividers Rotary Cutters Rotary Slashers Mowers Lift Pumps Cotton Choppers Tree Cutters

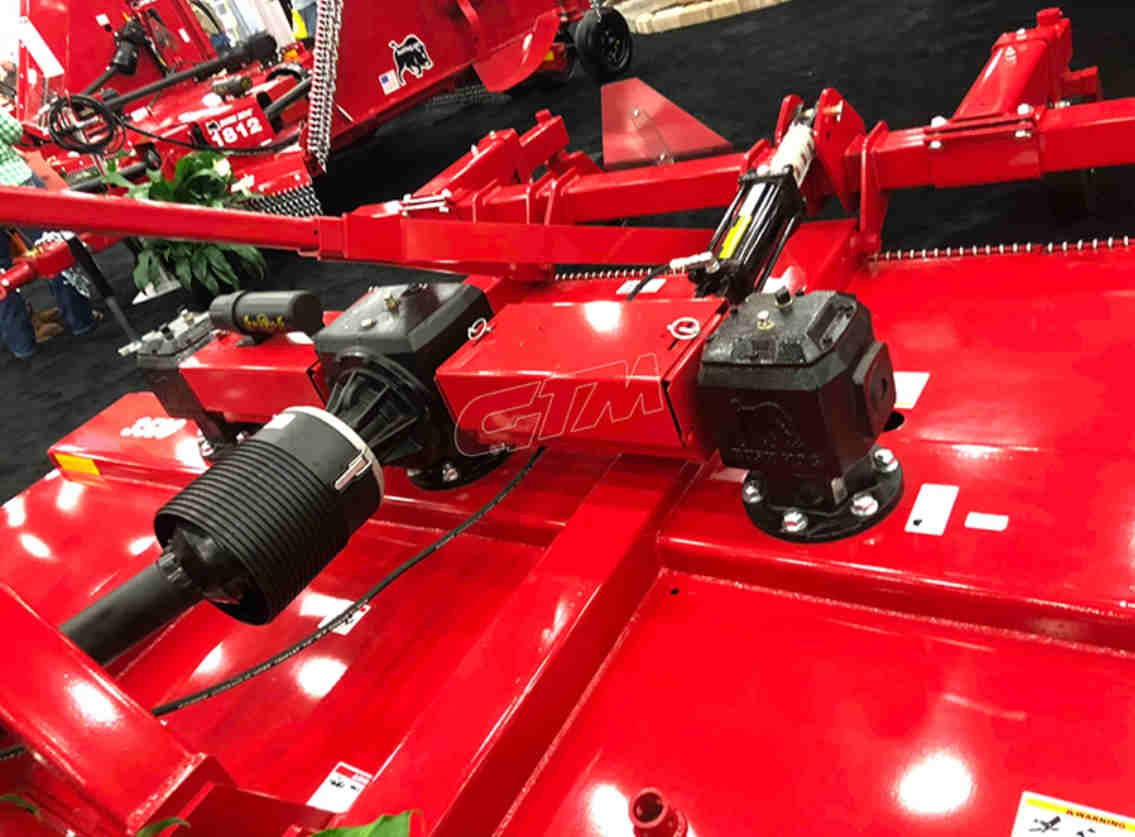

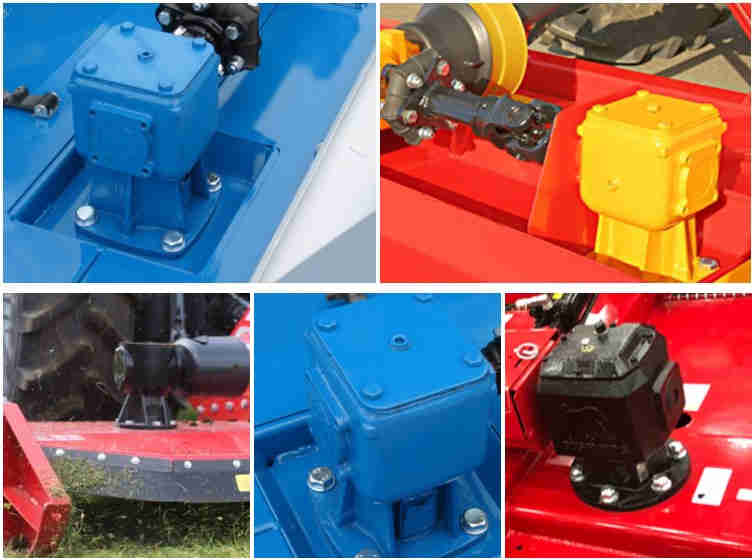

Here are a few key things to know about rotary mower gearboxes:
Purpose: A gearbox is used on rotary lawn mowers to reduce the engine speed from the typical combustion engine RPM range down to the slower speed needed to efficiently turn the cutting blade(s). This provides mechanical advantage.

Design: Typical rotary mower gearboxes contain 2-3 sets of gears that step down the engine speed progressively. Materials include steel and hardened alloys to withstand torque loads. Gears are either helical (for smoother operation) or spur type.

Lubrication: Gearboxes require a lubricating oil or grease to reduce friction and prevent wear of the closely fitted gear
parts. Proper lubrication level and type are important for long gearbox life.

Maintenance: Over time, gearbox lubricant breaks down and needs changing. Gears may also wear out depending on hours of use. Regular inspection/maintenance prolongs the gearbox lifespan. Failure symptoms include noise, difficulty engaging the blades, or loss of power.

Repairs: Minor gear or bearing wear can sometimes be repaired by replacing individual parts. A complete rebuild or replacement is needed if damage is more extensive.

Gearbox For Rotary Tiller	Gearbox For Fertiliser Spreaders	Agricultural Gearbox For HAY TEDDER
Agricultural Gearbox For Rotary Cutter	Gearbox For Rotary Mowers	Agricultural Pto Gearboxes For Powered Generator
Post Hole Digger Gearbox	Gearbox For Self Loading Trailer	General Gearbox For Agricultural Machinery
Agricultural Gearbox For Manure Spreader	Gearboxes For Silo Distributors System	Driveline Motor Of Irrigation System
Agricultural Gearbox For Fertilizer Spreader	Hay Choppers Gearboxes	Driveline Gearbox Of Irrigation System
Agricultural Gearbox For Sprayers	Gearboxes For Balers	Center-Dive Gear Box Of Irrigation System
Agricultural Gearbox For Flail Mower	Gearboxes Multiplier For Hydraulic Pump System	Hydraulic PTO Drive Gearbox Speed Increaser
Agricultural Gearbox For Lawn Mowers	Planetary Gearbox For Hydraulic Drive Digger In Line	Side-Delivery Rake Gearbox
Agricultural Gearbox For Generator	Agricultural Gearbox For Harvest Fruits	Planetary Gearboxes For Feed Mixer
Agricultural Gearbox For Micro Tiller	Gearbox For Cattle Cleaning	PTO speed reducer
Agricultural Gearbox For Concrete Mixer	Gearbox For Digger Drive	Slasher gearboxes
Agricultural Gearbox For Feed Mixer	Gearbox For Dryer Drive System	Auger Gearboxes
Agitators For Sewage	Gearbox For Lagoon Pumps	Grain Harvester Reversing Gearbox
Salt Spreader Gearboxes	Bevel Gearbox For Biogas Energy Generator Plant	Oil-Pump-Gearbox
Gearbox reducer for Climate screens drive system	Gearbox For Circular Saw And Belt Saws	Potato Harvester Gearbox
Gearbox And Reducer For Crop Storage Drive Systems	Gearbox For Snow Tillers	Pesticide Sprayer Gearbox
Gearbox Reducer For Horticulture Drive Systems	Gearbox For Concrete Mixers	Chain Sprockets Gearbox
Drive Systems For Ventilation In Livestock Farming	Worm Gear Slewing Drive For Timber Grab	Agricultural Gearbox Grain Conveyor Gearbox
Electric Film Reeler Roll Up Units Winch For Poly Film Greenhouse Ventilation	Agriculture Gearbox For Rotary Harrows	Harvester Gearbox Reversing Bevel Gearbox
Rotary Harrows Gearbox	Agricultural Gearbox For Vineyard	Reversing Gearbox
Rotary Cultivators Gearbox	Agricultural Gearbox For Weed Mowers	Rotary Mower Gearboxes Size EP70
Gearbox For Trenchers	Agricultural Gearbox For Offset Mowers	Poultry and Pig Geared Motors For Feeding Systems
Interpump Gearbox For PTO Drive	Agricultural Gearbox For Flail Mowers	Salt Spreader Sprocket Chain Gearbox
Gearbox For Dusters

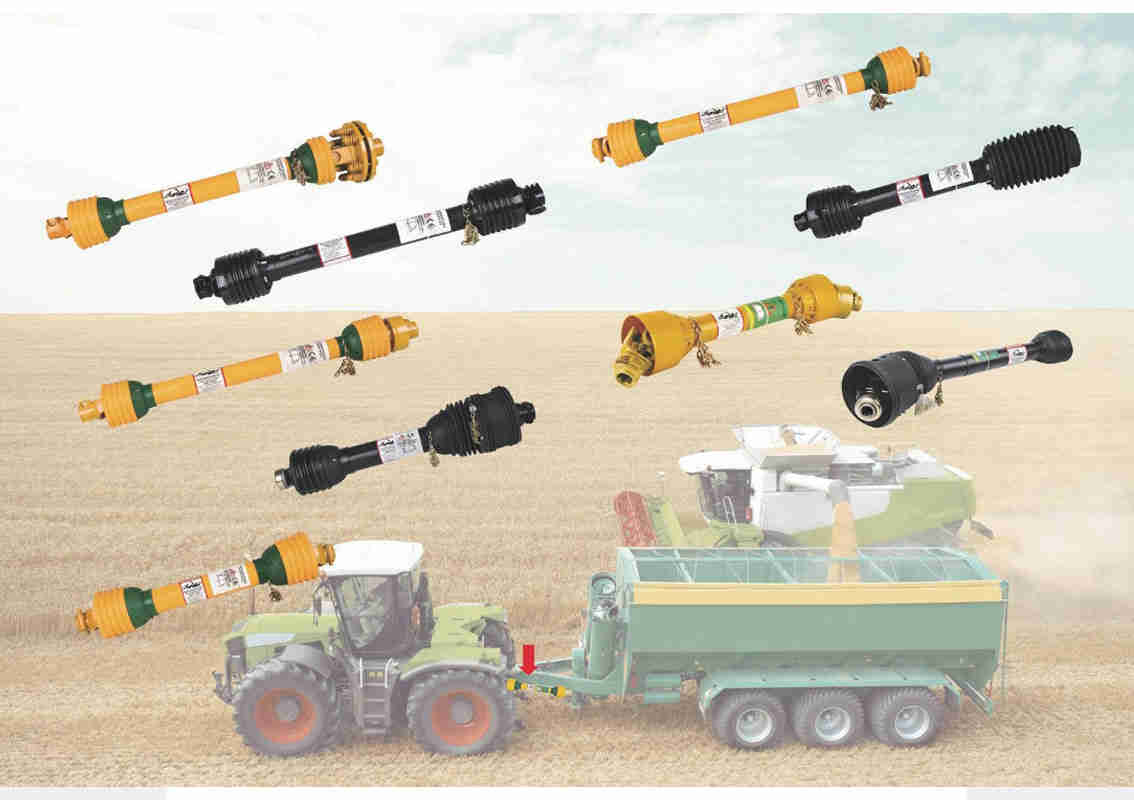

We also offer various sizes and models of PTO shafts for your agricultural tools.

Ever-Power Transmission Co., Ltd. a specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, PTO drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, UDL speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. Furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information and cooperate with us.

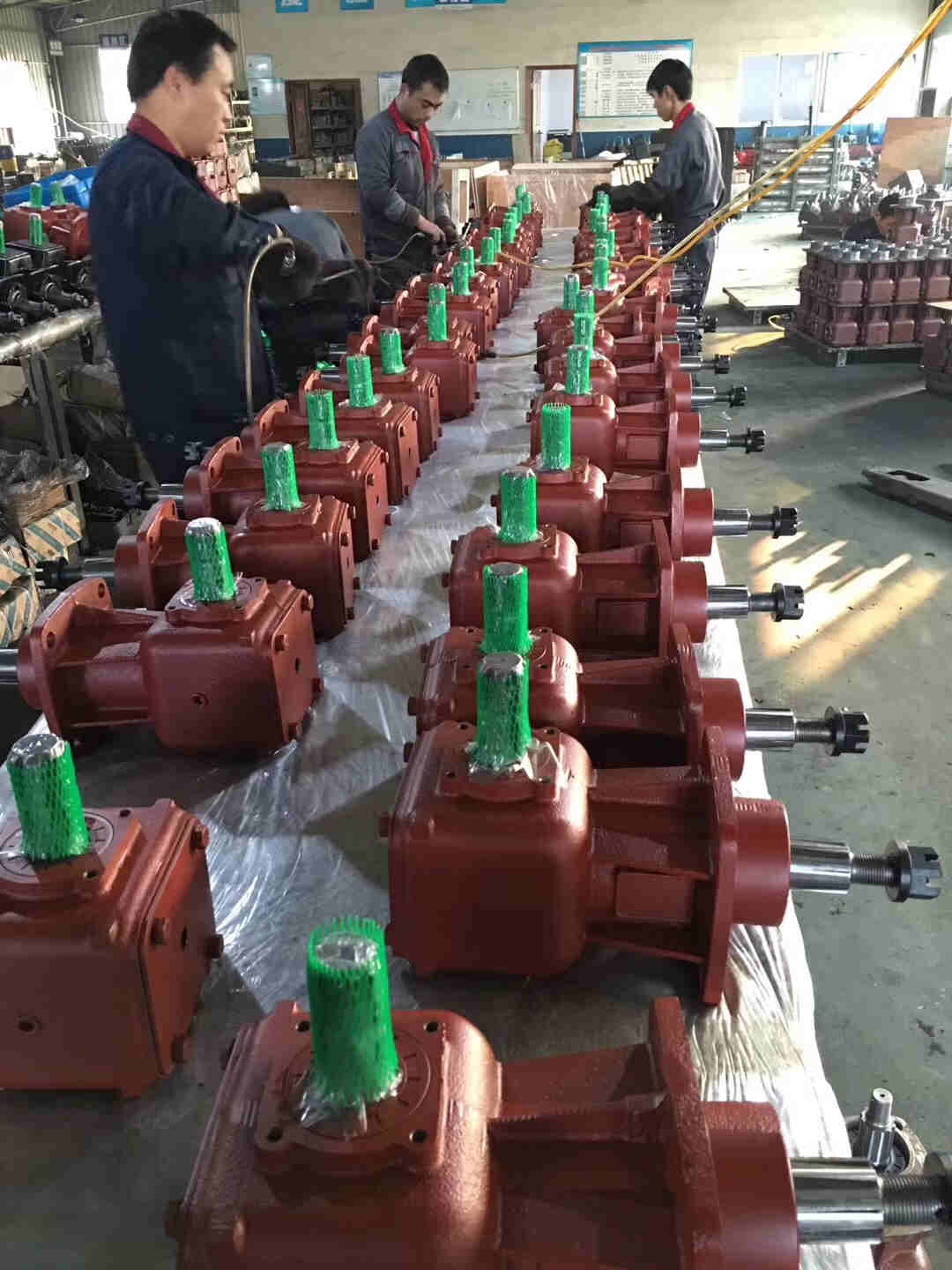

We staff over 1500 workers, and have CNC turning machines and CNC work centers.
For more details, please check out our products catalogs and machine lists.
Technological Parameter for Straight bevel gearbox assy Customization is available at given design or drawing.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
