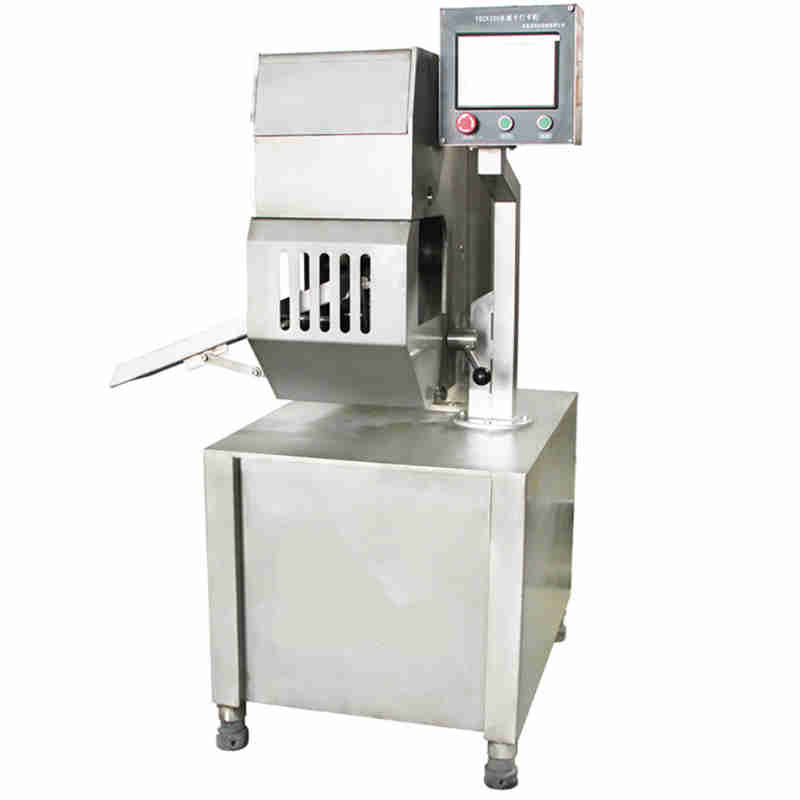

YGCK-200 Series 3.5kw 380v 50hz Great Wall Stainless Steel Clipper

Send Inquiry

Product Description

The punching speed is adjustable from 1 to 9 levels, and the maximum speed for a single machine can reach 120 time/min. It uses aluminum wire to seal, and the buckle shape after punching is beautiful, and the buckle is heart-shaped. The casing folding diameter range is 20~100mm. K1, K2, and K3 molds can be replaced freely. It has automatic cutting function, and 0~9 pieces can be selected at will. The stretching distance is 36~100mm and can be adjusted in steps to meet the requirements of different fullness of products. It can be connected with a quantitative filling machine to realize automatic production. The punching center height is 950-1000mm and can be adjusted. It is equipped with multiple protections to ensure safe operation.

Type	YGCK200
Speed (r/min)	120min/min
Dimensions (mm)	950x830x1800
Machine weight (kg)	400
Power (kw)	3.5
Casing fold diameter (mm)	50-200
Great Wall Card Specifications	15.7-15.1018.7-18.10
Gas source (MPa)	0.7
Power supply (V)	~380V,50HZ
Working center height (mm)	1000

The company has excellent basic processing equipment and has multiple CNC machining centers. In combination with market needs, it continuously develops and manufactures high-end equipment. Its main products include vacuum quantitative filling machines, electric aluminum wire punching machines, electric punching machines, high-speed knotting and hanging sausage machines, automatic wire tying machines, frozen meat cutting machines, frozen meat grinders, brine injection machines, high-speed variable frequency chopping and mixing machines, vacuum tumbling machines, vacuum mixers, fully automatic smoking furnaces and other series of varieties. The company always pays attention to international advanced process technology. Electrical appliances, bearings, vacuum pumps and other components are imported products, and all core components are made by machining centers. After careful research and development and design by the team, it has reached international standards.
