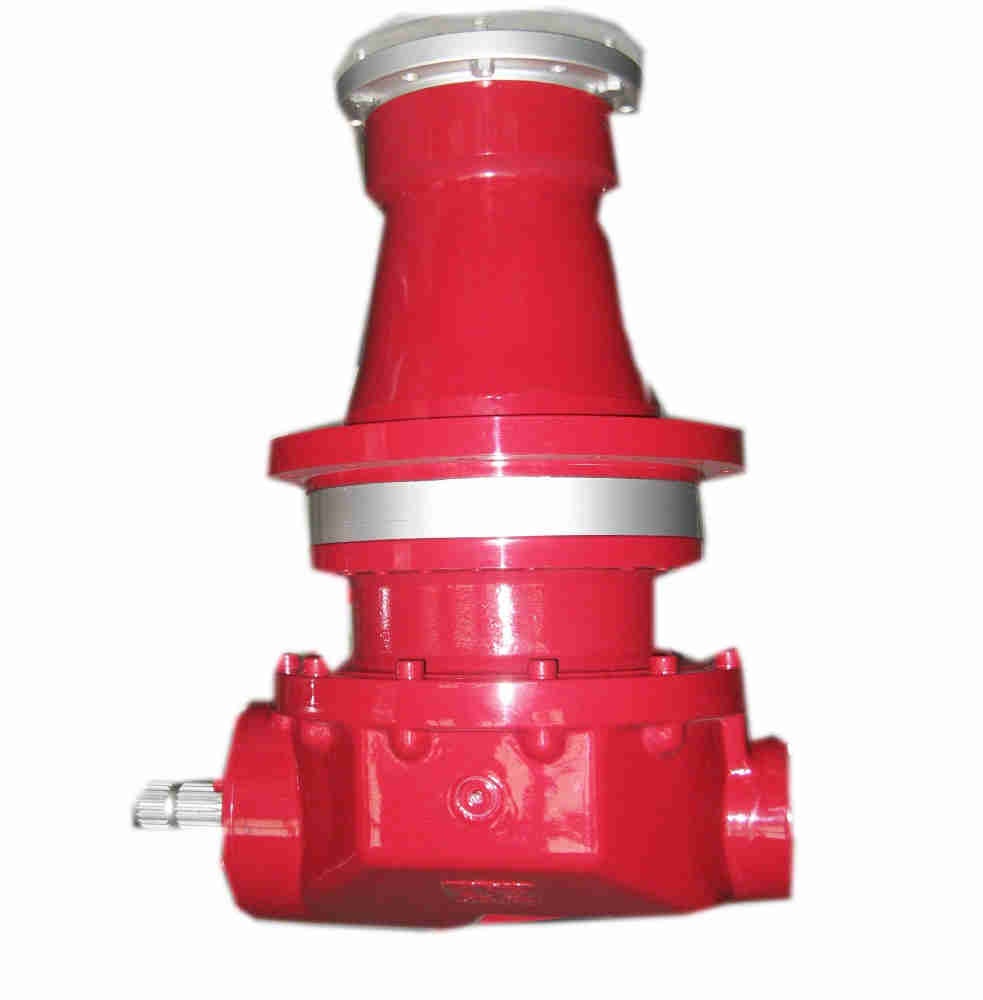

XHG01 Series Planetary Reduction Gearbox

Discover the Raydafon Group XHG01 Series Planetary Reduction Gearbox: engineered for superior torque and efficiency in industrial applications. Its precision design, durable materials, and quiet operation solve space and noise issues, making it ideal for manufacturers seeking reliable performance. Experience unmatched durability and smooth operation—upgrade your machinery with confidence.

Send Inquiry

Product Description

XHG01 series is a new type jiont developed by our company and domestic university. With its characteristics of big torque, reliable function, stable transmission, low noise, easy to be lubricated and long service life, it is widely used for industrial and agricultural agitators.

This series gearbox has already achieved national patent.

Details:

- ISO9001 Quality System examined & verified by Third Party of CQC and passed second-degree safety quality standardization for machinery manufacturing enterprise.

- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques .

- Strictly quality control by German CMM.

- Various of gearboxes used in agricultural machines and industrial machines.

- Advanced technics, strong self-development power, able to produce new type gearbox according to customer's design drwings.

Code	Gear Ratio(i)	Power (HP)	Output Torque (Nm)	Input Speed (r.p.m.)	Input Torque (Nm)	Weight (kg)

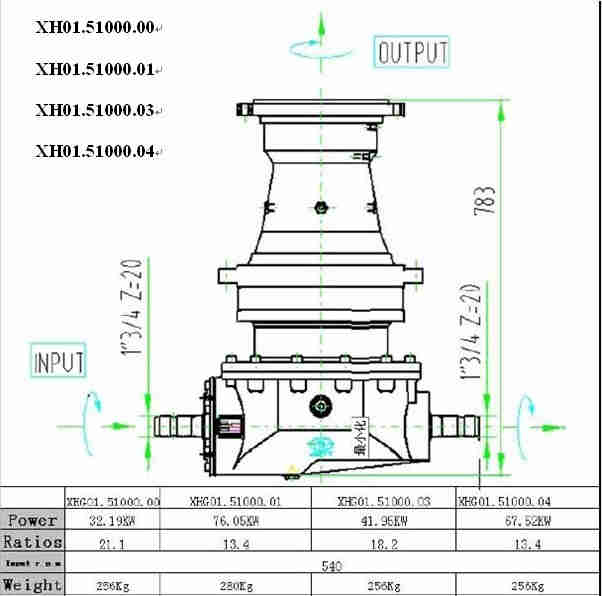

XHG01.51000.00	21.108	32.18	12010	540	569	256
XHG01.51000.01	13.402	76.04	18020	540	1345	256
XHG01.51000.02	25.986	72.62	18020	1000	693	290
XHG01.51000.03	18.218	41.90	13500	540	741	256
XHG01.51000.04	13.402	67.51	16000	540	1194	256

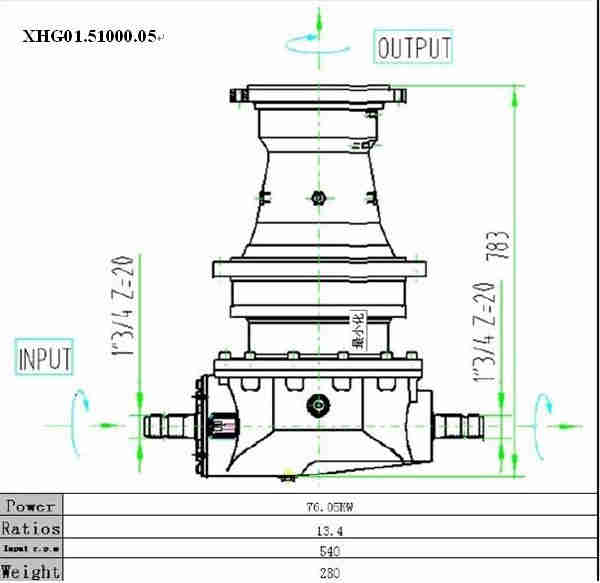

XHG01.51000.05	13.402	76.04	18020	540	1345	280

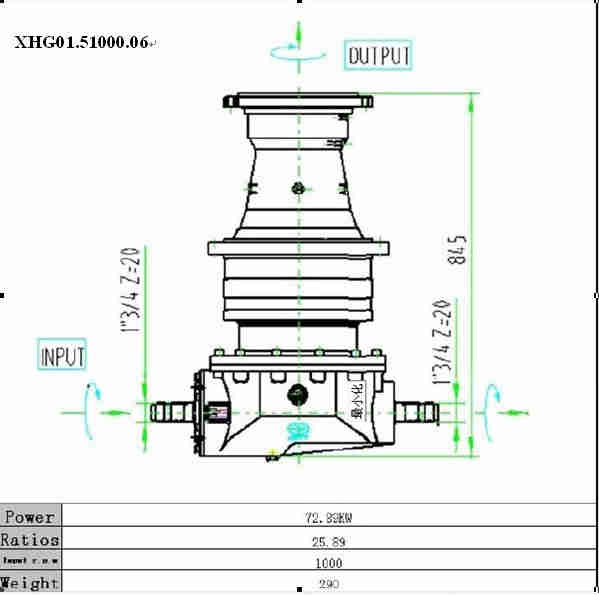

XHG01.51000.06	25.986	76.62	18020	1000	693	290

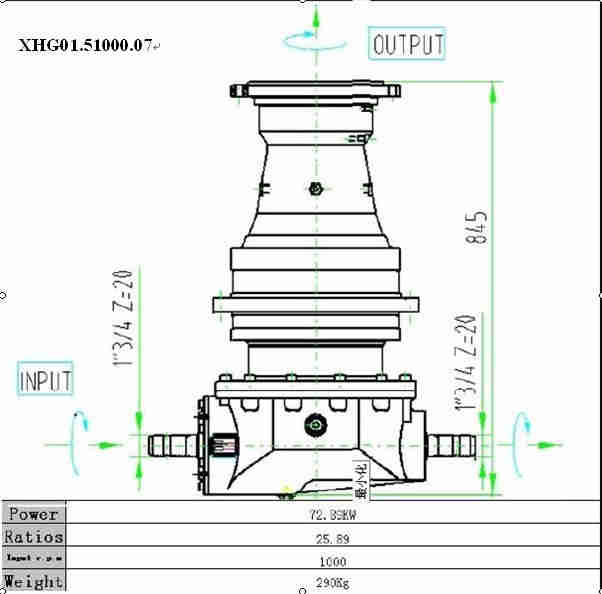

XHG01.51000.07	25.986	76.62	18020	1000	693	290

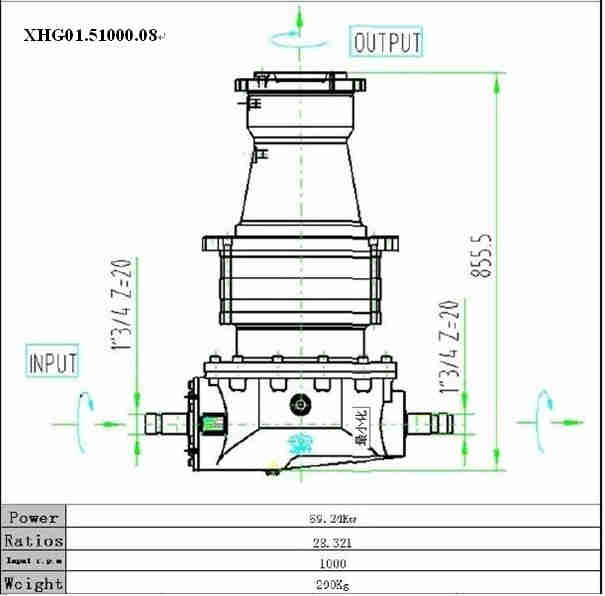

XHG01.51000.08	28.321	59.16	16000	1000	565	290
XHG01.51000.09	28.321	59.16	16000	1000	565	290
