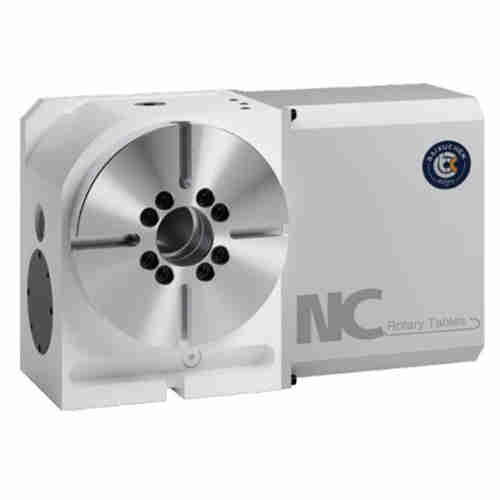

WT-210 Machine Tool CNC Machining Center Accessories CNC TiltingTurntable Rotary Table

Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-210Segmentation accuracy20 ″Disk DiameterΦ210mmRepeat positioning4 ″Center DiameterΦ55H7mmLocking Mode45kg.mSpindle HoleΦ50mmServo Motorβ8is;HF-104Cen......

Send Inquiry

Product Description

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

Product Model	WT-210	Segmentation accuracy	20 ″
Disk Diameter	Φ210mm	Repeat positioning	4 ″
Center Diameter	Φ55H7mm	Locking Mode	45kg.m
Spindle Hole	Φ50mm	Servo Motor	β8is;HF-104
Center Height	160mm	Speed Reduction Ratio	1:72
T-Slot Width	12H7mm	Maximun Speed	55.5r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	8.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	18Kg.m
Weight(Without Motor)	70Kg	Vertical	80KG
Horizontal	160KG	Tailstock applied	160KG

Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
