Wholesale Quality W 2500 Series Walterscheid Replacement PTO Shaft

Scope of application:HarvesterSoil tillage machineryWood crusherProperty:Tractor side 1 – 3/8 "(6) collar kitMachine side: flange Ö 160Lubrication interval is 50 to 100 hoursConforming to the requirements of EC 89/392 EECComply with EN12965 safety standardCE mark availableTechnical informa......

Send Inquiry

Product Description

Scope of application: Harvester Soil tillage machinery Wood crusher Property: Tractor side 1 – 3/8 "(6) collar kit Machine side: flange Ö 160 Lubrication interval is 50 to 100 hours Conforming to the requirements of EC 89/392 EEC Comply with EN12965 safety standard CE mark available Technical information: Refer to the instructions of Waltsched Maximum dynamic capacity 540 rpm: 66 kW, 1175 Nm Maximum dynamic capacity 1000 rpm: 102 kW, 975 Nm Value at working angle of 5 ° and service life of 1000 hours LZ=sliding length from intersection to intersection (unit: mm)

Specification of W 2500 series PTO shaft

Connection outside diameter tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	* Pto shaft with a guard tube * Declaration of conformity * Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Locking type by machine side	Flange
Attachment machine side	Flange yoke
Size code	W2500
Length	710 mm
Power per 540 rpm	66 kW
Power per 1000 rpm	102 kW
Cross joint cap diameter tractor side	36 mm
Cross joint length tractor side	89 mm
Cross joint cap diameter machine side	36 mm
Cross joint length machine side	89 mm
Clutch type	n/a
Outer tube profile	S5
Outer tube wall thickness	4,5 mm
Outer tube large outside diameter	61 mm
Inner tube profile	S4
Inner tube large outside diameter	51 mm
Max static torque	6000 N·m

Problems encountered in the use of PTO shaft 1. What if the PTO is not engaged but the PTO shaft is rotating? W 2500 Series PTO Shaft Replacement Walter scheid Kubota tractor PTO not engaged When the engine speed rises above 1500, the shaft stops. However, when the engine speed drops below 1000 RPM, the steering continues. Although it is not difficult to turn, sometimes it is enough to turn accessories (whether pile hole excavator or winch). You may have a bad clutch pack, but it is unlikely to leak. It may also be a bad clutch component brake disc that cannot stop the clutch. If this is the case, a visual inspection is required. Remember, the entire disassembly will be performed on the card. Most likely, the PTO control valve is not adjusted correctly so that it can only be partially engaged or floating. A simple pressure test of the control valve will reveal whether this is a potential problem. If the speed is changed and engaged, the seal may be poor. When the flow and pressure rise to high enough, a shutdown will occur. On the other hand, when the flow and pressure decrease, it engages again. 2. Why does the PTO shaft not turn when the clutch is engaged and the PTO light is on? Your tractor model will be considered here, but we will provide some troubleshooting ideas for Kubota tractor PTO not fully engaged. However, the PTO may be fully mechanical with two handles. The lever is used for the clutch plate. The other is for the PTO shifter. You will notice that the drive shaft runs from the engine clutch to the agricultural transmission at the rear of the tractor. This will reduce the RPM to PTO speed and include a shifter to engage and disengage the PTO. Some models have two-speed, and some models have single-speed with neutral. To check by yourself, please check the clutch handle. The connecting rod may bend and will definitely prevent the clutch from engaging. Next, look at the connecting rod of the rear gearbox. Make sure it is not broken or bent. You will see a shaft passing through the box in the upper left corner. From the rear, the shaft will move the gear lever inside. You may need to try to disconnect the outer lever and use a vice to operate the lever. Finally, try to turn the PTO shaft manually. When moving in one direction, it should be free and very easy to turn. When reversing the other direction, it should be more difficult to connect it to the PTO drive shaft, clutch and steering. 3. What if the PTO is grounded but not engaged? Kubota tractor power output problem For most PTO, there is no external adjustment. It is internal. It includes a clutch component, which can be replaced. You should know that the damage of clutch components is caused by the overload of PTO tasks. For example, using a 50 hp tractor to complete the work of a 65 hp grinder/mixer will soon cause problems in the clutch assembly. Usually, the PTO clutch ring and shaft need to be replaced, because people use tractors to run 4-5-foot garden tillers and bush pigs without sliding clutch.

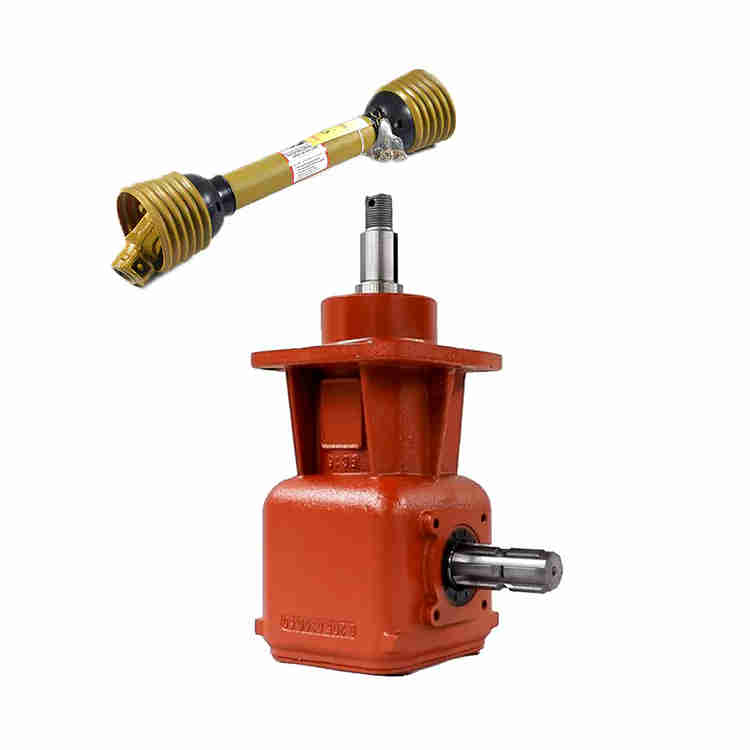

PTO shaft of agricultural gearbox Agricultural equipment includes various PTO shafts. Each is connected by a yoke at both ends and rotates between 540 and 1000 rpm. Safety guards are usually installed at both ends of the PTO shaft to protect the operator. These protective covers also exist in tractors and agricultural implements to ensure maximum efficiency. The use of the internal yoke also provides additional safety. The agricultural PTO gearbox is designed to change the output speed of the PTO shaft. It can be used as a reduction or speed-ratio gearbox. Through the reduction ratio gearbox, it reduces the speed of the PTO shaft from 1000 rpm to 540 rpm, allowing you to use equipment specially designed for 540 rpm. On the other hand, the gearbox with increased transmission ratio increases the speed of the PTO shaft from 540 rpm to 1000 rpm.

Why choose us? 1. We are a manufacturer with good quality control 2. Timely delivery 3. Welcome customer's design and logo 4. Get competitive prices directly from the factory 5. Small orders are acceptable 6. Accept OEM/ODM

We also supply agricultural gearbox:https://planetary-gearboxes.en.Raydafon/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

Adaptor & Splined shaft for agricultural pto shaft	Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 1:1.92 ratio	Pto Shaft Ratchet Torque Limiters (SW) And Yoke
Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 3.76:1 ratio	Tractor gearboxes for PTO drive shaft, agricultural machines 540 rpm input	Pto Shaft With Free Wheel (RA) And Yoke
Agricultural Friction Torque Limiter (FCS)	PTO drive shaft for agricultural machine and tractor, L Series German (Metric) Lemon shape	PTO drive shaft-TYPE L5
Agricultural Pto Shaft	Universal joint cardan cross for PTO drive shaft, for agricultural machines and tractors	Pto Shaft & Conditioner Gearbox For Discbines
Aratchet torque limiter for agricultural pto shaft (SAS1)	Friction torque limiter FFVS3-FFVS4 Series, PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Flail Shredder
Car Front Drive Shaft	Overrunning clutch RL/RLS , PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Alloway Shredders
Car Unigersal Joint	Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 1:2.78 ratio	Pto Shaft & Gearbox For Feed Mixers
Connection fork (S11)	Friction torque limiter FFV3-FFV4 Series, PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Peecon Vertical Feed Mixers
Constant velocity joint CV Series for PTO drive shafts	Friction torque limiter FFVS1-FFVS2 Series, PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Jaylor Vertical Mixers TMR
Coupling Series PB-D	Speedlash SP Series, PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Mulcher
Coupling Series PB-M	PTO Adaptor with splined bush and shaft, for agricultural machines and tractors	Pto Shaft & Gearbox For Snow Blowers
Coupling Series PB-S	all sizes PTO shaft covers, driveshaft for agricultural machines and tractors	Pto Shaft & Gearbox For Vineyard Sprayer
Coupling Series PR-S	Friction torque limiter FFV1-FFV2 Series, PTO drive shaft for agricultural machines	Pto Shaft For Pto Drive Air Blast Sprayer And Gearboxes
Cross Journal For Wide Angle Joit For Agricultural Pto Shaft	Friction torque limiter FFVT3-FFVT4 Series, PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Tillers
Drive shaft for TOYOTA	Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 3.76:1 ratio	Pto Shaft & Gearbox For Round Balers
Industry Drive Shaft	Tractor gearbox for PTO drive shaft	Pto Shaft & Gearbox For Posthole Diggers
PTO drive shaft for agricultural machines	PTO drive shaft for agricultural machines	Pto Shaft & Gearbox For Peanut Combines
Shaft Collar	PTO shaft T Series	Pto Drive Shaft & Gearbox For Manure Spreaders
shaft couplings stainless steel couplings similar fenner couplings	Plain bore yoke a pin-hole for agricultural pto shaft	Pto Drive Shaft & Gearbox For Hay Tedders
Front Driveshaft (Prop Shaft), OE #37140-35030, 3714035030 standard for TOYOTA HILUX 4X4, OEM / ODM	LEMON YOKE For Agricultural Pto SHAFT	Generators Pto Shaft And Gearbox
Front Driveshaft (Prop Shaft), OE # 52105981AC standard for Mitsubishi or Dodge Dakota, OEM / ODM	Cross Journal For Wide Angle Joit For Agricultural Pto Shaft	Fertilizer Spreaders Pto Shaft And Gearboxes
Front Driveshaft (Prop Shaft), OE # 37200CL70A standard for Nissan Infinity, OEM / ODM	Aratchet torque limiter for agricultural pto shaft (SAS1)	Drum Mower & Disc Mower Pto Shaft And Gearbox
Escalator handrail drive shaft, standard, OEM / ODM	Agricultural PTO Shaft	Rotary Cutters Pto Drive Shaft And Gearbox
Front Driveshaft (Prop Shaft), OE # 52105982AC standard for Mitsubishi raider or Dodge Dakota, OEM / ODM	Adaptor & Splined shaft for Agricultural pto shaft	Pto Shaft And Gearbox For Disc Crop Mower
Front Driveshaft (Prop Shaft), OE # 37140-35190, 37140-60170, 37140-60280 standard for Toyota Land Cruiser	Pto Shaft And Standard Yoke	Driveline Pto Shaft And Gearbox For Rotary Cutter Flex-wing
Front Driveshaft (Prop Shaft), OE # 52111594AA standard for Jeep Liberty, OEM / ODM	Pto Shaft With Free Wheel	Agricultural PTO gearboxes Tractor gearbox for PTO drive shaft
Front Driveshaft (Prop Shaft), OE # 52111597AA standard for Jeep Liberty, OEM / ODM	Pto Shaft Ratchet Torque Limiters	PTO drive shaft S Series
Front Driveshaft (Prop Shaft), 936803 standard for Ford F-150, OEM / ODM	Ratchet Torque Limiter For Pto Shaft	PTO drive shaft L Series
Front Driveshaft (Prop Shaft), OE # 40100-S9A-E01, 40100-SCA-A01, 40100S9AE01, 40100SCA standard for Honda	Shear Bolt Torque Limiters (SB) For PTO Shaft	Constant velocity joint CV series, Large angle 80, PTO drive shaft for agricultural machines
Front Driveshaft (Prop Shaft), 65-9540 standard for Dodge pick-up, OEM / ODM	Pto Shaft Friction Torque Limiters With Conical Spring Washer	PTO drive shaft for agricultural machine and tractor, L Series German (Metric) Lemon shape
Front Driveshaft (Prop Shaft), OE # 37110-6A250 standard for Toyota Land Cruiser, OEM / ODM	Pto Shaft With Wide Angle Joint	Tractor gearboxes for PTO drive shaft, agricultural machines 540 rpm input
Front Driveshaft (Prop Shaft), OE # 37110-60450 standard for Toyota Land Cruiser, OEM / ODM	Outer Yoke With Push-pin For Pto Shaft	Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 1:1.92 ratio
Front Driveshaft (Prop Shaft), 65-9303 standard for Ford F250 F350 Super Duty Pickup, OEM / ODM	PTO Drive Shaft	Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 3.76:1 ratio
PTO drive shaft for agricultural machine and tractor, S Series German (Metric) Star shape	Pto Shaft With Wide Angle Joint EC Legislation	Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 3:1 ratio
Friction torque limiter FFVT1-FFVT2 Series, PTO drive shaft for agricultural machines	PTO drive shaft High quality Agricultural PTO Shafts	PTO drive shaft for agricultural machine and tractor, S Series American (Domestic) Splined shape
Front Driveshaft (Prop Shaft), OE # 37110-6A260 standard for Toyota Land Cruiser	Raydafon drive shaft/pto shaft/cardan shaft	Ratchet torque limiter SA series, PTO drive shaft for agricultural machines
Ratchet torque limiter SA series, PTO drive shaft for agricultural machines	pto shafts/pto shafts part/cardan shaft	Friction torque limiter FFVT1-FFVT2 Series, PTO drive shaft for agricultural machines
PTO drive shaft for agricultural machine and tractor, S Series American (Domestic) Splined shape	Pto Shaft & Gearbox For Self Propelled Brush Shredder	PTO drive shaft for agricultural machine and tractor, S Series German (Metric) Star shape
Tractor gearbox for PTO drive shaft, agricultural machines 540 rpm, 3:1 ratio	Pto Shaft Friction Torque Limiters With Conical Spring Washer (FFT) And Yoke	Pto Shaft Shear Bolt Torque Limiters (SB) And Yoke

Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:

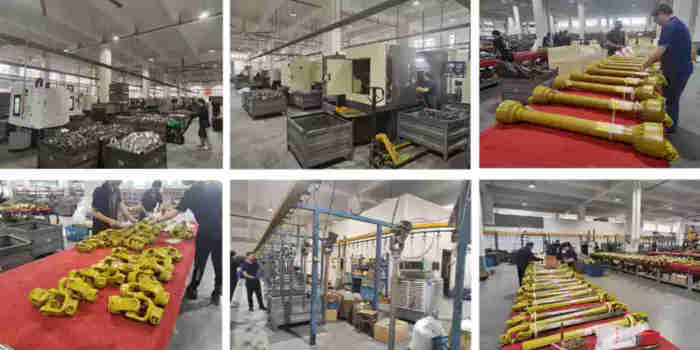

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.
