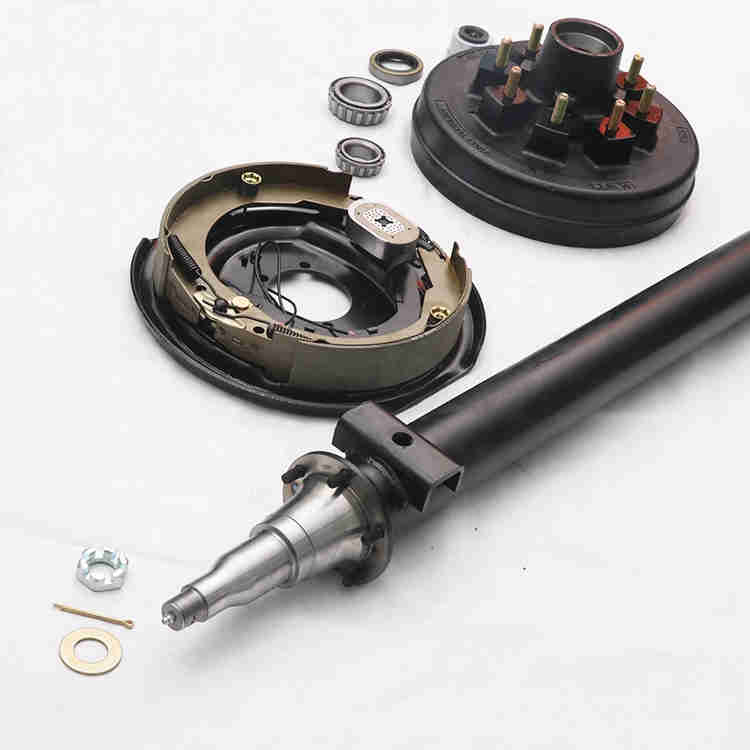

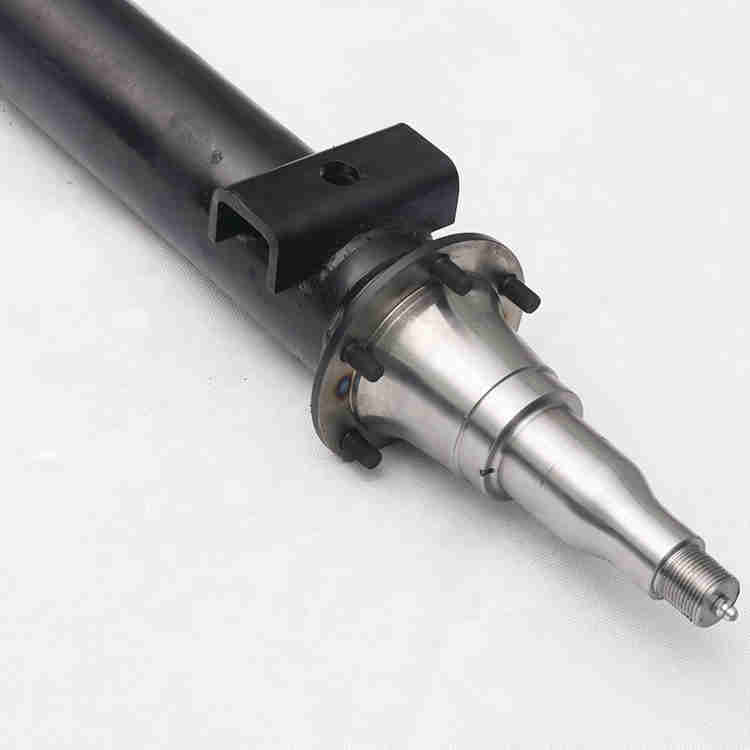

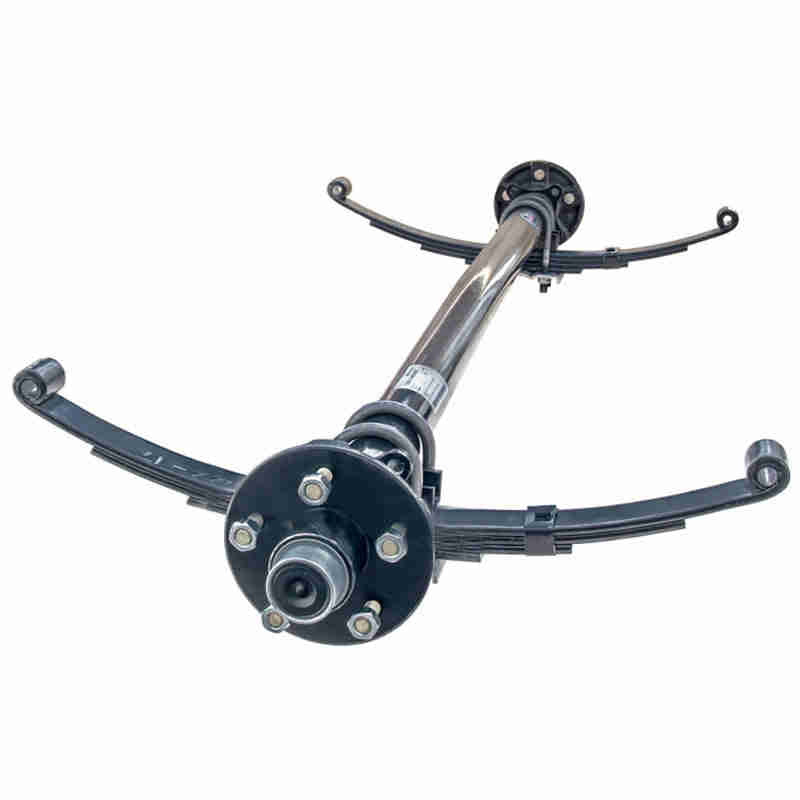

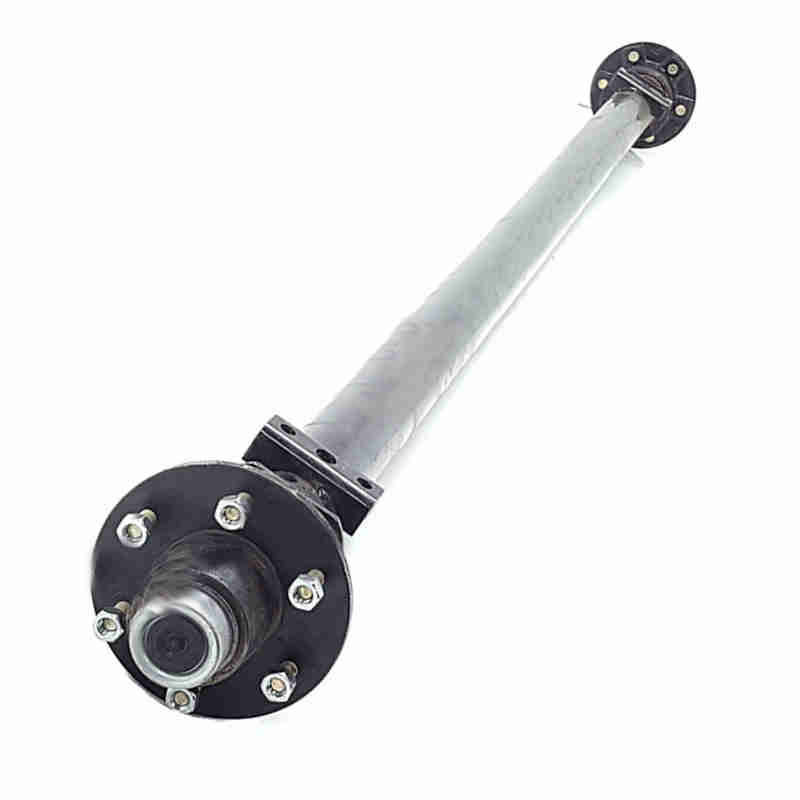

Wheel Hub Bearings 3500lbs - 7000 Lbs Forging Trailer Straight Axle Spindle for Heavy Duty Stub Axle brake System

Electric trailer brake systems are a common and essential safety feature on many types of trailers, especially those used to tow heavier loads such as RVs, boat trailers, utility trailers, or commercial equipment trailers. Unlike impact (hydraulic) brakes, which are activated when the towing vehicle slows, electric brakes are electronically controlled directly from the towing vehicle to provide independent and precise braking force to the trailer wheels.



How Trailer Electric Brake Systems Work?
The operation of trailer electric brake systems relies on an electrical signal from the tractor, which activates electromagnets within the trailer brake assembly:

Brake Controller: The heart of the tractor is the trailer brake controller. This device (either proportional or time-delay) senses the tractor's braking action (e.g., by inertial sensing or directly connected to the brake pedal switch) and converts it into an electrical signal that is sent to the trailer.

Wiring Harness: A dedicated wiring harness connects the tractor's brake controller to the trailer's electrical system, usually through a 7-pin connector.

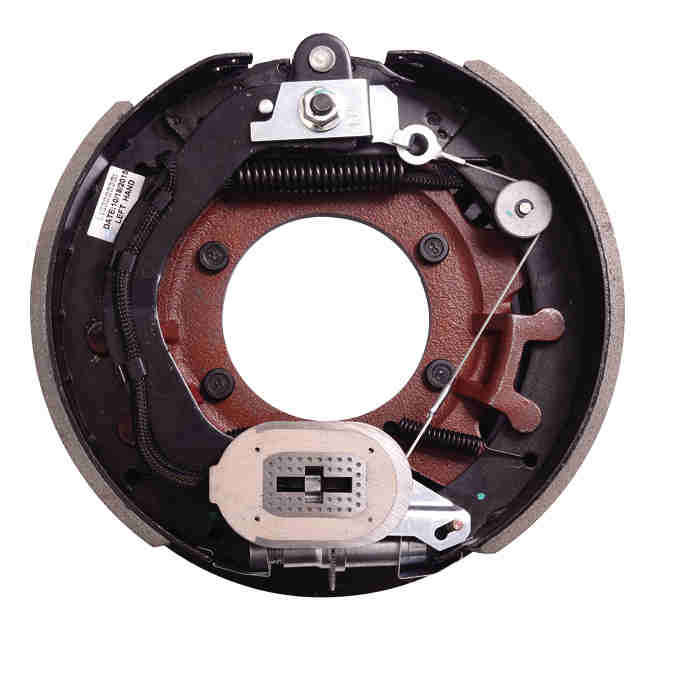

Electromagnets: There is an electromagnet inside the brake drum of each trailer wheel. These electromagnets are energized when current flows through them from the brake controller.

Armature Plate and Lever Arm: The energized electromagnet is attracted toward the rotating armature plate, which is connected to the brake drum. This magnetic attraction causes the electromagnet to rotate slightly. This rotating action, in turn, pushes the lever arm.

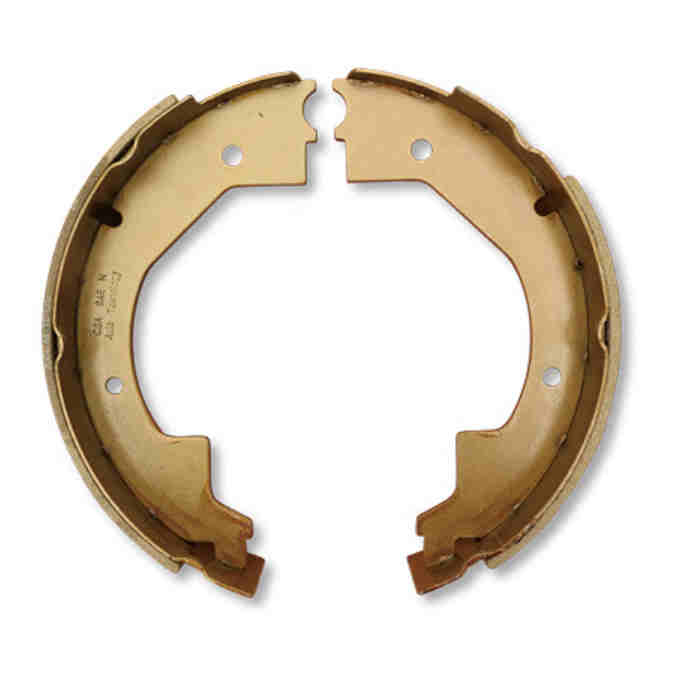

Brake Shoe Actuation: The lever arm then forces the service brake shoe against the inside of the brake drum. The friction created pulls the primary brake shoe, which then pushes the secondary brake shoe toward the brake drum via a linkage.
Braking Force: The friction between the brake shoe and the rotating brake drum creates the necessary braking force to slow or stop the trailer.
Adjustable Force: The amount of current delivered to the electromagnet determines the strength of the magnetic force, and therefore the braking force applied to the trailer wheels. This allows the driver to adjust the "gain" on the brake controller for optimal braking effect.





Advantages of Electric Trailer Brakes
Independent Control: The driver has direct, adjustable control over the towing vehicle's braking force on the trailer, allowing for precise braking force regardless of the towing vehicle's braking strength.
No Lag Time: Unlike surge brakes, electric brakes activate without delay. Braking is instant and synchronized with the towing vehicle.
Reverse Braking: Electric brakes also work well in reverse, which is critical for maneuvering a trailer without over-applying the towing vehicle's brakes.
Emergency Breakaway Capability: Electric brake systems almost always include a breakaway kit. If the trailer breaks away from the towing vehicle, a small battery automatically applies the full trailer brakes to prevent the trailer from losing control.
Easy to Adjust: The brake controller offers adjustable "gain" settings, allowing the driver to fine-tune the braking strength based on trailer weight, road conditions, and personal preference.
Simplified Maintenance (No Fluids): As an electric system, there is no hydraulic fluid to worry about leaking, draining, or maintaining, making maintenance much simpler than with hydraulic brake systems.
Smooth Braking: When properly adjusted, electric brakes provide very smooth and stable deceleration, minimizing any jolt or jostling of the trailer.





Applications
Electric trailer brake systems are used in a wide variety of trailers, especially those that are heavy or require precise brake control:

Recreational Vehicles (RV) and Travel Trailers: Essential for safely towing large RVs and campers.

Marine Trailers: Especially for large boats that require strong braking force.

Utility and Cargo Trailers: Used to transport heavy equipment, landscaping materials, or cargo.

Horse Trailers: Provide stable and safe braking for livestock.

Commercial and Equipment Trailers: Trailers used to transport heavy machinery, construction equipment, or commercial cargo.

Fifth-wheel Trailers and Gooseneck Trailers: Due to the weight and the need for synchronized braking, nearly all of these large towing devices rely on electric brakes.
