Tractor Front Hitch System Top Link 3 Point Linkage Kit for CAT1 CAT2 Trailer Agricultural Spare Parts

3 Point Linkage Kit to Fit TractorDesigned as a rear tractor 3 point hitch, this linkage kit contains 10 separate pieces. When assembled, this tractor implement iscompatible with a horsepower range of 10 HP to 25 HP on most models of Kubota® or Iseki® tractors. This kit includes a pair of......

Send Inquiry

Product Description

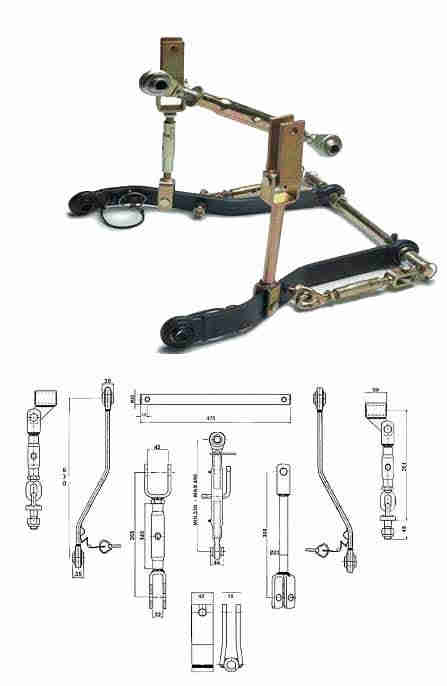

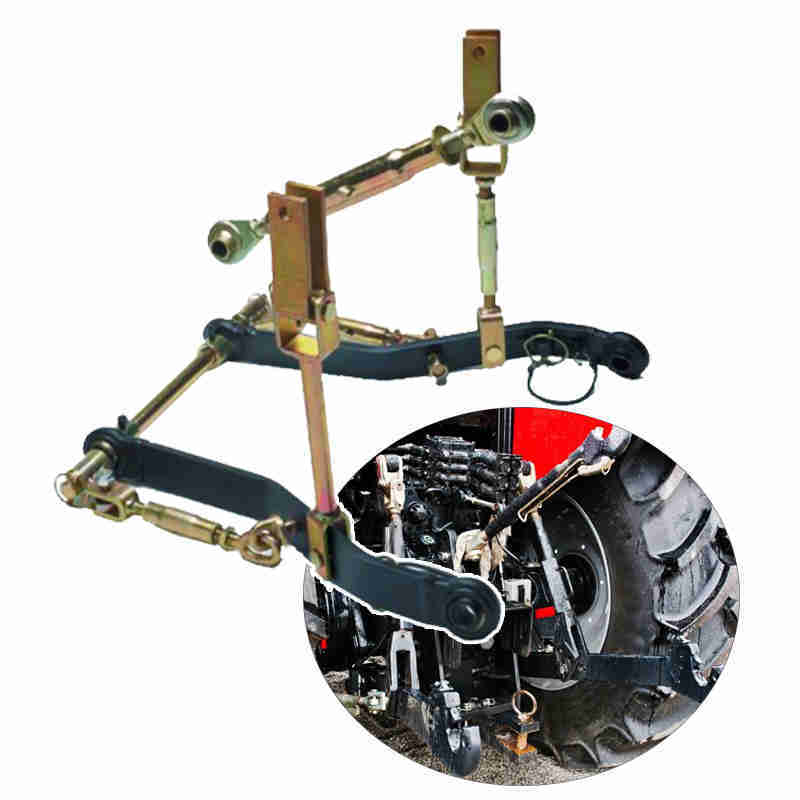

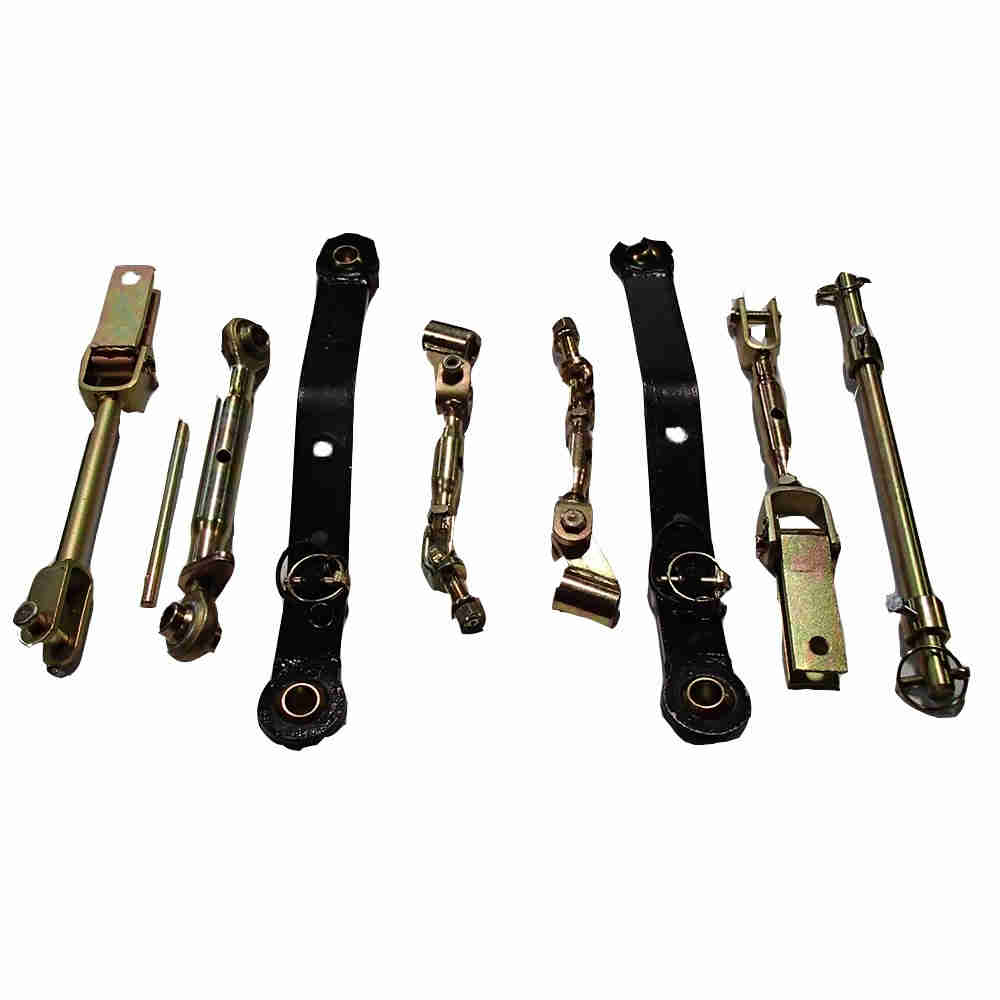

3 Point Linkage Kit to Fit Tractor

Designed as a rear tractor 3 point hitch, this linkage kit contains 10 separate pieces. When assembled, this tractor implement is
compatible with a horsepower range of 10 HP to 25 HP on most models of Kubota® or Iseki® tractors. This kit includes a pair of the
following: leveling arms, lynch - pins with chains and chain stabilizers. It also includes single items, 1 top link with pin, 1
fixed stabilizer, 1 adjustable stabilizer and 1 rod with spacer. The exterior is coated in a paint that can withstand corrosion in
outdoor conditions and all parts have been electroplated.

Specifications
* 3 Pt. Linkage
* Fits most models of tractors that range in horsepower rating of 10 to 25 HP.
* Trivalent white
* Lift arm pins are Category 1Category 2 Category 3

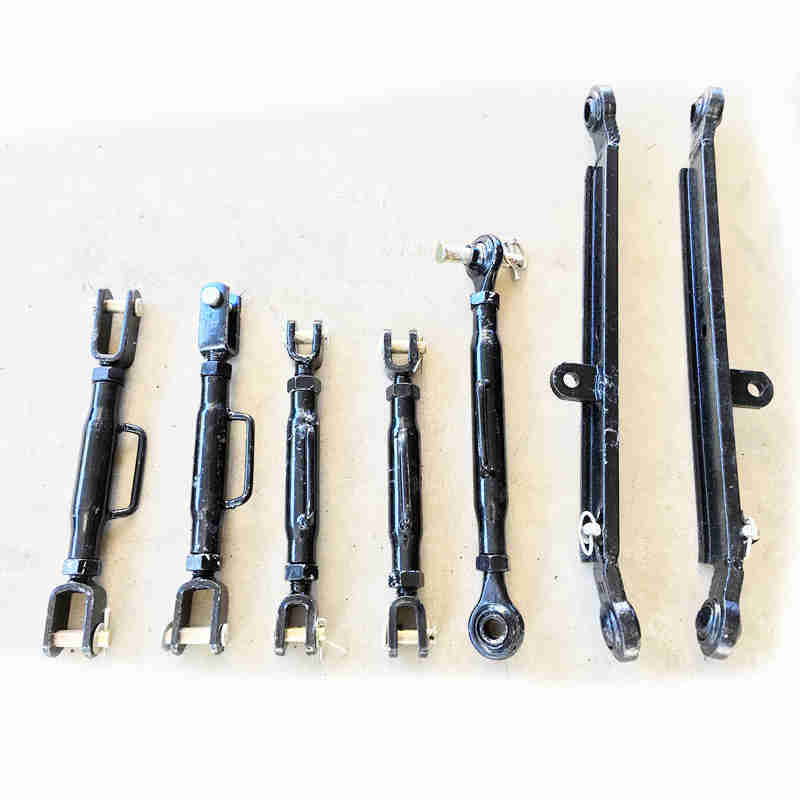

* Kit includes:
* (2) non-leveling arms(2) lynch pins with chains(2) chain stabilizers(1) top link with pin(1) fixed stabilizer(1) adjustable
stabilizer(1) rod with spacer
* Top link holes are 13" center to center closed
* Lift arm holes are 20" center to center
* Connecting Rod holes are 17-1/2" center to center
* Stabilizer bars 10" center to center
* Lifting arms holes are 17-12" center to center
* Parts are electroplated
* Resistance to corrosion
* Material: mild steel
* Weight: 36.2 lbs

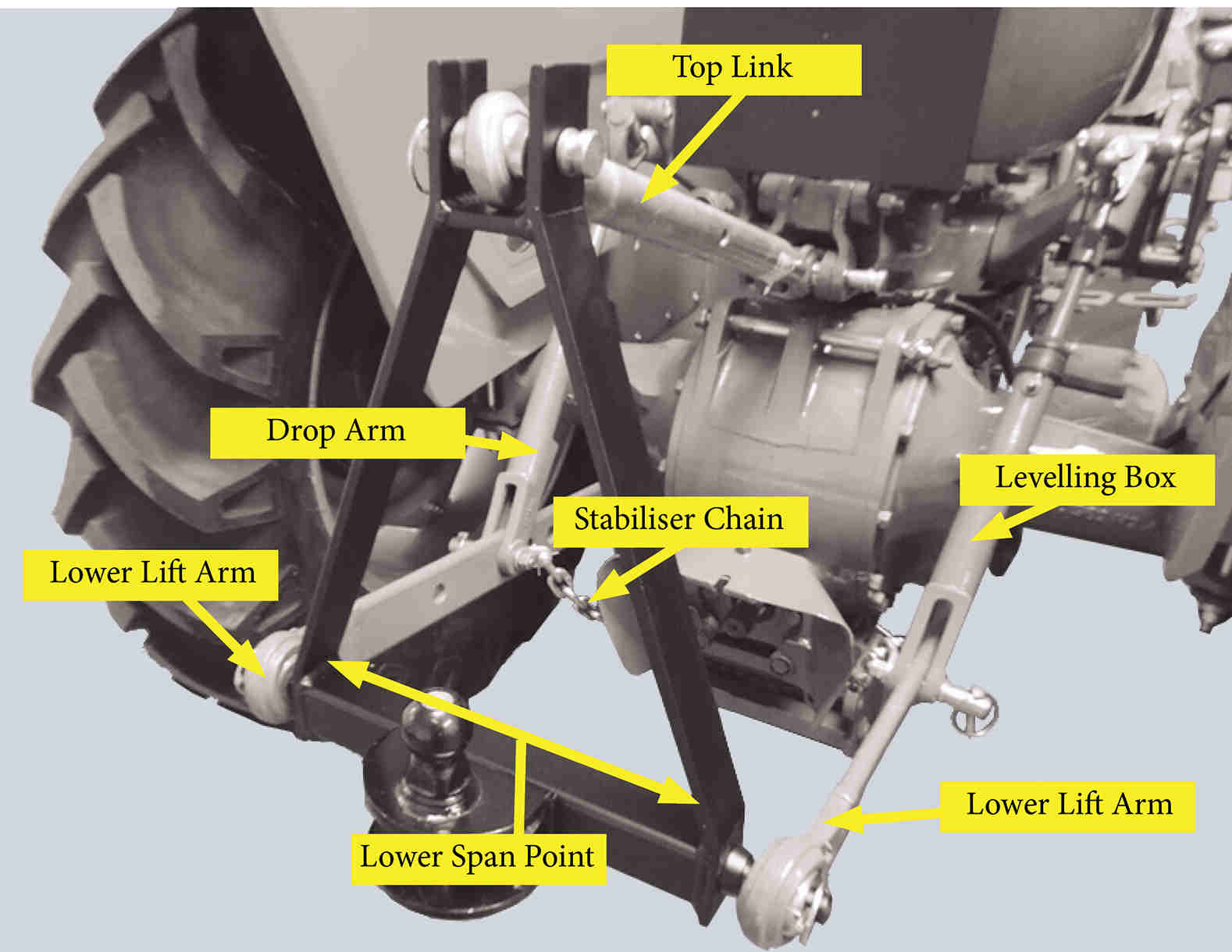

The suspension mechanism is classified based on the size of the tractor engine. Choosing the appropriate category will enable the implement to connect safely and reliably.

Category	Application	Hitch Pin Size - Upper Link	Hitch Pin Size - Lower Link	Lower Hitch Spacing	Tractor Drawbar Power
0	Suitable for lightweight implements on compact tractors and small ride on mowers.	17 mm (5/8")	17 mm (5/8")	500 mm (20")	<15kW (<20 hp)
1	Suitable for compact tractors under 50 hp.	19 mm (3/4")	22.4 mm (7/8")	718 mm (28")	15-35 kW (20-45 hp)
2	Suitable for utility tractors between 50-140 hp.	25.5 mm (1")	28.7 mm (1 1/8")	870 mm (34")	30-75 kW (40-100 hp)
3	Suitable for large tractors between 110-220 hp.	31.75 mm (1 1/4")	37.4 mm (1 1/2")	1,010 mm (40")	60-168 kW (80-225 hp)
4	Suitable for heavy duty tractors with engines over 180 hp.	45 mm (1 3/4")	51 mm (2")	1,220 mm (48")	135-300 kW (180-400 hp)

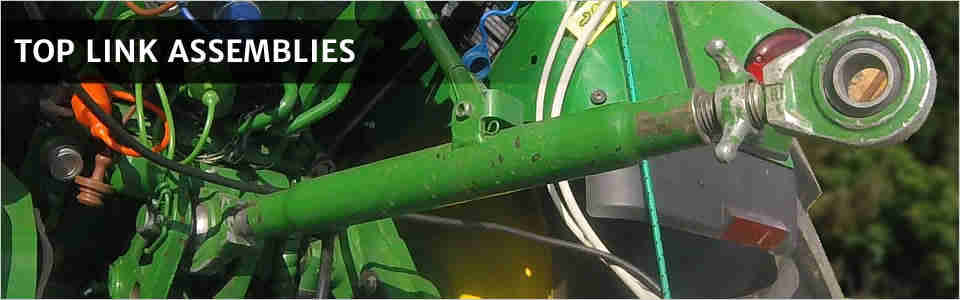

Top Link

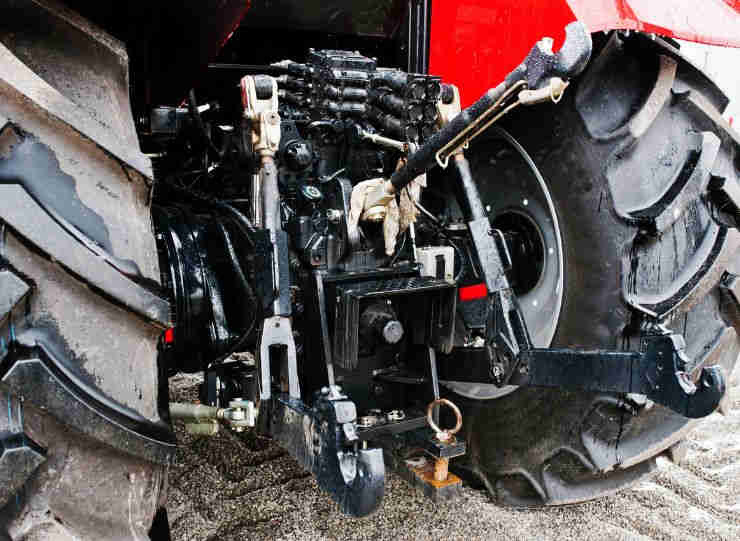

The top link is rigid and designed to align the operating angle of the implement. The manual top link has an adjustable shaft with a "ball" end - one end connected to the tractor and the other end connected to the implement. Hydraulic top linkage is very common on large machines, and can be easily adjusted by pressing a button!

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
