Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

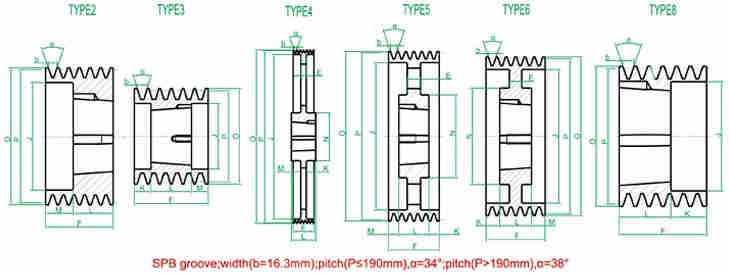

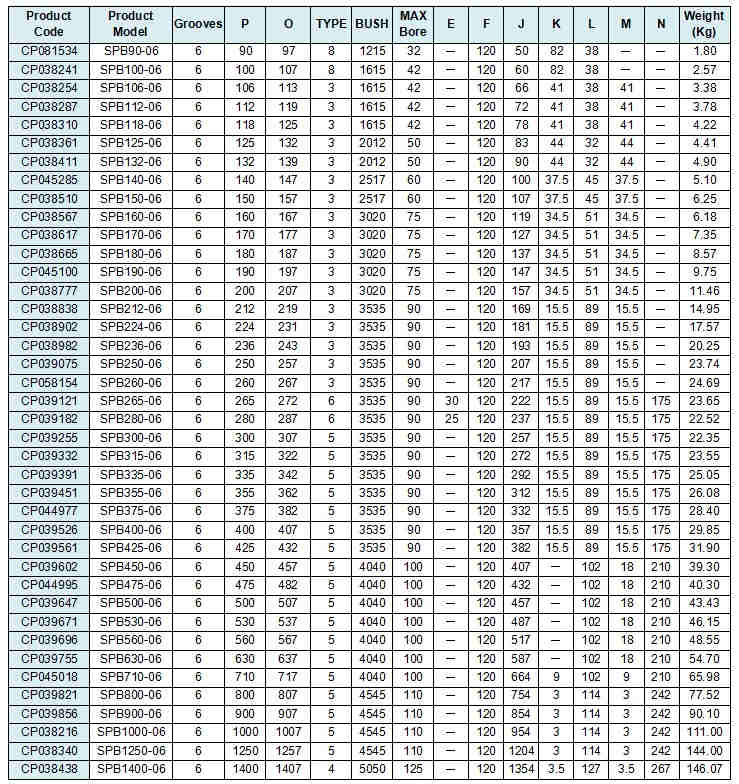

V belt pulley drawing & dimensions

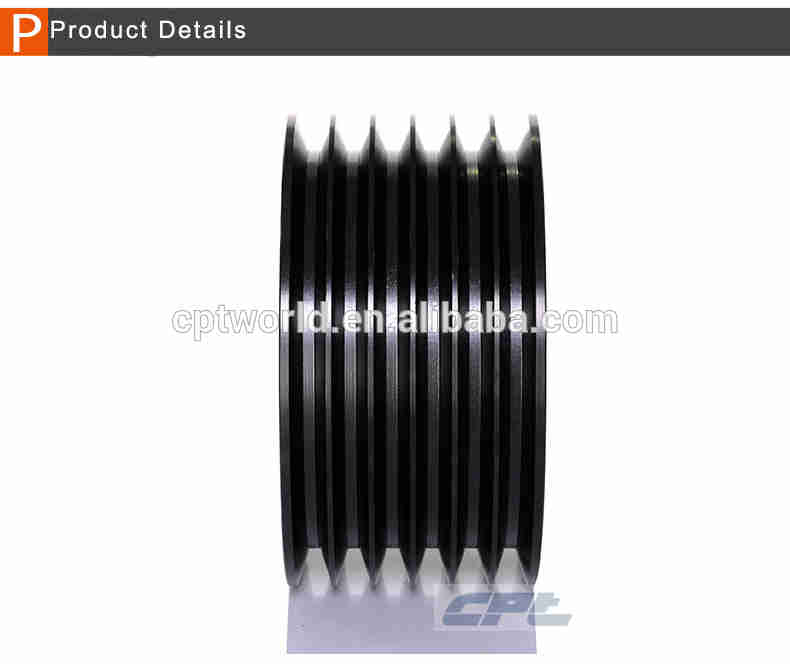

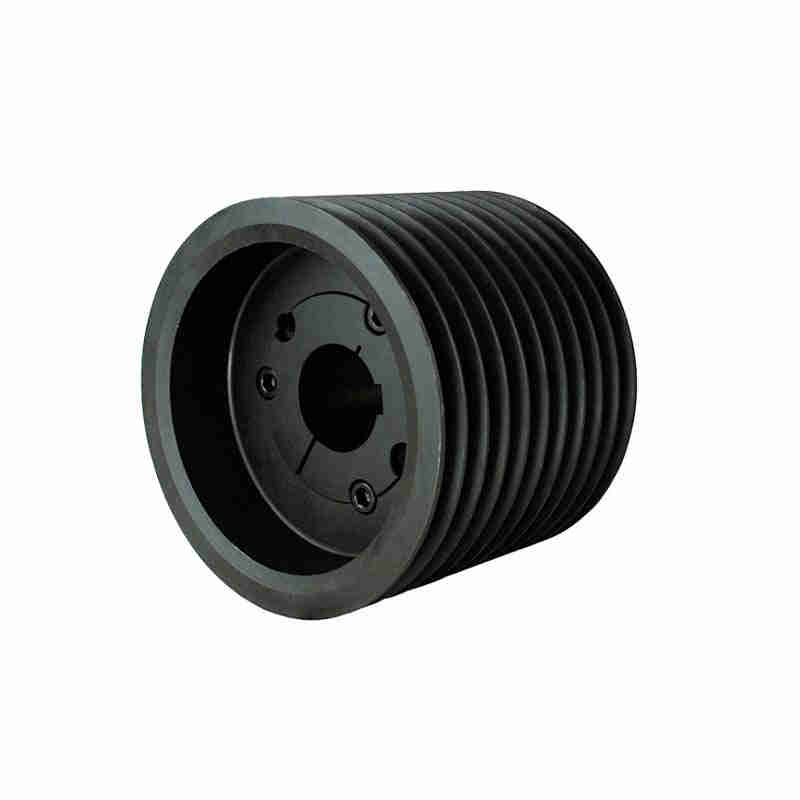

Product Name:V Belt Pulley
Belt Section:SPB
Grooves:6

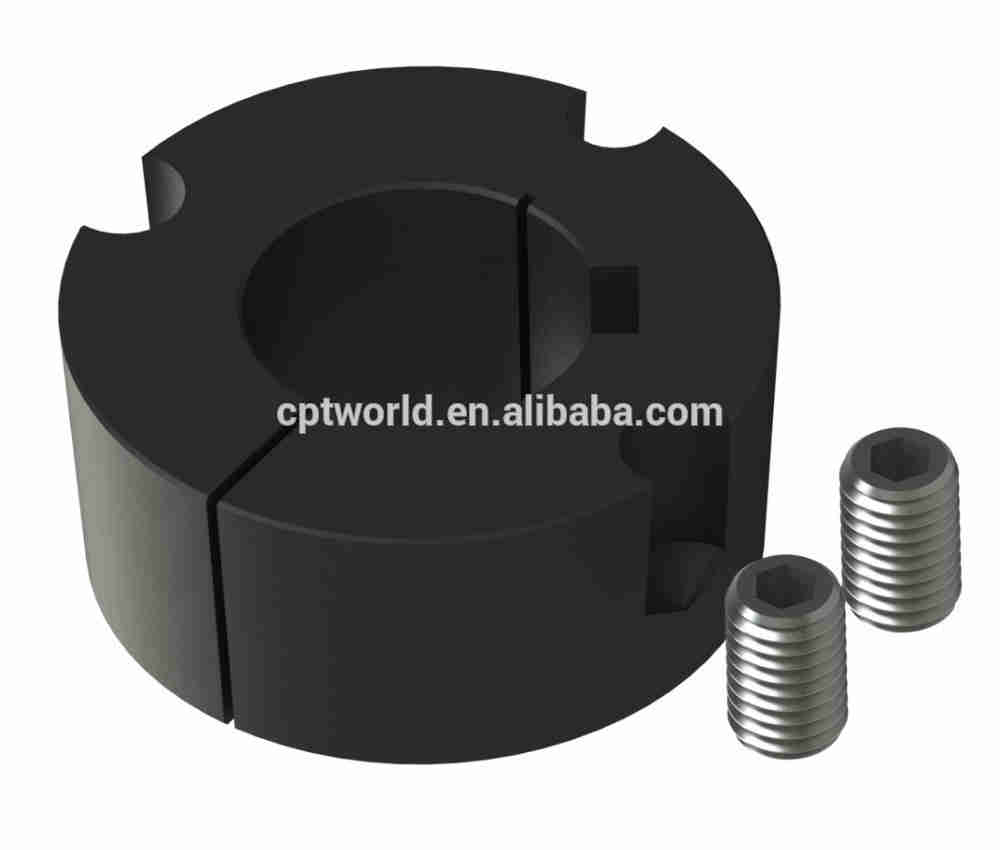

Equipped with Bush:
| European standard bush | ||
 | Bush No. | Bore Range (mm) |
| 1615 | 14,15,M16,18,19,20,22,24,25,28,30,32,35,38,40,42 | |
| 2012 | 18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50 | |
| 2517 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 | |
| 3020 | 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75 | |
| 3030 | 25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75 | |
| 3525 | 35,38,40,42,45,48,50,55,60,65,70,75,80,85,90 |
| 3535 | 35,38,40,42,45,48,50,55,60,65,70,75,80,85,90 | |
| 4040 | 40,42,45,50,60,65,70,75,80,85,90,95,100 | |
| 4545 | 55,60,65,70,75,80,85,90,95,100,105,110 | |
| 5050 | 60,65,70,75,80,85,90,95,100,105,110,115,120,125 |
Please contact us or go to homepage for more product information.
Strong OEM ability will meet all your special needs!
Our main customers are all world famous brands, like: ABB, s, Sati and a, etc.
