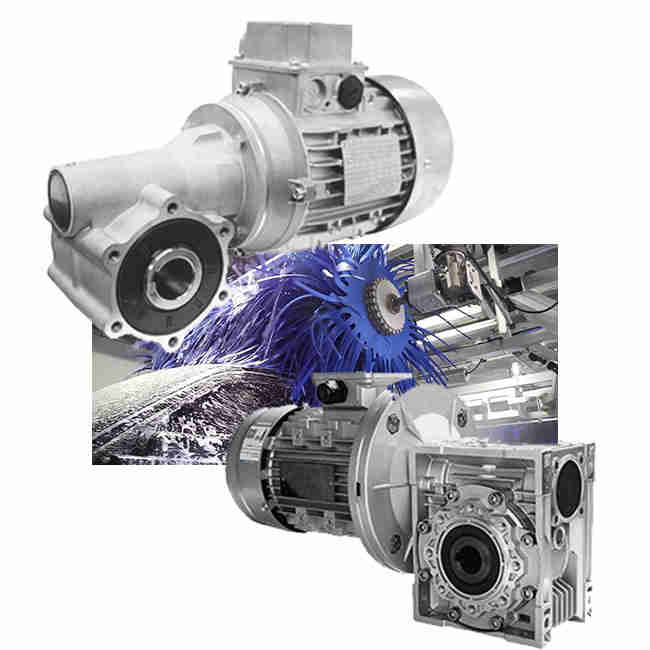

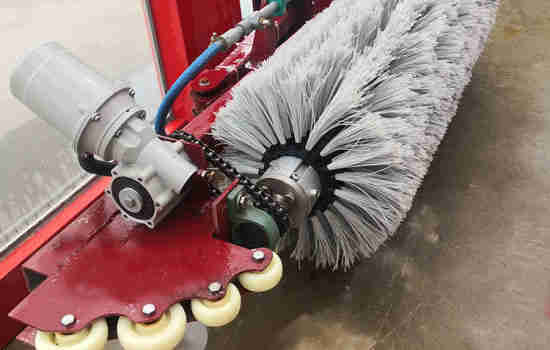

NMRV Aluminum Alloy Worm Wheel Reduction Gear Box Speed Reducer Automatic Car Washer Gearbox With IP67 Motor

Structure Features 1. High quality aluminum alloy casting box, suitable for all-round universal installation configuration 2. Adequate cooling ribs ensure excellent thermal conductivity of the body 3. There are a total of 8 base specifications from 025 to 110; Transmission power range from 60W-11kW ......

Send Inquiry

Product Description

Structure Features

1. High quality aluminum alloy casting box, suitable for all-round universal installation configuration

2. Adequate cooling ribs ensure excellent thermal conductivity of the body

3. There are a total of 8 base specifications from 025 to 110; Transmission power range from 60W-11kW Wide

4. speed ratio range, with 12 reduction ratios from 1:5 to 1:100 for each individual frame

5. Precision ground hard tooth surface transmission worm, with high efficiency and large output torque;

6. Low noise, smooth operation, suitable for long-term continuous operation in harsh environments

7. Lightweight and high mechanical strength

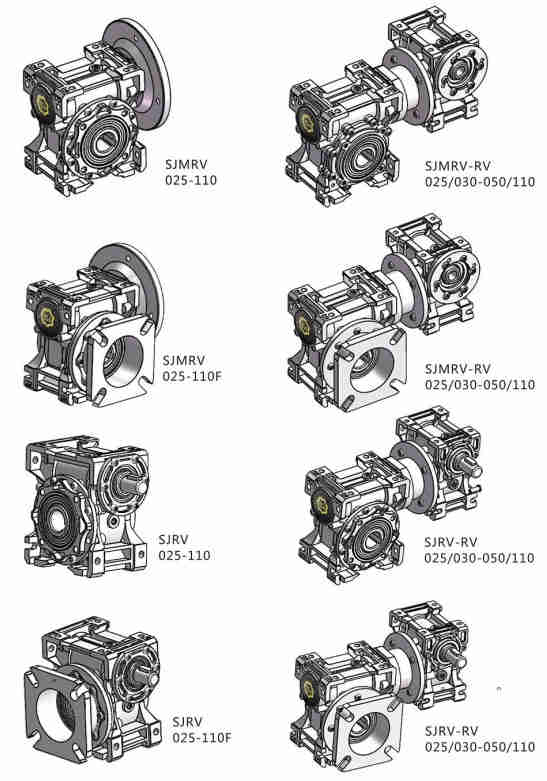

8. The transmission ratio of the MRV-RV dual gearbox with 8 modular combinations has been expanded to i=120-5000

Housing:	die casting aluminum alloy (Frame size 025 to 110):
Worm:	20cr, carbon&quencher heat treatment make the hardness of gears surface up to 58-62HRC, retained carbonized layer's thickness between 0 25 and 0 45mm after accurate grinding
Worm wheel:	wearable Cusn12ni2 bronze alloy, Iron core: QT450
Surface Painting	After shot blasting and photospating, painted with RAL7047 molding Power, if there is some specialization with saltspray Lest, the housing also can be made by making organization

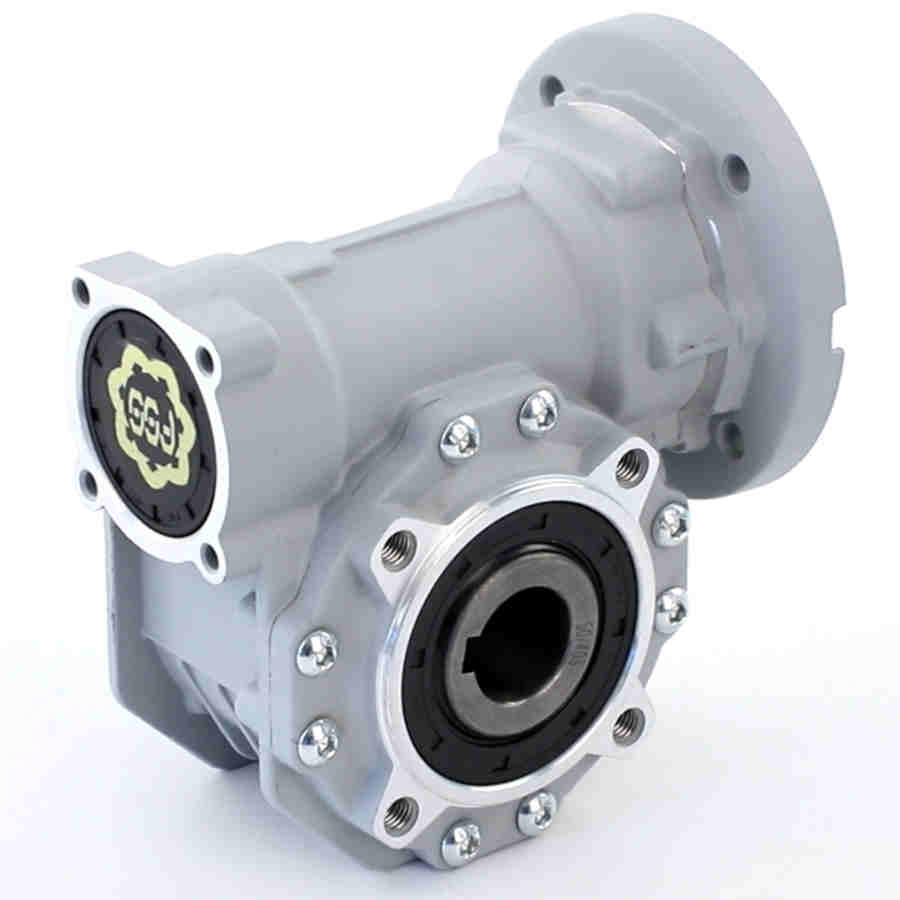

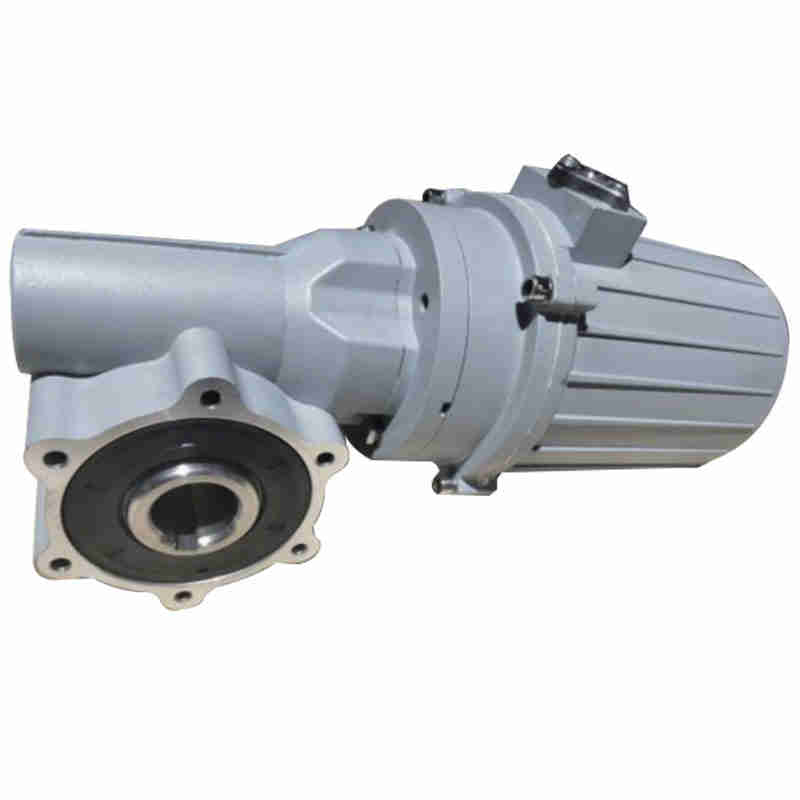

XRV050 Series Reducer for Automatic Car Washer

MRV050 Series Reducer for Automatic Car Washer

Type	Ratio	Flange	Power
MRV050	5/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100	71b14	0.25kw/0.37kw/0.55kw
MRV050	5/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100			80b14	0.55kw/0.75kw
XRV050	65/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100	71b14	0.25kw/0.37kw/0.55kw
XRV050	65/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100			80b14	0.55kw/0.75kw

.Motor

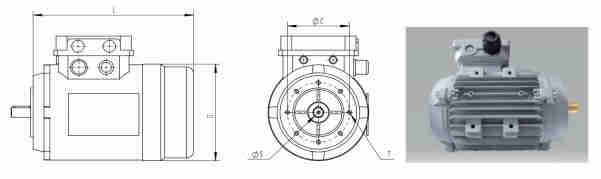

IP67

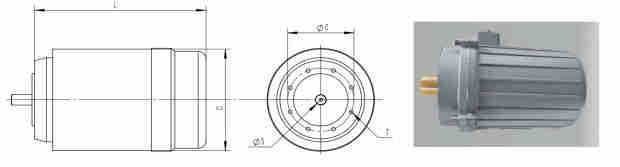

IP56
