Multi Way Hydraulic Valve 1004 Valve for Agricultural Machinery Tractor

CharacteristicThe Multi-Way 1004 Valve is an advanced hydraulic control valve designed for high-performance agricultural tractors and heavy-duty implements. It provides multi-circuit hydraulic control, enabling operators to manage multiple functions simultaneously with precision. This valve is commo......

Send Inquiry

Product Description

Characteristic

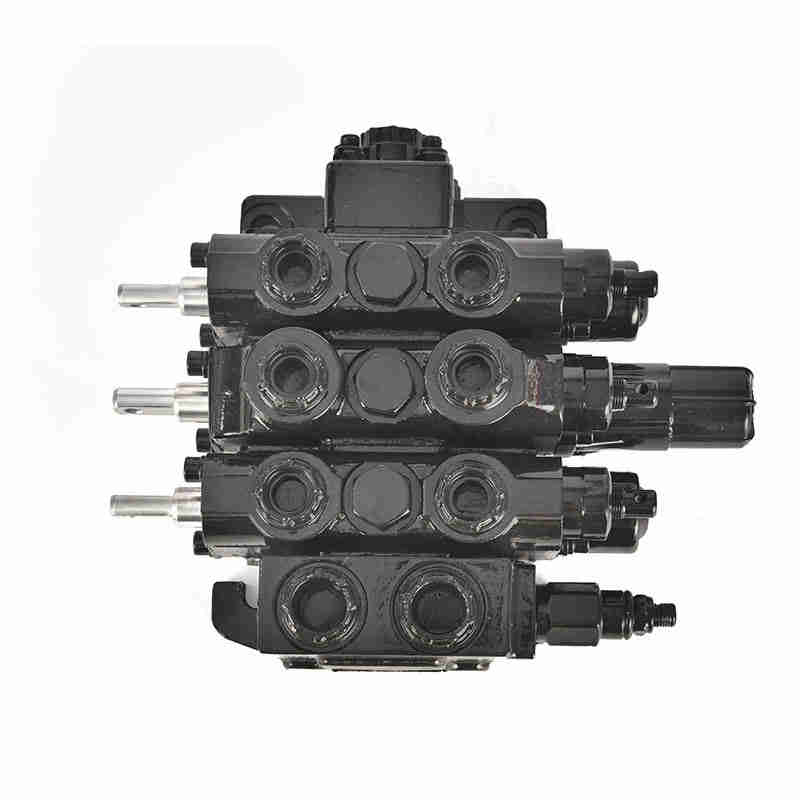

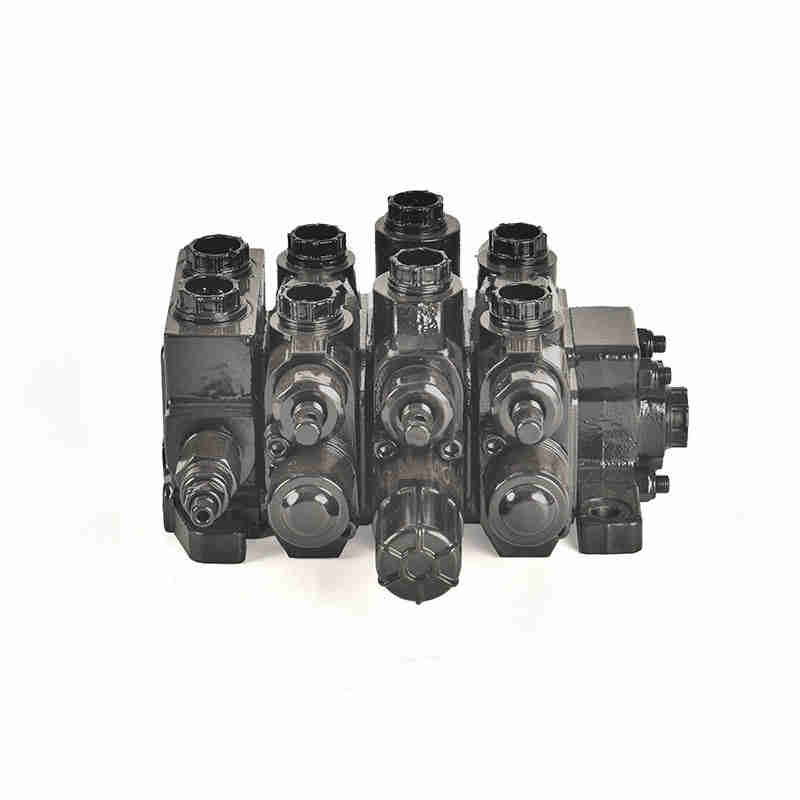

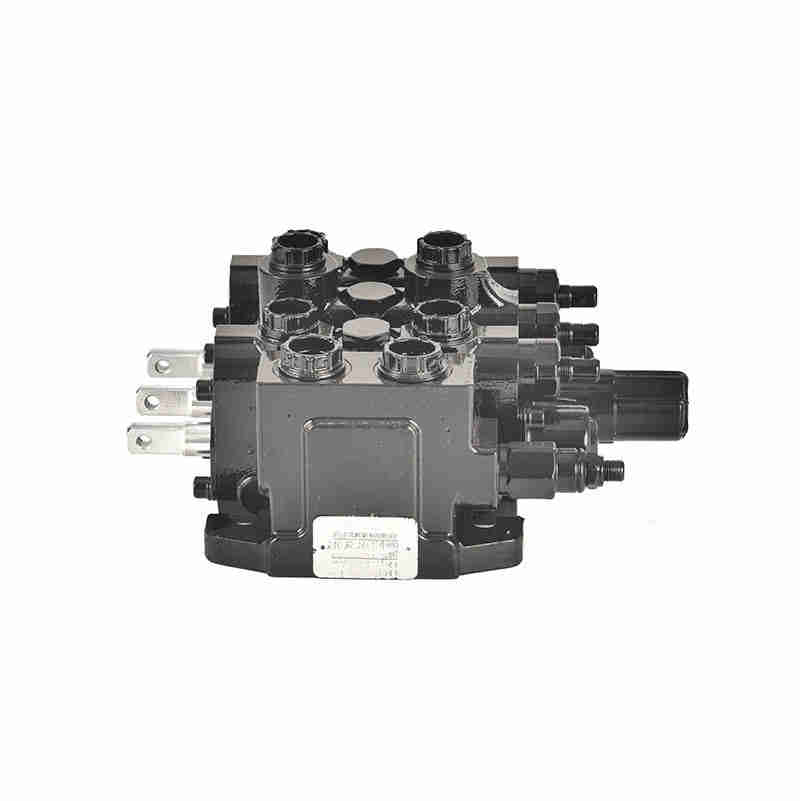

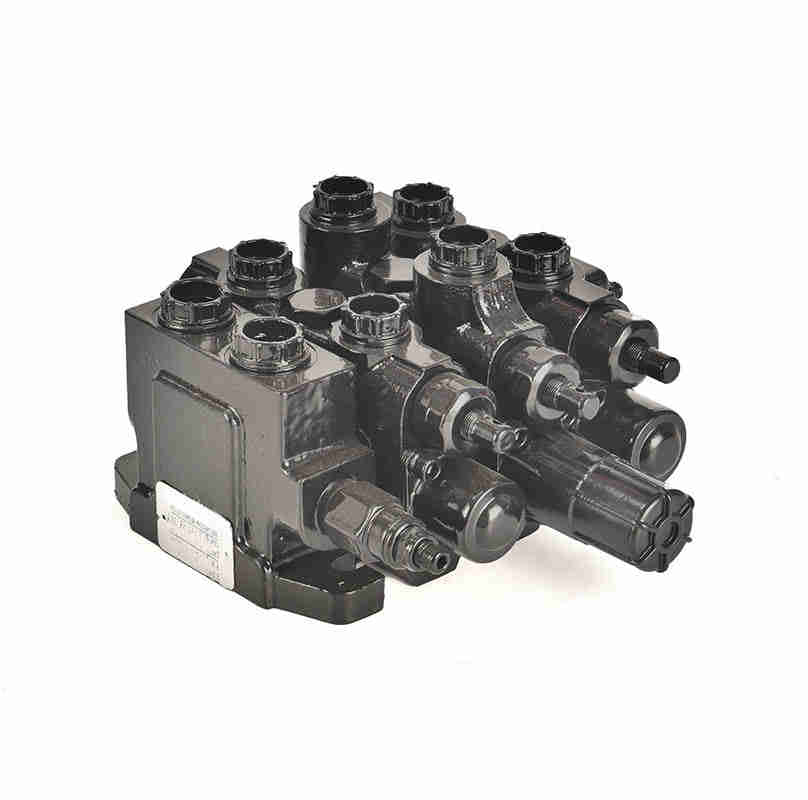

The Multi-Way 1004 Valve is an advanced hydraulic control valve designed for high-performance agricultural tractors and heavy-duty implements. It provides multi-circuit hydraulic control, enabling operators to manage multiple functions simultaneously with precision. This valve is commonly used in modern farming equipment where high flow rates, durability, and smart hydraulic management are critical.

Feature	1004 Valve	704 Valve
Max Pressure	420 bar (6,000+ psi)	350 bar (5,000 psi)
Flow Rate	Up to 120 L/min (32 GPM)	Up to 80 L/min (21 GPM)
Sections	4–8 (modular)	4–6 (fixed)
Automation	Electro-hydraulic (EH) compatible	Manual or basic EH options
Best For	Large farms, smart farming	Mid-sized tractors & implements

Key Advantages of the 1004 Valve
1. Heavy-Duty Construction
Material: High-strength ductile iron or forged steel with anti-corrosion coatings.

Pressure Rating: Supports up to 420 bar (6,000+ psi), making it suitable for high-power tractors.

Sealing: Advanced O-ring and lip seal technology prevents leaks even under extreme conditions.

2. Multi-Section Design for Complex Hydraulic Systems
Modular Configurations: Available in 4 to 8 work sections, allowing customization for different machinery.

Parallel & Series Flow Options: Enables simultaneous or sequential operation of multiple hydraulic functions.

3. Precision Control & Automation Compatibility
Proportional Control Options: Supports electro-hydraulic valves (EH) for precision farming.

Load-Sensing Capability: Automatically adjusts flow based on demand, improving efficiency.

4. High Flow Capacity for Demanding Applications
Flow Rates up to 120 L/min (32 GPM), ensuring smooth operation of large hydraulic cylinders and motors.

5. Low Maintenance & Long Service Life
Easy-to-Replace Cartridge Valves reduce downtime.

Hardened Spools & Bushings minimize wear in abrasive environments.

Primary Applications in Agriculture
1. High-Horsepower Tractors (150+ HP)
Controls front loaders, rear remotes, and auxiliary hydraulics for attachments.

2. Self-Propelled Harvesters (Combine, Forage, Cotton)
Manages header height adjustment, reel speed, and feederhouse functions.

3. Precision Farming Equipment
Used in variable-rate seeders, sprayers, and fertilizer spreaders for automated section control.

4. Large Tillage & Planting Systems
Adjusts disc gang pressure, row unit downforce, and folding marker arms.

5. Hydraulic-Driven Implements
Powers balers, mowers, and hay rakes with multiple hydraulic functions.

6. Trailers & Material Handling
Operates tipping mechanisms, grain chutes, and conveyor belts.

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

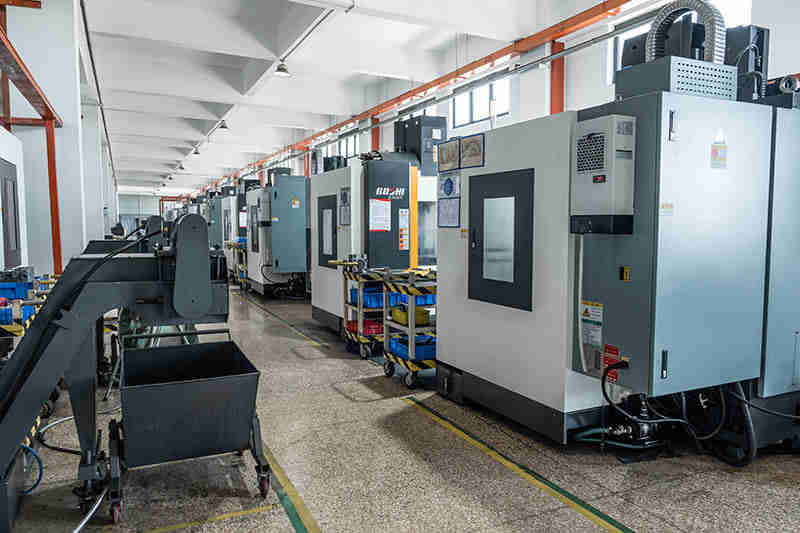

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
