Multi-Lanes Powder Packing Machine for Freeze Dried Powder Coffee Milk Other Powdered Materials

Multi-Lanes Powder Packing MachineThis machine is suitable for industries such as chemical, daily chemical, food, medicine, and health products, such as freeze-dried powder, Tianma powder, traditional Chinese medicine powder, protein powder, coffee powder, Sanqi powder, milk powder, and grainsCoarse......

Send Inquiry

Product Description

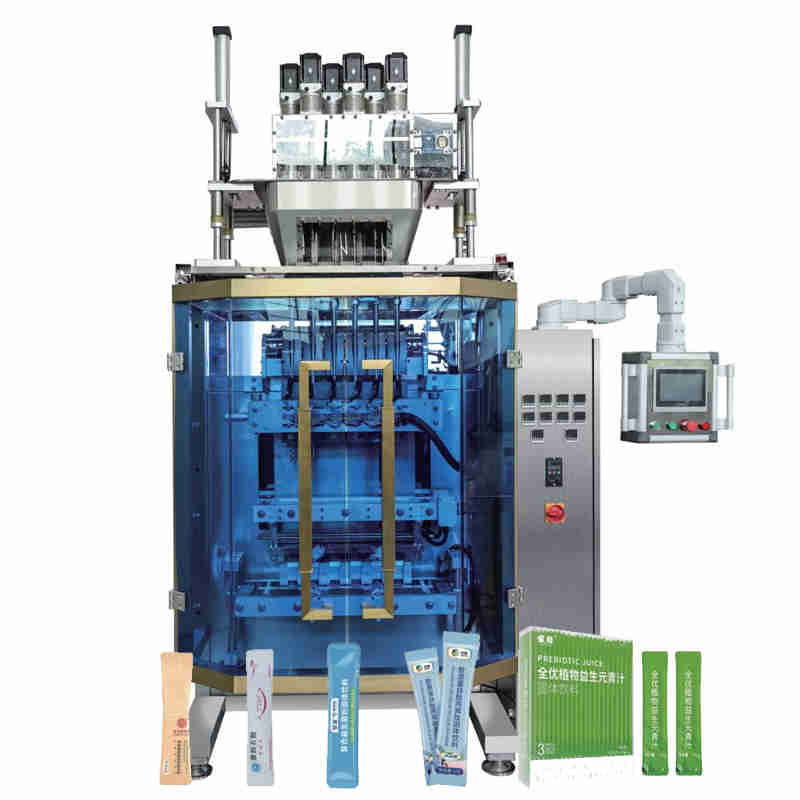

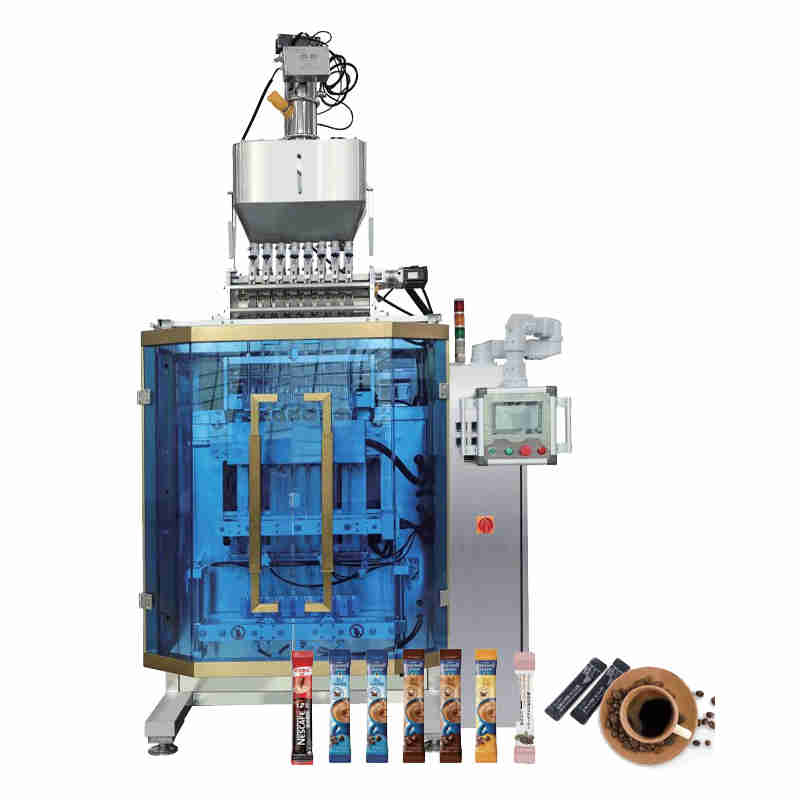

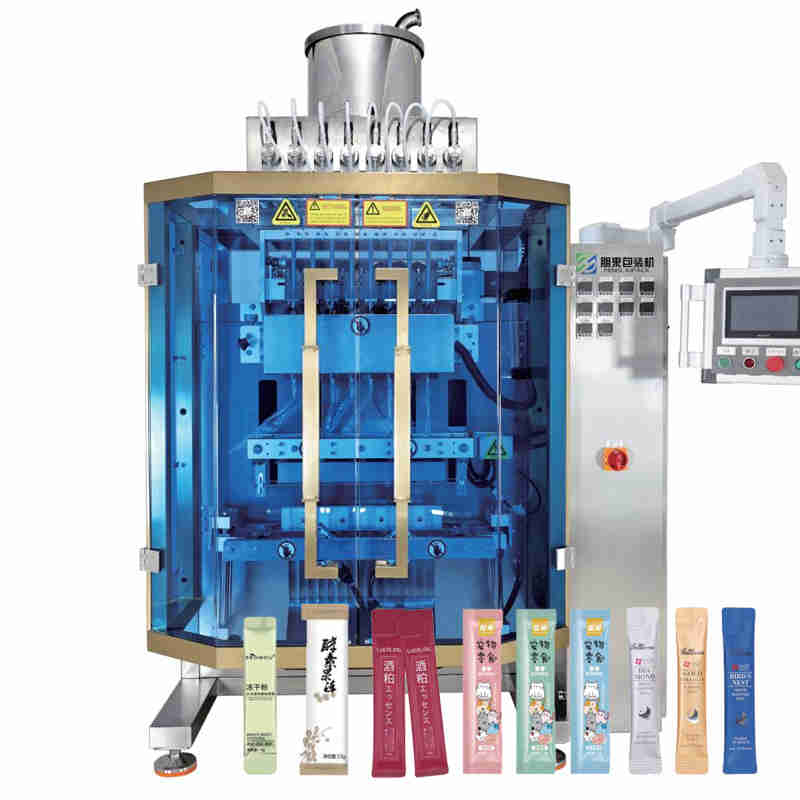

Multi-Lanes Powder Packing Machine

This machine is suitable for industries such as chemical, daily chemical, food, medicine, and health products, such as freeze-dried powder, Tianma powder, traditional Chinese medicine powder, protein powder, coffee powder, Sanqi powder, milk powder, and grains Coarse grain powder, milkshake powder, Ganoderma powder, solid beverage powder, etc.

Features

1. Adopting INOVANCE brand PLC system with error prompts, formula storage, and self diagnostic functions 2. Advanced design achieves high precision, high speed, and high efficiency 3. Adopting a 10 inch INOVANCE brand touch screen form, a convenient and easy-to-use operating system for the entire machine 4. CNC integrated bag making machine 5. PID temperature independent control system 6. AirTAC pneumatic components from Taiwan 7. Horizontal sealing independent SMC pneumatic system, adjustable horizontal sealing response time and pressure, further improving product sealing performance 8. Standard safety door switch 9. The part in contact with the material is made of 304/316SUS stainless steel material 10. The heat sealed servo motor (INOVANCE brand) bag pulling system, combined with the photoelectric (Panasonic brand) system, tracks the color code to ensure fast and smooth bag pulling, consistent bag length, and consistent pattern 11. The whole machine adopts high-quality and durable parts, and the surface of the parts is treated with technology, which once again enhances the durability and stability of the machine 12. The overall operating capacity of the machine can reach 30-50 cuts per minute 13. Highly integrated with PengLaiPack peripheral products, it can be combined into a fully automated production line in the future 14. Adopting flexible module design, it can be customized according to customer needs

Product name	PL(main machine film roll 350/550/850)
Filling volume range	(depending on bag size and specific gravlty of packaging materials)
Packing lanes	4 6 8 10 12
Bag width	16-84mm 16-54mm 16-40mm 16-32mm 16-26mm
Bag length	MAX:170mm(the excesed bag length,non-standard customization is possible)
Bag style	Side seal/back center seal\side seal with irregular shape/back center seal wth irregular shape
Dosing method	Servo rotate measuring cups filer
Packing speed	30-50 cuts/min 0-50 cuts/min
Roll ID	76mm/Standard roll lD76mm
Control system	PLC Control system+color touch screen
Voltage	380V/50HZ,3phase
Air consumpticn	7L/Min
Weight	≈1500kg
Dimension	Non-standard customization
Packing material	1 layer:PET/PE,PET/CPP,OPP/CPP,OPP/PE;NY/CPP,NY/PE,PET/VMCPP,OPPVMCPP; 3 layer: PET/NY/PE,PET/NY/CPP,PET/AL/PE,PET/AL/CPP,OPP/AL/PE,PET/VMCPP/PE,OPP/VMPET/PE 4 layer:PET/AL/NY/PE,NY/AL/NY/PE
Roll OD	max 350mm

Production Line	Multi-Lanes Granule Paking Machine	Small Packing Series	High Speed Powder Parking Machine
			Multi-Lanes Powder Paking Machine		High Speed Liquid Packing Machine
			Multi-Lanes Liquid Paking Machine		High Speed Granule Packing Machine
			Full Automatic Inner and Outer Bag Production Line		Granule/Powder/Liquid Packing Machine
			Full Automatic Multi-row Bagging Carton Parking And Carton Wrapping Film Machine		Full Auto Ulitrasonic Sealing&Packing Machine
		Full Automatic Granule/Powder/Liquid Two-In-One Cartoning Production Line	Give The Bag Series	8 Station Vacuum Premade Bags Weighing And Packing Machine
		Full Automatic Multi Column Bag Parking Orderly Soring,Boxing And Carton Parking Production Line	Give The Bag Series		Horizontal Premade Bag Powder Packing Machine
Shaped Series	lrregular Sachet Back Seal Packing Machine	Pillow Series	Horizontal Packing Machine(Upper/Down Film)
		lrregular Sachet Back-Side Sealing Machine	Tea Bag Serise	Filter Paper Tea Bag Packing Machine
		Full Punch Irregular Bag Granule/Powder /Liquid Seal Packing Machine			Triangular Mag With Inner And Outer Bag PackingMachine
Big Pillow Packing Series	Vacuum Bag Liquid Packing Machine			Drip Coffee Packing Machine
		Vacuum Bag Granule Packing Machine	Point Series	Point Packing Machine
		Big Model Powder Packing Machine	Canned Labeling Series	Automatic Cups Filling Sealing Machine
		Big Volume Bag Liquid Packing Machine	Give The Bag Series	8 Heads Filler Servo Control Filling Machine
		Combination weigher packing machine			Round Bottle Labeling Machine
Coupling Bag Series	Double Lane(Side by Side)Of Granule/Liquid Packing Machine			Multi-Head Following Capping Machine Vibrating Disc Capping Machine
Coupling Bag Series		Three Line bags Of Liquid Machines

Ever power Packaging Equipment Co., Ltd. is a company that integrates research and development An enterprise that integrates manufacturing and sales. The company is located in Panyu, Guangzhou Building B35, Huachuang Industrial Park, Shiji Town, District. Covering an area of approximately 6000 square meters, deep With over 20 years of experience in the packaging equipment industry, we can directly design according to customer needs a modern enterprise specializing in the design and manufacturing of professional packaging equipment.

The company's independently developed multi column liquid, particle, and powder packaging machine. liquid Body and particle vacuum packaging machine, ultra high speed packaging machine, ultrasonic non-woven Packaging equipment such as cloth packaging machines are in a leading position.

Our company's packaging equipment is widely used in chemical, daily chemical, food, and medical industries Industries such as pharmaceuticals and health products. Currently, CE certification and TUV certification have been obtained SGS certification and over 20 national patents.

The company has multiple high-end CNC machines, which are regularly organized based on structural principles and equipment Training on planning schemes, market feedback, etc., to enhance the comprehensive skills of production technicians Strength enables each technician to accurately familiarize themselves with the machining process of each component The requirement for processing quality has led all employees to respect production and quality Respect the good situation of the product and comprehensively improve the comprehensive efficiency of production.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
