Mrv Mini Gear Reducer for Wholesales

Send Inquiry

Product Description

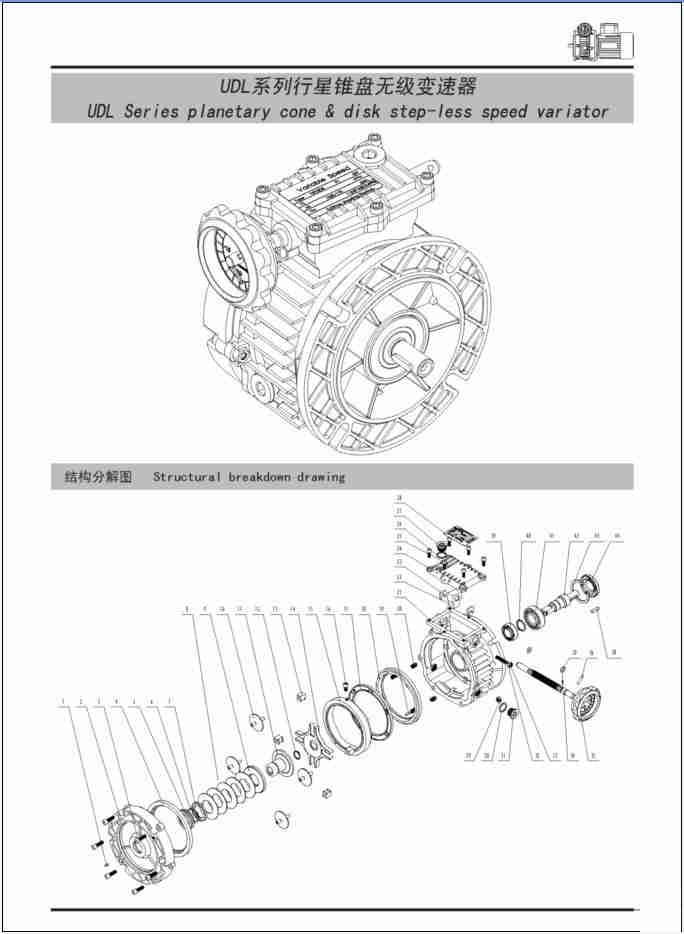

The design of UD(L) gear box series stepless speed variator adopt the advanced technology both at home and abroad. The products include the following main features:
1. high speed- regulating precision : up to 1.5-1 rotation.
2. large speed-changing range: the speed ratio range from 1:1.4 to 1:7 freely.
3. high in strength and long in service life.
4. convenient to regulate the speed.
5. continuous in running, front to back in running direction, smooth in driving, stable in performance and low in noise.
6. full sealing and sutiable for any environment.
7. made of high-quality aluminium alloy diecast into forming.
8. good in adaptation : UDL series stepless speed variators can be combined with all kinds of speed reducer, as to achieve low stepless speed-variable.

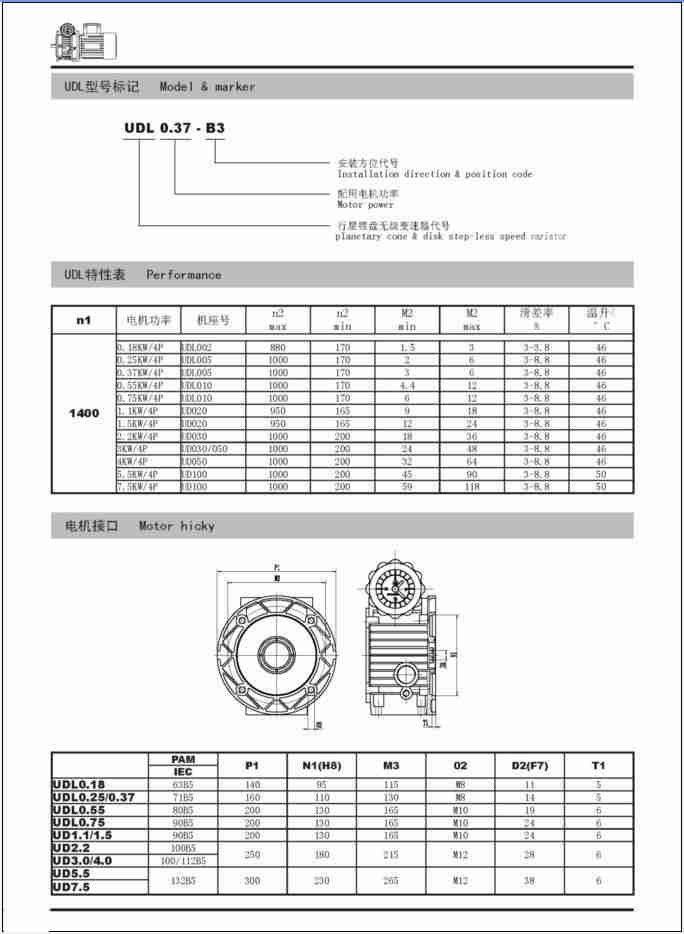

Installation	vertical installation
Power rate	0.18KW~7.5KW
Torque	1.5N·m~2062N·m
Speed range	Basic type	200-1000r/min
		The speed changer with one-stage gear reduction (i=2.5-5)	40-200r/min
		Speed changer with two-stage gear reduction (i=7.1-25)	8-140r/min
Model	UDL002,UDL005,UDL010,UDL020 and so on
