Model 1500 Heavy Duty 3 Point Post Hole Digger for Cat 1 & 2 Tractors

1500 heavy-duty 3-point pile excavator for tractors of category 1 and 2The 1500 heavy-duty three-point pile excavator is a high-quality and durable tool for digging and drilling holes in harsh soil conditions, and is used for construction and agricultural purposes. It is designed with strong and dur......

Send Inquiry

Product Description

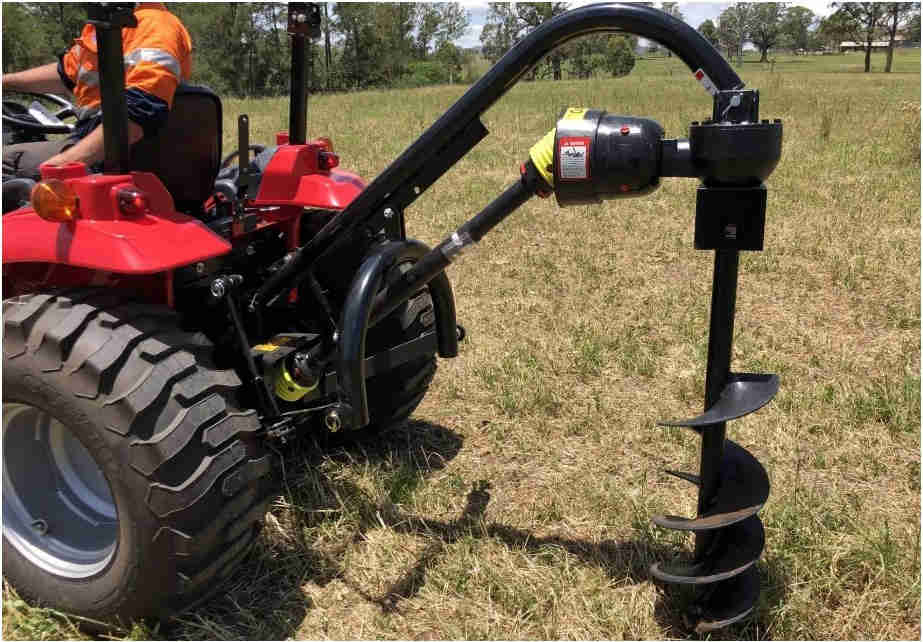

1500 heavy-duty 3-point pile excavator for tractors of category 1 and 2

The 1500 heavy-duty three-point pile excavator is a high-quality and durable tool for digging and drilling holes in harsh soil conditions, and is used for construction and agricultural purposes. It is designed with strong and durable steel frame, which can withstand even in the worst terrain. After drilling, the excavator adopts a 9-inch auger with replaceable blade, which is easy to excavate and has durable performance. The auger is also available in various sizes to adapt to different hole sizes. The three-point quick coupling device is designed to provide stable and convenient connection for most tractors, making it easy to operate. In addition, the transmission driven by PTO ensures smooth and easy operation. In general, the 1500 heavy-duty three-point pile hole excavator is the best choice for those who need reliable and powerful tools to dig pile holes quickly and efficiently.

Specification of 1500 heavy three-point pillar excavator -Tractors rated up to 75 hp -Series 4 driveline -Ultra-heavy gearbox, 3:1 reduction ratio -2 "output shaft with double 1/2" bolt holes for auger attachment -Select a combination of up to 5 heavy-duty augers -For tractors of category 1 and 2 -Super-heavy steel suspender -Backed by our 6-month warranty and excellent customer service

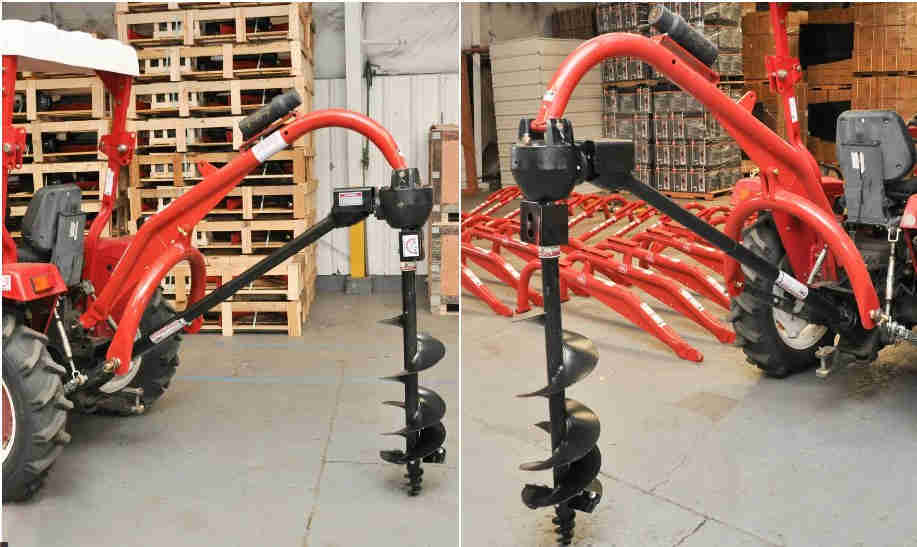

1500 heavy-duty three-point hole digger for sale

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Parts of 1500 heavy three-point hole digger

Model # / CAT	A(in) Lower Hitch Point Spread -Max	B(in) Lower Hitch Point Spread -Min	C(in) Clevis/ Ball Joint Outside Width	D(in) Upper Hitch Point Pin Dia
Model 400 / CAT 0, Sub Compact	26-3/8	20-7/8	1.75	0.75
Model 650 / CAT 1	33-1/2	28	1-5/8	1.0
Model 1000 / CAT 1	32-3/8	26-7/8	1-5/16	0.75
Model 1500 / CAT 1 & 2	38-3/8	32-7/8	1-5/16	0.75

Features of 1500 type heavy three-point pillar excavator

The following are some features of the 1500 heavy-duty three-point pillar excavator: Heavy steel frame: The pile excavator has a strong steel frame, which can withstand challenging soil conditions. Screw conveyor with replaceable blade: 1500 heavy three-point backhole excavator is equipped with a 9-inch high carbon steel screw conveyor with replaceable blade, with durable performance. The size of the auger can be changed according to the user's preferences. It can effectively excavate holes of different sizes. Three-point hitch design: The three-point pile excavator is designed to connect to the three-point hitch of most tractors, making it easy to operate. Power take-off (PTO) driven gearbox: The power take-off (PTO) driven gearbox ensures that the auger rotates at a consistent speed after drilling, thus providing smooth and easy operation. Multi-functionality: The detachable spiral drill has various sizes and is suitable for different hole sizes, making the 1500 heavy-duty three-point backhole excavator an ideal choice for various purposes. Grip handle: the grip handle of the auger after drilling provides sufficient controlled support and balance for the operator during use. In general, these functions make the 1500 heavy-duty three-point pillar excavator a powerful, reliable and efficient tool that can easily handle challenging soil conditions and dig holes.

How to use the heavy three-point column digger? The following are the basic steps to be followed when using the 1500 heavy three-point column digger: (1) Positioning pile hole excavator: connect the pile hole excavator to the three-point linkage of the tractor and ensure that it is firmly fixed. (2) Adjust the auger height: adjust the auger height to the required depth after drilling by sliding the pin to the appropriate height mark. (3) Engage PTO shaft: Turn on the tractor PTO shaft switch to engage the auger. If you are not sure how to engage the PTO shaft, refer to the tractor's operating manual. (4) Start digging: With the auger engaged after drilling, you can now start digging the hole. Place the auger after drilling in the required position, and then slowly lower it to the ground. Pay attention to keep the auger vertical during operation. (5) Remove the excavated soil: once the required depth is reached, pull the auger out of the hole after drilling, and use a shovel or spoon to remove the soil from the hole. (6) Repeat the process: repeat the process and dig as many holes as possible. Pay attention to regularly check the cutting edges of the auger after drilling to ensure that they are sharp and replace them if they are worn. (7) Clean the bored pile: After completion, clean the bored pile with water and hard brush to remove dirt and debris. Always remember to follow the safety instructions provided with the pile excavator and tractor.

We also provide other three-point drill parts

How to select a suitable tractor three-point rear excavator? There are several factors to consider when selecting a suitable tractor three-point rear excavator. Here are some steps to guide you to choose the correct steps: 1. Determine the size of the hole you need to dig - the size of the hole you need to dig will determine the size of the auger you need. After drilling, the excavator has various sizes, ranging from 6 inches, 9 inches or 12 inches. 2. Select the appropriate auger type - there are two types: standard auger and heavy auger. If you need to dig a hole in harsh soil conditions, select a heavy-duty auger. 3. Consider the depth - determine the depth of the hole you need to dig. Most rear diggers can dig holes 48 inches deep, but some can dig deeper, depending on your needs. 4. Check the tractor's horsepower - make sure the tractor has enough horsepower to handle the pile excavator you selected. Depending on the size of the auger, check the manufacturer's horsepower requirements guide. 5. Consider the price - the price of the rear digger is different. Determine your budget and find a budget that fits your price range. 6. Looking for quality - check the construction quality and durable materials when selecting the three-point column digger. A reputable brand with positive evaluation and long-term warranty is usually a good choice. By considering these factors, you can choose a tractor 3-point backhole excavator that is suitable for your needs and budget.

Grinding Workshop

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

CNC Workshop

Heat Treatment Machine

3D Measurement Machinery

Gear Teeth Profile Test Machines

Heat Treatment Workshop

Tooth Profile Workshop

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...
