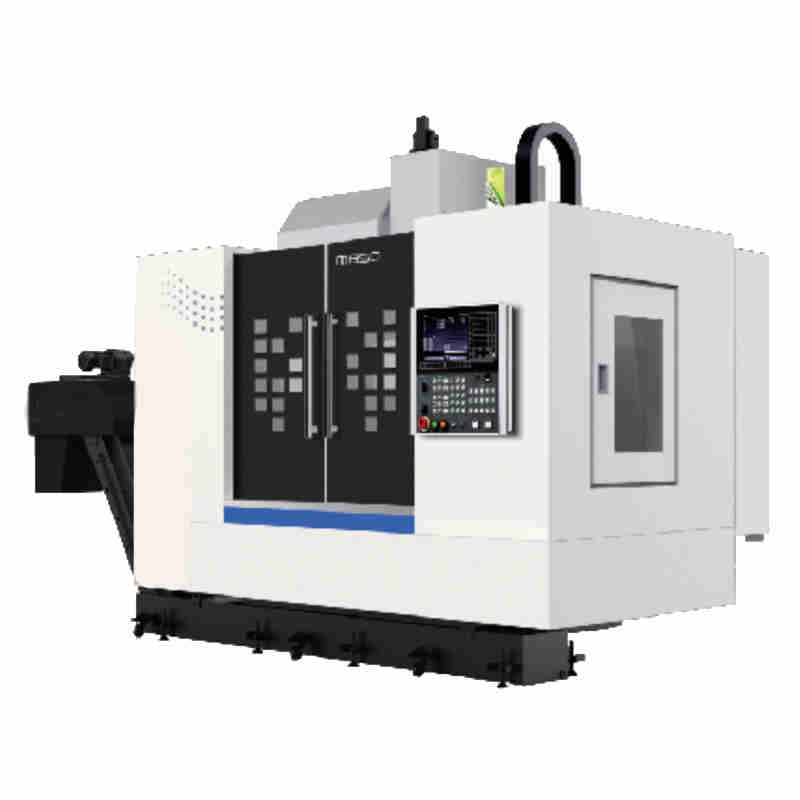

MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile

The MDH80 Heavy Duty Model Aluminum Profile 4 Axis CNC Machining Center BT40 by Raydafon Group offers precision and durability for industrial applications, enhancing efficiency with advanced technology and robust aluminum construction, perfect for manufacturers seeking reliable performance.
Send Inquiry
Product Description
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile


TABLE
Worktable size
mm
800*800
Workpiece size range
mm
φ1110*1220
Max load of worktable
kg
1300
X/Y/Z axis travel
mm
1050/900/900



SPINDLE
Spindle speed
r/min
8000(6000/12000 Optional)
Spindle taper

NO.50(7:24)
Spindle drive mode

Motorized spindle
Spindle power
kw
18.5
Spindle maximum torque
nm
24
MOVEMENT
X/Y/Z cutting speed
m/min
20
MOVEMENT
X/Y/Z feeding speed
m/min
54




ATC SYSTEM
Tool magazine capacity

40(60/80/120 Optional)
Tool shank type

BT50-45°
Max. tool weight
kg
25
Max. tool diameter (w/o adjacent tools)
mm
 φ115
Max.tool length
mm
500
Time of tool change (T-T)
s
2

ACCURACY
X/Y/Z axis positioning accuracy
mm
0.01
X/Y/Z axis repeatability accuracy
mm
0.006
CONTROL SYSTEM
Controller

GSK/SIEMENS/FANUC
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile
MDH80 Heavy Duty Model Aluminum Profile 4 Axis Cnc Machining Center BT40 Heavy Duty Model Aluminum Profile
Hot Tags: Heavy Duty CNC Machining Center, Aluminum Profile CNC Machine, BT40 CNC Machining Center
