Low Price Guaranteed Quality FWA7 Series FWA7 Slewing Drive Gearbox for Aerial Lifts

FWA7 Series FWA7 Slewing Drive Gearbox For Aerial LiftsSwing driveIn this paper, we will study rotary drives - what they are, their mechanisms and applications. We will also learn about some different types and how to maintain them. There is no need to start from scratch - here are some things you s......

Send Inquiry

Product Description

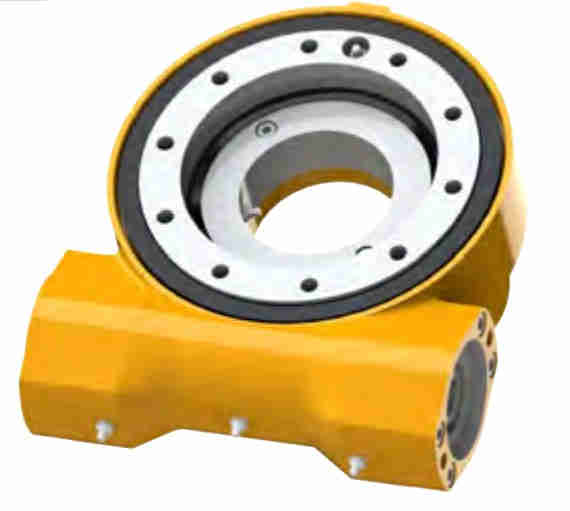

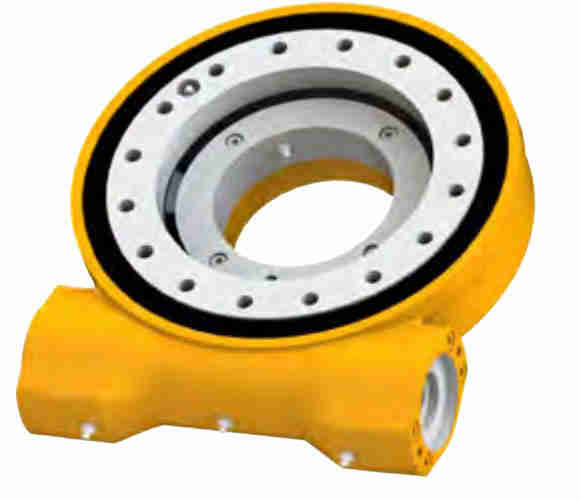

FWA7 Series FWA7 Slewing Drive Gearbox For Aerial Lifts

Swing drive In this paper, we will study rotary drives - what they are, their mechanisms and applications. We will also learn about some different types and how to maintain them. There is no need to start from scratch - here are some things you should know about this type of drive. If you are considering buying one, here are some things to consider. machinist A rotary drive is a simple device that allows rotation about an axis. This is achieved by combining the slewing bearing and the external gear. The gear is placed perpendicular to the screw and rotates as the screw rotates. The force of the axial movement of the screw is transmitted to the radial gear, thereby amplifying the output torque. Rotary drives are used in various industrial and marine applications. Swing drives are commonly used in environments with high torque requirements. Because they are usually small, the available installation space is usually limited. Nevertheless, rotary drive is a powerful industrial gear unit solution. They are widely used in self-propelled and vehicle mounted aerial work platforms, tire straddle transport vehicles, welding positioners, forklifts and forestry machinery accessories. Rotary drive can adapt to high torque and large output speed. application The rotary drive device is a device that changes the axial movement of the gear into the radial movement. The conversion depends on the number of threads on the worm or the number of teeth on the gear. The device is well suited for various applications because of its high torque capacity and compact form factor. However, some applications may require more powerful gears. If you need to amplify torque, swing drive is your ideal solution. The rotary drive is a gearbox for high rotational torque and load holding capacity. This type of gearbox has several advantages, including a robust housing and hourglass worm technology. Its unique design makes it an ideal choice for applications requiring high durability, strength and efficiency. In addition, its compact size makes it easy to install. Its versatility makes it very suitable for various applications requiring high load holding capacity and rotational torque strength. type Rotary drives are used in many industries, including mining, construction and metal processing. They provide a high level of rotational torque and can handle radial or axial loads. They are also often used in precision equipment such as wind turbines. Understanding the physical characteristics of the swing drive is essential for optimal performance. Ever power engineers can customize a range of drives to suit specific applications. There are two basic rotary drives: single row ball and double row ball. Selecting the correct type of slewing ring depends on the load. For heavy loads, double row ball rotary bearings are preferred. The rotary drive can also be equipped with IP65 rated protection system to withstand harsh environment. They are designed to carry heavy loads in small packages, and the gears are ground or hardened to provide maximum durability and longer service life. repair Certain aspects must be kept in mind when maintaining the swing drive. In order to prevent premature failure, the bearings must be lubricated regularly. A special grease can protect the bearing from damage and prolong its service life. However, the proper grease for the swing drive depends on several factors. The type of grease shall be changed according to the working conditions of the equipment. Slewing bearing is the key component of large machinery. It helps the machine rotate left and right while absorbing various forces. Therefore, special maintenance is required. The most common causes of slewing bearing failure are improper operation, lubrication problems and contamination. To avoid these problems, always replace the bearing grease and follow the instructions.

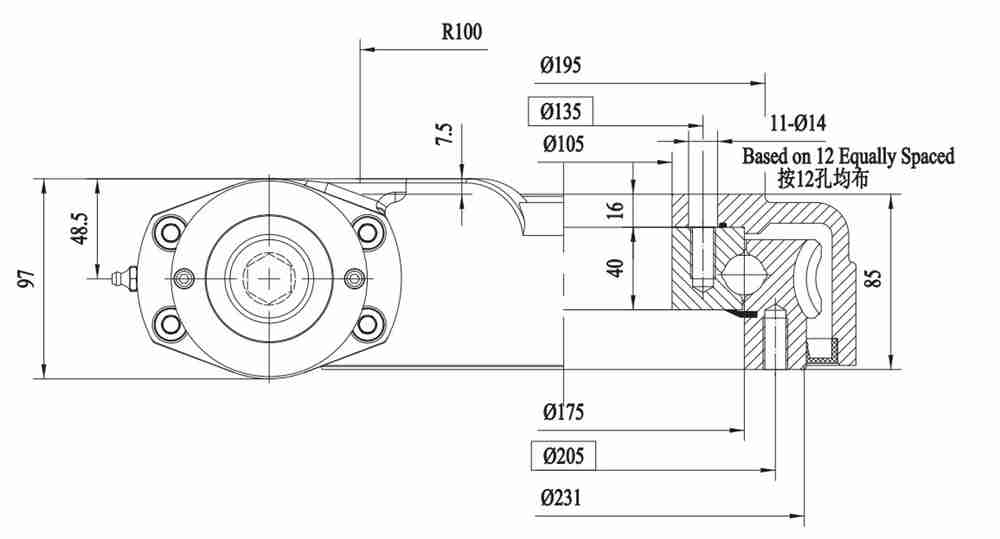

Front View

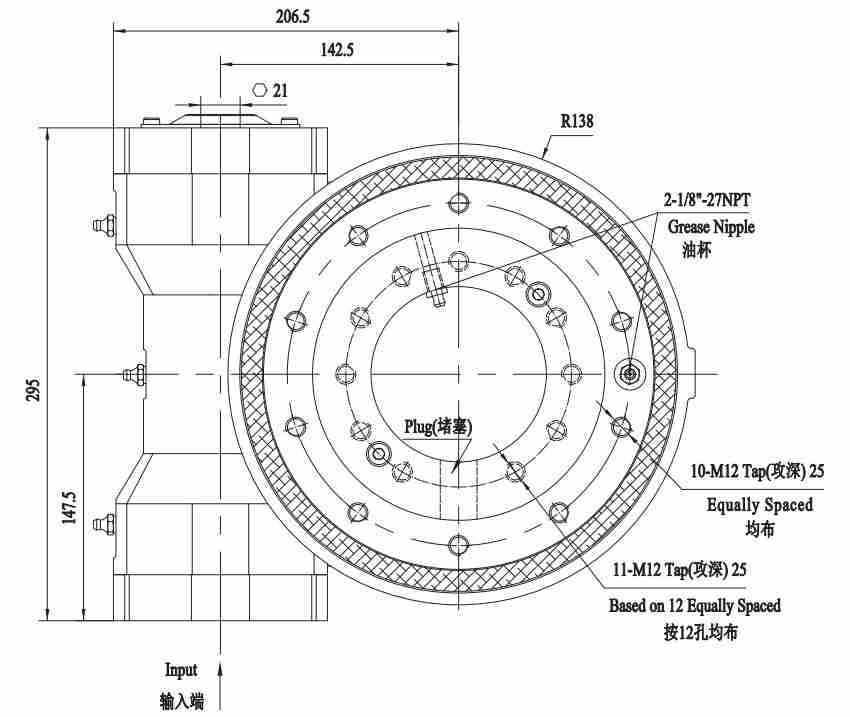

Top View

Note: customized design can be carried out according to customer requirements

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
3.5 KN.M	14.7 KN.M	20.6 KN.M	227 KN	92.7 KN	47:1	≤0.15°	35kg
2583 LBF.FT	10.8*10³ LBF.FT	15.2*10³ LBF.FT	51*10³ LBF	20.8*10³ LBF	47:1	≤0.15°	35kg

Application

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
