Product Description

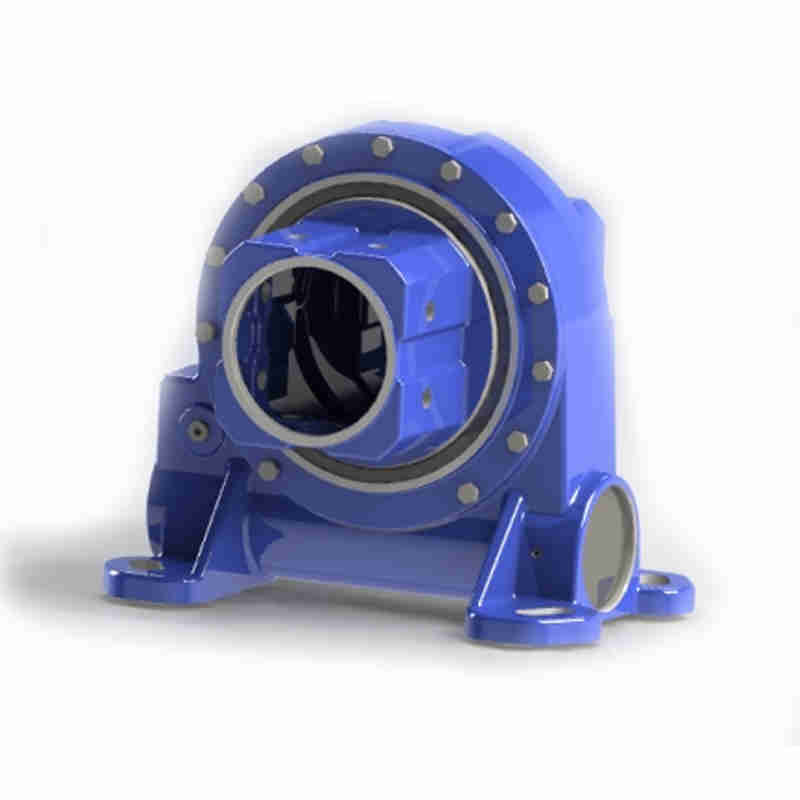

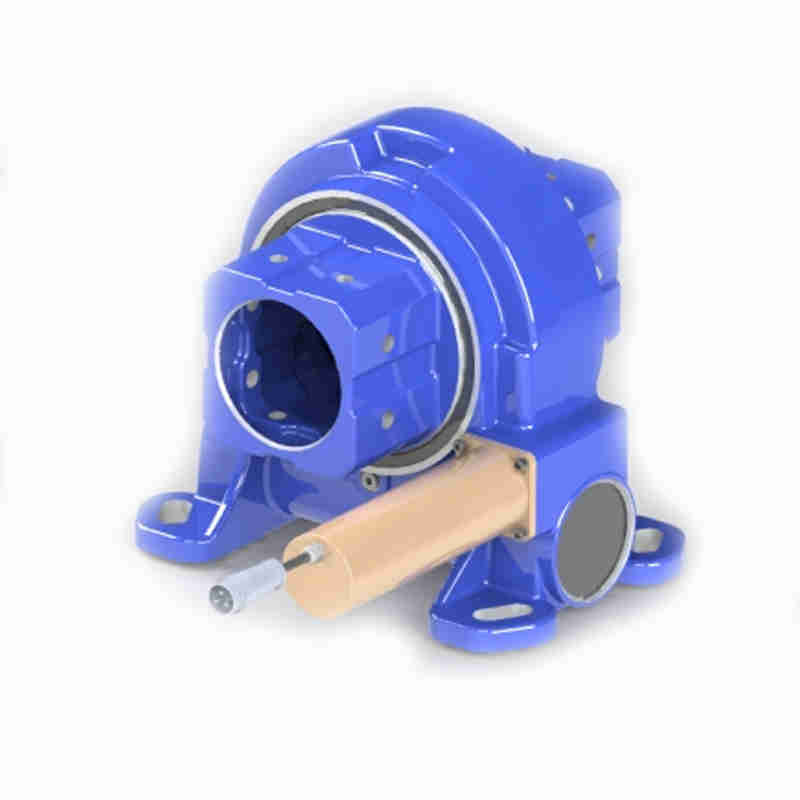

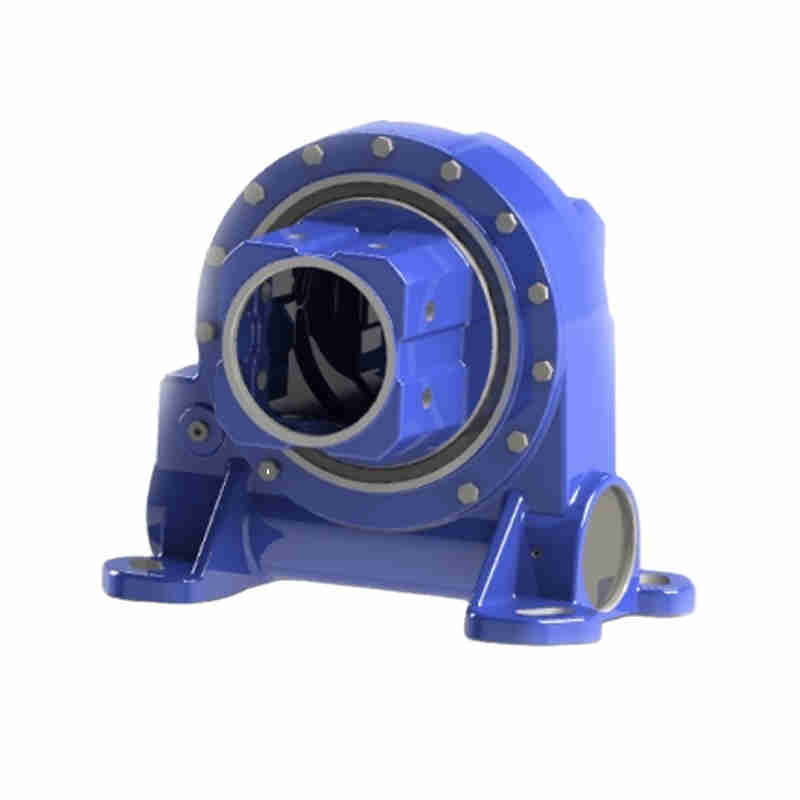

JM8S Slewing Drive

Product features:
1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sunlight, effectively prevent dust and water and the protection level can reach IP65. It is suitable for outdoor use and can output with single or double flanges.
2. Using specialized machine tools and equipment to produce torus worm gears with multiple teeth in contact, transmitting greater torque and able to withstand greater axial, radial and overturning forces.
3. The product design adopts universal dimensions both domestically and internationally making it convenient for later
replacement.
Application scope:
--Mainly used for the rotation of the pitch direction in solar tracking systems, it can also be applied to the rotation of certain special engineering machinery and industrial equipment.
--The rotation of the pitch position of solar power generation systems such as flat single axis, inclined single axis, slot type
power generation and concentrated solar power generation.
--Industrial equipment such as automatic feeding machines.

--First class german team --Customizing and individual --Top manufacture machine and test equipments --All products and parts are traceable andcomplete testing reports can be provided by JW --JV7S Series Products have been using in manyprojects for years ,great response received

For more details, please click here to contact us!

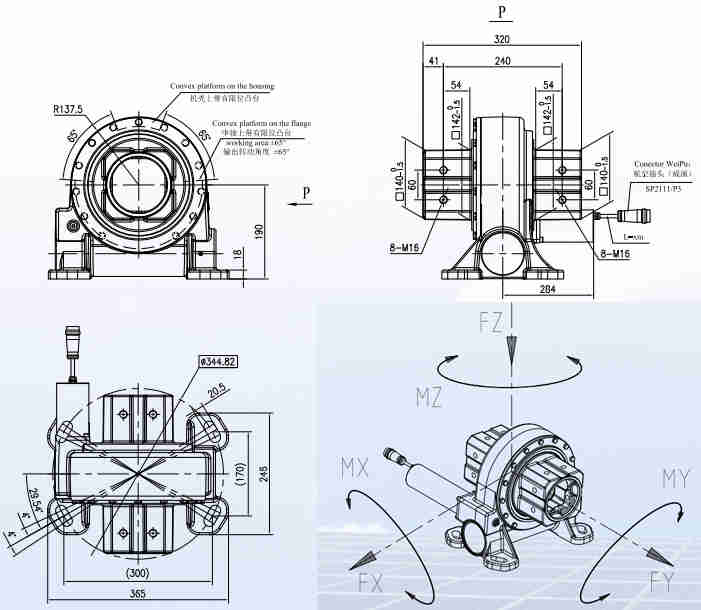

Slewing Drive Caplility
5Ratio of worm gear	391:1
Tracking precision	≤0.25°
IP class	IP65
Temperature	-40-+80℃
Holding torque MY	43000N.m
Axial Static Load FY	Coa 68KN
Axial Dynamic Load FY	Ca 35KN
Radial Static Load FX FZ	Cor 135KN
Radial Dynamic Load FX FZ	Cr 71KN
Tilting Moment Torque MX MZ	Com 28KN.m
Planetary Reducer Motor Performance Date
Rated Voltage	24VDC
Rated Current	≤3.5A
Gear Ratio	184:1
IP Class	IP65
Temperature	-40-+80℃

Slewing Drive Performance Data
Nominal Output Speed	0.02rpm
Nominal Output Torque	4.5KN.m
Output torque	Output speed	efficiency	Motor Current
Nominal torque:4.5KN.m Continuous operation Most operating conditions	0.02rpm	about 40%	about 3.5A
Nominal torque:6.5KN.m Continuous operation for 10 minute It should not exceed 5% of the total	0.016rpm	about 41%	about 5A
Large torque:9KN.m Warning: There is no safety factor

Application

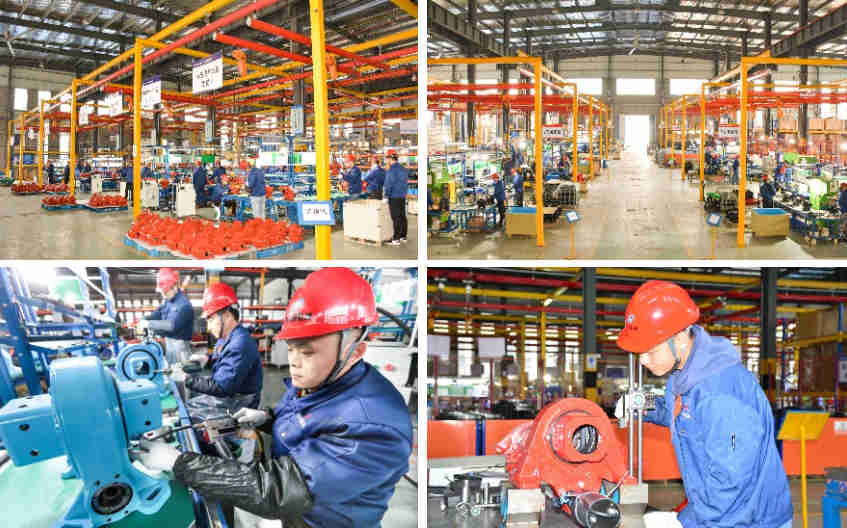

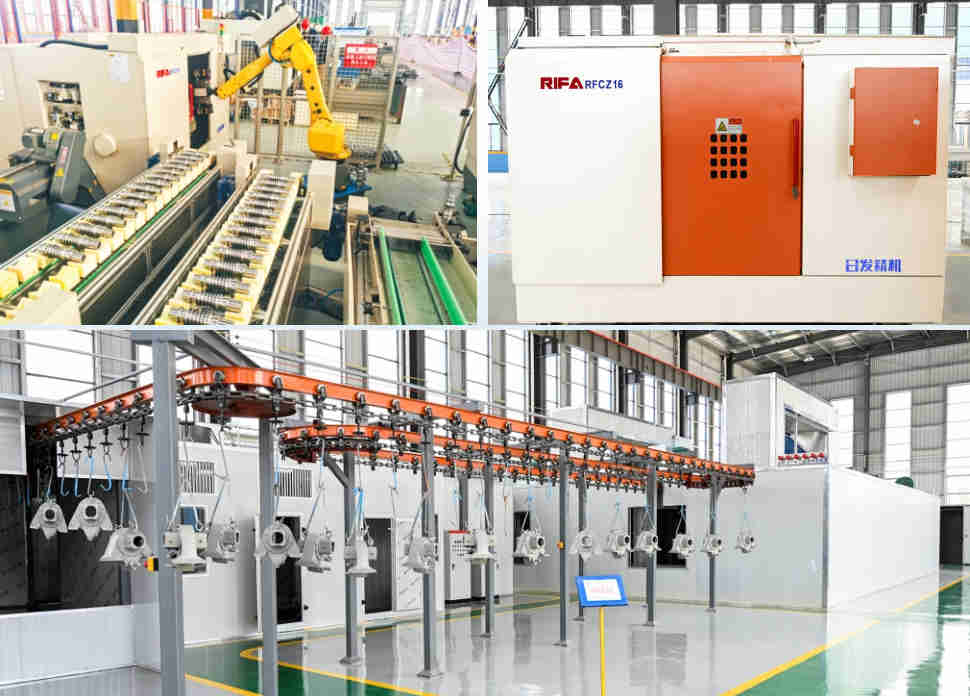

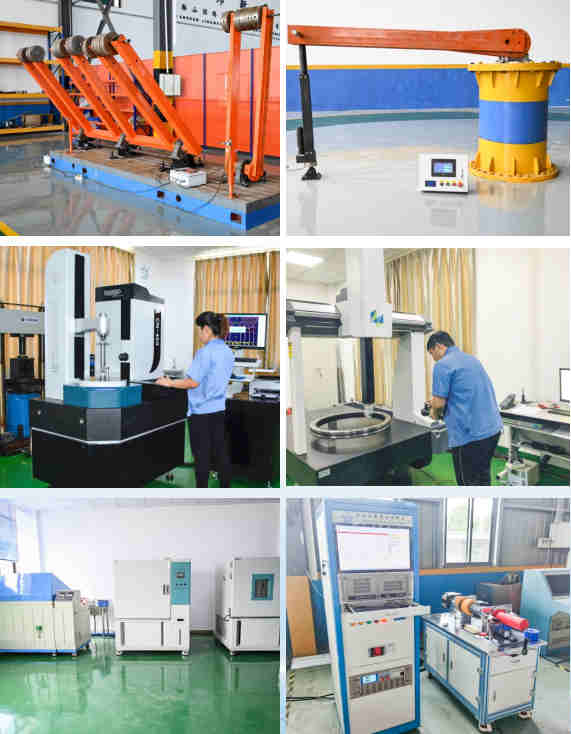

EVER-POWER Transmission Equipment Co., Ltd. has more than 200 sets of various processing and testing equipment, 7 automated assembly lines, 7 packing lines, and 2 environmentally friendly cleaning, drying, and painting lines. It is mainly engaged in the research and development, production, sales, and maintenance of solar photovoltaic and thermal and engineering machinery slewing reducers and their parts. It can produce 350,000 slewing reducers annually. The products cover a variety of specifications and styles from 3 inches to 37 inches, which can meet the needs of various forms of photovoltaic, thermal tracking power stations and engineering machinery markets. So far, it has successfully cooperated with nearly 30 well-known new energy companies and engineering machinery host manufacturers around the world, and has accumulated rich experience in project construction and product manufacturing.

The company focuses on innovation and empowerment, and is committed to leading the industry's technological progress in an all-round way. Jiyou has built high-end R&D platforms such as the provincial "Worm Drive Engineering Technology Research Center". At the same time, it has continuously introduced senior technical experts to use forward-looking concepts to innovate product processes and structures. It has independently developed 10 series of rotary reducers, including JV, Er, JP for photovoltaics and solar thermal, and JE, JS, and JW for engineering machinery, which have reliably improved the key performance of product anti-corrosion and sealing, and effectively reduced customer installation and maintenance costs. Among them, the industry-original Er7 and Er8 flat single-axis mechanical linkage reducers, JV6B double-row linkage reducers, JV6L electrical linkage reducers, JM flat single-axis corner reducers, and JP series reducers have become the new trend in the market and are widely adopted by many domestic and foreign new energy companies such as the top ten in the world. They are very popular and have won many invention patents.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
