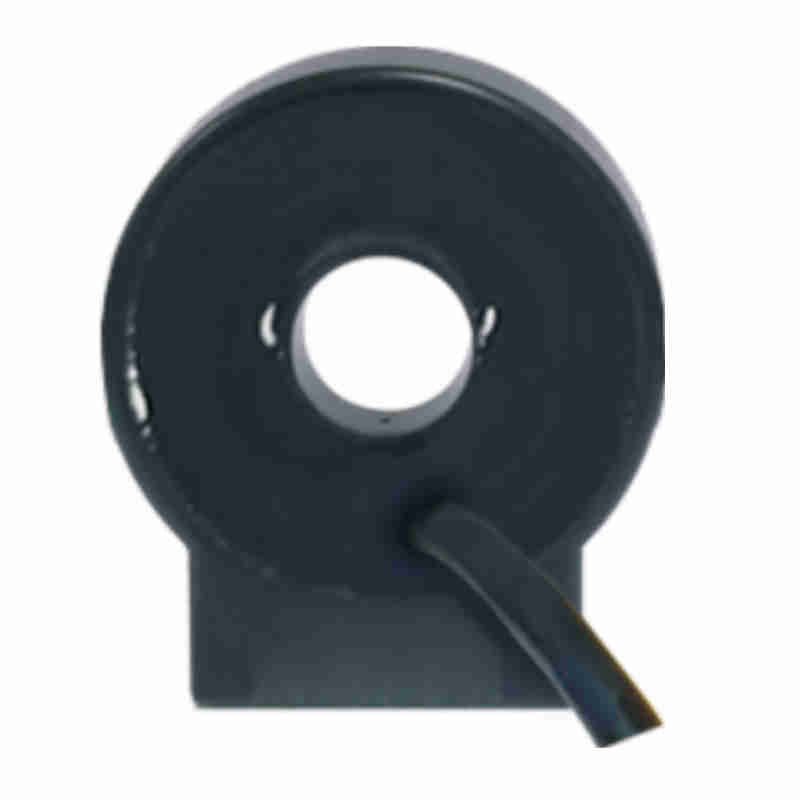

High-Precision SICA600KY AC Current Transducer Transformer for Reliable Electrical Measurement

High insulation between primary and secondary sidesStrong overload capacity, good temperature characteristicsHigh reliability, MTBF: 3×104hThin design, small size, light weightLightweight design, easy to install, high cost performanceModelSICA600KYRange input0~±50VTurns ratio1:2000Output0.......

Send Inquiry

Product Description

High insulation between primary and secondary sides

Strong overload capacity, good temperature characteristics

High reliability, MTBF: 3×104h

Thin design, small size, light weight

Lightweight design, easy to install, high cost performance

Model	SICA600KY
Range input	0~±50V
Turns ratio	1:2000
Output	0.3mA
Linearity	≤0.1%
Phase difference nonlinearity	≤5'
Load capacity	≤2V
Input frequency response	25Hz~5kHz
Linear range	0%~120%
Case aperture	Φ9mm
Overload capacity	10 times the nominal input current value, lasting 1s, interval 300s, repeated 5 times
Isolation and withstand voltage	2.5kV/50Hz/min×1mA
Working environment	Temperature: -40~85℃; Humidity: ≤95% (no condensation)
Product output lead length	0.6m~2.6m optional
Waterproof level	IP65
Installation and fixing method	Can be fixed on the cable with cable ties
Case and lead requirements	Low smoke flame retardant
Material requirements	Anti-corrosion, no rust

Current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotives, communication power supply, industrial automation control, electrochemistry
