Guaranteed Quality Unique IEC B14 Face Mounted -TENV Stainless Steel Motor for Food Processing Plant

Description Of Stainless Steel MotorThe Face Mounted stainless steel motors, which have special feat performance and value, top-notch features make AQUA-TECH SERIES products the be a worldwide influence. It includes NEMA and IEC standard motors which have per differ manufacturer standardFrame TypeFl......

Send Inquiry

Product Description

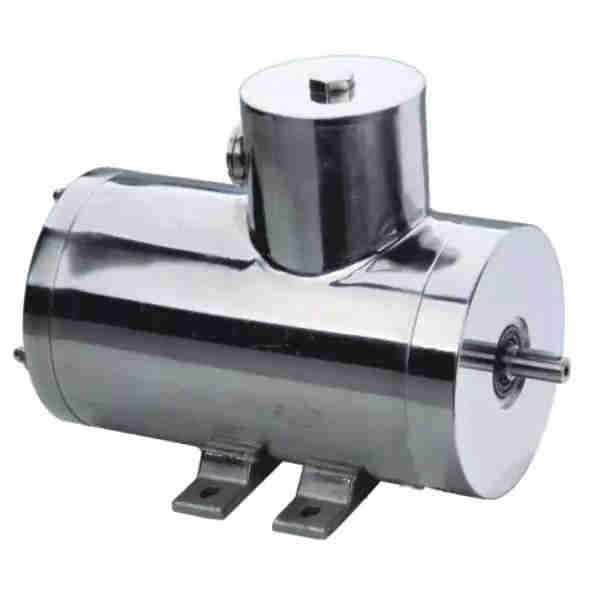

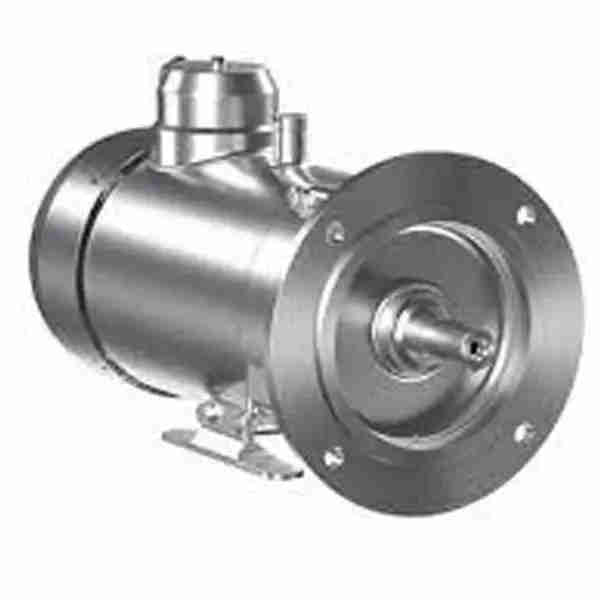

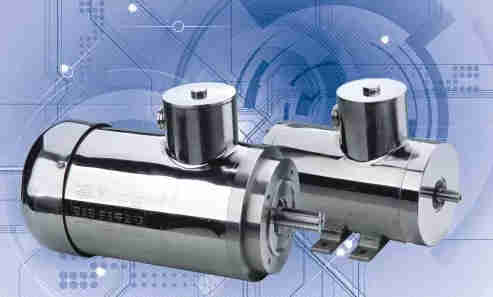

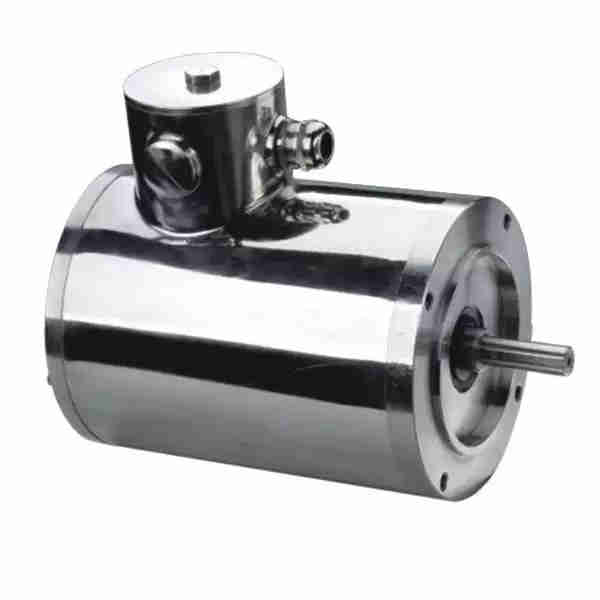

Description Of Stainless Steel Motor
The Face Mounted stainless steel motors, which have special feat performance and value, top-notch features make AQUA-TECH SERIES products the be a worldwide influence. It includes NEMA and IEC standard motors which have per differ manufacturer standard

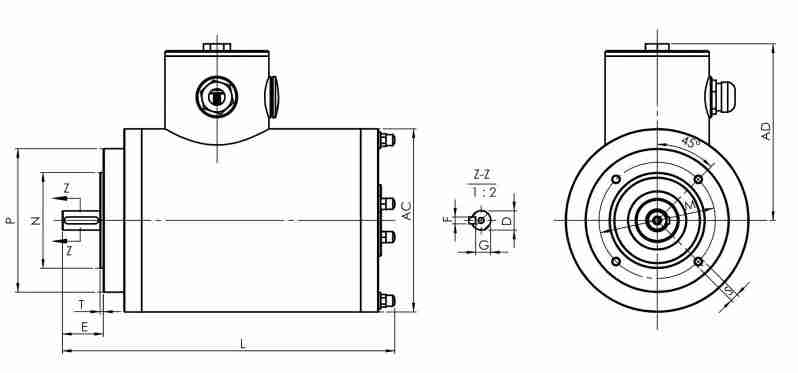

Frame Type	Flange type	Poles	D	E	F	G	M	N	P
R	S	T	Flange Hole	Shaft Hole	AC	AD	63	FT75	2,4
11	23	4	8.5	75	60	90	0	M5	2.5
4	M4	114	117	71	FT85	2.4.6	14	30	5
11	85	70	105	0	M6	2.5	4	M5	134

Specifications of IEC Stainless steel motor

Frame	KW	Mounting	IP
63	0.18	B3, B5, B14, B34, B35	IP55
71	0.25, 0.37
80	0.55, 0.75
90	1.1, 1.5
100	2.2, 3.0
112	4.0
1332	5.5, 7.5

It is also available if you have any special requirements for the motor.

Features of IEC Stainless steel motor

Ever-power's food safety Face Mounted stainless steel motors for food and beverage plants can withstand high-pressure cleaning,easily maintain hygienic standards, and reduce downtime.Designed for industries that need high hygiene, such as meat, poultry, fish, dairy products, beverages, and places where high food safety is critical.
features
Smooth stainless steel housing for easy cleaning and disinfection
Ip69 waterproof grade ensures that it is suitable for in-situ cleaning procedures
Laser engraving nameplate eliminates the pollutants under the traditional nameplate
Encapsulating the winding prevents any water and moisture from reaching the winding
Due to high efficiency, low surface temperature, and low operation cost
H1 food-grade synthetic grease

Drain holes –Easily removable for thorough drainage in any mounting position
Windings engineered for durability – Epoxy-encapsulated system prevents any water and moisture from reaching the windings and seals the lead entrance to the terminal box. High tec seal systems for IP69 protection.
Food grade lubricant – Lubricants suitable for food environments (H1) to avoid potential contamination and maximize food safety.
Tight and sealed terminal box – Prevents water from entering. The rotatable cover allows to adjust cable entry in all directions.
Cooling – Sizes 71 to 90 without a cooling fan, sizes 100 to 132 with the cooling fan.
Stainless steel housing – Smooth, round AISI304 stainless steel housing for easy cleaning.
Rating plate data – Laser etched onto the frame eliminates contamination trapped beneath traditional rating plates.
Precision die-cast aluminum rotor – Precision balanced and coated with an epoxy primer to resist corrosion.
Stainless steel shaft – Prevents rust and corrosion

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
