Good Quality XK5042 Vertical Metal Working Cnc Knee-Type Milling Machine with Box Guideway

XK5042 Vertical metal working Cnc Knee-Type Milling MachineThe XK5042 CNC vertical knee joint milling machine is a milling machine that is controlled by a CNC system with three axes, and the spindle maintains high stiffness through gear transmission. This machine tool is equipped with face milling c......

Send Inquiry

Product Description

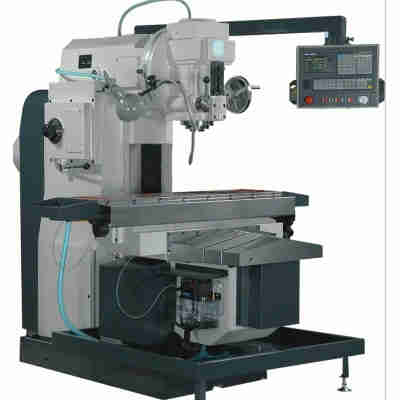

XK5042 Vertical metal working Cnc Knee-Type Milling Machine

The XK5042 CNC vertical knee joint milling machine is a milling machine that is controlled by a CNC system with three axes, and the spindle maintains high stiffness through gear transmission. This machine tool is equipped with face milling cutters, cylindrical milling cutters, side milling cutters, bevel milling cutters, and forming milling cutters, suitable for processing flat milling cutters, bevel milling cutters, slot milling cutters, and gear milling cutters on various workpieces. An operator can operate three machines simultaneously. Optional accessories such as turntable and indexing head are suitable for various processing. It is an ideal machine tool for processing technology, maintenance, instrumentation, and molds.

Item	Unit	XK5046	XK6045	XK5042	XK6042	WN600	XK5032
Worktable size	mm	460×2000	450×1800	420×1800	420×1800	300×1100	320×1320	320×1600
T slot (N×W×D)	mm	3×18×100	5×18×80	3×18×100	3×18×100	3×18×80	3×18×80
Max. load bearing of worktable	kg	750	750	750	750	450	500	500
Longitudianl travel of worktable (X axis)	mm	1400	1100	1100	1100	520	700	1000
Cross travel of worktable (Y axis)	mm	400	350	400	400	200	300
Vertical travel of worktable (Z axis)	mm	375	375	375	375	280	280
Spindle hole taper	mm	7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50
Arbor diameter	mm		Φ50		Φ50	Φ27
Max. spindle quill travel	mm	85	\	85	\	\	\
Distance from spindle end to worktable surface	mm	125~500	95 ~ 465(spindle center)	125 ~ 500	125 ~ 500(spindle center)	90 ~ 370(spindle center)	100 ~ 380
Distance from vertical guideway to spindle center	mm	520	\	520	\	\	380
Distance from vertical guideway to worktalbe center	mm	320 ~ 720	304 ~ 654	350 ~ 750	350 ~ 750	230 ~ 430	285 ~ 585
Distance from spindle center to arm	mm	\	182	\	200	155	\
Spindle speed steps	strps	18	20	18	18	inverter	18
Spindle speed range	r/min	18 ~ 1400	30 ~ 1500	30 ~ 1500	30 ~ 600	30 ~ 1500	30 ~ 1500
Main motor power	kw	11	11	11	11	5.5	7.5
Main motor rotating speed	r/min	960	1460	960	960	5000	960
Feed speed range: Longitudinal X/Y/Z	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 1500	5 ~ 2000
	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 1500	5 ~ 2000
	mm/min	5 ~ 1000	5 ~ 1000	5 ~ 1000	5 ~ 1000	5 ~ 1000	5 ~ 1000
Rapid feed speed range:Longitudinal X	mm/min	4000	4000	4000	4000	4000	4000		4000
Cross Y	mm/min	3000	3000	3000	3000	3000	3000
Vertical Z	mm/min	2000	2000	2000	2000	2000	2000
Positioning accuracy	mm/min	0.025/300	0.025/300	0.025/300	0.025/300	0.025/300	0.025/300
Re-positioning accuracy	mm	0.015	0.015	0.015	0.015	0.015	0.015
Machine dimension	mm	2250×2260×2300	2250×2260×2047	2500×2600×2300	2500×2600×2047	2200×2200×1720	2245×1780×1920
Machine weight	kg	5500	5500	5100	5100	2600	3300	3400

General Metal Machining: The XK5042 is suitable for a wide range of general metal machining tasks. It can mill flat surfaces, drill holes, create slots, and machine various metal components with precision and repeatability. Mold Making: This milling machine is commonly used in mold making industries. It can accurately machine molds for plastic injection molding, die casting, or other manufacturing processes. The XK5042 allows for precise machining of complex shapes and contours required for mold production. Tool and Die Production: The XK5042 is well-suited for tool and die production. It can machine tooling, dies, and molds used in metalworking processes. The machine's stability and accuracy contribute to the production of high-quality tooling for industries such as automotive, aerospace, and general manufacturing. Aerospace Industry: The XK5042 milling machine can be utilized in the aerospace industry for machining various components, including engine parts, structural elements, and aircraft parts. Its precision and versatility make it suitable for milling intricate features and maintaining tight tolerances required in aerospace applications. Automotive Industry: In the automotive sector, the XK5042 is commonly used for manufacturing metal components such as engine blocks, cylinder heads, transmission parts, and chassis components. It enables efficient and precise milling operations for automotive applications. Job Shops: The XK5042 milling machine is often found in job shops that handle a wide range of metal machining tasks. It can accommodate diverse projects and meet different customer requirements, making it a versatile machine for job shop environments

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

Optional accessories at extra cost(For conventional machines)

System and tool magazine

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
