Gear Rack

Raydafon Group's Gear Rack offers precision engineering for smooth linear motion in industrial automation, made from durable materials ensuring reliability and enhanced performance. Perfect for engineers and DIY enthusiasts, it simplifies complex setups, boosting efficiency and productivity with its unique design and cost-effective solution.

Send Inquiry

Product Description

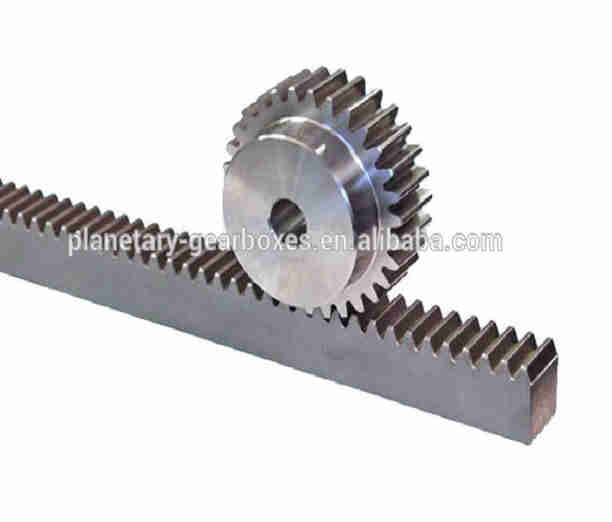

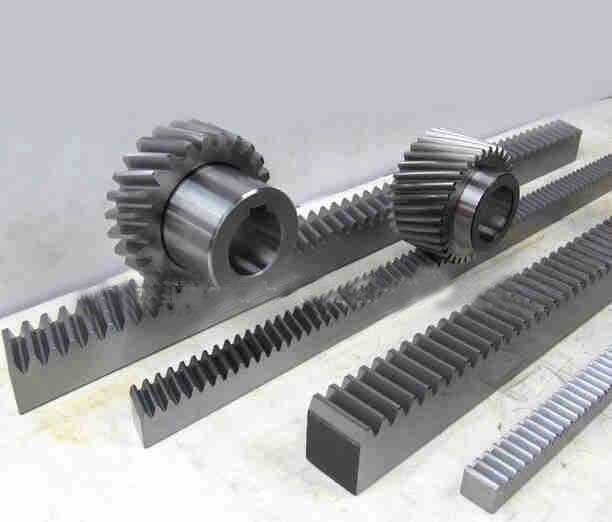

gear rack

Material: carbon steel such as C45, 20CrMnTi, 40Cr, 42CrMo or stainless steel or copper or nylon and so on
Heat Treatment: Hardening and Tempering, High Frequency Quenching, Carburizing Quenching and so on.
Standard: European or American standard
Item: M0.5,M1,M1.5,M1.7,M2,M2.5,M3,M4,M5,M6 and so on
Export Area: Europe and America
OEM service: make based on your special sample or drawing and meet your need for
high precision on teeth of gear

Specification
(precision:7 Grade,8 Grade,9 Grade Material:C20 C45 Steel) Unit:mm
Module	Week festival	A×B	Length 500mm		Length 1000mm		Length 2000
Module	Week festival	A×B	No.of teeth	Actual length	No.of teeth	Actual length	No.of teeth	Actual length
1	3.142	15×15	159	499.51	318	999.16	636	1998.31
1.5	4.712	17×17	106	499.47	212	998.94	424	1997.89
2	6.283	20×20	80	502.64	160	1005.28	318	1997.99
2.5	7.854	25×25	64	502.66	128	1005.31	255	2002.78
3	9.425	30×30	53	499.52	106	999.05	212	1998.10
4	12.566	25×25	40	502.64	80	1005.28	159	1998.10
4	12.566	30×30	40	502.64	80	1005.28	159	1998.10
4	12.566	40×40	40	502.64	80	1005.28	159	1998.10
5	15.708	50×50	32	502.66	64	1005.31	128	2010.62
6	18.850	60×60	27	508.95	53	999.05	106	1998.10
8	25.133	75×75	20	502.66	40	1005.32	80	2010.64
10	31.416	80×90	-	-	32	1005.31	-	-

Company Information

BEAUDECO PTE. LTD.is a specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, PTO drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, UDL speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. Furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information and cooperate with us.
We staff over 1500 workers, and have CNC turning machines and CNC work centers.
For more details, please check out our products catalogs and machine lists.
