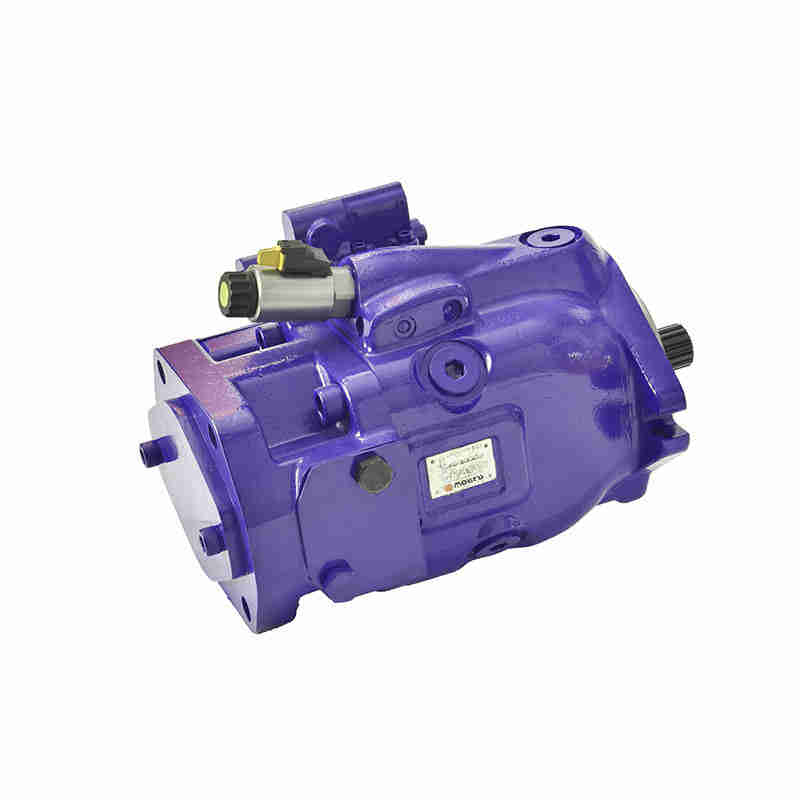

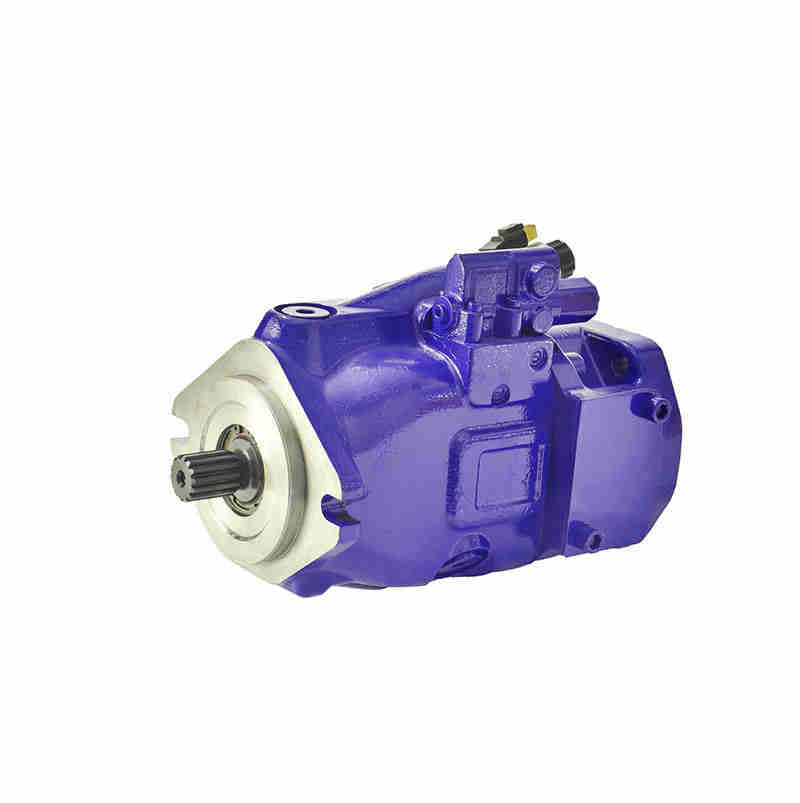

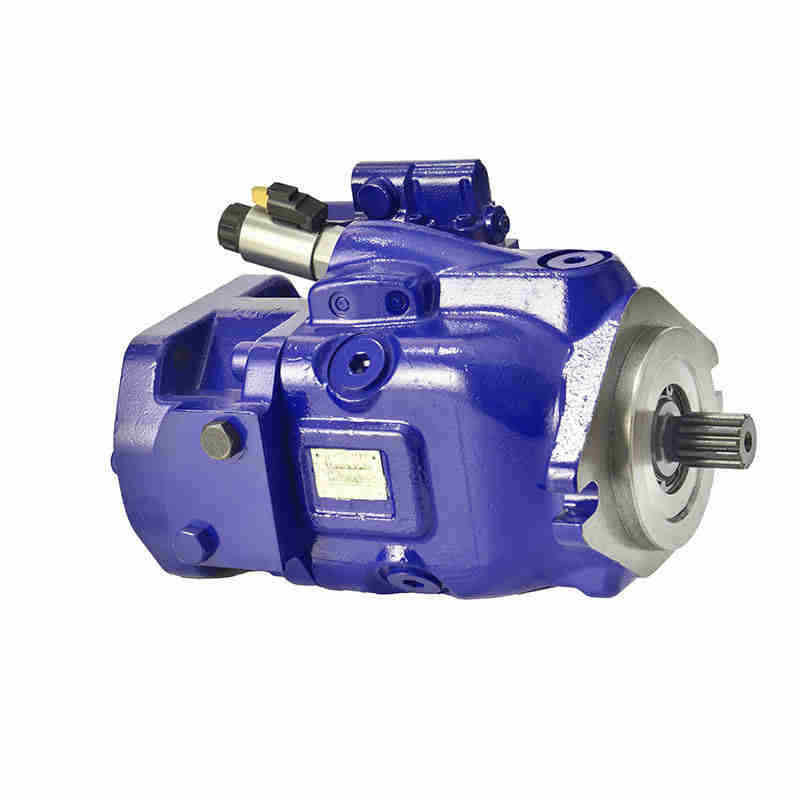

G10VO Series Swash Plate Axial Piston Variable Displacement Pump Hydraulic Pump for Aerial Work Platform,cotton Picker

Slant disc structure axial piston variable displacement pump, suitable for open circuit hydraulic transmission;The flow rate is directly proportional to the speed and displacement, and can be infinitely varied by adjusting the inclined plate;Sturdy bearings have a longer service life when aligned;Go......

Send Inquiry

Product Description

Slant disc structure axial piston variable displacement pump, suitable for open circuit hydraulic transmission; The flow rate is directly proportional to the speed and displacement, and can be infinitely varied by adjusting the inclined plate; Sturdy bearings have a longer service life when aligned; Good oil absorption; Low noise, electro-hydraulic displacement control;

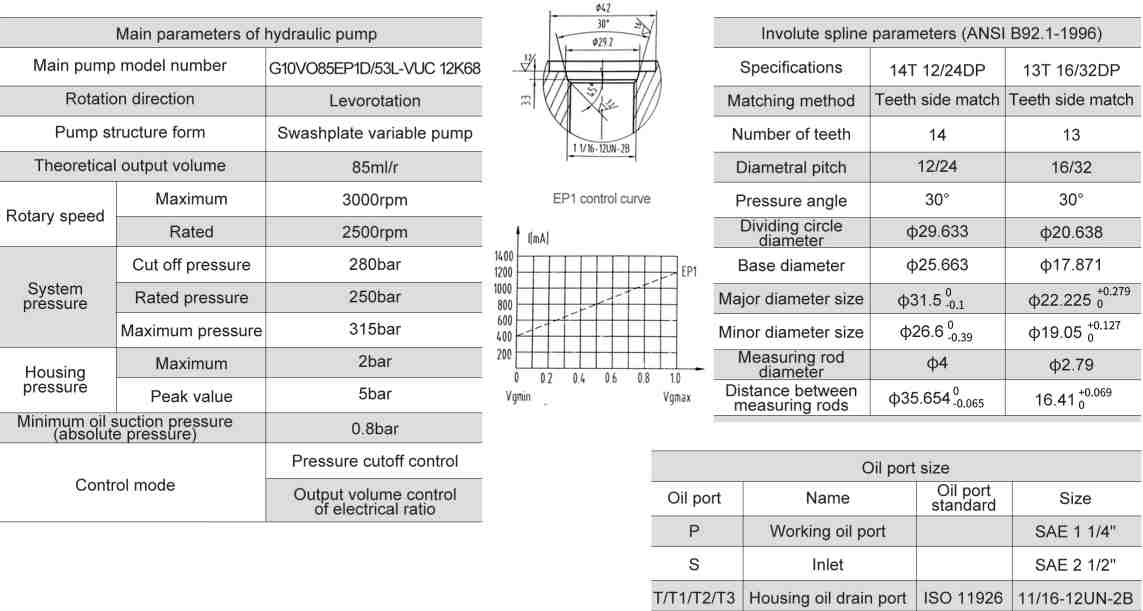

model	A10VO85EP1D/53L-VUC12K68
displacement	85mL/r
Rotation direction	Left-handed rotation
Rated speed	2500rpm
Maximum speed	3000rpm
Rated pressure	250bar
Maximum pressure	315bar
Cut off pressure	280bar
control mode	Electric proportional displacement control (DC) 12V, Deutsch DT04-2P connector
Input shaft	14T 12/24DP ANSI B92.1a

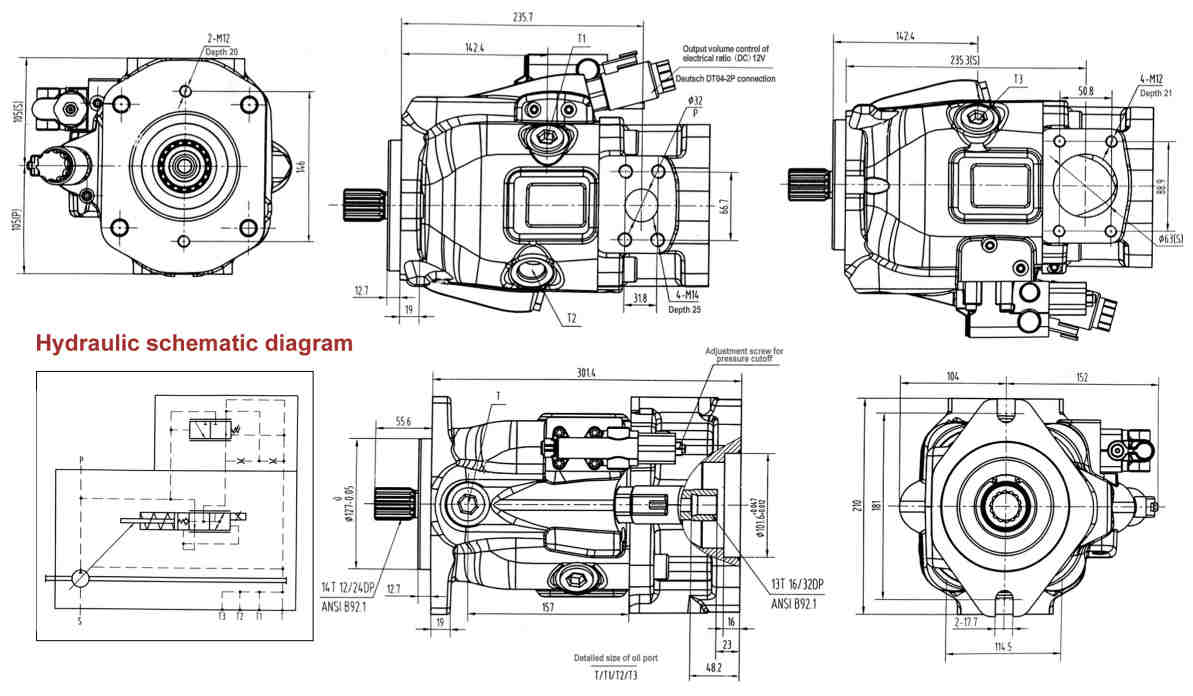

Installing flanges	SAE J744-32-4; Stop diameter 127mm, stop depth 12.7mm
Through axis drive	Installation flange: SAEJ744 101-2 (B); Internal spline: 13T 16/32DP
Housing return port	lSO 1192611/16-12UN-2B
Oil inlet	SAE 2 1/2 ", M12 x 1.75, thread depth 21
Oil outlet	SAE 1 1/4 ", M14 × 2, thread depth 25

Assembly precautions (1) During the assembly process, please be careful not to leave burrs on the assembly surface and do not allow dust to enter;

(2) After assembly, apply dust-proof treatment to the exposed holes;

(3) Apply rust inhibitor to the input shaft and flange;

(4) When spraying paint, the nameplate and installation surface need to be covered to avoid painting.

-Operation precautions (1) When transporting hydraulic pumps, do not apply strong impact to the drive shaft of the pump body;

(2) Before operation, it is necessary to exhaust through the exhaust port to fill the housing with clean hydraulic oil;

(3) When running the hydraulic pump, be careful not to let hydraulic oil and other liquids flow onto the surface of the hydraulic pump assembly;

(4)The cleanliness of the hydraulic oil used should meet NAS level 9.

Application Scenarios:
1. Harvesting Operations – Hydraulic pumps power critical components like the header, feed rollers, and stalk choppers, ensuring
efficient corn picking and processing.

2. Driving Systems – Used in hydrostatic transmissions for smooth speed control and maneuverability in varying field conditions.

3. Grain Handling – Supports hydraulic augers and elevators for seamless grain transfer to storage or transport vehicles.

4. Adjustable Mechanisms – Enables real-time adjustments of header height, reel speed, and other parameters for optimal harvest
quality.

5. Steering & Braking – Integrates with hydraulic steering systems for precise control, especially in large, modern harvesters.

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

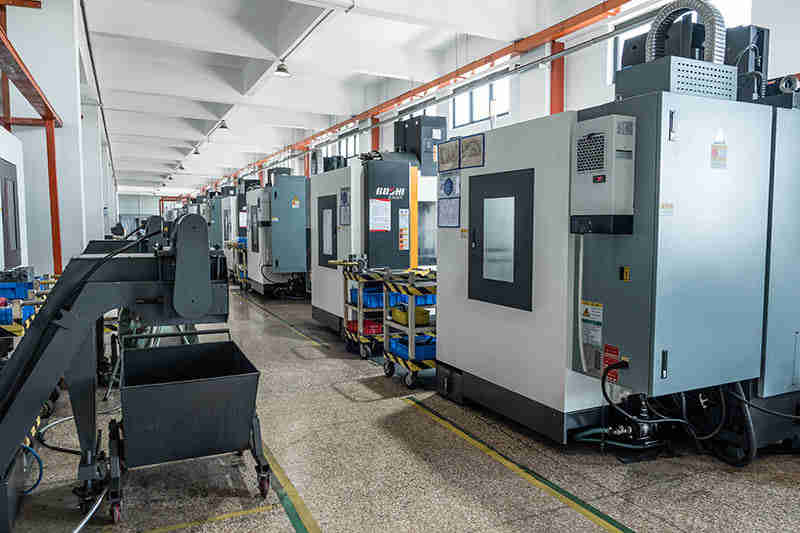

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.
