Product Description

2SK Single Double Stage Liquid Water-ring Vacuum Pump Boosters Roots Rotary Van Piston Pump Replacement of Kinney

Products Description

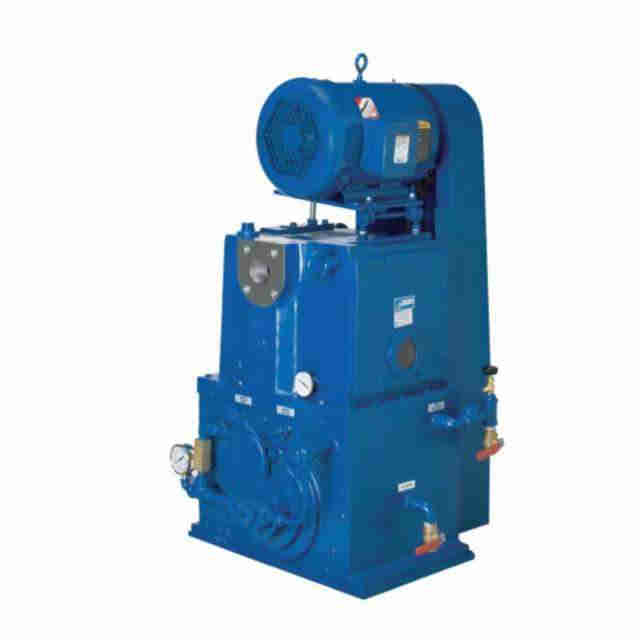

Single stage rotary piston vacuum pump

KT pump can keep high pumping speed and quiet operation under high pressure or low pressure conditions. The design of triple slide valve ensures the dynamic balance of the pump itself, and the fact also proves that the pump has no vibration during operation. KT pump has water cooling system and air cooling system for selection. Standard products are equipped with adjustable gas valves, which can handle the medium containing water vapor or other vapor. In addition, the oil mist separator is also built in, which adopts a compact and low gravity design.

Model	CFM m3/h	HP/Kw
KT-150	150/244	7.5/5.5
KT-300	300/503	15/11
Application	• Vacuum packaging • Vacuum furnace • Vacuum coating » Liquid Gas Storage » Brake Fluid Filling » Silicon Crystal Growing » Evacuation

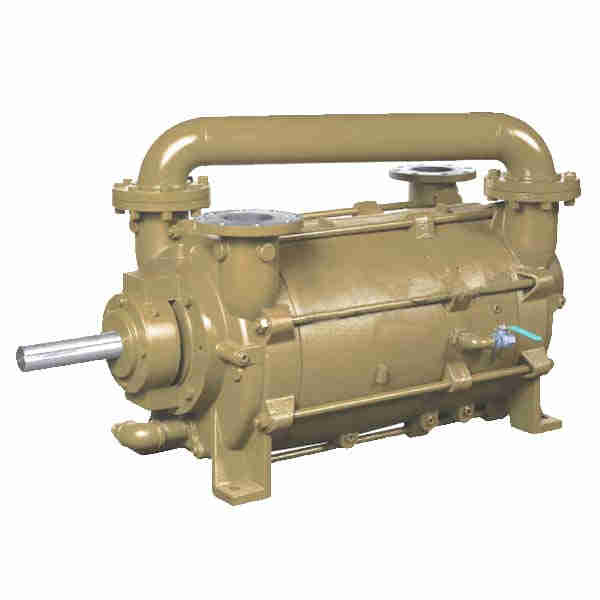

Two stage water-ring vacuum pump

Applications: Chemical & Pharmaceutical Processing, Vapor Recovery, Deaeration, Extruders, Crystallizers, Central Vacuum Systems
Self-contained liquid recovery and recirculation systems are available. Available in standard, all iron construction (no yellow
metals), and 316 stainless steel. Liquid ring pumps often require water-cooling, but air-cooling systems are available.

Model	CFM / m3/hr	CFM / m3/hr
KLRC-125	71/99	5/3.7
KLRC-200	170/244	15/11
KLRC-300	305/432	25/18.5
KLRC-525	550/779	50/37
Application	» Chemical Processing » Vapor Recovery » Deaeration » Sterilization » Crystallizers » Extruder

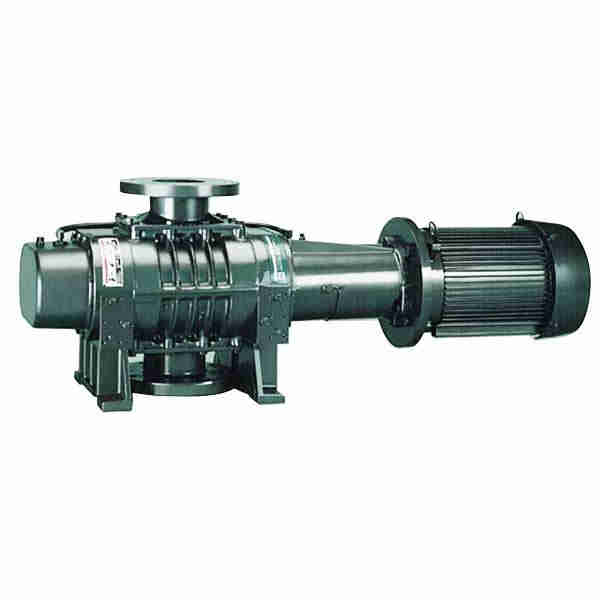

Vacuum boosters

Designed to handle the world's toughest applications, vacuum boosters are used to supercharge vacuum pumps to extend pump
performance. This creates much faster pumping speeds and deeper vacuum levels

Application: Supercharging ( Vacuum Systems), Vacuum Drying , Dehydration , Packaging, Distillation , Vacuum Furnace

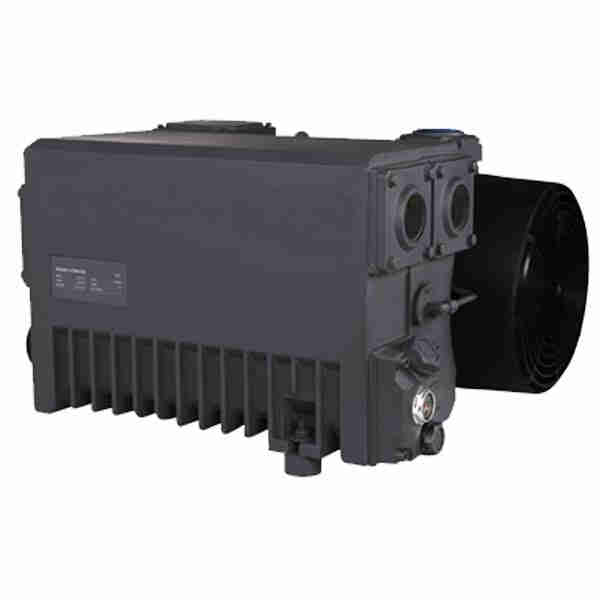

Single Stage Rotary Vane Pump

Vacuum packaging and food processing technology
Thermoforming, blister, air compression, foam forming
Vacuum Adsorption, sling
Vacuum degassing, drying, crystallization, impregnationprecooling
Vacuum pressing, laminating, setting
Vacuum coating and industrial furnace as the front pumpand pre-pump

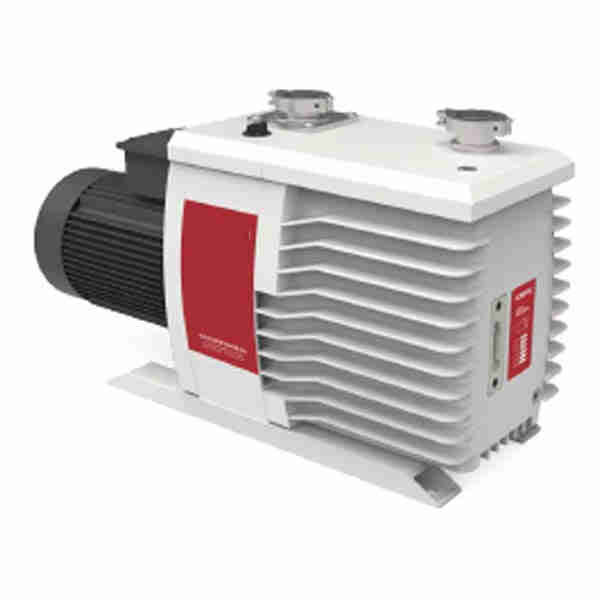

Two Stage Rotary Vane Pump

Electronics, semiconductor and coating industries Vacuum oven, sapphire furnace, polycrystalline furnace, single crystal furnace, vacuum dewatering furnace, vacuum sintering furnace, etc; Optical coating, ion plating, sputtering equipment; Plasma cleaning; As the front auxiliary pump of Roots pump, diffusion pump, molecular pump, etc. Various analytical instruments Spectrometer, spectrometer, physical and chemical analyzer, leak detector, glove box, etc. Medical industry Plasma sterilizer, vacuum freeze drying, etc. Refrigeration industry Automatic evacuation lines of air conditioners, refrigerators and compressors, refrigerant injection machines, helium leak detection series, etc

Comparison of replacement models

Our Model	Kinney's Model	Our Model	Kinney's Model
TWO STAGE WATER-RING VACUUM PUMP				SINGLE STAGE ROTARY PISTON VACUUM PUMP
LP40	KLRC100		PP70	KT150
LP55	KLRC125		PP150	KT300

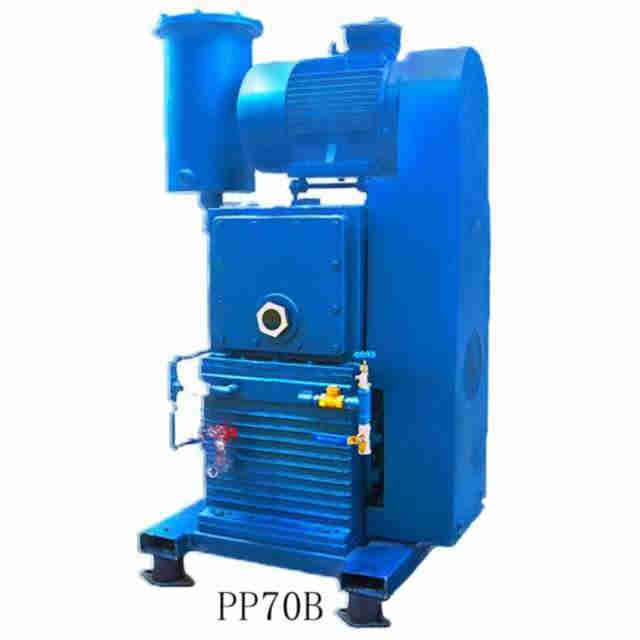

LP75	KLRC200		PP70B	KT150(here are differenets from shape and oil channel design)
LP115	KLRC300		ROOTS PUMP
LP200	KLRC525		VP200	KMBD540
			VP600	KMBD2000

Recommend Products

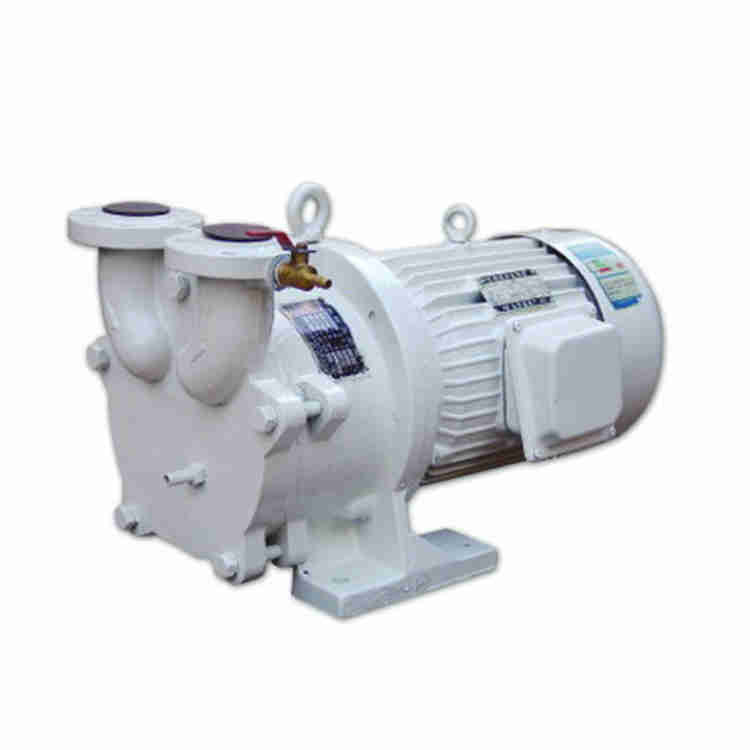

2SK WATER-RING VACUUM PUMP

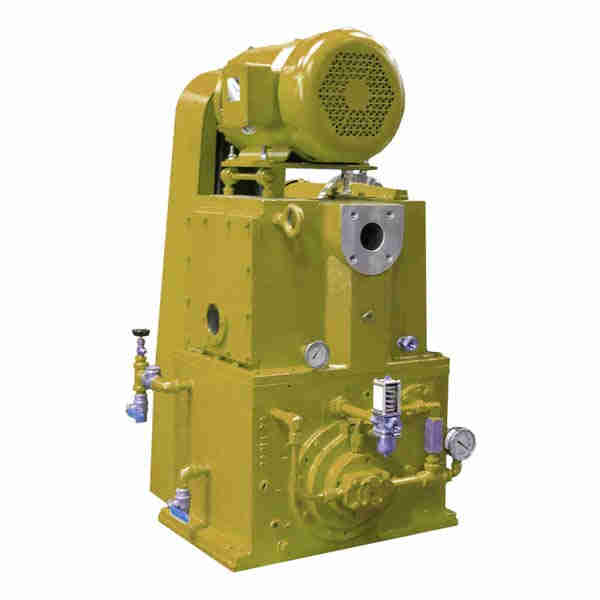

SINGLE STAGE ROTARY PISTON VACUUM PUMP

Replacement KINNEY KT150 KT300

ROOTS PUMP

Replacement KINNEY KMBD540 KMBD2000

TWO STAGE WATER-RING VACUUM PUMP Replacement KINNEY KLRC100 KLRC125 KLRC200 KLRC300 KLRC525

SINGLE STAGE ROTARY PISTON VACUUM PUMP Replacement KINNEY KT150 KT300 ( there are differenets from shape and oil channel design)

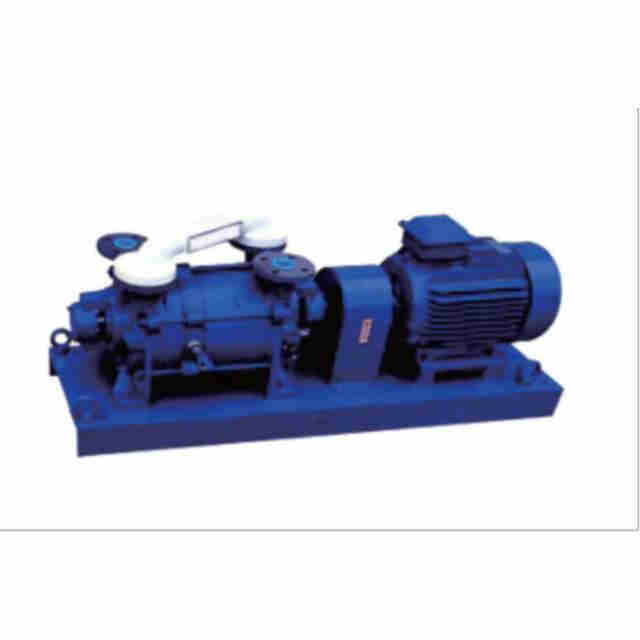

2BV WATER VACUUM PUMP

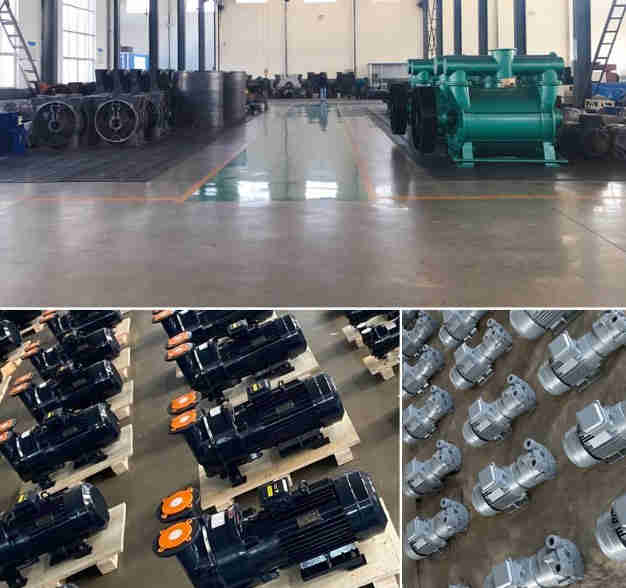

Company Profile

The main products are water ring vacuum pumps (including 2BV series, 2BE1 series, 2BE3 series, 2SK series, SK series), rotary vane vacuum pumps (2X series, XD series), roots vacuum pumps, screw vacuum pumps, reciprocating vacuum pumps, vacuum pump stations, vacuum units and accessories, vacuum complete equipment, etc. According to different types of vacuum pumps and different production process requirements of customers, there are also many kinds of materials, mainly including cast iron, stainless steel 304, stainless steel 316, stainless steel 316L, etc. The material quality of non proud products is guaranteed. If the product has quality problems, it will be replaced within three months and guaranteed for one year. 1. Special materials, specifications and requirements can be customized through negotiation between the supplier and the demander. 2. Provide design, processing, sales and maintenance of vacuum units and complete vacuum equipment. 3. The price will fluctuate due to different product requirements, specifications and materials. The above prices are only for reference. We will provide a suitable design scheme and quotation for your vacuum system according to your specific requirements,
