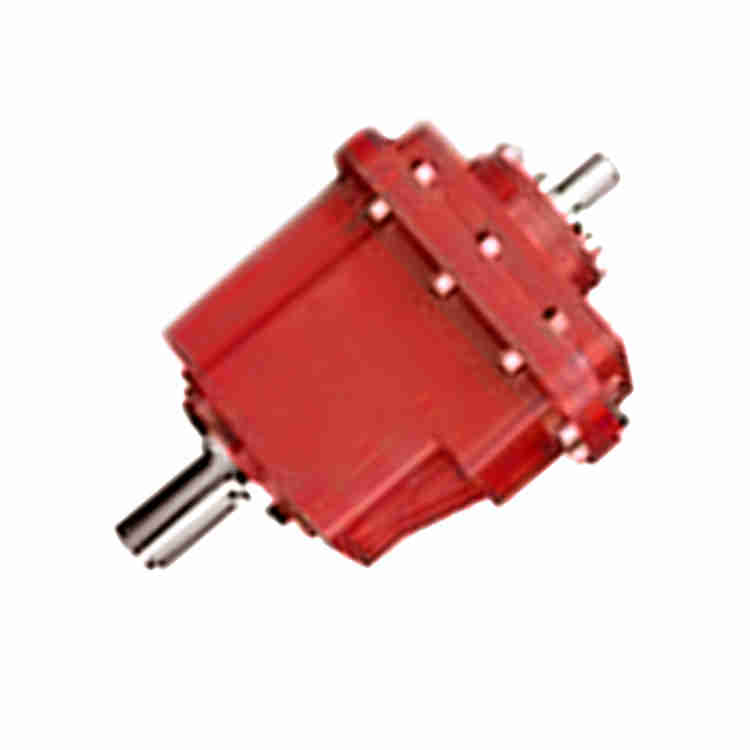

EPL Double Shaft EPLanetary Gearboxes

Raydafon Group's EPL Double Shaft EPLanetary Gearboxes deliver unmatched precision and durability for industrial automation, robotics, and heavy machinery. With advanced engineering, they ensure smooth operation, reduced maintenance, and increased efficiency, empowering engineers to achieve peak performance and reliability in demanding applications.

Send Inquiry

Product Description

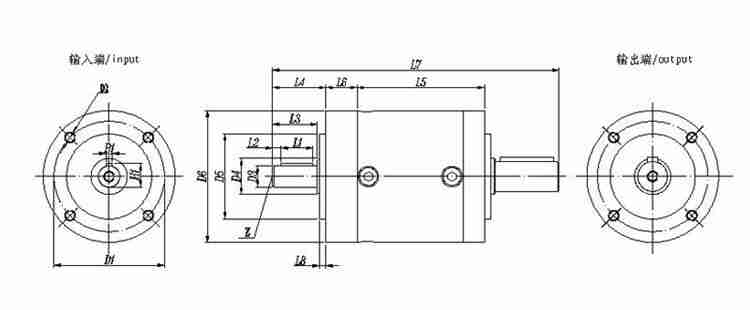

Type		EPL40			EPL60			EPL90			EPL120			EPL160
	stages		1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
D1	flange holes circle		34			52			70			100			145
D2	Mounting threadx depth	4?/font>	M4?			M5?			M6?0			M10?6			M10?8
D3	Output shaft diameter	h7	8			10			16			20			35
D4	Shaft root		12			17			25			35			50
D5	Output centering	h7	26			40			60			80			130
D6	body diameter		40			60			80			115			170
L1	Key length		10			15			20			30			45
L2	Distance from shaft end		3.5			4			3			5			7
L3	Shaft length from spigot		17			21			26			40			58
L4	Shaft length from output		20			25			30			45			65
L5	Body length		38	50.7	63.2	47	60.5	74	60	78.5	96	74	101	128.5	97	136.5	177
L6	Motor flange length		10			14.5			18			33.5			50	60	60
L7	Overal lngth		94	106.7	119.2	121.5	135	148.5	148	166.5	184	207.5	234.5	262	299	348.5	389
L8	Spigot depth		2			3			3			4			5
B1	Key width		2			3			5			6			10
H1	Key height		8.8			11.2			18			22.5			38
Z	Orient holes		M3?			M4?			M5?2			M6?6			M12?5
Input shaft load	radial	N	80			130			230			580			650
	axial	N	85			150			260			600			700

EPL double shaft Planetary gearbox EPL double shaft EPLanetary gearboxes technical data: *For longer motor shafts L6 apPLies:The measure L6 and L10 will be lengthen by the same amount as the motor shaft. Moment of inertia
