EP-75 Rotary Tiller Cultivator Gearbox for Agricultural

Characteristic Introduction of Rotary TillerThe blades of the rotary tiller are attached to the rotor, which is bolted directly to a single horizontal power shaft 8" to 12"above the soil surface. For row crop weeding, they are more expensive and require more maintenance than sweepers. They......

Send Inquiry

Product Description

Characteristic

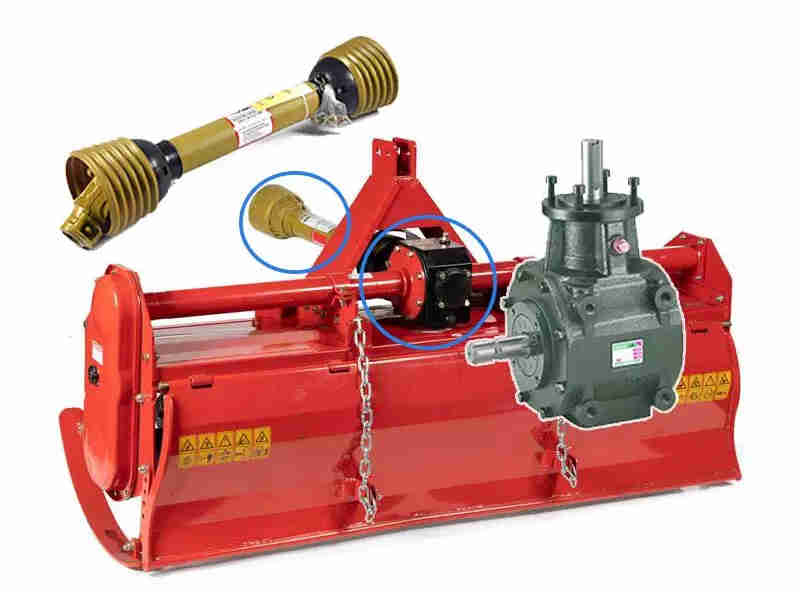

Introduction of Rotary Tiller
The blades of the rotary tiller are attached to the rotor, which is bolted directly to a single horizontal power shaft 8" to 12"
above the soil surface. For row crop weeding, they are more expensive and require more maintenance than sweepers. They operate faster than sweeping in crusted soil, but slower under normal conditions. However, tillers are better suited for other tillage roles and can reduce field passage by adding residue, forming beds, and creating seedbeds in a single pass. Uses include band planting cover crops, preparing permanent planting beds, renovating strawberry plantings, and adding compost or soil-applied herbicides. Blade length limits how high the crop can safely pass under the solid drive shaft. The visibility of the work area is limited by the tool cover.
Rotors must be selectively removed or adjusted for inter-row weeding - a minimum of two hours of work. In most cases, the drive shaft is powered by a chain drive. A manufacturer's multi-belt drive cushions sudden shocks. Features to check include multi-speed gearbox drive (slowest RPM to prevent soil structure damage), PTO slip clutch for chain drive models, and depth control mode. When working on rough soil, the front depth gauge wheels do not work as well as a side slip or a rear gravel/roller. An optional crop guard keeps soil from flowing in.

Farm gearbox Rotary Mower Tiller Cultivator Tractors Small Agricultural Gearboxes
This series gearbox is mainly used on mowers (grass cutters). It has the characteristics of high universality, simple structure,and good performance.
Advantage
- The ISO9001 Quality System was examined & verified by the Third Party of CQC and passed second-degree safety quality
standardization for the machinery manufacturing enterprise.
- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques.
- Strictly quality control by German CMM.
- Various gearboxes are used in agricultural machines and industrial machines.
- Advanced technics, strong self-development power, ability to produce new type gearbox according to customer's design drawings.

ITEM	HC-75
Ratio	1:3/1:2.83/1:1.65/1:1.6
Teeth	12/36 34/12 33/20 24/15
Module	6.0/5.35/5.5/7.5
Power(HP)	75/75/100/125
Rated Input	540rpm
Input/Output Description	3/8 Z6 Optic axis
Weight(N.W)	37KG

Ever-power is a professional agricultural machine gearbox manufacturer.
It produces more than 1,000 kinds of products and supports OEM and ODM. Including lawn mower series, rotary tiller series, rice harvester series, grain transportation storage series, etc. Has exported to numerous countries like America, Australia, India,Poland, etc. We work with many well-known brands like John Deere, Bush Hog, etc. Our annual production is 300,000 units, and our turnover in 2021 is USD 28 million. The export ratio is 80%, and the domestic market is 20%.

Agricultural Gearbox Production Workshop
1. CNC Workshop: a series of high precision CNC, including Japanese Okuma CNC and other vertical and horizontal CNC.
2. Gear Hobbing Workshop: High-Speed 5-axis linkage digital-controlling gear hobbing machines, and the precision reaches GB grade 6.
3.Gear Teeth Inserting Workshop:KS5150,YKS5132,YKS5120A,YSL5120
4. Gear Teeth shaving cutters grinding machine: Italian S400 GS gear teeth shaving cutters grinding machine

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D,manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox,spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
