Electric / Rotating Drive Piston Oil Lubrication Pump for AG-CO MF RB3130F Baler Replacement of 10138503/AZU/AZUL

Piston Pumps (Oil) Series EALP-O2 Electric DrivePiston Pumps (Oil) Series MALP - Rotating DriveEALP-O2 Electric DriveSeries MALP - Rotating DrivePump Output rateMax. 0.06 cm³ per stroke one outletMax. 0.06 cm³ per stroke one outletRegulation of output1 - 6 individual outlets 7 - 12 outlets......

Send Inquiry

Product Description

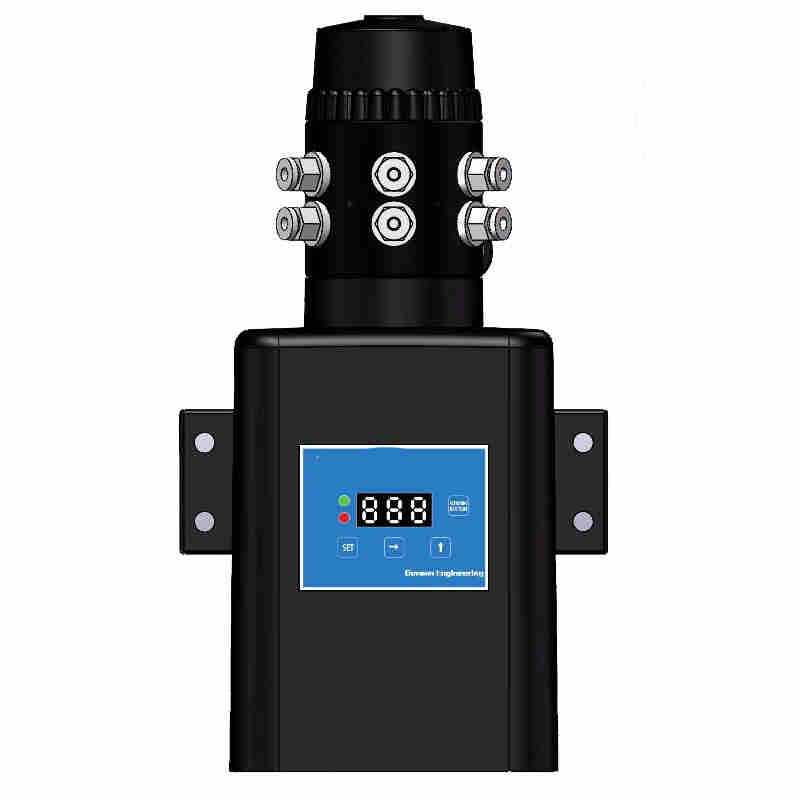

Piston Pumps (Oil)
Series EALP-O2 Electric Drive

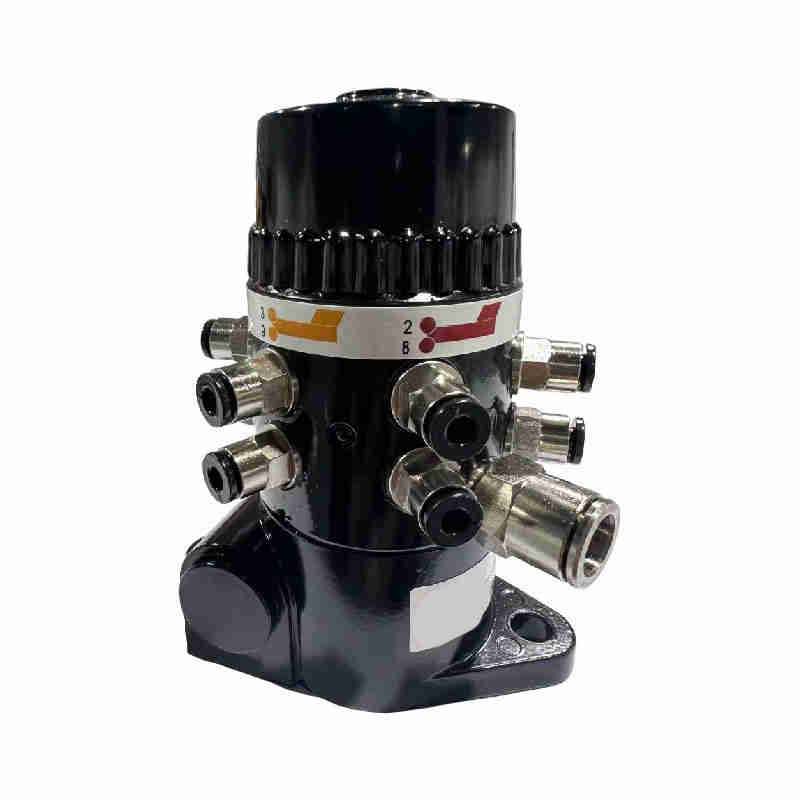

Piston Pumps (Oil)
Series MALP - Rotating Drive

	*EALP-O2 Electric Drive*	*Series MALP - Rotating Drive*
Pump Output rate	Max. 0.06 cm³ per stroke one outlet	Max. 0.06 cm³ per stroke one outlet
Regulation of output	1 - 6 individual outlets 7 - 12 outlets in pairs	1 - 6 individual outlets 7 - 12 outlets in pairs
Input speed	Std 22 r.p.m (11/42/80 r.p.m OPT)	Max. 900 r.p.m. at 8.16:1
Operating pressure	Max. 15 bar	Max. 15 bar
Suction height	Max. 2000 mm	Max. 2000 mm
Lubricant	Oil	Oil
Viscosity range	25 - 1500 mm2 /s	25 - 1500 mm2 /s
Temperature range	Medium -35 - 70 °C Ambient -25 - 40 °C Max.	-35 - 70 °C
No. of outlets	12	Max. 12
type	See order key	See order key
Weight	2,3kg	1,5 kg
Varnish	Black (pump body and housing)	Black (pump body and housing)
Degree of protection	IP 6K9K
Motor
Drive	DC motor
Operational voltage	12/24 V DC
Nominal current	max. 1.5/1.3A
Stall current	max. 4.0/4.5A
Speed (=pump speed)	Std 22 r.p.m (11/42/80 r.p.m OPT).
Electrical connection	see dimensional drawing
Control Unit
Lubrication Time	1-29 Min
Cycle Time	0.5-8 Hour

Piston Pumps (Oil) Series EALP-O2 Electric Drive

Piston Pumps (Oil) Series MALP - Rotating Drive

SUMMARY:

Turning the set screw clockwise increases the output rate; Turning counter clockwise reduces it; Less Oil More Oil Set Screws

OPERATION:

1)Take off the screw-on lid, use the set screw;

2)Turn 1/6 rotations of set screw one time;

3)One turn of the set screw reduces the output by ¼ of the total delivery volume;

4)Adjust the desired rate and after that fix the screw-on lid again.

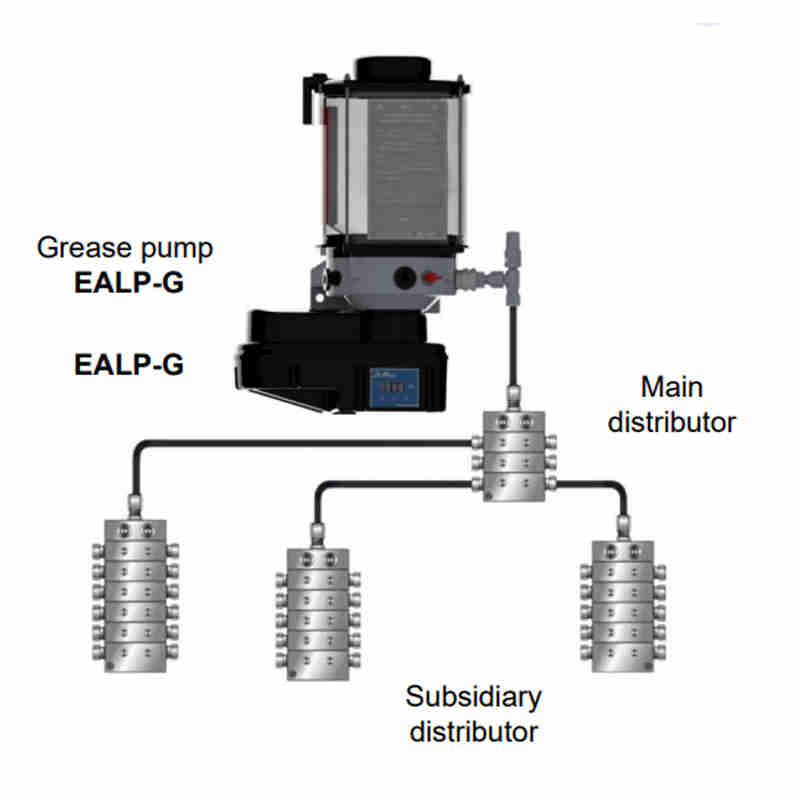

The lubrication points are supplied by the progressive distributors in a consecutive way.

KRO NE Big M 420 combine

CNH Tractor, 33 lubrication points

JD Sugar Cane Harvester, 71 points

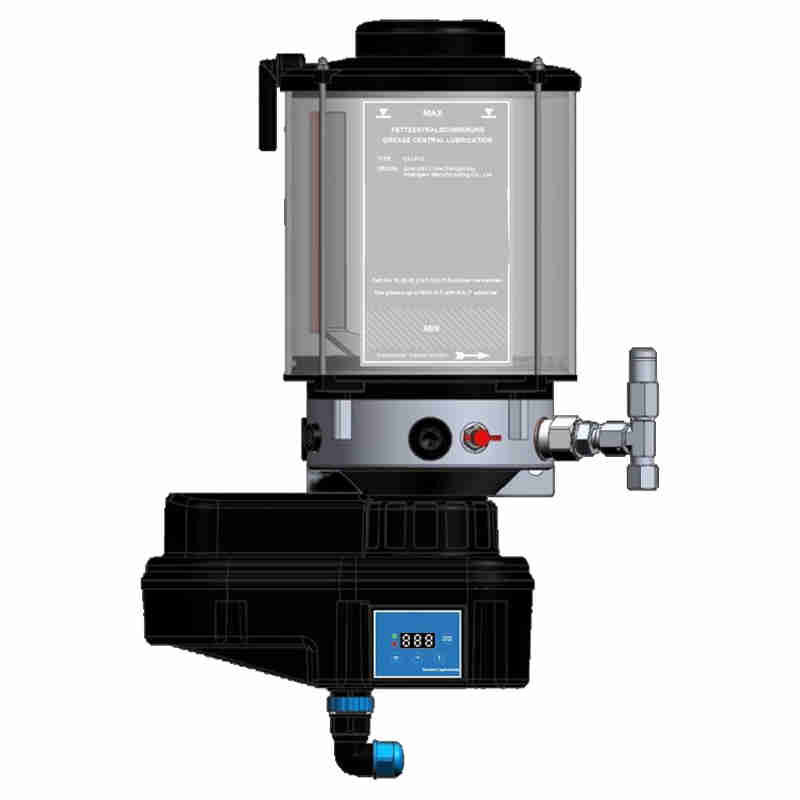

Delivery volume per stroke (=1 pump revolution) and outlet	0.125cm³/0.175cm³ (depending on pump element)
Regulation	PE125/175
Reservoir capacity (effect.vol.)	4L(2L&3L&6L&8L)
Operating pressure	Max. 350bar
Pressure limiting valve set to	300bar
Pumped medium	greases up to NLGI-cl.2
Operating temperature	-35 ~ +70°C (depending on conveying medium)
Number of outlets	1-4 (Up to 6 exits can be customized)
Type of outlet	Ø 6 mm
Installation position	reservoir vertical,as shown
Degree of protection	IP 6K9K
Weight	5.6KG (w/o pump elements, w/o grease filling)
Motor
Drive	DC motor
Operational voltage	12/24 VDC
Nominal current	max. 3.5/2.2A
Stall current	max. 8.5/6.0A
Speed(=pump speed)	17r.p.m.
