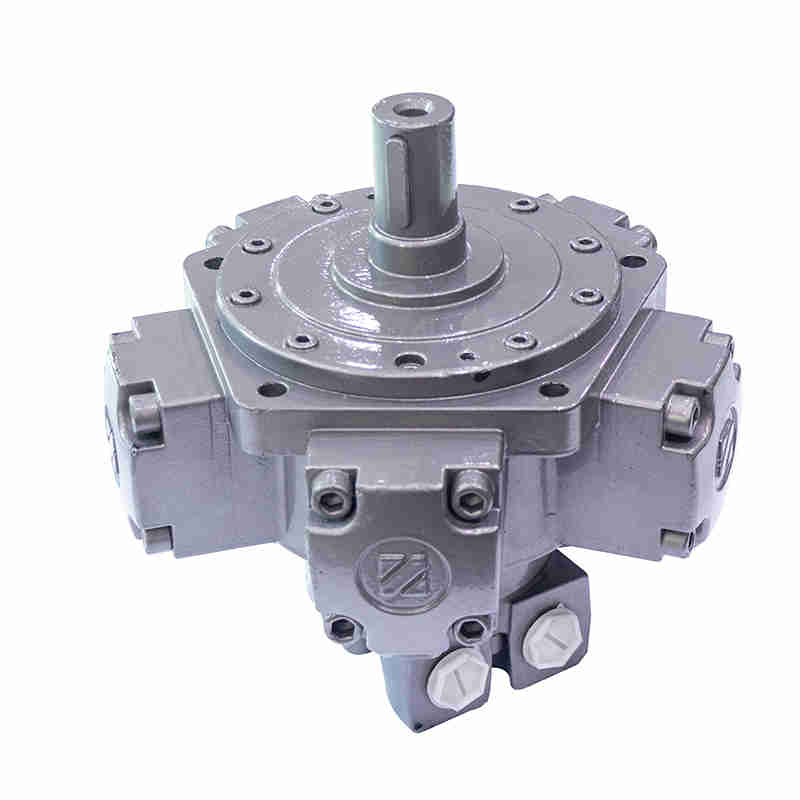

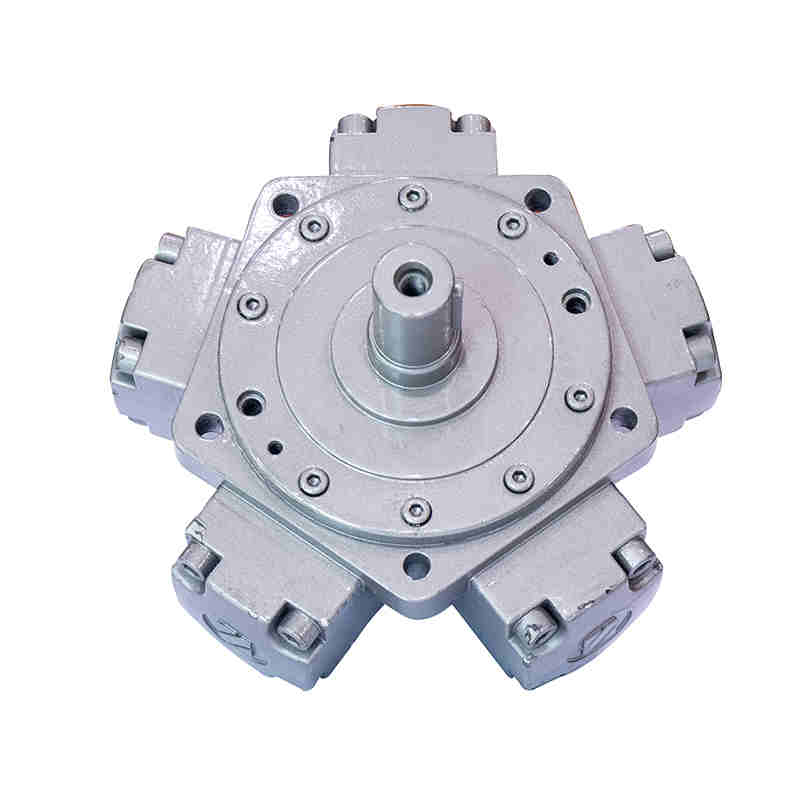

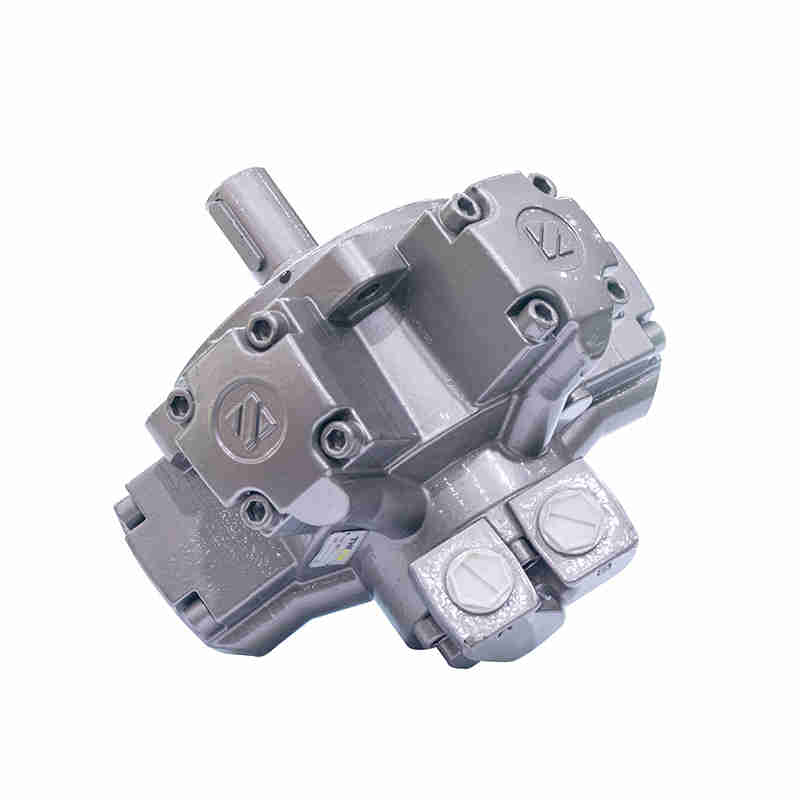

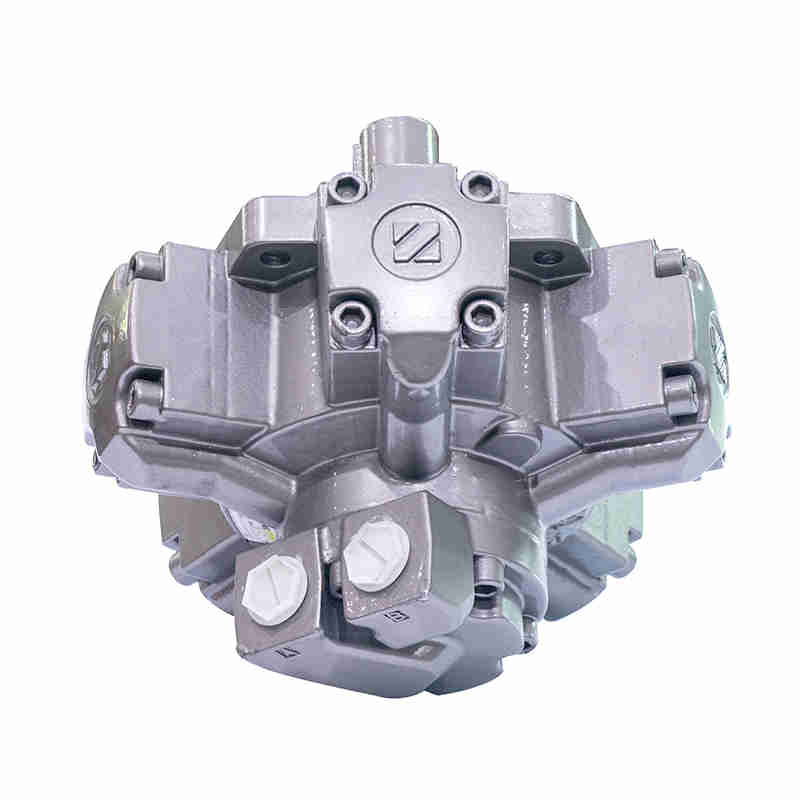

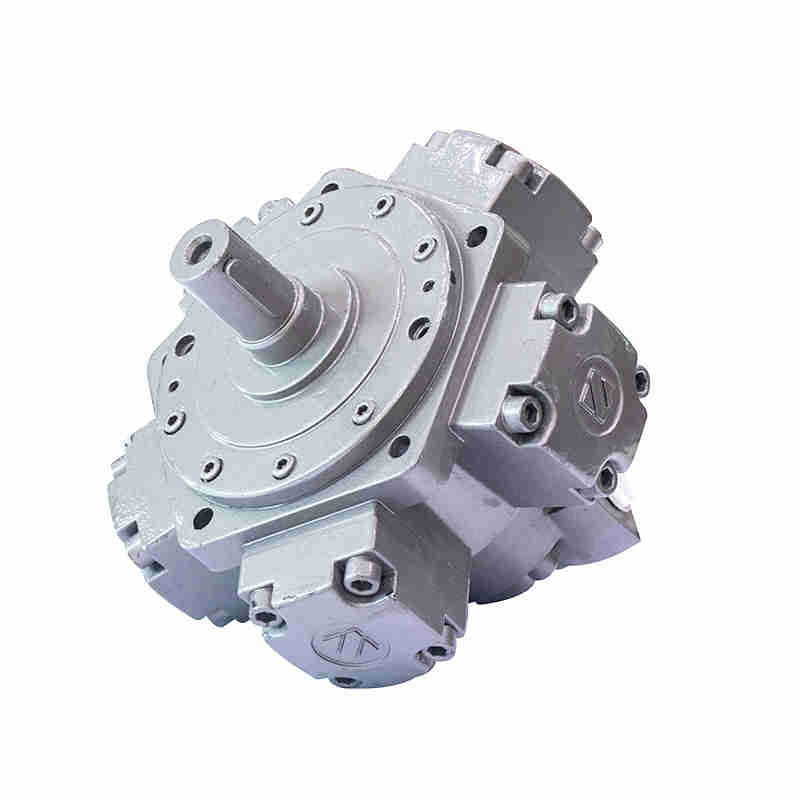

China Supplier Radial Piston Motorparker Radial Hydraulic Motorradial Piston Hydraulic Motor

TYPEDisplacement(ml/r)Pressure(Mpa)Torque(N.m)SpeedRange(r/min)Max.cont.Power(kw)Weight(kg)(N.m)RatetorqueN.m/MpaTheoric Torquepeak pressurecont.pressureJMDG1-50542420164835-500623JMDG1-63642420188935-500723JMDG1-807822182061135-500923JMDG1-1009622182531435-5001123JMDG1-12512622183321835-5001523JMDG......

Send Inquiry

Product Description

TYPE	Displacement (ml/r)	Pressure (Mpa)		Torque(N.m)		Speed Range (r/min)	Max.cont. Power (kw)	Weight (kg)
		Pressure (Mpa)		(N.m) Rate torque	N.m/Mpa Theoric Torque
		peak pressure	cont.pressure	(N.m) Rate torque	N.m/Mpa Theoric Torque
JMDG1-50	54	24	20	164	8	35-500	6	23
JMDG1-63	64	24	20	188	9	35-500	7	23
JMDG1-80	78	22	18	206	11	35-500	9	23
JMDG1-100	96	22	18	253	14	35-500	11	23
JMDG1-125	126	22	18	332	18	35-500	15	23
JMDG1-160	159	20	16	373	23	35-500	16	23
JMDG2-100	113	24	20	331	17	30-400	11	28
JMDG2-150	157	24	20	460	23	30-400	15	28
JMDG2-175	176	22	18	464	26	30-400	17	28
JMDG2-200	201	22	18	530	29	30-400	19	28
JMDG2-250	254	20	16	595	37	30-400	21	28
JMDG2-280	271	20	16	635	39	30-400	23	28
JMDG3-200	199	22	18	525	29	30-350	25	36
JMDG3-250	254	22	18	670	37	30-350	32	36
JMDG3-300	289	22	18	762	42	30-350	32	36
JMDG3-350	351	22	18	926	51	30-350	32	36
JMDG3-400	397	20	16	931	58	30-350	32	36
JMDG3-450	462	20	16	1083	68	30-350	32	36
JMDG6-400	397	22	18	1047	58	25-320	46	65
JMDG6-450	452	22	18	1192	66	25-320	53	65
JMDG6-500	491	22	18	1295	72	25-320	53	65
JMDG6-600	594	22	18	1566	87	25-320	63	65
JMDG6-700	683	22	18	1801	100	25-320	63	65
JMDG6-750	754	20	16	1767	110	25-320	63	65
JMDG6-800	799	20	16	1873	117	25-320	63	65
JMDG8-600	617	22	18	1627	90	20-280	80	71
JMDG8-700	710	22	18	1872	104	20-280	80	71
JMDG8-800	810	22	18	2136	118	20-280	85	71
JMDG8-900	889	20	16	2084	130	20-280	85	71
JMDG8-1000	1000	20	16	2344	146	20-280	85	71
JMDG8Y-700	710	24	20	2080	101	20-280	85	75
JMDG8Y-800	810	24	20	2373	116	20-280	85	75
JMDG8Y-900	889	24	20	2604	127	20-280	85	75
JMDG8Y-1000	1000	24	20	2930	143	20-280	85	75
JMDG8Y-1100	1117	22	18	2945	160	20-280	90	75
JMDG8Y-1200	1178	22	18	3106	168	20-280	90	75
