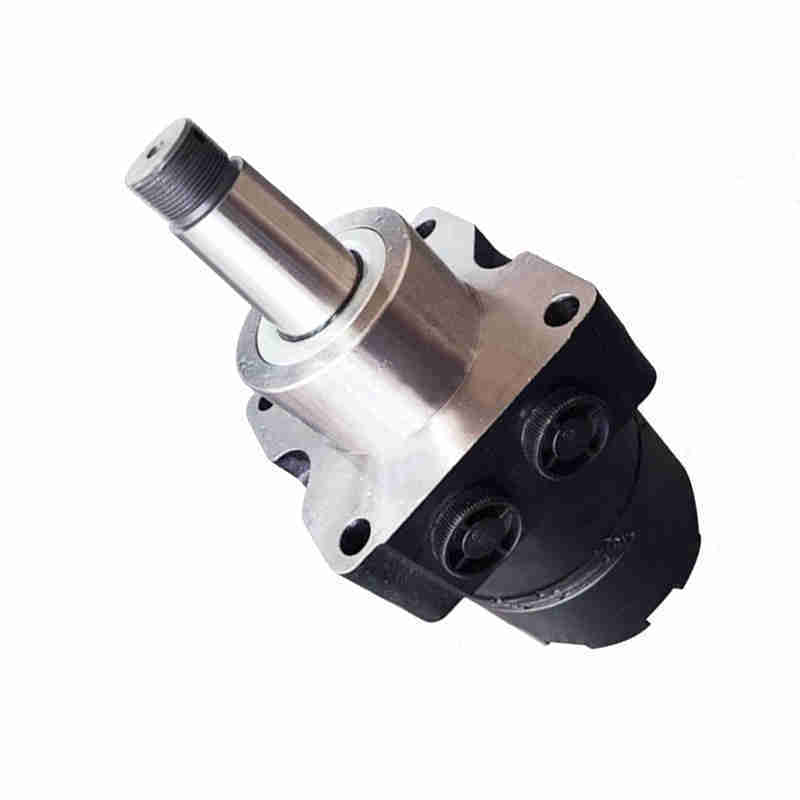

BMER Series Orbit Orbital Hydraulic Motor

Send Inquiry

Product Description

BMER series orbital hydraulic motor is an advanced hydraulic motor with high-speed flow distribution structure. This series of motors use a column-mounted rotating stator pair, which has high working pressure, high working efficiency, good low-speed stability, and can maintain high volumetric efficiency. The whole machine has the characteristics of good high efficiency retention and long working life. On the basis of standard structure, multi-functional variant design can be carried out according to user requirements. Its characteristics:

• The use of advanced stator parameter design, low starting pressure, high efficiency and good retention.
• High working pressure and large output torque. The needle roller bearing structure is adopted, which has strong ability to bear shaft and radial load, so that the motor can directly drive the working mechanism and expand the scope of use.
• Advanced high-speed flow distribution structure, so that the motor with high precision, automatic compensation ability after wear, to ensure high volumetric efficiency, motor long life, to ensure that the motor speed is stable, smooth load speed characteristics.
• The flow distribution system has the characteristics of low leakage. The rotation speed of the flow distribution plate is 6
times the output speed, which makes the motor have high flow distribution accuracy, strong automatic compensation ability after wear, and ensures high volumetric efficiency. The motor has the characteristics of smooth movement at low speed.

Type			BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type				125	160	200	230	250	300	350	375
Actual displacement			130.6	164	202.8	227.8	262	298.4	353	375.8
(Cm³/rev.)			130.6	164	202.8	227.8	262	298.4	353	375.8
Maximum speed	Continuous	360	365	320	290	272	255	215	190
(Rpm)	Intermittent	480	447	405	365	337	310	263	235
Maximum torque	Continuous	360	470	560	625	710	815	925	990
(N• m)	Intermittent	420	550	650	730	820	940	1050	1140
	Peak	500	625	775	870	990	1127	1318	1360
Maximum power	Continuous	13	15	15.5	16	17.5	18	17.5	16.5
(KW)	Intermittent	15	17.5	18	19	20	21	20	19
Maximum pressure	Continuous	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5
(MPa)	Intermittent	24	24	24	24	24	24	24	24
	Peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6
Maximum flow	Continuous	50	60	70	70	75	80	80	75
(L/min)	Intermittent	65	75	85	85	90	95	95	90

1	Structure Code	BMT
2	*Displacement*	160 200 230 250 315 400 500 630 800
3	*Flange, stop*	4: 4-φ14 square flange, φ160, stop φ125X9 K6: 4-φ14.5 square flange, φ162, stop φ127X9
4	*Shaft extension*	M: Straight axis φ40, length 82, flat key 12X8X70,M12 FD: Involute spline shaft φ38.1, length 82,17-DP12/24,M12 FE: Involute spline shaft φ38.1, length 57,17-DP12/24,3/8-16UNC FG: Involute spline shaft φ38.1, length 114,17-DP12/24, shaft head φ25X26.7 SL: Rectangular spline shaft 6-34.85X28.14X8.64, long 102,M8 G: Straight axis φ38.1, length 82, flat key 9.525X9.525X57.15,3/8-16UNC G1: Straight axis φ31.75, length 57, flat key 7.96X7.96X40,3/8-16UNC J: Rectangular spline shaft 6-30X24.8X6, long 46.2,M8 T: Φ45 cone shaft, taper 1:10, cone length 54, flat key 12828, shaft head length 82, shaft end thread M30X2
5	*Oil outlet and outlet*	D: G3/4,G1/4, plate type 4-M10 M: M27X2,M14X1.5, PLATE 4-M10 S: 1-1/16-12UN 'O'-ring,9/16-18UNF 'O'-ring S1: 1-1/16-12UN 'O'-ring,7/16-20UNF 'O'-ring G: G3/4,G1/4 M: 3M27X2,M14X1.5
6	*Rotating condition*	None: Standard R: Reverse
7	Paint Options	00: No paint None: Blue paint B: Black paint S: Silver gray paint
8	Special Function	None General

Note: When using the ordering information, the user can write the motor structure, displacement, mounting flange, shaft extension, oil inlet and outlet and other information to us according to the above format by selecting the code of the colored part on the left. If the selected specifications are not in the above table or special requirements, please contact us.

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
