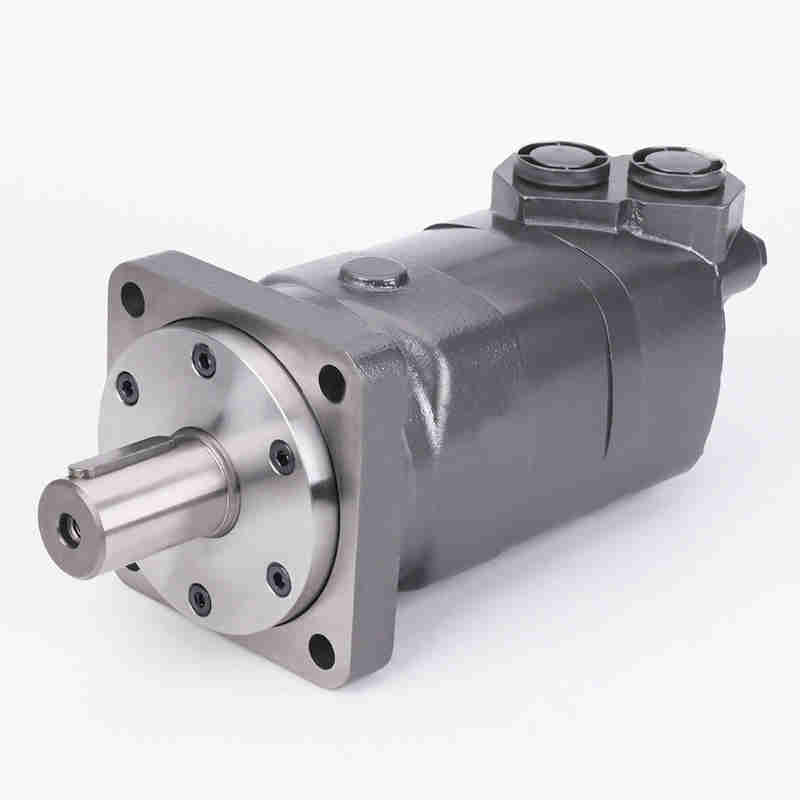

BM6 Series Orbital Hydraulic Motor

BM6 series orbital hydraulic motor is a kind of advanced plane distribution structure of hydraulic motor, the series of motor using the insert column rotating stator pair, with high working pressure, high efficiency, high efficiency and good retention, long working life characteristics. On the basis......

Send Inquiry

Product Description

• The use of advanced stator parameter design, low starting pressure, high efficiency and good retention.
• Advanced plane flow distribution structure, so that the motor with high precision, wear after the automatic compensation
function is strong, to ensure high volumetric efficiency, motor long life, to ensure that the motor speed is stable, smooth load speed characteristics. It can withstand high working pressure and large output torque.
• Advanced rotary shaft seal design to withstand high back pressure capacity.
• Tapered roller bearing structure, bearing shaft, radial load capacity, the motor can directly drive the working mechanism, a wide range of applications.

Type			BM6 195	BM6 245	BM6 310	BM6 390	BM6 490	BM6 630	BM6 800	BM6 985
Actual displacement (cm³/rev.)			195.7	246.2	311.7	391.4	491	623.2	802.6	982
Maximum speed (rpm)	Continuous	745	590	466	370	300	235	182	150
Maximum speed (rpm)		Intermittent	860	824	710	570	454	355	275	225
Maximum torque (N.m)	Continuous	560	705	892	1120	1410	1550	1580	1850
Maximum torque (N.m)		Intermittent	840	1060	1325	1625	1870	1900	1700	1850
Maximum working pressure difference (MPa)	Continuous	20	20	20	20	20	17.5	14	14
		Intermittent	30	30	30	30	27.5	22.5	15.5	14
		Peak	30	30	30	30	30	24	17.5	17
Maximum flow (L/min)	Continuous	150	150	150	150	150	150	150	150
Maximum flow (L/min)		Intermittent	170	205	225	225	225	225	225	225

* Continuous value refers to the maximum value that the displacement motor can work continuously.
* The intermittent value refers to the maximum value of the displacement motor working for 6 seconds in 1 minute.
* The peak value refers to the maximum value of the displacement motor working for 0.6 seconds in 1 minute.

--------- Recommended oil: anti-wear hydraulic oil, viscosity 37 ~ 73cSt, oil cleanliness IS018/13, the highest working oil temperature 82 ℃.
----------Special dynamic seal design, the back pressure allowed by the motor can reach 7 ~ 20MPa (optional), but in order to obtain good service life and comprehensive performance, it is recommended to use the back pressure not to exceed 5MPa. When exceeding theimit, it is recommended to connect the external leakage oil pipe. When connecting the external leakage pipe, it should be ensured that the motor can always be filled with oil. The drain pipe should have a certain throttle to keep the back pressure above 3.5Bar. In addition to maintaining a low back pressure, the external drain pipe can also take away the wear and pollution generated in the motor, and can produce a certain cooling effect.
----------The motor should have a running-in period before full load work, and it is recommended to run in less than 30% of the maximum working pressure for 1 hour. The maximum output torque of the motor is related to the selected shaft type.

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
