9 Inch Standard Duty Earth Auger for 3-point Tractor Mounted Post Hole Diggers

9-inch soil auger for three-point traction pile excavatorThe 9-inch standard soil drill is a gardening tool used to dig holes in the ground. It has a spiral metal blade that can rotate and cut the soil to create a hole for planting trees, placing fence posts or installing other garden fixtures. The ......

Send Inquiry

Product Description

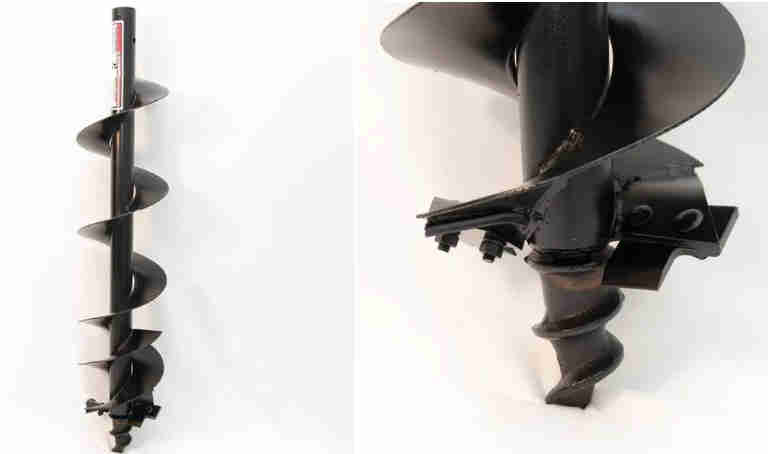

9-inch soil auger for three-point traction pile excavator

The 9-inch standard soil drill is a gardening tool used to dig holes in the ground. It has a spiral metal blade that can rotate and cut the soil to create a hole for planting trees, placing fence posts or installing other garden fixtures. The term "standard load" refers to the size and capacity of the auger, which is designed for medium load and occasional use. It is compatible with most hand-held and electric drills and is an ideal choice for home gardening or small landscaping projects. However, for heavy drilling, it is recommended to use larger and stronger soil drill.

9 inch standard earth auger specifications 9 "diameter soil auger for three-point tractors and sliding steering column excavators The equivalent equipment of Speedco 65 and 70 post-drilling excavators, and more! Replaceable cutting edge. It is sold by us and most farm stores. Installed on all gearboxes with 2 "smooth bore output shafts... King Cutter, Speedo, Country Line, Work Saver, Bush Hog, etc. 9 "diameter. 48 inches long. Gearbox shaft mounting bolt holes are located at 2 "centers at 90 degrees from each other (standard)\ High-quality units, great excavation! With the support of our excellent customer support team.

9-inch standard soil auger for sale

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

For more details, please click here to contact us!

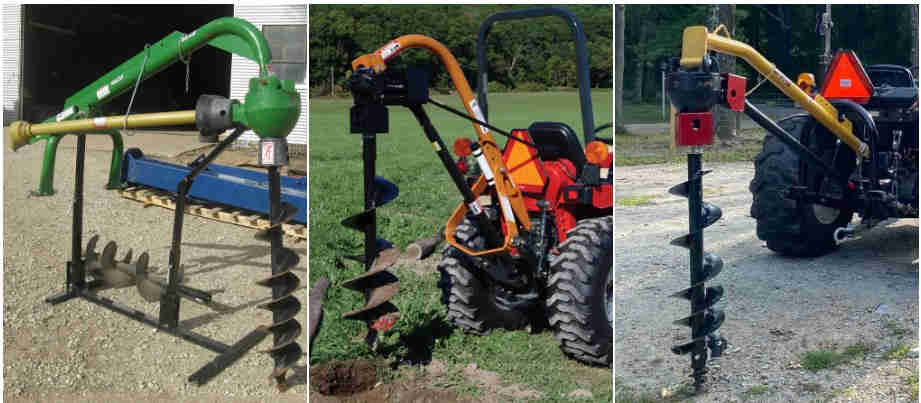

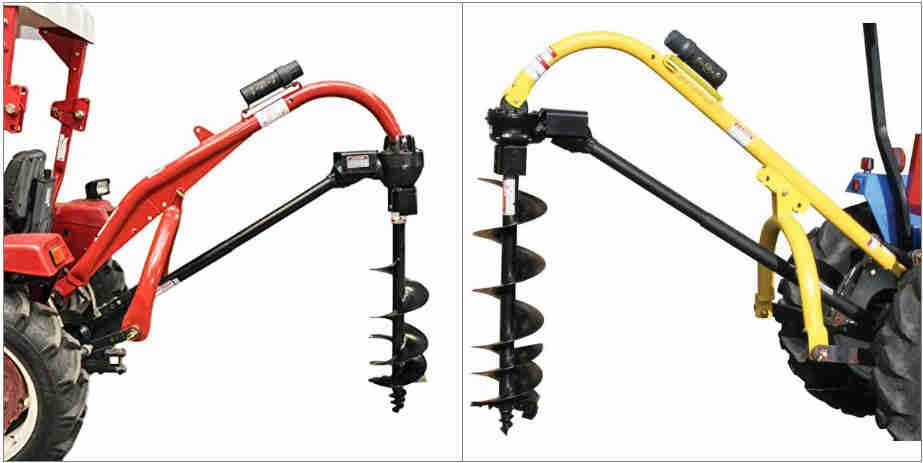

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Application of 9-inch standard earth screw conveyor

The 9-inch standard soil drill can be used for various outdoor applications, including: Application of 9-inch soil drill 1. Tree planting: When planting trees, it is important to dig a hole deep enough and wide enough to safely accommodate the root ball. The 9-inch drill bit can form a hole deep enough to prevent the roots from being bound, and wide enough to leave enough space for the trees to grow. 2. Installation of fence post: Installation of fence post may be a tedious and time-consuming process, but using soil drill can make it easier to manage. A 9-inch soil drill bit can form a hole of proper size to properly accommodate the fence post, making the installation process faster and easier. 3. Soil sampling: soil sampling needs to collect soil samples at a specific depth. A 9-inch soil auger can be an effective tool to achieve this purpose. The soil drill bit can form a uniform hole for sampling and has little interference with the surrounding soil. 4. Groundwater monitoring: groundwater monitoring wells are used to monitor and measure water level fluctuations. A 9-inch soil drill can be used to drill a hole deep enough to install the well. 5. Install the flagpole: a 9-inch drill bit can form a hole of suitable size to accommodate the flagpole. With the correct hole size, the flagpole will be horizontal, stable and safe. In general, the 9-inch standard soil drill is a multifunctional and efficient tool that can be used for various outdoor applications.

Characteristics of 9-inch standard earth spiral bit Some potential functions of the 9-inch standard earth drill bit may include: High quality steel structure: the soil auger bit shall be made of durable steel, which can withstand rough use and resist bending or fracture. Replaceable blade: with the passage of time, the blade on the earth auger bit may be worn, so having a replaceable blade can extend the service life of the earth auger bit. 9 inch diameter: 9 inch diameter shall be suitable for drilling holes for various applications, such as planting trees, fence piles, and even for soil sampling. Universal type: The auger bit shall be designed for most types of augers with a shaft diameter of 2 inches. Bolt connection installation: use a simple bolt connection system, and the installation of auger bit should be simple and clear. Paint finish: paint finish can protect steel from corrosion and other forms of corrosion. Spiral design: spiral design can effectively excavate and help to quickly remove dirt or soil in the borehole. In general, the functions of 9-inch standard soil auger bits may vary by manufacturer and model. It is necessary to carry out thorough research and select the soil drill bit that best suits your needs and the type of soil to be excavated.

How to select the correct PTO shaft for the standard load earth auger?

Selecting the proper PTO (power take-off) shaft for the standard load soil auger may be the key decision to ensure the best performance and safety. Here are some steps to follow to select the correct PTO shaft for your soil drill: Determine the torque required for efficient operation of your soil drill. Torque describes the rotating force working in the soil auger, which helps to decompose dirt, soil and other materials. Determine the rotational speed (RPM) required for effective operation of your earth auger. Generally, the speed of the mud auger is about 540 rpm, but this may vary depending on the design and specification of the auger. Calculate the power output of the tractor or other power sources. According to the size and type of the equipment, the power output ranges from 20-100 horsepower (HP). Select a PTO shaft that can handle the auger torque and RPM requirements as well as the tractor power output. Look for PTO shafts that are compatible with your equipment, such as those with the appropriate diameter, length and number of splines, to suit your tractor and auger. Check whether there are safety functions such as protective devices or shields to protect the operator from the rotating shaft and prevent debris from flying out. Finally, be sure to follow all the manufacturer's guidelines for installing and operating the soil auger and PTO shaft to ensure safe and effective performance.

Installing the PTO shaft of the pile excavator on the three-point tractor PTO (power take-off) is an important component that connects the tractor's power source to the pile excavator. The PTO shaft of the three-point tractor pile excavator is usually composed of universal joints at both ends and is about 4-5 feet long. This shaft is responsible for transferring power from the PTO of the tractor to the excavator after drilling to effectively drill holes on the ground. It is necessary to ensure that the size and length of the PTO shaft are suitable for the specific tractor and post-drilling excavator model. Using the incorrect shaft or connecting the shaft to the tractor or implement incorrectly may cause damage, safety hazards or inefficiency. It is best to refer to the equipment manual or professional personnel to select and install the correct PTO shaft.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
