5V Series Cast Iron Five-Groove American Standard Pulley Sheaves With Split Taper Bushings for 5V Belts

5V Series Cast Iron Five-Groove Sheaves with Split Taper Bushings for "5V" Belts5V series five groove tapered bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.60 "to 50.0". According to the pulley size, they use Q2, R1, S1 or U1 split t......

Send Inquiry

Product Description

5V Series Cast Iron Five-Groove Sheaves with Split Taper Bushings for "5V" Belts

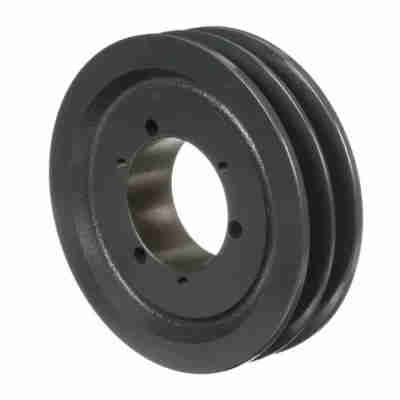

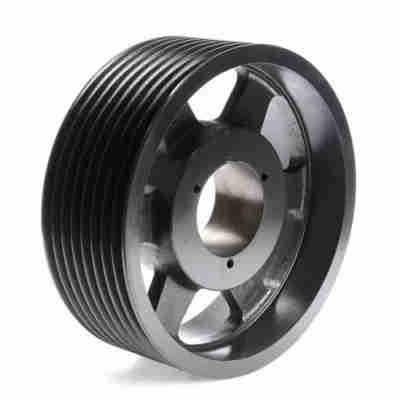

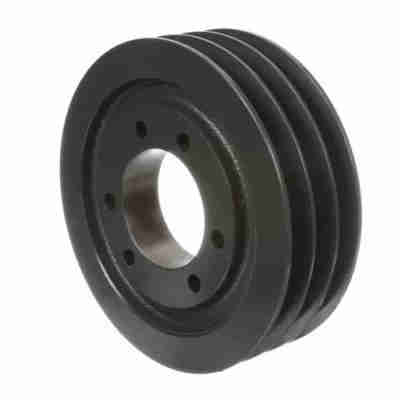

5V series five groove tapered bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.60 "to 50.0". According to the pulley size, they use Q2, R1, S1 or U1 split taper bushings, which we also have in stock. Most of our five groove 5V split taper pulleys are made of high strength grade 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

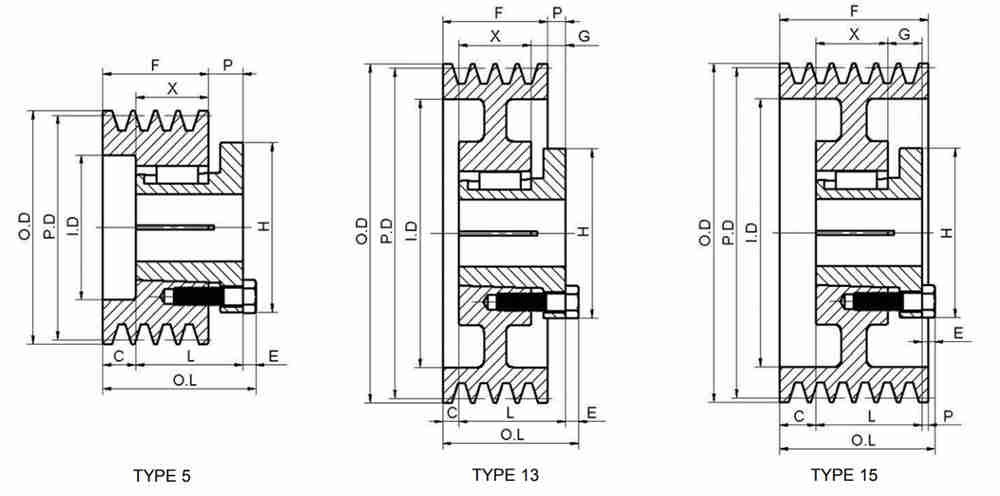

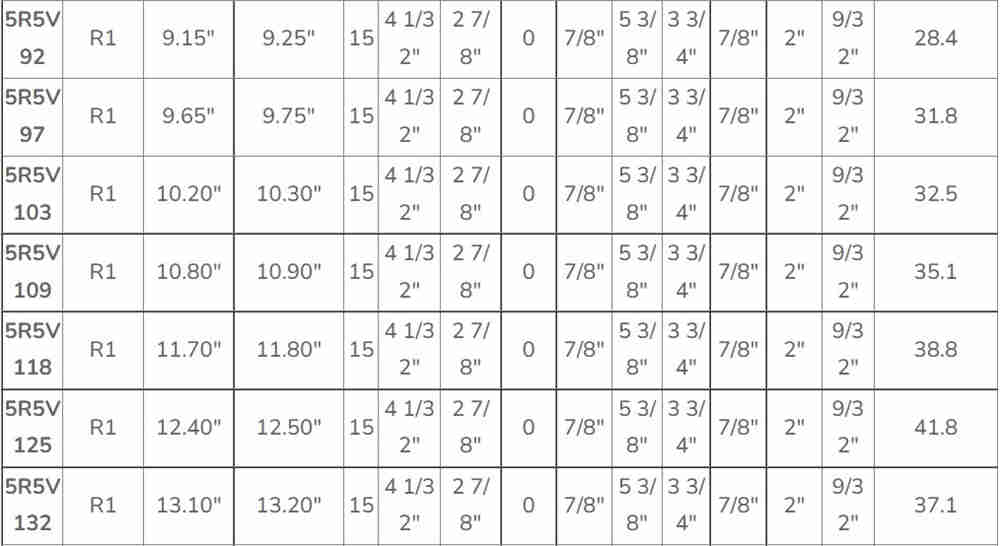

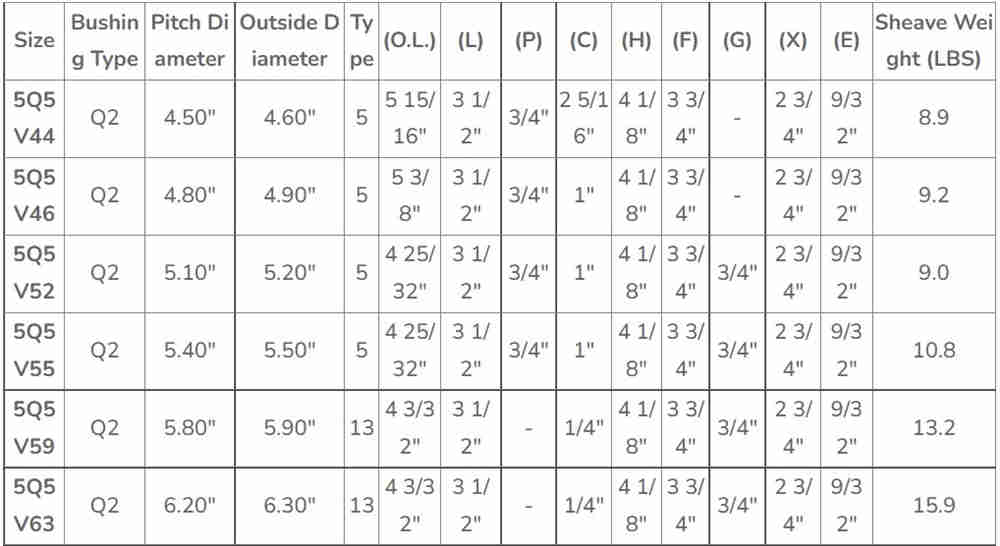

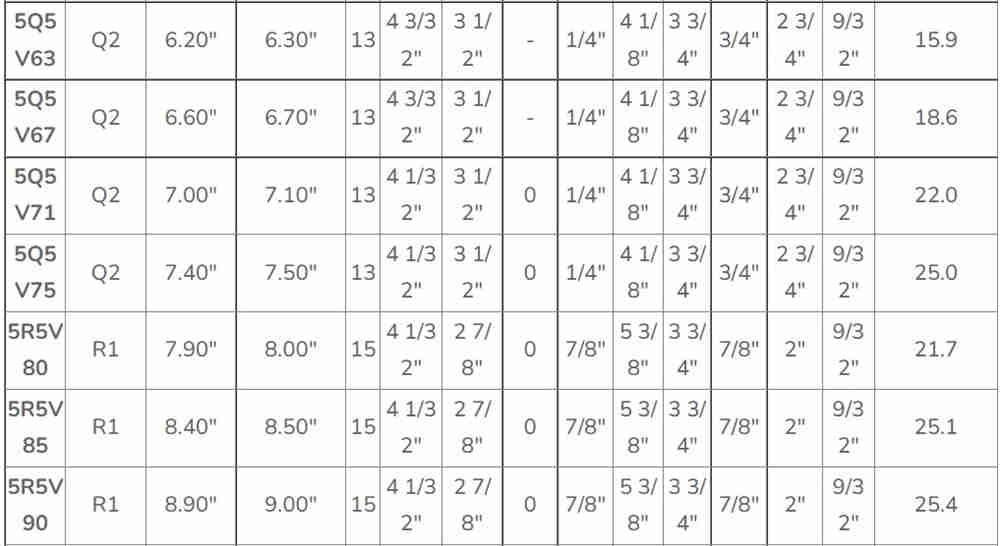

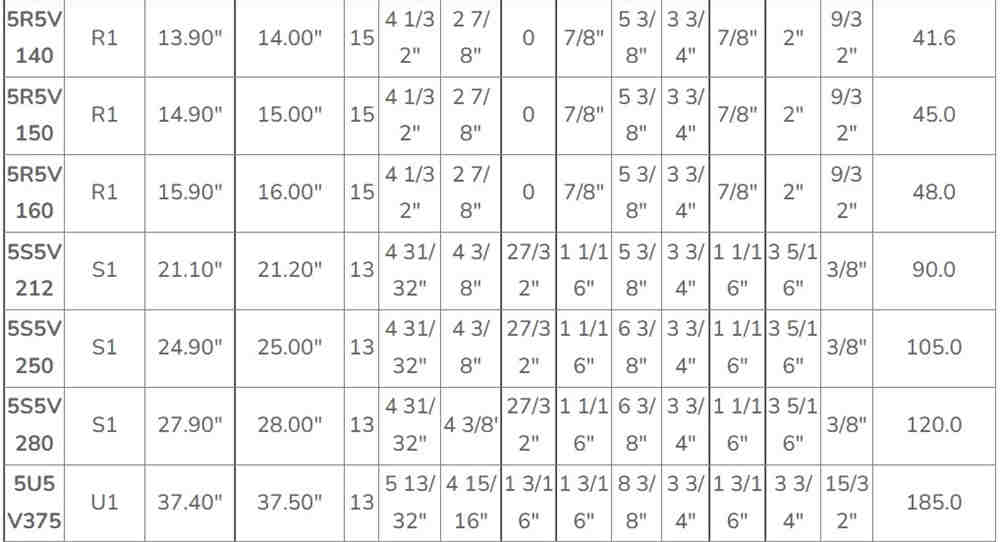

Five-Groove 5V Split Taper Sheave Size Chart

For more details, please click here to contact us!

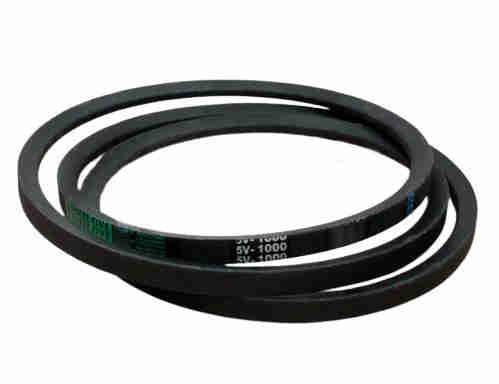

Supporting 5V, 5VX series V belt (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. (2) 5V series ribbon V-belt The 5V series V-belts are part of the "classic" series of V-belts because they are one of the oldest and most common belts. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ".

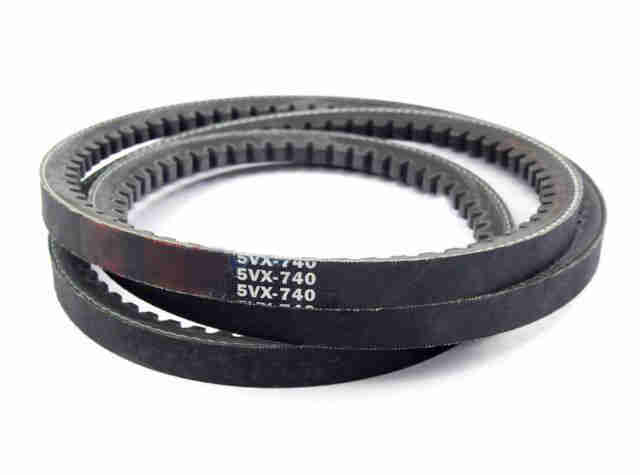

(3) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will be used in conjunction with existing vertical v-belt pulleys/pulleys. (4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt. For more information or a quote, please contact us and we are happy to help you.

Split Taper Bushings Accessories

Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters.

Installation of split taper bushing 1. Make sure that the tapered surface of the bushing and the inside of the driven product are clean and free of anti seize lubricant. 2. Place the bushing in the sprocket or other part type that accepts the bushing. 3. Place the cap screw loosely in the upper pull hole. The bushing remains loose to ensure a sliding fit on the shaft. 4. Place the key on the shaft and slide the sprocket or other part type to the desired position on the column. Make sure that the head of the cap screw is accessible. 5. Align the sprocket or part type and tighten the screws alternately and gradually until they are tightened. At this time, there should be a gap between the bushing flange and the sprocket; Make sure that the gap does not close. Do not use an extension on the wrench handle; Do not allow the sprocket or parts to contact the bushing flange.

Removal of separation cone bushing 1. Loosen and remove the cap screws. 2. Insert the cap screw into the threaded removal hole. 3. Tighten the inserted screw until the sprocket or other part type is loose on the shaft. 4. Remove the sprocket/part type from the shaft.

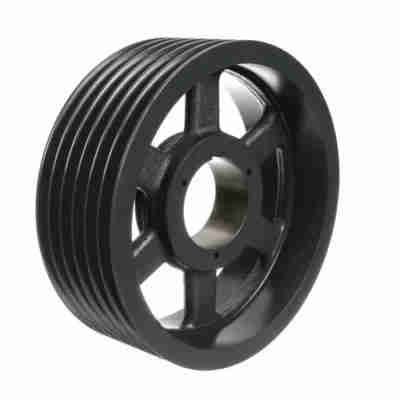

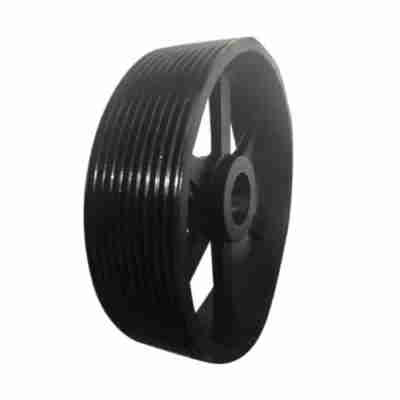

5V pulley of V-belt The 5V pulley is specially made for 5V series V-belts and ribbon 5V belts. Our 5V type v pulleys are manufactured according to ARPM standards, so they can be immediately interchanged with other manufacturers. The 5V pulley has only a tapered lock design and a QD (quick detachable) design for the diversity of lifting holes. The difference between our pulleys and other individuals on the market is that most pulleys are made of Grade 35 cast iron as a substitute for the standard Grade 25. This makes the pulley stronger and more wear-resistant. Another thing to note is that these pulleys have been dynamically balanced to achieve smoother operation and reduce vibration, thus extending the service life of bearings and machinery. In addition, they can be phosphate and painted to increase corrosion protection.

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Our also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
