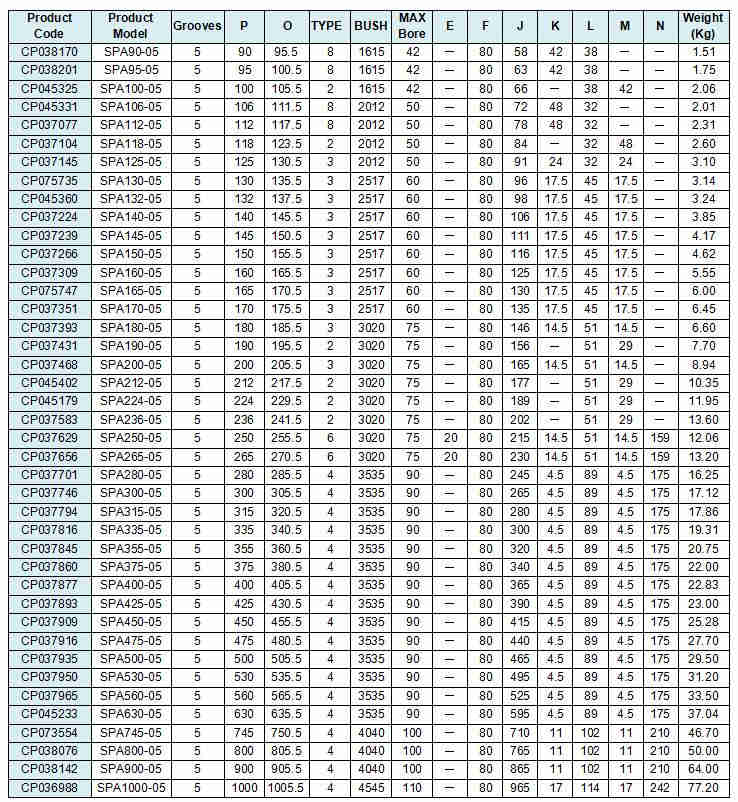

Belt pulley Type drawing & Dimension

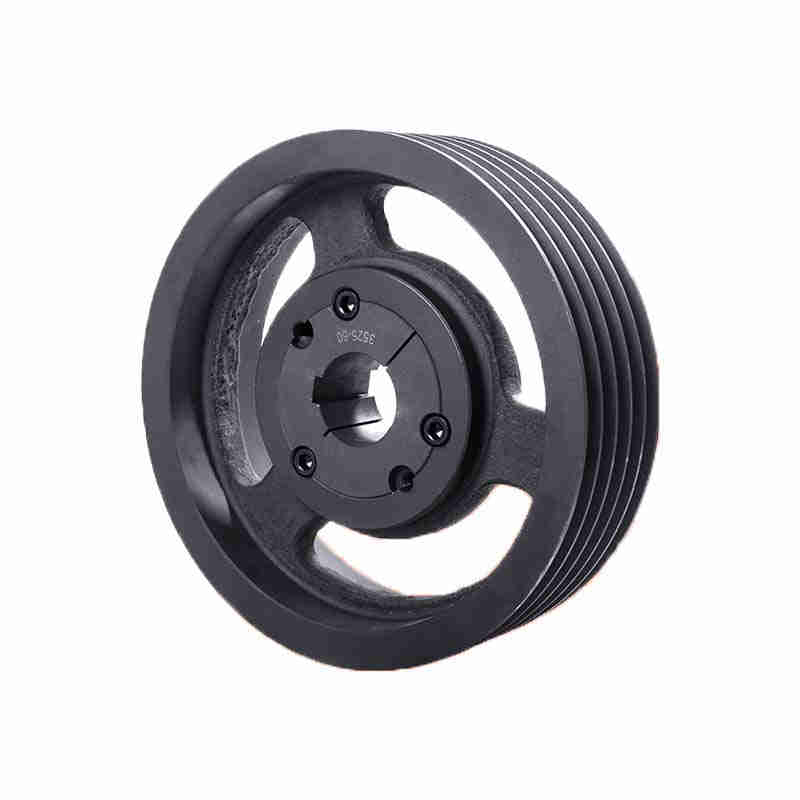

Product Name:V Belt Pulley
Belt Section:SPA
Grooves: 5 grooves
Equipped with Taper Bush:
CPT Pulley Features:
| CPT Pulley Range | power transmission grooved v belt pulleys (U groove pulley), timing pulleys, poly-v belt pulleys, adjustable pulleys |
| Material | steel, cast iron, ductile cast iron, alloy |
| Bore Type | prebore, finished bore, pilot bore, taper bore, bore with keyway |
| Pulley Type | solid, web, spoke |
| Pulley Groove Number | 1 ~ 12 |
| Outside Diameter | 10mm ~ 1900mm |
| Belt Section | SPA, SPB, SPC, SPZ metric pulleys A, B, C, D, TA, TB, TC, 3V, 5V, 8V inch pulleys |
| Balance | Static balance, Dynamic balance |
| Surface Treatment | Black electrophoresis, Grey electrophoresis, Black phosphating, Black oxide, Powder coating |

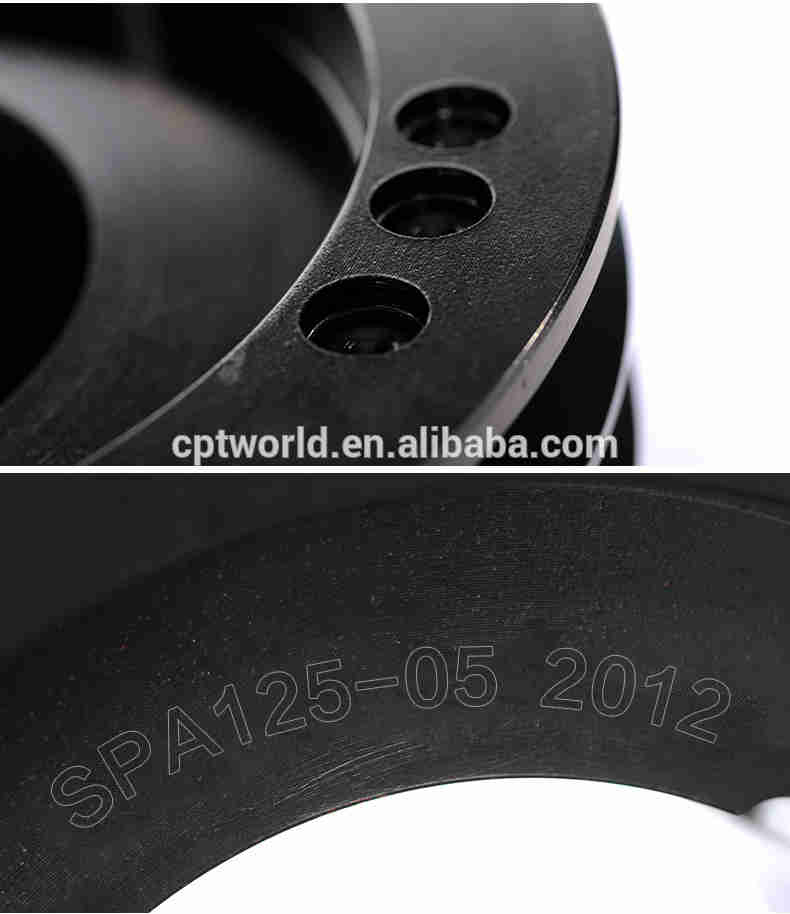

| Marking Method | Laser marking, Pneumatic marking |
Sichuan Dawn Precision Technology Co. Ltd was founded in April 1995. Now we are the professional manufacturer of pulley, bushing , and other mechanical transmission parts. Now we own 45 product patents and 3 technological achievements , management system has integrated ISO9001,TS16949,ISO14001,OHSAS18001.
Heat treatment & surface treatment equipment mainly contains Multi-purpose furnace heat treatment line, pit and box-type furnace , black oxide surface treatment line , black phosphate surface treatment line, pre-treatment processing line, E-coating production line, plating production line,powder coating production line, sewage treatment station and so on.
Please contact us or go to homepage for more product information.
Strong OEM ability will meet all your special needs!
Our main customers are all world famous brands, like: ABB, s, Sati and a, etc.
Your satisfaction is our foremost concern and any inquiry is warmly welcomed.
