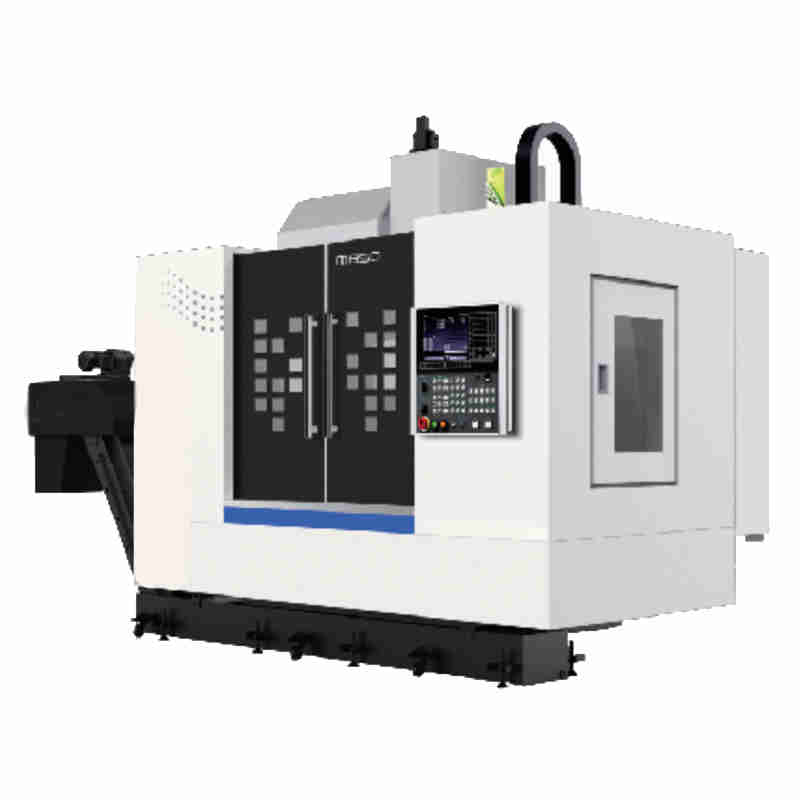

3 Axis Vertical CNC Turning Machining Vs Milling Center Lathe Machine Price MDH80 Brand CNC Lathe

TABLEWorktable sizemm800*800Workpiece size rangemmφ1110*1220Max load of worktablekg1300X/Y/Z axis travelmm1050/900/900SPINDLESpindle speedr/min8000(6000/12000 Optional)Spindle taperNO.50(7:24)Spindle drive modeMotorized spindleSpindle powerkw18.5Spindle maximum torquenm24MOVEMENTX/Y/Z cutting speedm......

Send Inquiry

Product Description

TABLE	Worktable size	mm	800*800
		Workpiece size range	mm	φ1110*1220
		Max load of worktable	kg	1300
		X/Y/Z axis travel	mm	1050/900/900
SPINDLE	Spindle speed	r/min	8000(6000/12000 Optional)
		Spindle taper		NO.50(7:24)
		Spindle drive mode		Motorized spindle
		Spindle power	kw	18.5
		Spindle maximum torque	nm	24
MOVEMENT	X/Y/Z cutting speed	m/min	20
MOVEMENT	MOVEMENT	X/Y/Z feeding speed	m/min	54
ATC SYSTEM	Tool magazine capacity		40(60/80/120 Optional)
		Tool shank type		BT50-45°
		Max. tool weight	kg	25
		Max. tool diameter (w/o adjacent tools)	mm	φ115
		Max.tool length	mm	500
		Time of tool change (T-T)	s	2
ACCURACY	X/Y/Z axis positioning accuracy	mm	0.01
ACCURACY		X/Y/Z axis repeatability accuracy	mm	0.006
CONTROL SYSTEM	Controller		GSK/SIEMENS/FANUC
