2158_E8333 Rotating Drive Piston Lubrication Pump for Mch-ale V660 F5500/F5600 Round Baler Replacement of 10138503/AZU/AZUL

MALP-O12 Series Grease Rotating Drive Piston Lubrication PumpOutput rate: max. 0,06 cm³ per stroke and outlet; Input max. 600 r.p.m. at 8.16:1 speed: Suction height: max. 600 mm; Operating pressure: max. 10bar Lubricant: oil; Viscosity range: 25 - 1500 mm /s; Operating temperature:: -35 - 70 ......

Send Inquiry

Product Description

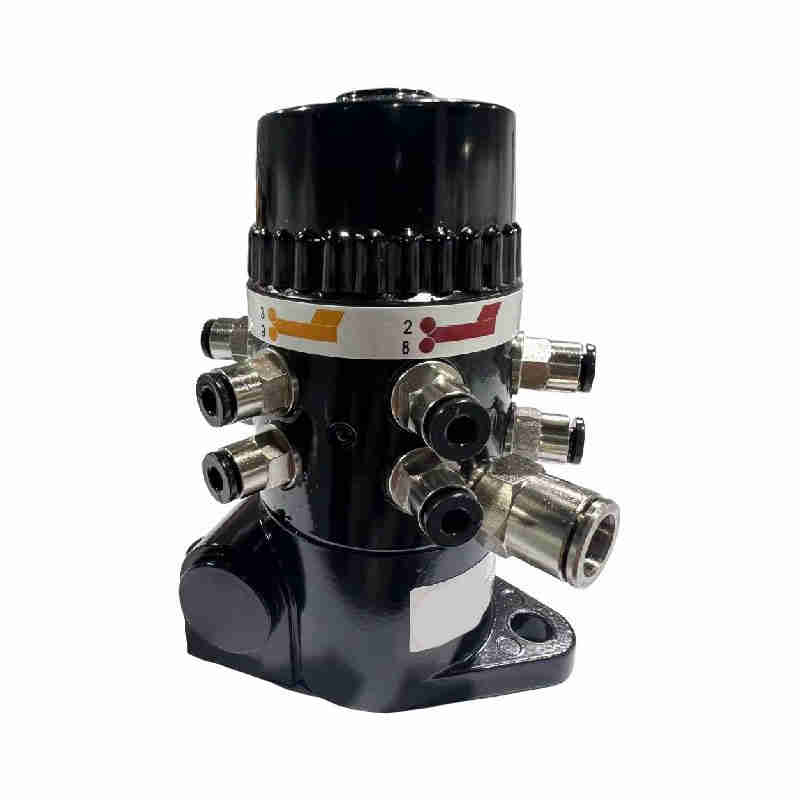

MALP-O12 Series Grease Rotating Drive Piston Lubrication Pump

Output rate: max. 0,06 cm³ per stroke and outlet; Input max. 600 r.p.m. at 8.16:1 speed:
Suction height: max. 600 mm;
Operating pressure: max. 10bar
Lubricant: oil;
Viscosity range: 25 - 1500 mm /s;
Operating temperature:: -35 - 70 °C
No. of outlets: max. 12

Output rate:	Max. 0.06 cm³ per stroke one outlet
Regulation of output	1 - 6 individual outlets 7 - 12 outlets in pairs
Input speed	Max. 900 r.p.m. at 8.16:1
Operating pressure	Max. 15 bar
Suction height	Max. 2000mm
Lubricant	oil
Viscosity range	25 - 1500 mm 2 /s
Operating temperature	-35 - 70 °C
No. of outlets	Max. 12
Outlet type	See order key
Sense of rotation	Optional
Drive	Rotating
Weight	1,5 kg
Varnish:	Black (pump body and housing)

SUMMARY

Turning the set screw clockwise increases the output rate; Turning counter clockwise reduces it;

OPERATION:

1)Take off the screw-on lid, use the set screw;

2)Turn 1/6 rotations of set screw one time;

3)One turn of the set screw reduces the output by ¼ of the total delivery volume;

4)Adjust the desired rate and after that fix the screw-on lid again.

The lubrication points are supplied by the progressive distributors in a consecutive way.

KRO NE Big M 420 combine

CNH Tractor, 33 lubrication points

JD Sugar Cane Harvester, 71 points

Delivery volume per stroke (=1 pump revolution) and outlet	0.125cm³/0.175cm³ (depending on pump element)
Regulation	PE125/175
Reservoir capacity (effect.vol.)	4L(2L&3L&6L&8L)
Operating pressure	Max. 350bar
Pressure limiting valve set to	300bar
Pumped medium	greases up to NLGI-cl.2
Operating temperature	-35 ~ +70°C (depending on conveying medium)
Number of outlets	1-4 (Up to 6 exits can be customized)
Type of outlet	Ø 6 mm
Installation position	reservoir vertical,as shown
Degree of protection	IP 6K9K
Weight	5.6KG (w/o pump elements, w/o grease filling)
Motor
Drive	DC motor
Operational voltage	12/24 VDC
Nominal current	max. 3.5/2.2A
Stall current	max. 8.5/6.0A
Speed(=pump speed)	17r.p.m.
